We currently have 7 in stock.

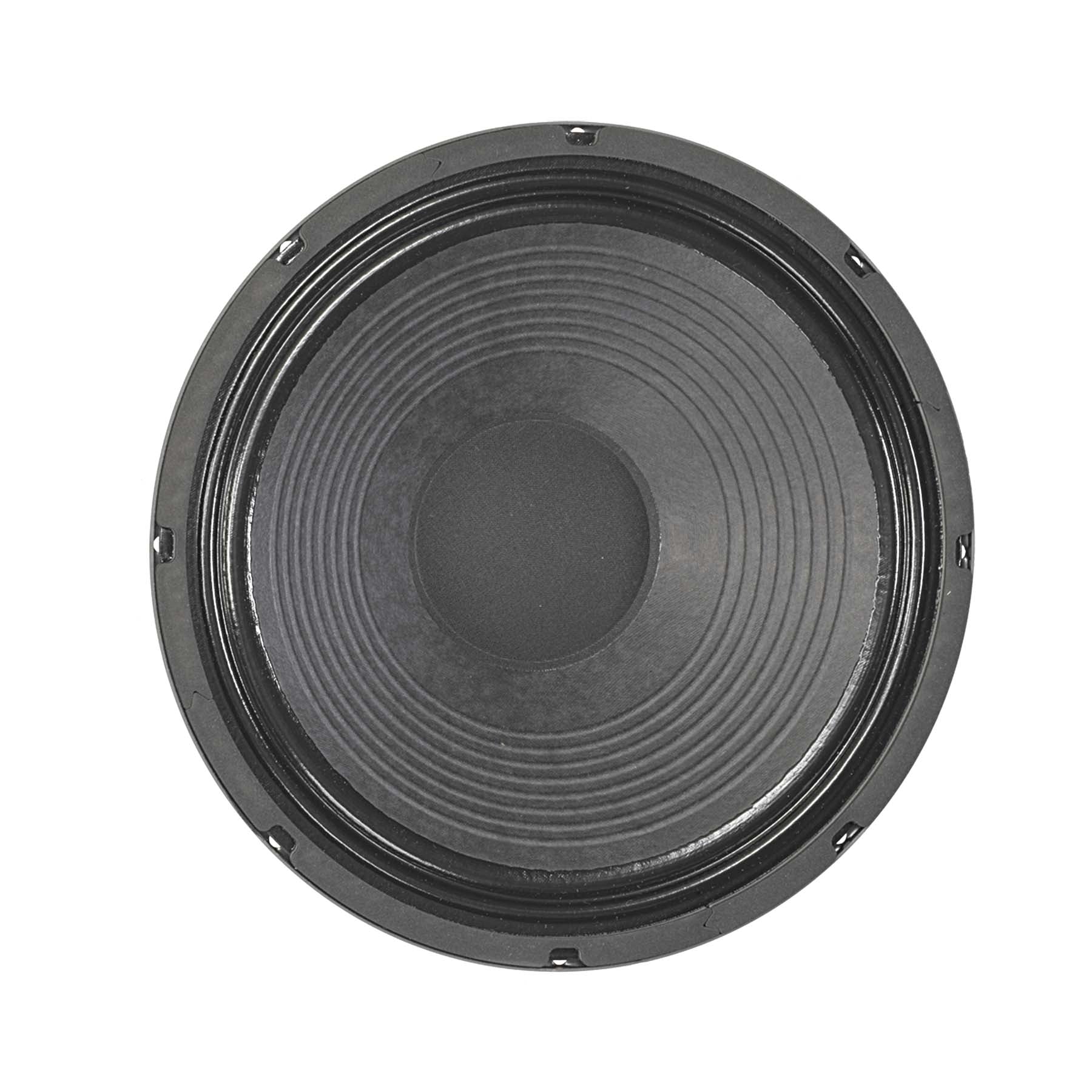

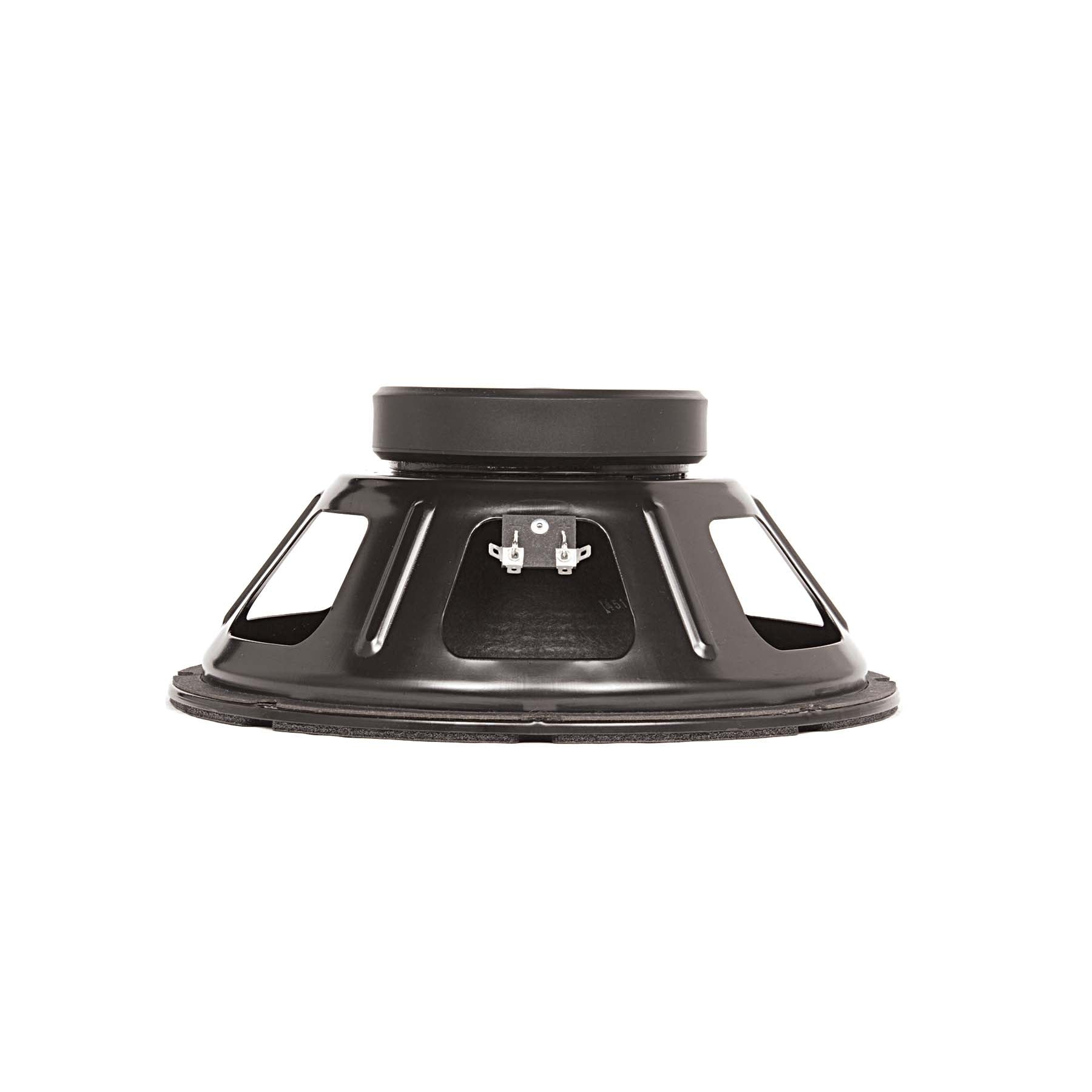

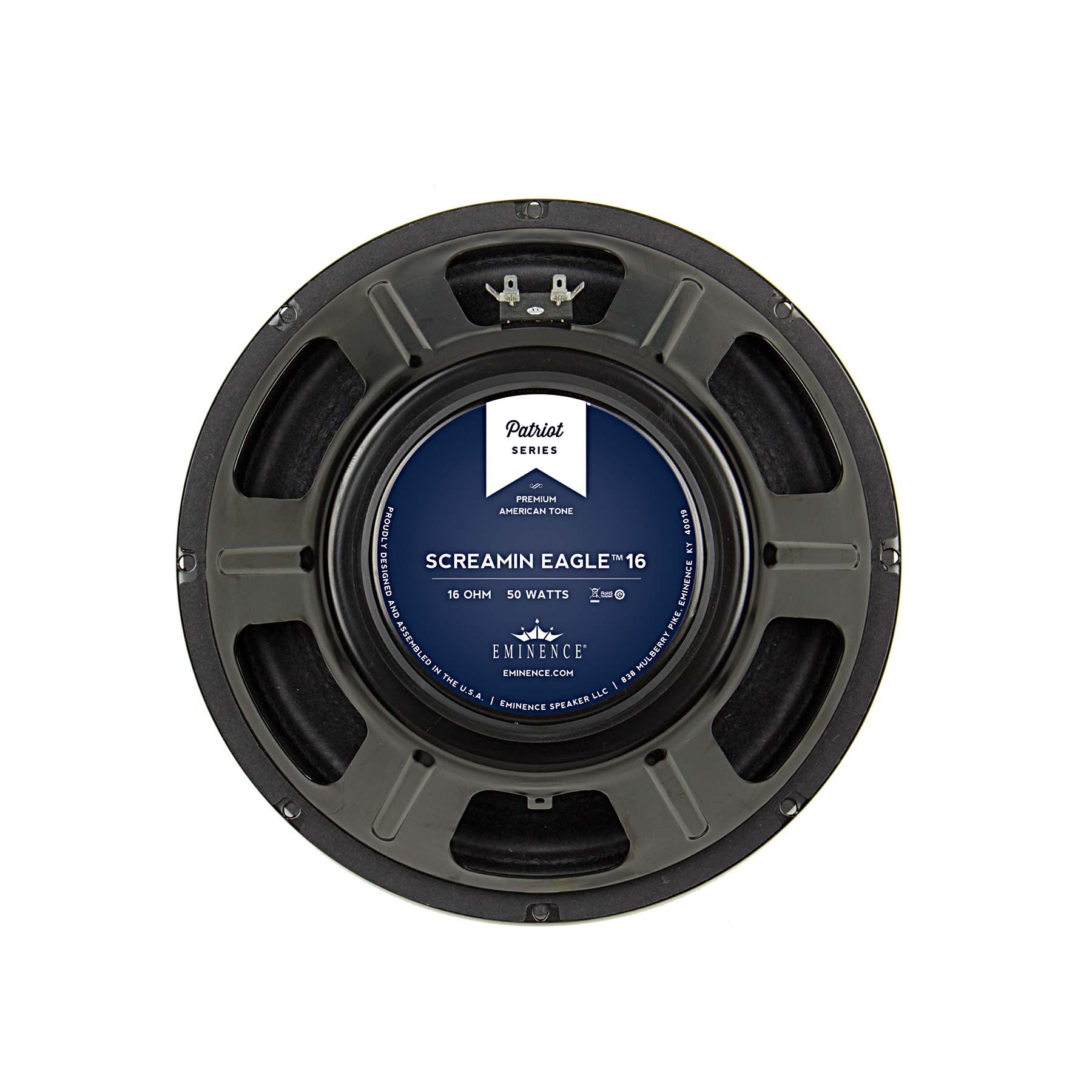

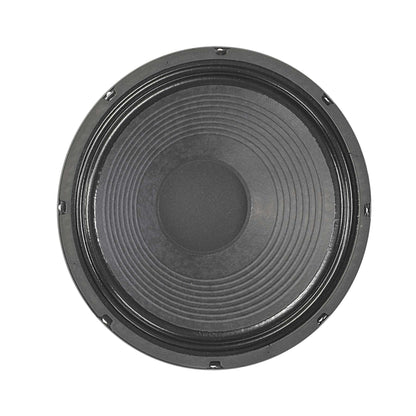

SCREAMIN EAGLE-16 12" Guitar Speaker- Discontinued (Limited Supply)

Wholesale customers, please SIGN IN to see pricing and place orders.

Here's a final chance to grab the legendary "Screamin Eagle™"

Good news! We are selling these Screamin Eagle™-16 guitar speakers that an OEM partner canceled due to pandemic financial constraints. Although they were canceled, they are in new condition in unopened boxes. Additionally, all 33 Screamin Eagle™-16s have been tested, repackaged, and are ready for you. Additionally, come with the Eminence 7-year warranty.

The Eminence Screamin Eagle guitar speaker is the way to go for soarin' solos and tight rhythm. Bright and articulate tone with screaming top end and tight bass. Good club speaker for American Blues and Rock.

Characteristics

Series Patriot
Model Screamin' Eagle™
Application 12" Open or Closed Back
Configuration 1, 2, or 4 X 12"
Low-End Response Moderate
Low-End Shape Tight
Mid-Range Response Aggressive
Mid-Range Shape Crisp
High-End Response Aggressive
Volume/Power Loud
Overall Coloration* Bright and articulate tone with screaming top end and tight bass
Break-up Modes Medium
Power Range Up to 50 watts
Instrument* Lead/Rhythm Guitar
Genre of Music* Blues, Rock

Specifications

Download Spec Sheet
SPECIFICATION
Nominal Basket Diameter 12", 305 mm
Nominal Impedance* 16 Ω
Power Rating*
Program Power N/A
Watts 50 W
Resonance 92 Hz
Usable Frequency Range 80 Hz - 5.5 kHz
Sensitivity* 101.2 dB
Magnet Weight 38 oz.
Gap Height 0.312", 7.9 mm
Voice Coil Diameter 1.75", 44 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed Acceptable
Vented Acceptable
Driver Volume Displaced 0.068 cu.ft. / 1.93 liters
Overall Diameter 12.03", 305.6 mm
Baffle Hole Diameter 11.07", 281.2 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.25", 6.4mm
Mounting Holes B.C.D. 11.59", 294.4mm
Depth 5.10", 129.5 mm
Net Weight 8.3 lbs, 3.76 kg
Shipping Weight 10.2 lbs, 4.63 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Paper former
Magnet Composition Ferrite Magnet
Core Details Non-vented core

Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Paper cone edge
Dust Cap Composition Zurette dust cap

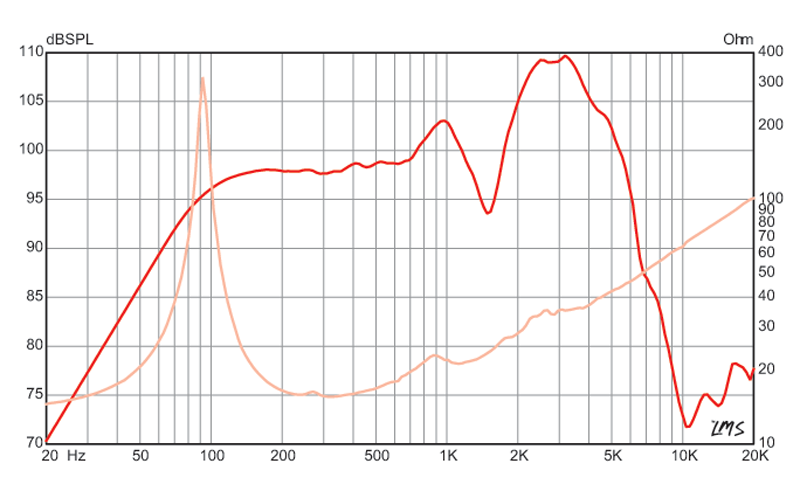

Frequency Response

response graph
