We currently have 25 in stock.

OMEGA PRO-15-2KW-8 15" Professional Series Speaker

Wholesale customers, please SIGN IN to see pricing and place orders.


What’s inside the Eminence Omega Pro 15-2KW-8? We could bore you with details about the high-power double layer, inside/outside wound copper coil with fiberglass former, weatherproofing treatments, or carefully optimized components. Still, we’re not getting any younger, and neither are you! Incorporated in the Eminence Omega Pro 15-2KW-8 is the experience you can trust derived from fifty-seven years of using, designing, and making loudspeakers.

Here’s why you need the Eminence Omega Pro 15-2KW-8. You’ll forget about lugging those extra subs around because your mains can’t go there. Omega Pro 2KW’s get low in those small vented boxes, with 4,000W (peak) AES power handling potential to ensure they get loud too. Not only are the parameters carefully selected to stand alone in the tiny tops of today, but Eminence specifically tailored their smooth frequency responses for the most manageable passive or active network designs you will ever encounter. Eminence engineers invested great care to ensure these drivers do the job for many years to come.

Applications

Mid-Bass | Subwoofer | Woofer | Pro Audio | Bass Guitar

Box Type: Vented | Scoop Loading | Horn Loading

Specifications

Download Spec Sheet      Download Cab Design
SPECIFICATION
Nominal Basket Diameter 15", 381 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power 2000 W
Watts 1000 W
Resonance 39.67 Hz
Usable Frequency Range 39 Hz - 1.245 kHz
Sensitivity* 94.9 dB
Magnet Weight 109 oz.
Gap Height 0.375", 9.5 mm
Voice Coil Diameter 4", 101.6 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 39.67 Hz
DC Resistance (Re) 5.95 Ω
Coil Inductance (Le) 1.13 m H
Mechanical Q (Qms) 13.9
Electromagnetic Q (Qes) 0.46
Total Q (Qts) 0.44
Compliance Equivalent Volume (Vas) 142.51 liters / 5.03 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 634 cc
Mechanical Compliance of Suspension (Cms) 0.14 mm/N
BL Product (BL) 19.07 T-M
Diaphragm Mass Inc. Airload (MMs) 111.87 grams
Efficiency Bandwidth Product (EBP) 86.96
Maximum Linear Excursion (Xmax) 7.4 mm
Surface Area of Cone (Sd) 856.3 cm2
Maximum Mechanical Limit (Xlim) 13 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed N/a
Vented 77.87-198.22 liters / 2.75-7 cu.ft.
Driver Volume Displaced 263 cu.in. / 4.31 liters
Overall Diameter 15.24", 387.1 mm
Baffle Hole Diameter 14", 355.6 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.275", 6.985mm
Mounting Holes B.C.D. 14.56", 369.8mm
Depth 6.42", 163 mm
Net Weight 22 lbs, 9.98 kg
Shipping Weight 26 lbs, 11.79 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Inside/outside Copper voice coil
Coil Former Fiberglass former
Magnet Composition Ferrite magnet
Core Details Vented and extended core
Backplate Details Vented
Basket Materials Die-cast aluminum basket
Cone Composition Water-resistant treated paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Water-resistant treated dust cap

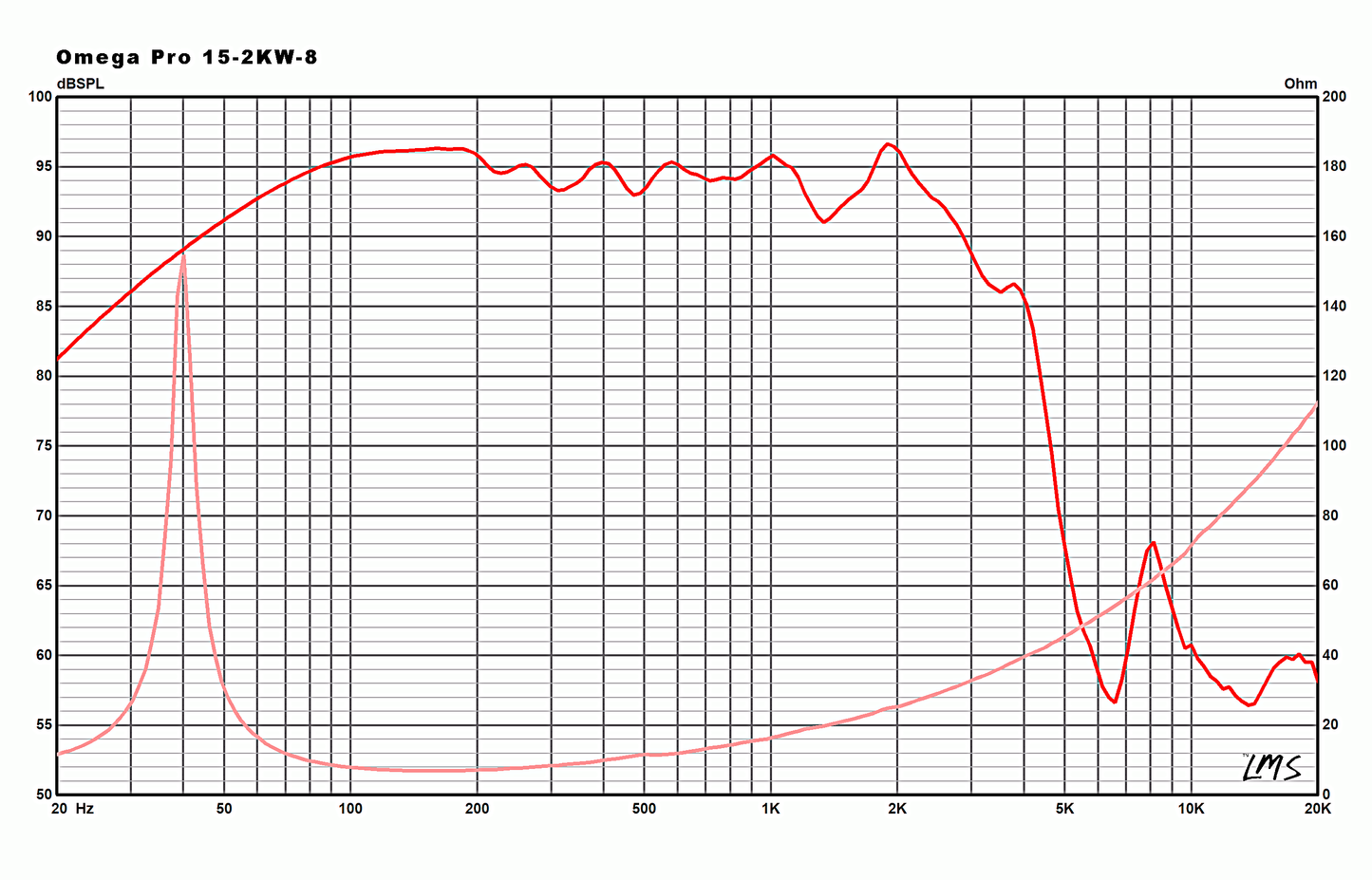

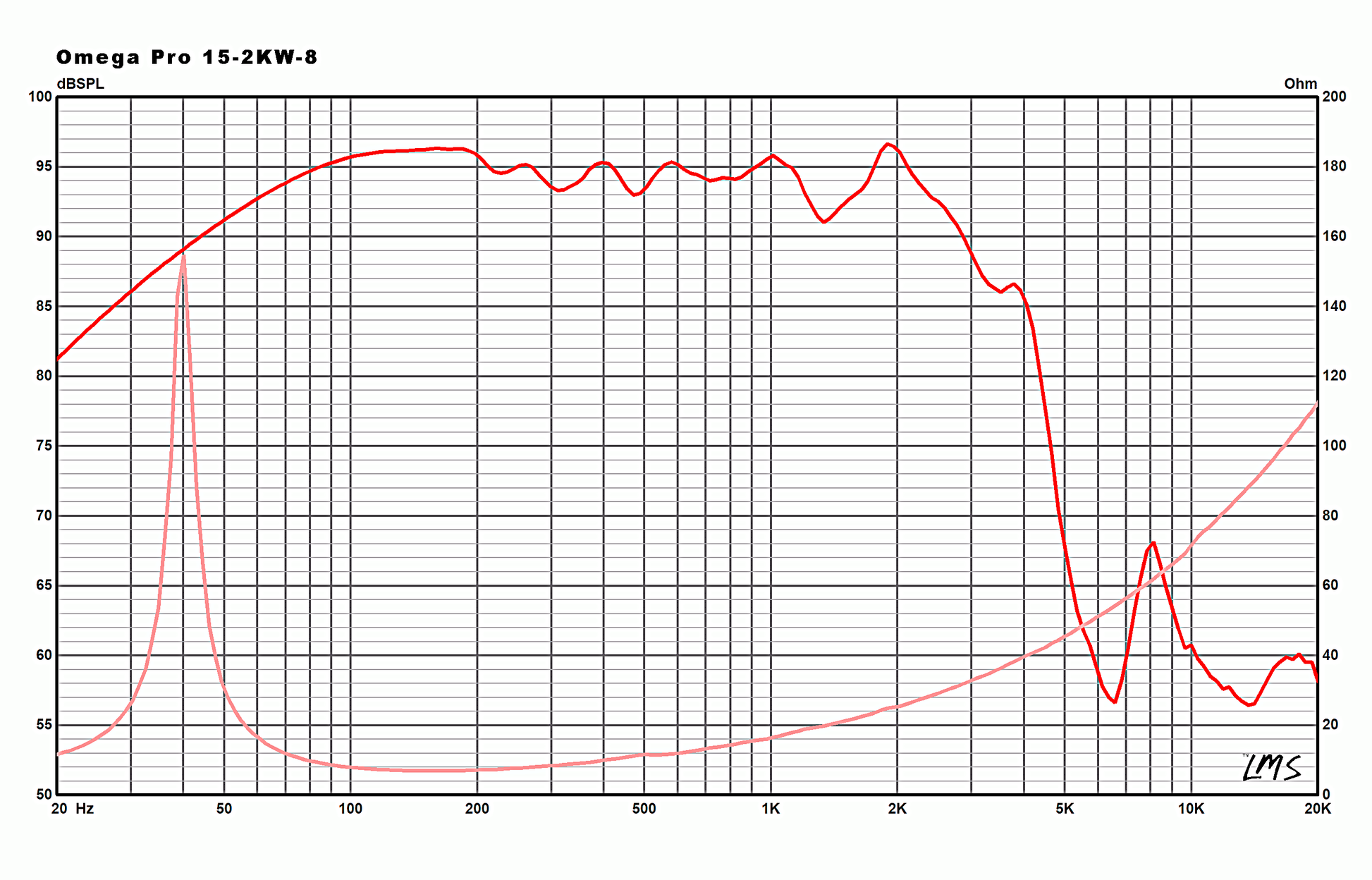

Frequency Response

response graph
