Multi-platinum, Grammy Award-winning producer/guitarist Pete Anderson wanted to combine the tonal characteristics from two of his favorite Eminence speakers into a single 12" model. The HempDog 12 borrows the warmth from the Cannabis Rex, and the neutral, clear tone from the Legend EM12.
"The creation of the HempDog has exceeded my expectations. It has the hi-fidelity I require plus the warmth of hemp, an outstanding combination that covers all genres of music." — Pete Anderson
Characteristics
| Series | Signature | |
| Model | HempDog 12 | |
| Application | 12" Open or Closed Back | |
| Configuration | 1, 2 or 4x12" | |
| Low-End Response | Aggressive | |
| Low-End Shape | Fat/Round | |
| Mid-Range Response | Moderate | |
| Mid-Range Shape | Warm | |
| High-End Response | Moderate | |
| Volume/Power | Louder | |
| Overall Coloration* | A clean, clear, neutral-voiced speaker with hemp cone warmth and fullness. | |
| Break-up Modes | Slow | |
| Power Range | Up to 150 watts | |
| Instrument* | Lead/Rhythm Guitar | |
| Genre of Music* | Country, Blues, Rock, and Jazz |
Specifications
Download Spec Sheet| SPECIFICATION | |
| Nominal Basket Diameter | 12", 0 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power | N/A |
| Watts | 150 W |
| Resonance | 69 Hz |
| Usable Frequency Range | 80 Hz - 3.8 kHz |
| Sensitivity* | 102.3 dB |
| Magnet Weight | 80 oz. |
| Gap Height | 0.375", 9.5 mm |
| Voice Coil Diameter | 2.5", 64 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 69 Hz |
| DC Resistance (Re) | 6.55 Ω |
| Coil Inductance (Le) | 0.41m H |
| Mechanical Q (Qms) | 10.02 |
| Electromagnetic Q (Qes) | 0.36 |
| Total Q (Qts) | 0.35 |
| Compliance Equivalent Volume (Vas) | 74.33 liters / 2.62 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 69.3 cc |
| Mechanical Compliance of Suspension (Cms) | 0.18 mm/N |
| BL Product (BL) | 15.23 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 30 grams |
| Efficiency Bandwidth Product (EBP) | 191 |
| Maximum Linear Excursion (Xmax) | 1.27 mm |
| Surface Area of Cone (Sd) | 545.4 cm2 |
| Maximum Mechanical Limit (Xlim) | 0 mm |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | N/a |
| Vented | N/a |
| Driver Volume Displaced | 0.003 cu.ft. / 0.09 liters |
| Overall Diameter | 12.38", 314.5 mm |
| Baffle Hole Diameter | 11.07", 281.2 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.26", 6.6mm |
| Mounting Holes B.C.D. | 11.57", 293.9mm |
| Depth | 5.38", 136.7 mm |
| Net Weight | 16.3 lbs, 7.39 kg |
| Shipping Weight | 18 lbs, 8.16 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Edge Wound Aluminum |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Vented core |
| Basket Materials | Die-cast aluminum basket |
| Cone Composition | Hemp paper cone |
| Cone Edge Composition | Paper cone edge |
| Dust Cap Composition | Paper dust cap |

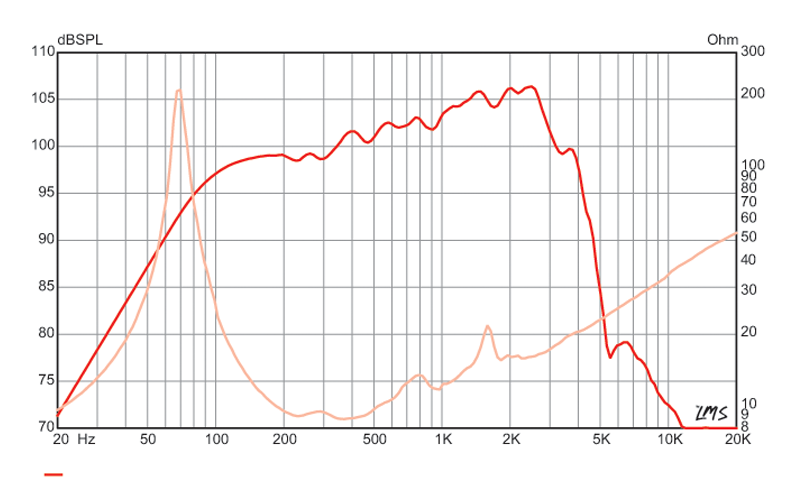

Frequency Response
