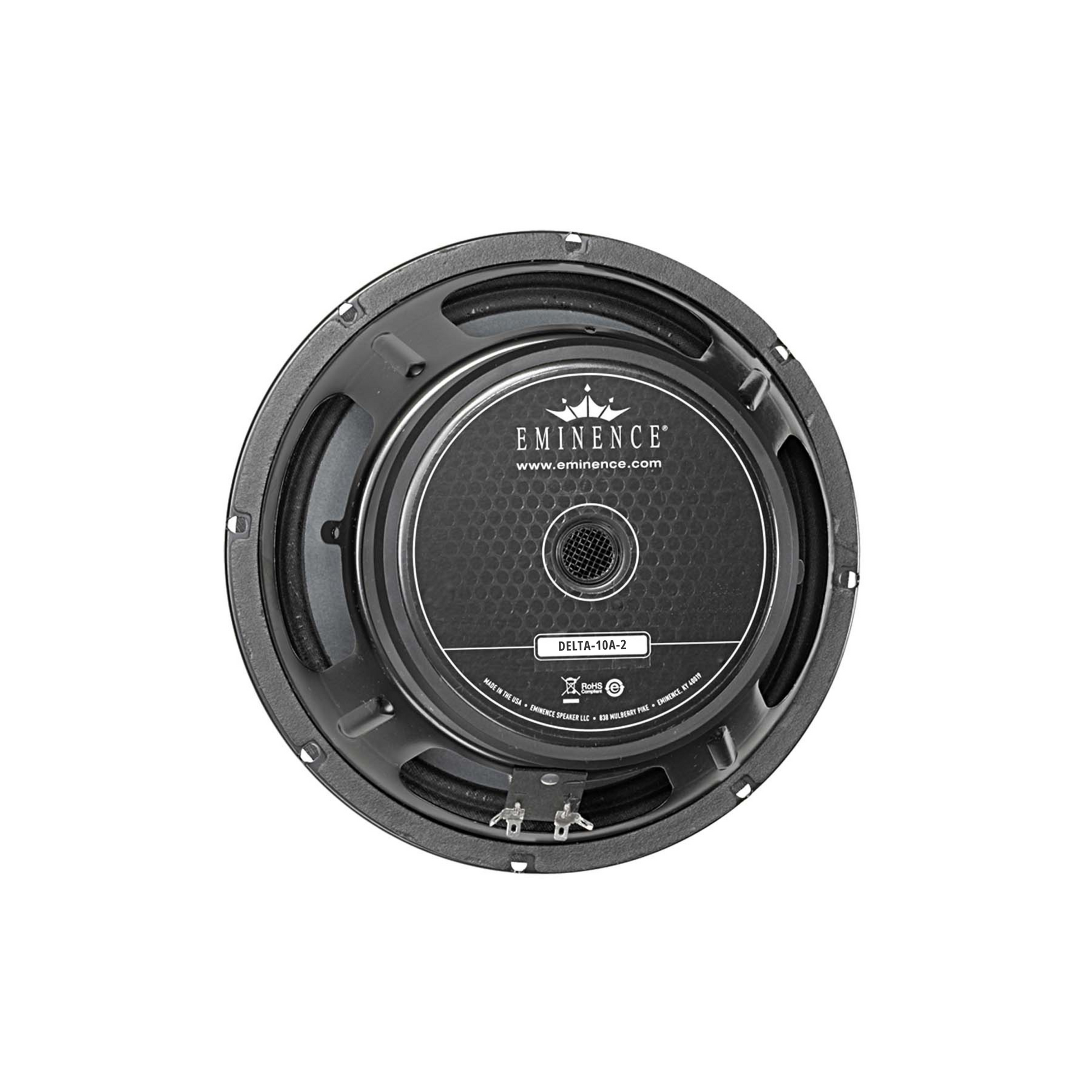

DELTA-10A-2 10" American Standard Series Speaker

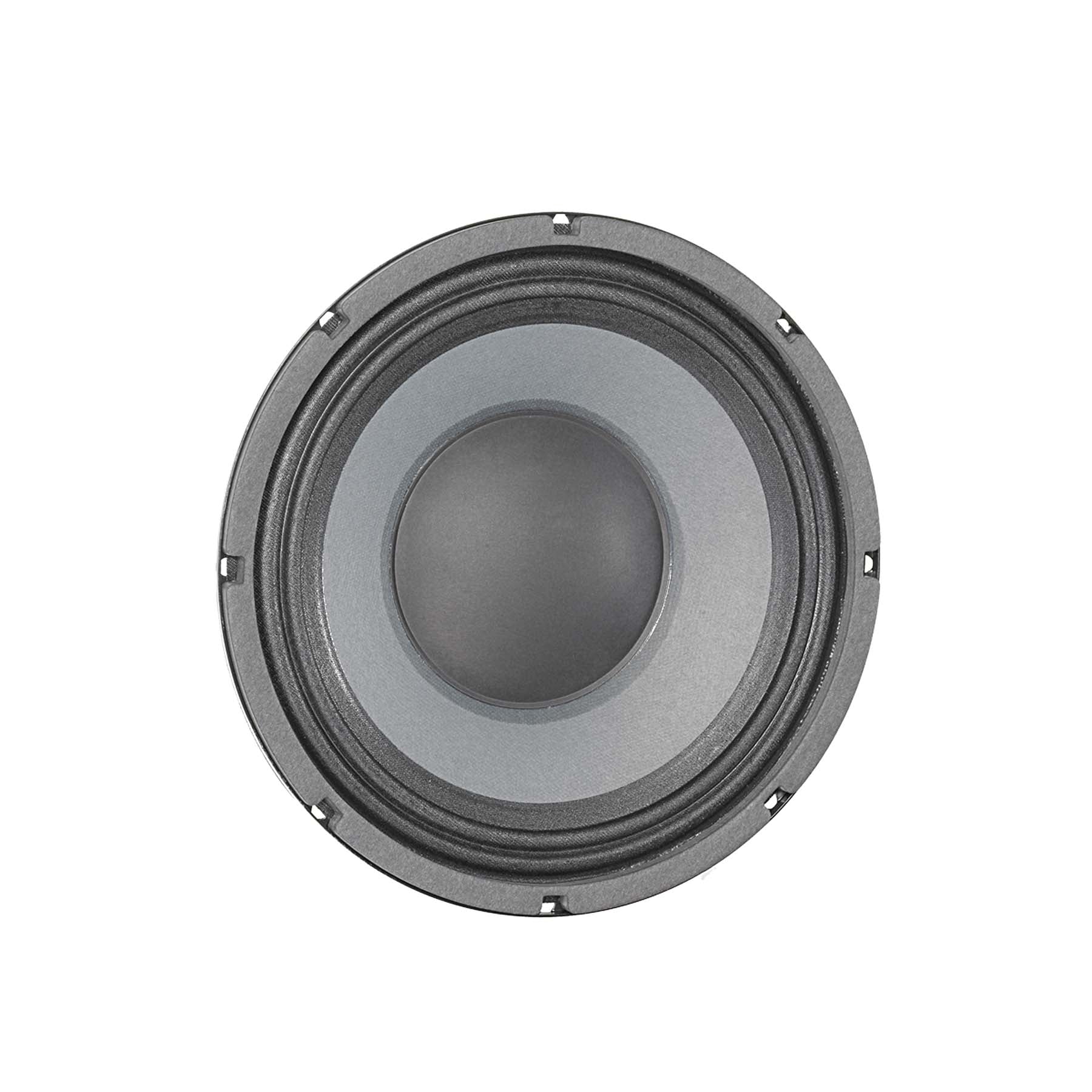

10 inch Eminence American Standard Series Replacement Speaker Eminence Speaker Cone

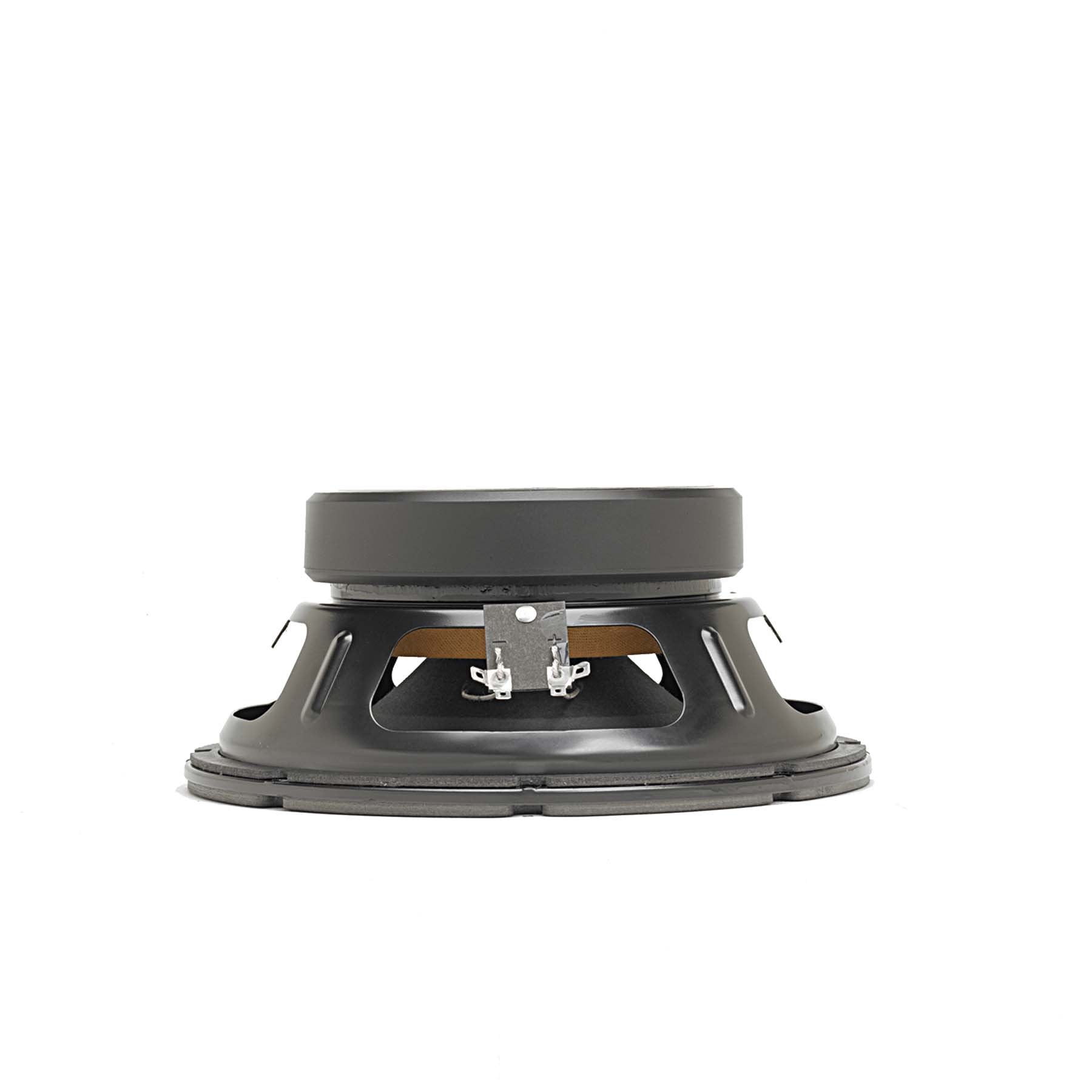

10 inch Eminence American Standard Series Replacement Speaker Eminence Speaker Side
DELTA-10A-2 10" American Standard Series Speaker
  • Load image into Gallery viewer, DELTA-10A-2 10" American Standard Series Speaker
  • Load image into Gallery viewer, 10 inch Eminence American Standard Series Replacement Speaker Eminence Speaker Cone
  • Load image into Gallery viewer, 10 inch Eminence American Standard Series Replacement Speaker Eminence Speaker Side
  • Load image into Gallery viewer, DELTA-10A-2 10" American Standard Series Speaker

DELTA-10A-2 10" American Standard Series Speaker

Wholesale customers, please SIGN IN to see pricing and place orders.


Recommended for professional audio and bass guitar applications as a woofer/mid-bass or midrange in vented monitors, satellites and multi-way enclosures.

Applications

Woofer | Midbass | Midrange | Pro Audio | Bass Guitar

Box Type: Vented | Horn Loading

Specifications

Download Spec Sheet Download Cab Design

SPECIFICATION
Nominal Basket Diameter 10", 254 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power 850 W
Watts 425 W
Resonance 69.7 Hz
Usable Frequency Range 50 Hz - 3.7 kHz
Sensitivity* 96.7 dB
Magnet Weight 56 oz.
Gap Height 0.375", 9.5 mm
Voice Coil Diameter 2.5", 64 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 69.7 Hz
DC Resistance (Re) 5.52 Ω
Coil Inductance (Le) 0.58 m H
Mechanical Q (Qms) 5.79
Electromagnetic Q (Qes) 0.48
Total Q (Qts) 0.44
Compliance Equivalent Volume (Vas) 29.73 liters / 1.05 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 220.39 cc
Mechanical Compliance of Suspension (Cms) 0.18 mm/N
BL Product (BL) 12.19 T-M
Diaphragm Mass Inc. Airload (MMs) 29.5 grams
Efficiency Bandwidth Product (EBP) 145
Maximum Linear Excursion (Xmax) 6.39 mm
Surface Area of Cone (Sd) 344.9 cm2
Maximum Mechanical Limit (Xlim) 9.4 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed 11.3-113 liters / 0.40-4 cu.ft.
Vented 11.3-37.69 liters / 0.40-2.44 cu.ft.
Driver Volume Displaced 0.05 cu.ft. / 1.42 liters
Overall Diameter 10.09", 256.3 mm
Baffle Hole Diameter 9.18", 233.2 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.25", 6.4mm
Mounting Holes B.C.D. 9.66", 245.4mm
Depth 4.25", 108 mm
Net Weight 10.8 lbs, 4.9 kg
Shipping Weight 12 lbs, 5.44 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Aluminum voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented core

Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Solid composition paper dust cap

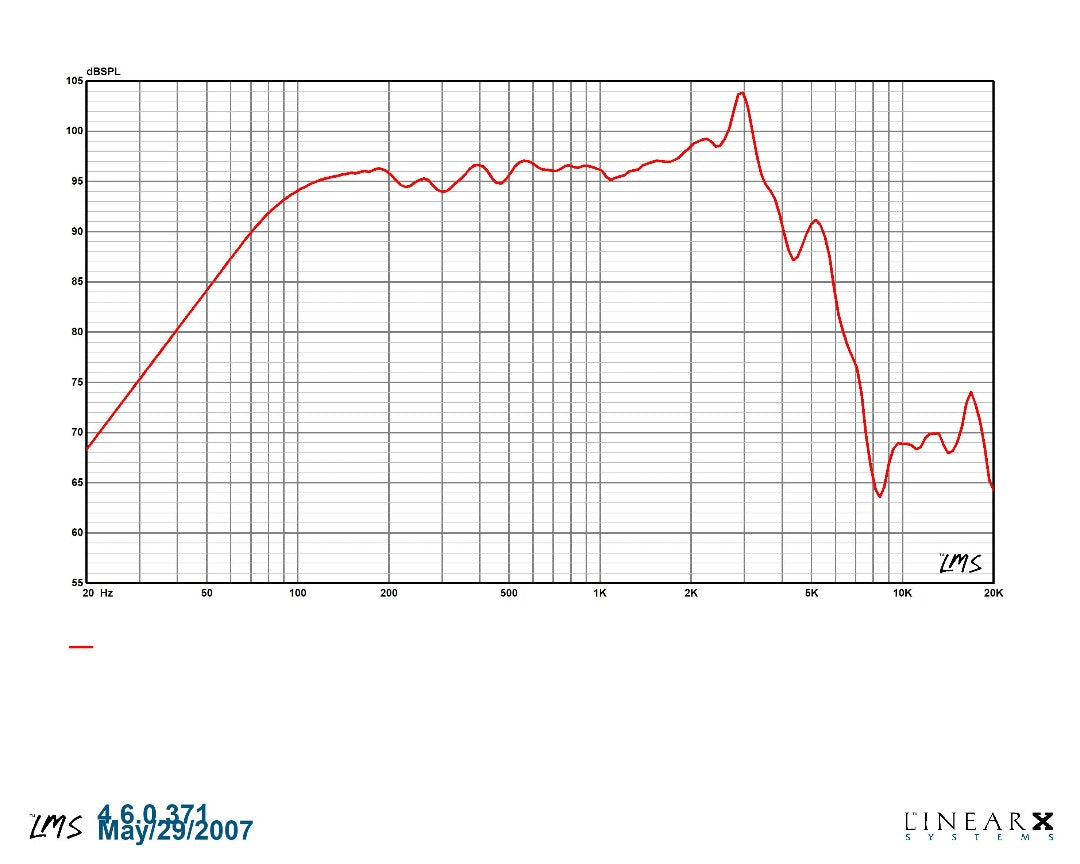

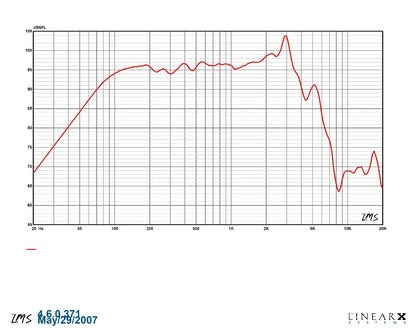

Frequency Response

response graph
