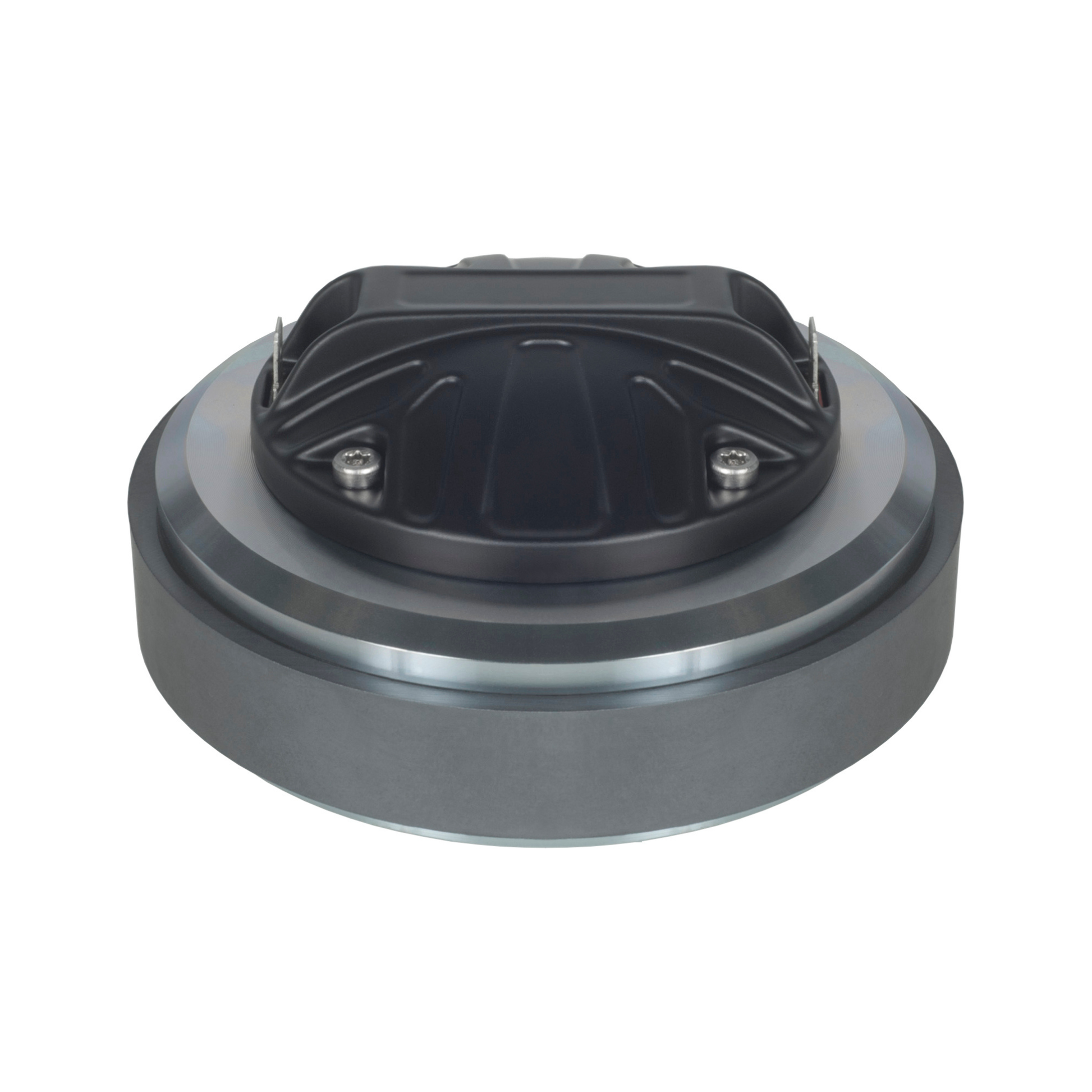

CDF1.17BTN8 - 1 Inch HF Driver

Titanium-Diaphragm High-Frequency Driver for Professional Sound Reinforcement

The CDF1.17BTN8 is a 1" exit compression driver engineered for professional sound reinforcement systems requiring controlled high-frequency output, mechanical durability, and consistent long-term performance. Designed by B&C Group and manufactured to Eminence Pro™ standards, this driver is optimized for OEM loudspeaker platforms in portable PA, stage monitor, and fixed installation applications where robustness and reliability are critical.

Rated at 60 W nominal / 120 W continuous program power, the CDF1.17BTN8 delivers stable high-frequency performance under continuous operating conditions. With a 106 dB sensitivity, it supports efficient system designs while maintaining controlled output across the operating band. The driver operates over a 1.0 kHz – 18 kHz frequency range and is optimized for use with a 1.5 kHz or higher crossover slope (12 dB/oct or greater), supporting durable two-way system designs.

The motor assembly incorporates a 44 mm (1.7") aluminum voice coil paired with a titanium diaphragm, providing increased mechanical strength and long-term stability in demanding environments. A 1" (25 mm) throat exit ensures compatibility with a wide range of professional HF horns and waveguides, enabling flexible integration across multiple enclosure formats.

Multiple standardized mounting patterns and a compact motor structure allow straightforward integration into scalable OEM production environments while maintaining predictable, repeatable performance.

OEM Design Advantages

• 60 W Nominal / 120 W Continuous Program Power Handling

• 106 dB Sensitivity (2.83 V / 1 m)

• Frequency Range from 1.0 kHz – 18 kHz

• 1" Exit for Broad Horn and Waveguide Compatibility

• 44 mm Aluminum Voice Coil for Thermal Stability

• Titanium Diaphragm for Mechanical Durability

• Ferrite Magnet Motor with 1.85 T Flux Density

• Multiple Standard Mounting Patterns for Flexible Integration

The CDF1.17BTN8 provides OEM system designers with a durable, cost-effective HF solution optimized for long-term reliability, controlled output, and predictable integration into professional loudspeaker systems.
