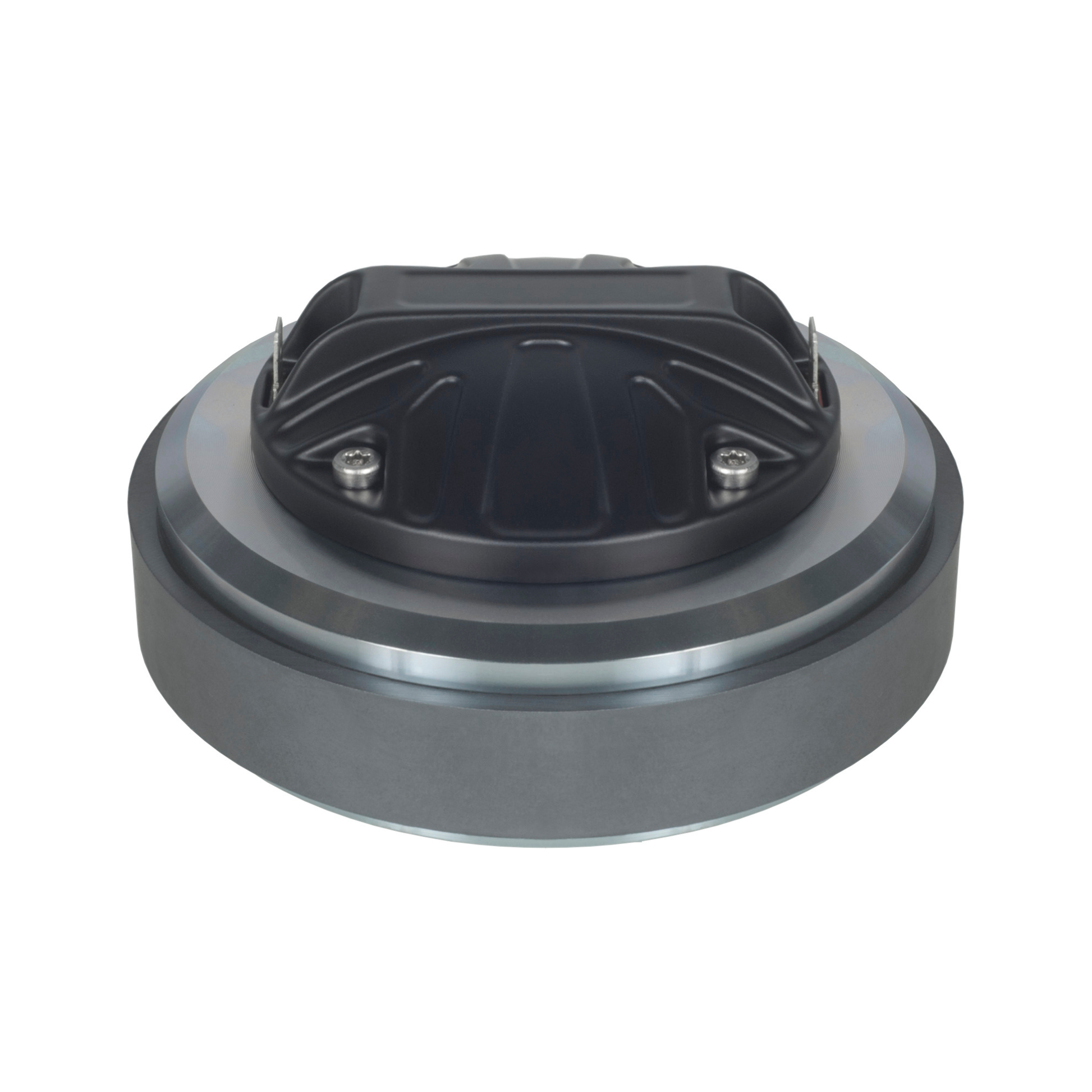

CDF1.17BPM8 - 1 Inch HF Driver

High-Output High-Frequency Driver for Professional Sound Reinforcement

The CDF1.17BPM8 is a high-output 1" exit compression driver engineered for professional sound reinforcement systems requiring maximum sensitivity, extended high-frequency output, and stable performance under continuous operation. Designed by B&C Group and manufactured to Eminence Pro™ standards, this driver is optimized for OEM loudspeaker platforms in portable PA, stage monitor, and fixed installation applications where elevated SPL capability is a priority.

Rated at 60 W nominal / 120 W continuous program power, the CDF1.17BPM8 delivers exceptionally high acoustic output with minimal amplifier demand. With a 108.5 dB sensitivity, it is the highest-sensitivity model in this series, enabling efficient system designs and increased headroom in high-output two-way configurations. The driver operates over a 1.0 kHz – 18 kHz frequency range and is optimized for use with a 1.2 kHz or higher crossover slope (12 dB/oct or greater).

The motor assembly incorporates a 44 mm (1.7") aluminum voice coil combined with a polyimide diaphragm, providing enhanced thermal stability, durability, and power handling compared to polyester-based diaphragm designs. A 1" (25 mm) throat exit ensures compatibility with a wide range of professional HF horns and waveguides, including high-directivity designs used in demanding SPL applications.

Multiple standardized mounting patterns and a compact, robust motor structure support straightforward integration into scalable OEM production environments while maintaining consistent, repeatable performance.

OEM Design Advantages

• 60 W Nominal / 120 W Continuous Program Power Handling

• 108.5 dB Sensitivity (2.83 V / 1 m)

• Extended Frequency Range from 1.0 kHz – 18 kHz

• 1" Exit for Broad Horn and Waveguide Compatibility

• 44 mm Aluminum Voice Coil for Thermal and Mechanical Stability

• Polyimide Diaphragm for High-Output Applications

• Ferrite Magnet Motor with 1.85 T Flux Density for Consistent Production Performance

• Multiple Standard Mounting Patterns for Flexible Integration

The CDF1.17BPM8 provides OEM system designers with a high-SPL, high-efficiency HF solution optimized for durability, output consistency, and predictable integration into professional loudspeaker systems.
