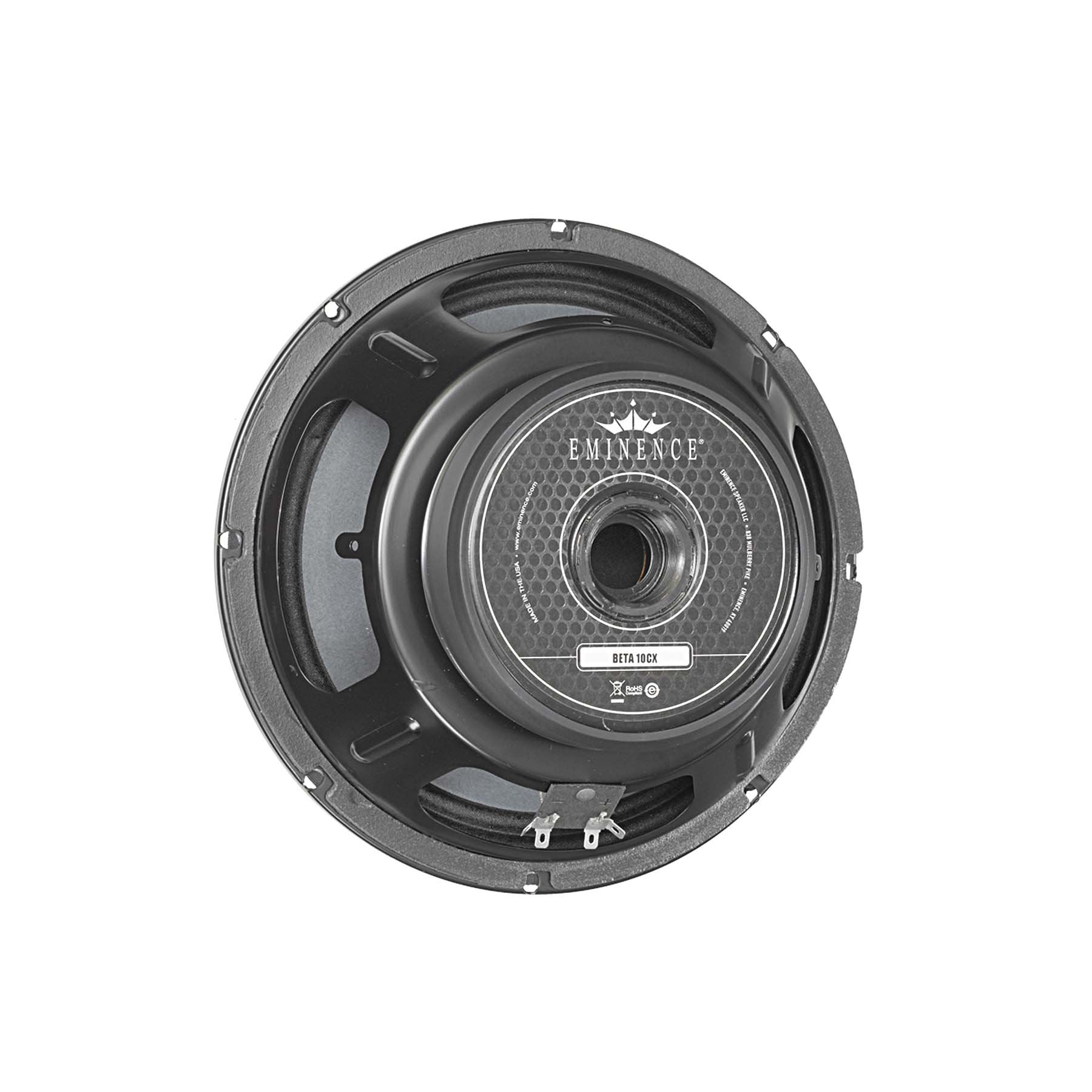

10 inch Eminence American Standard Series Replacement Speaker Eminence Speaker Basket

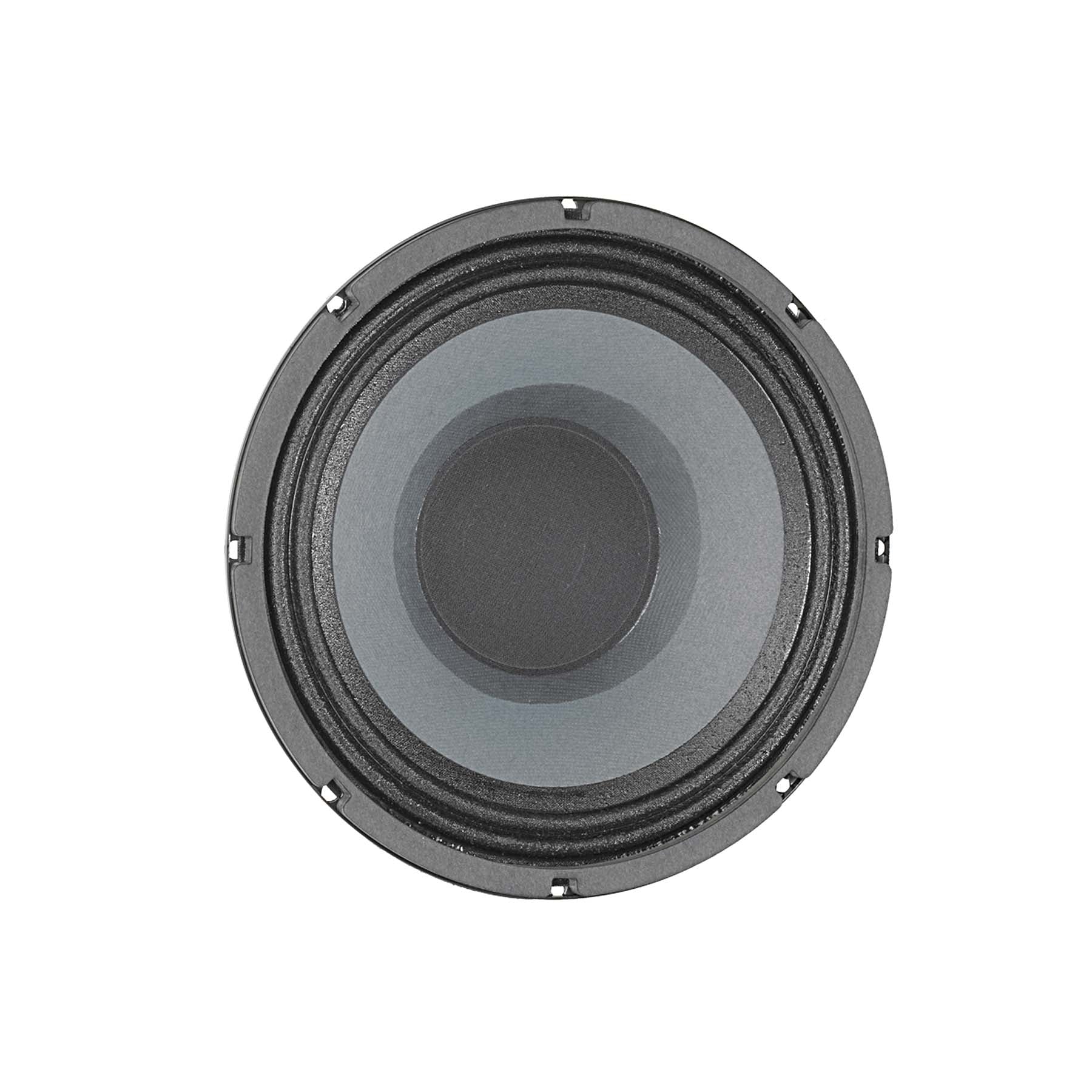

10 inch Eminence American Standard Series Replacement Speaker Eminence Speaker Cone

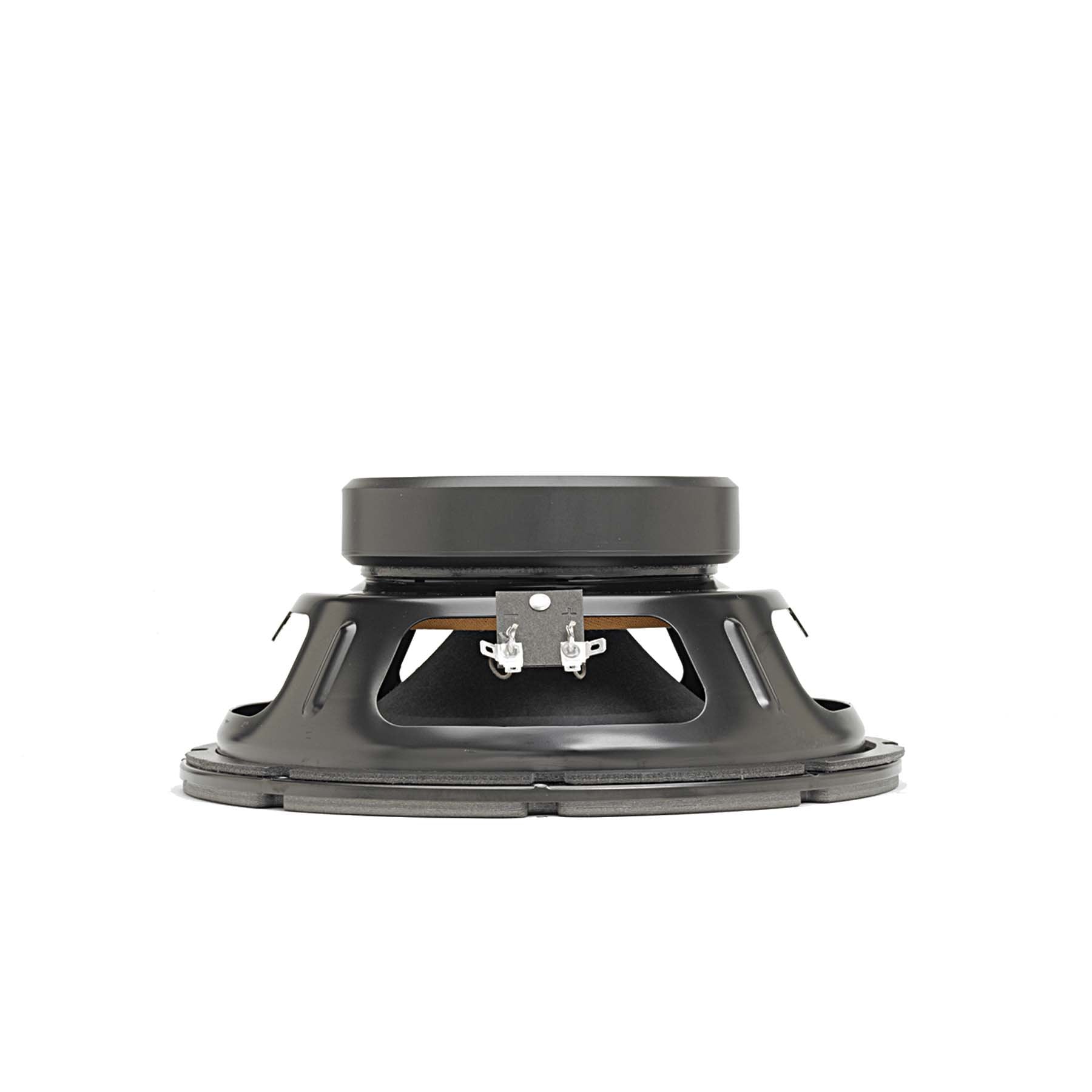

10 inch Eminence American Standard Series Replacement Speaker Eminence Speaker Side
10 inch Eminence American Standard Series Replacement Speaker Eminence Speaker Frequency Response
  • Load image into Gallery viewer, 10 inch Eminence American Standard Series Replacement Speaker Eminence Speaker Basket
  • Load image into Gallery viewer, 10 inch Eminence American Standard Series Replacement Speaker Eminence Speaker Cone
  • Load image into Gallery viewer, 10 inch Eminence American Standard Series Replacement Speaker Eminence Speaker Side
  • Load image into Gallery viewer, 10 inch Eminence American Standard Series Replacement Speaker Eminence Speaker Frequency Response

BETA 10CX 10" American Standard Series Speaker

Wholesale customers, please SIGN IN to see pricing and place orders.

Recommended for professional audio vocal wedges, or mid-bass in a sealed enclosure. Also works well in a vented enclosure as a satellite or monitor.

Applications

Woofer | Midbass | Midrange | Pro Audio | Home Stereo | Home Theater

Box Type: Sealed | Vented

Specifications

Download Spec Sheet Download Cab Design
SPECIFICATION
Nominal Basket Diameter 10", 254 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power 500 W
Watts 250 W
Resonance 49 Hz
Usable Frequency Range 60 Hz - 4 kHz
Sensitivity* 94.3 dB
Magnet Weight 38 oz.
Gap Height 0.312", 7.9 mm
Voice Coil Diameter 2", 51 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 49 Hz
DC Resistance (Re) 5.48 Ω
Coil Inductance (Le) 0.67m H
Mechanical Q (Qms) 6.16
Electromagnetic Q (Qes) 0.41
Total Q (Qts) 0.38
Compliance Equivalent Volume (Vas) 61.1 liters / 2.16 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 172.5 cc
Mechanical Compliance of Suspension (Cms) 0.37 mm/N
BL Product (BL) 10.88 T-M
Diaphragm Mass Inc. Airload (MMs) 29 grams
Efficiency Bandwidth Product (EBP) 120
Maximum Linear Excursion (Xmax) 5 mm
Surface Area of Cone (Sd) 344.9 cm2
Maximum Mechanical Limit (Xlim) 7.6 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed 14.16-42.48 liters / 0.5-1.5 cu.ft.
Vented 15.29-87.78 liters / 0.54-3.1 cu.ft.
Driver Volume Displaced 0.041 cu.ft. / 1.17 liters
Overall Diameter 10.08", 256 mm
Baffle Hole Diameter 9.18", 233.2 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.25", 6.4mm
Mounting Holes B.C.D. 9.66", 245.4mm
Depth 3.98", 101.1 mm
Net Weight 7.3 lbs, 3.31 kg
Shipping Weight 8.4 lbs, 3.81 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Kapton former
Magnet Composition Ferrite magnet
Core Details Tapered Coax

Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Zurette dust cap

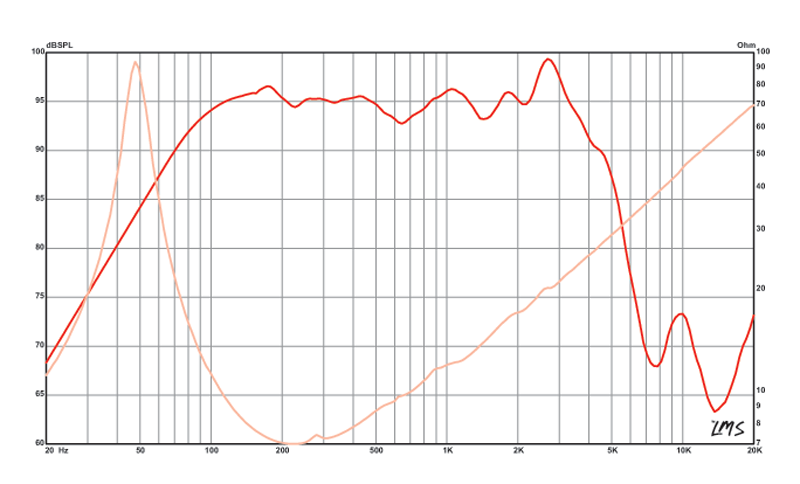

Frequency Response

response graph
