BASSLITE SC10-16 10" Bass Guitar Speaker - Neo

Wholesale customers, please SIGN IN to see pricing and place orders.



Featuring a 4 oz. neodymium magnet and 2-inch voice coil, this replacement speaker is optimized specifically for sealed bass cabinets. The ultra-lightweight Basslite SC10 takes the weight out and leaves in the performance.

Specifications

Download Spec Sheet Download Cab Design
SPECIFICATION
Nominal Basket Diameter 10", 254 mm
Nominal Impedance* 16 Ω
Power Rating*
Program Power 300 W
Watts 150 W
Resonance 46 Hz
Usable Frequency Range 50 Hz - 4.2 kHz
Sensitivity* 94.3 dB
Magnet Weight 4 oz.
Gap Height 0.28", 7.1 mm
Voice Coil Diameter 2", 51 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 46 Hz
DC Resistance (Re) 12.21 Ω
Coil Inductance (Le) 0.89m H
Mechanical Q (Qms) 2.23
Electromagnetic Q (Qes) 0.56
Total Q (Qts) 0.45
Compliance Equivalent Volume (Vas) 78.27 liters / 2.76 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 154 cc
Mechanical Compliance of Suspension (Cms) 0.46 mm/N
BL Product (BL) 12.79 T-M
Diaphragm Mass Inc. Airload (MMs) 26 grams
Efficiency Bandwidth Product (EBP) 81
Maximum Linear Excursion (Xmax) 4.4 mm
Surface Area of Cone (Sd) 350.1 cm2
Maximum Mechanical Limit (Xlim) 9 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed Acceptable
Vented Acceptable
Driver Volume Displaced 0.03 cu.ft. / 0.84 liters
Overall Diameter 10.08", 256 mm
Baffle Hole Diameter 9.18", 233.2 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.25", 6.4mm
Mounting Holes B.C.D. 9.66", 245.4mm
Depth 4.25", 108 mm
Net Weight 3.5 lbs, 1.59 kg
Shipping Weight 4.6 lbs, 2.09 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Neodymium magnet
Core Details Non-vented core

Basket Materials Pressed steel basket
Cone Composition Curved paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Solid composition felt dust cap

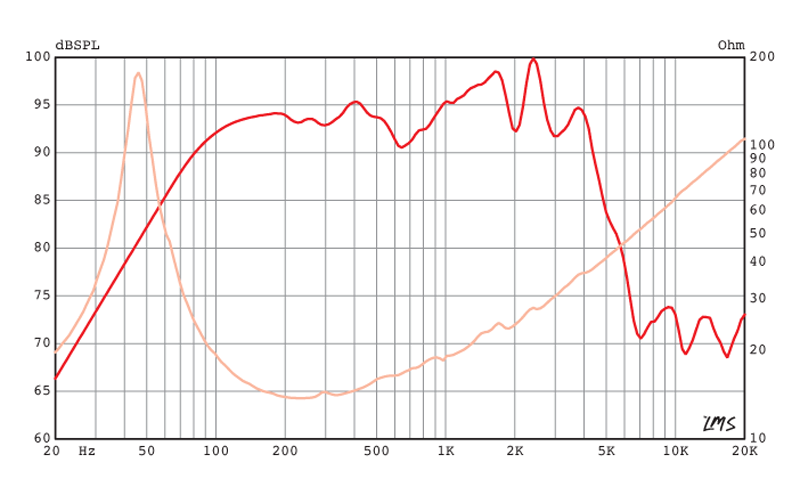

Frequency Response

response graph
