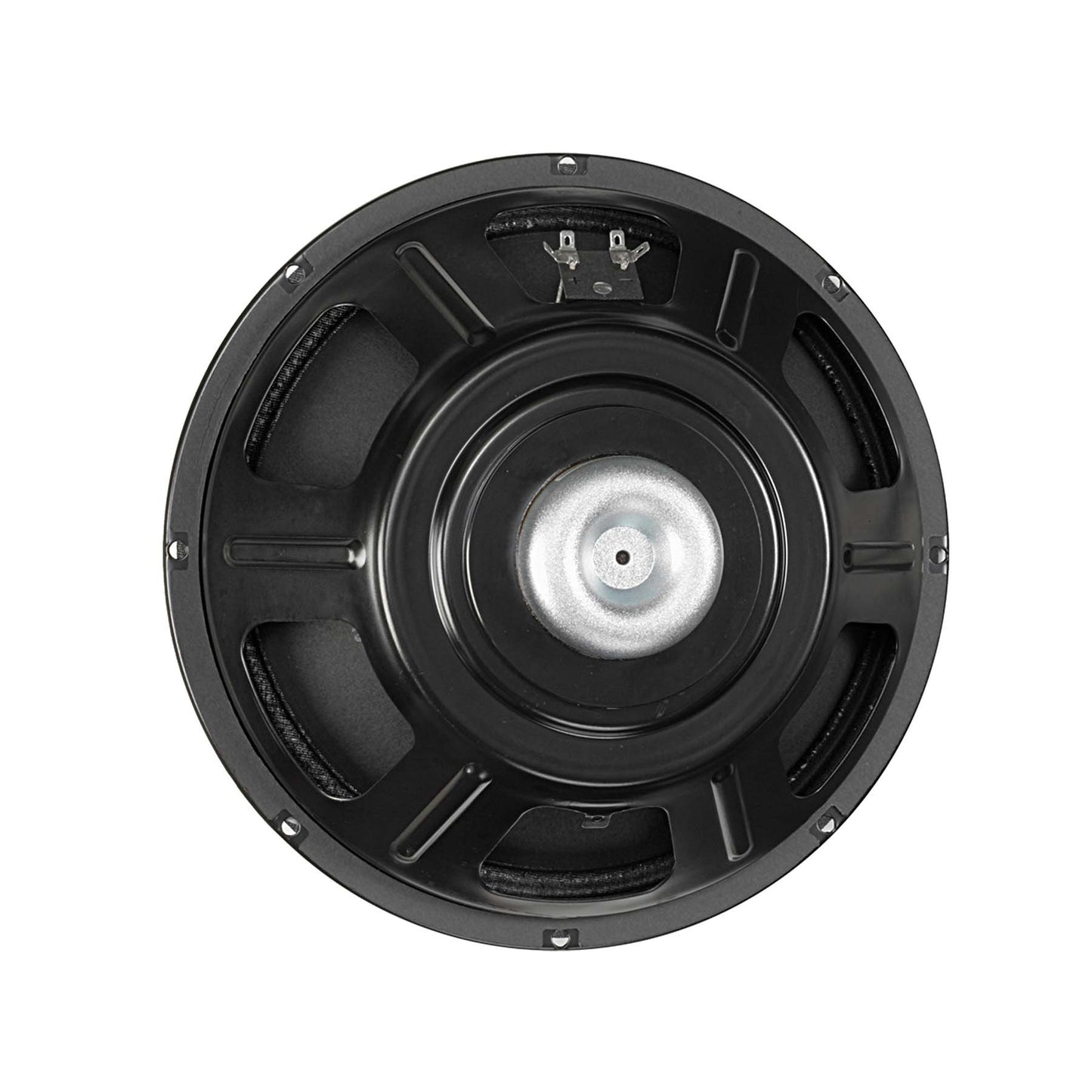

12 inch Eminence Bass Guitar Replacement Speaker - Neo Eminence Speaker Basket

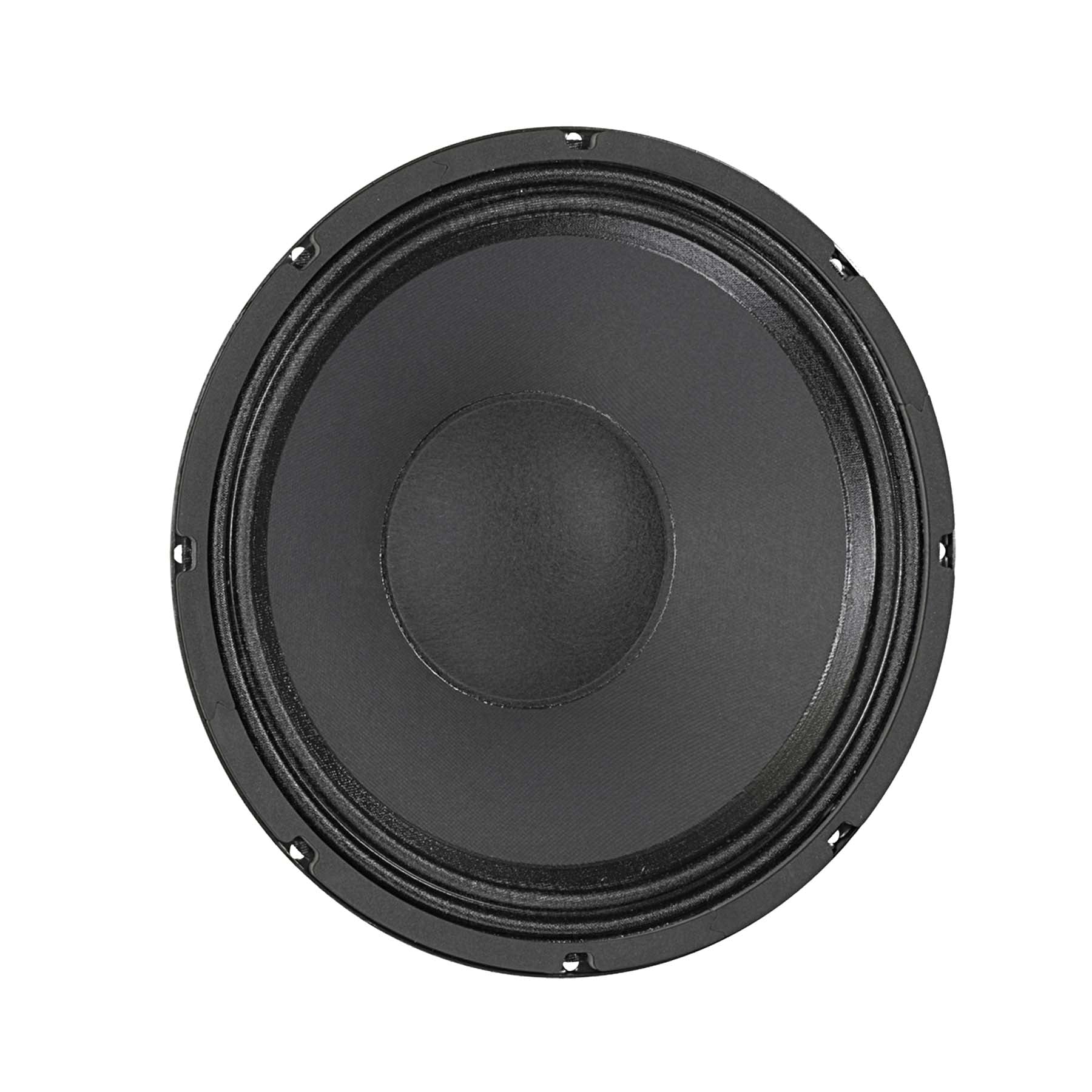

12 inch Eminence Bass Guitar Replacement Speaker - Neo Eminence Speaker Cone

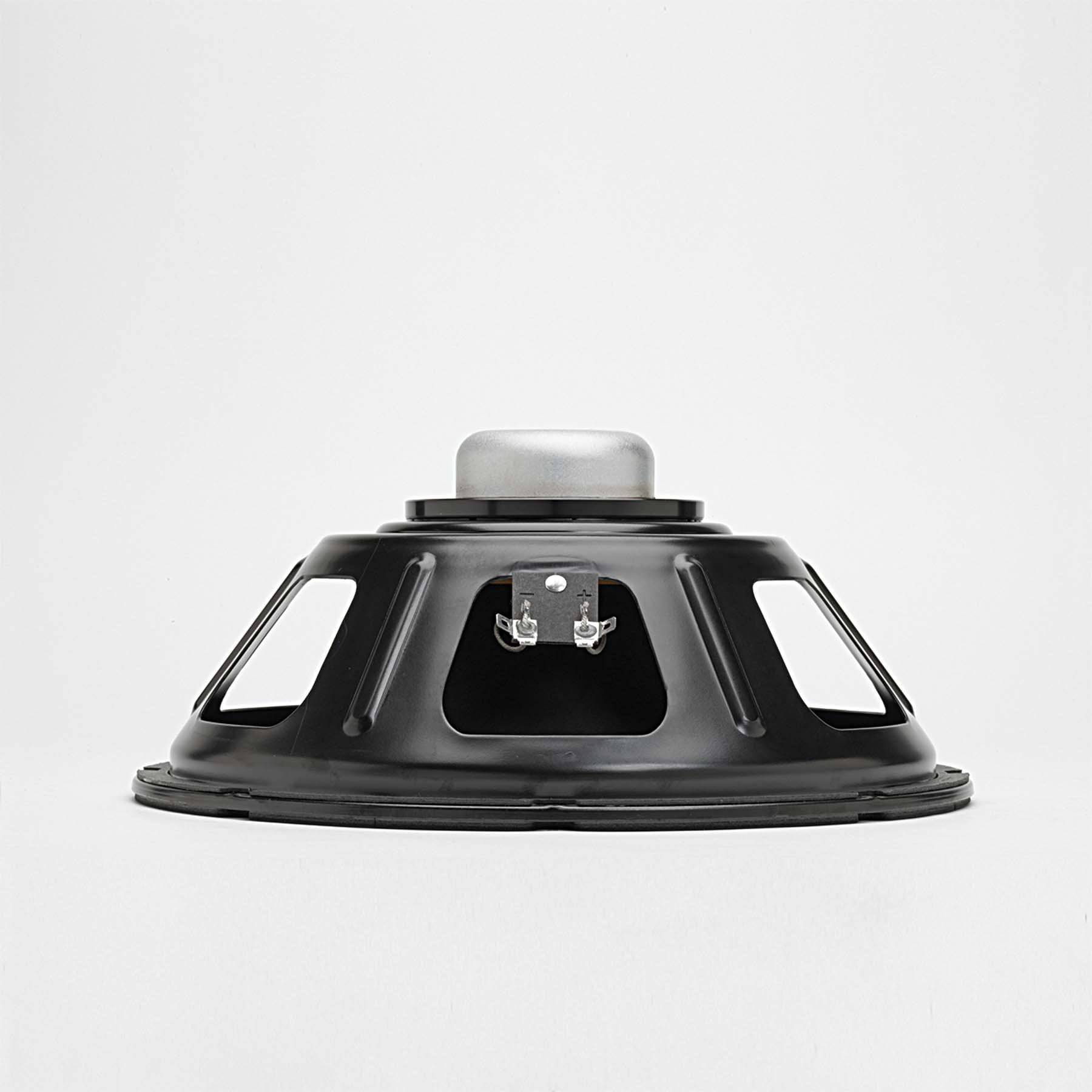

12 inch Eminence Bass Guitar Replacement Speaker - Neo Eminence Speaker Side
12 inch Eminence Bass Guitar Replacement Speaker - Neo Eminence Speaker Frequency Response
  • Load image into Gallery viewer, 12 inch Eminence Bass Guitar Replacement Speaker - Neo Eminence Speaker Basket
  • Load image into Gallery viewer, 12 inch Eminence Bass Guitar Replacement Speaker - Neo Eminence Speaker Cone
  • Load image into Gallery viewer, 12 inch Eminence Bass Guitar Replacement Speaker - Neo Eminence Speaker Side
  • Load image into Gallery viewer, 12 inch Eminence Bass Guitar Replacement Speaker - Neo Eminence Speaker Frequency Response

BASSLITE S2012 | 12" Bass Guitar Speaker - Neo

Wholesale customers, please SIGN IN to see pricing and place orders.



Recommended for bass guitar. Ideal in vented or sealed 1X, 2X, and 4 X12 enclosures.

Specifications

Download Spec Sheet Download Cab Design

SPECIFICATION
Nominal Basket Diameter 12", 305 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power 300 W
Watts 150 W
Resonance 48 Hz
Usable Frequency Range 49 Hz - 4.5 kHz
Sensitivity* 99 dB
Magnet Weight 4 oz.
Gap Height 0.28", 7.1 mm
Voice Coil Diameter 2", 51 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 48 Hz
DC Resistance (Re) 5.1 Ω
Coil Inductance (Le) 0.43m H
Mechanical Q (Qms) 5.5
Electromagnetic Q (Qes) 0.53
Total Q (Qts) 0.48
Compliance Equivalent Volume (Vas) 90.6 liters / 3.2 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 270.1 cc
Mechanical Compliance of Suspension (Cms) 0.24 mm/N
BL Product (BL) 11.7 T-M
Diaphragm Mass Inc. Airload (MMs) 46 grams
Efficiency Bandwidth Product (EBP) 91
Maximum Linear Excursion (Xmax) 5.2 mm
Surface Area of Cone (Sd) 519.5 cm2
Maximum Mechanical Limit (Xlim) 9.8 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed Acceptable
Vented Acceptable
Driver Volume Displaced 0.059 cu.ft. / 1.67 liters
Overall Diameter 12.03", 305.6 mm
Baffle Hole Diameter 11.07", 281.2 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.25", 6.4mm
Mounting Holes B.C.D. 11.59", 294.4mm
Depth 5.1", 129.5 mm
Net Weight 4.1 lbs, 1.86 kg
Shipping Weight 5.8 lbs, 2.63 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Neodymium magnet
Core Details Non-vented core

Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Solid composition felt dust cap

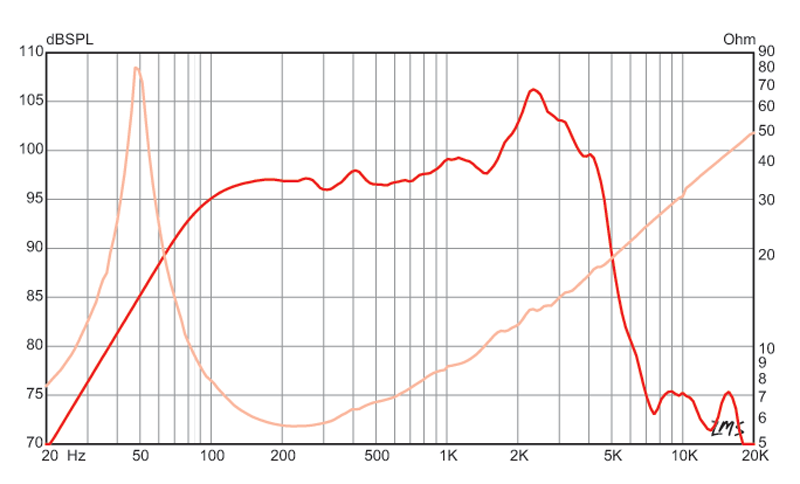

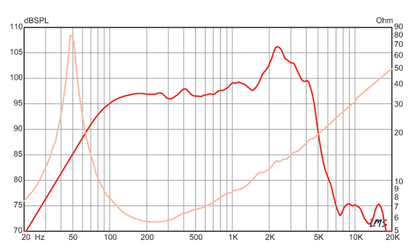

Frequency Response

response graph
