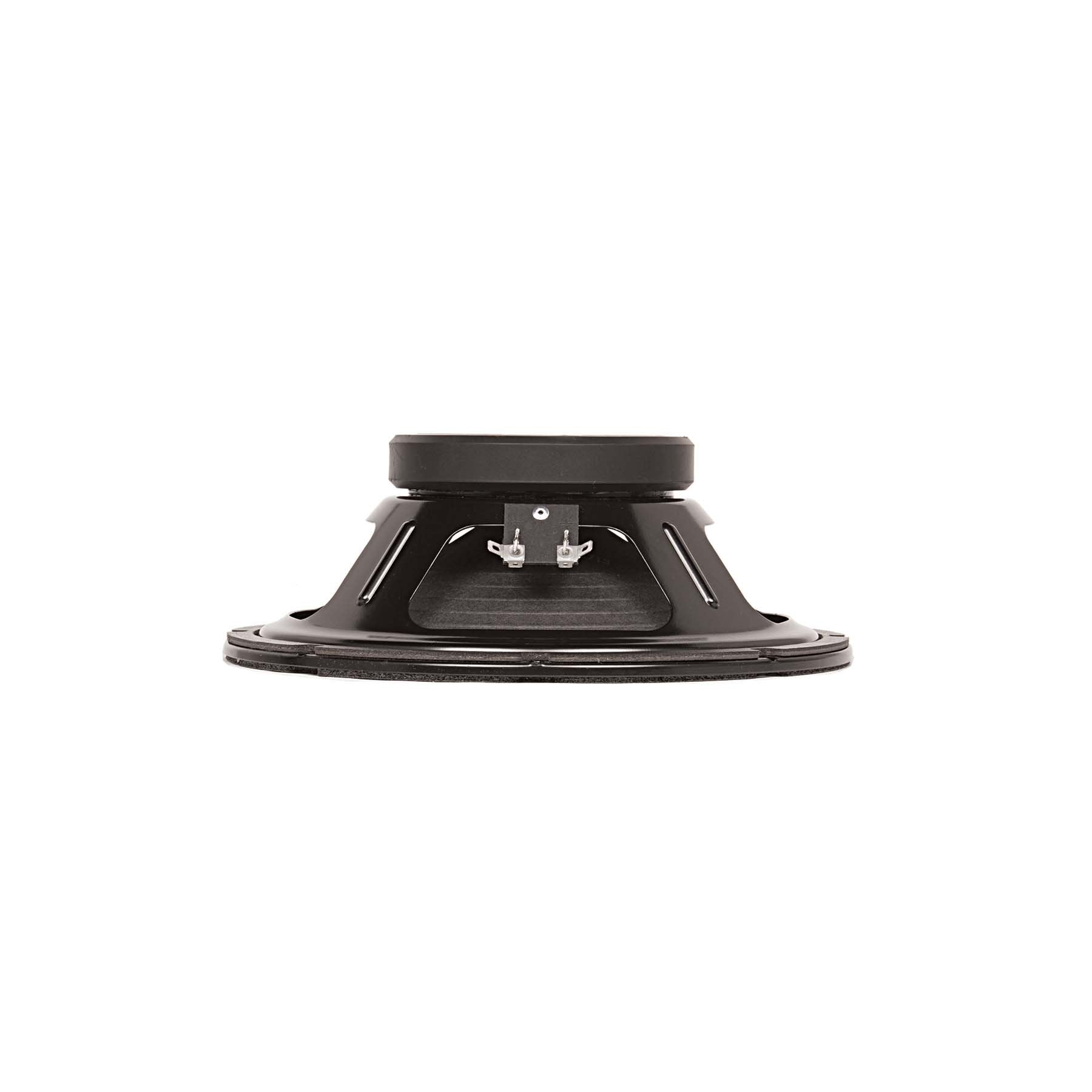

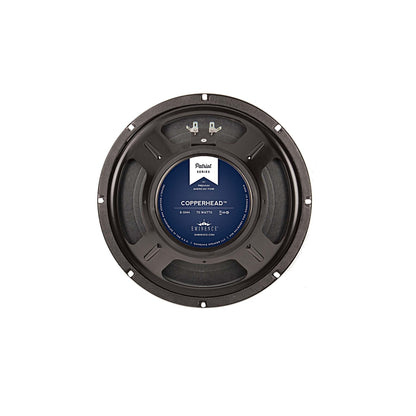

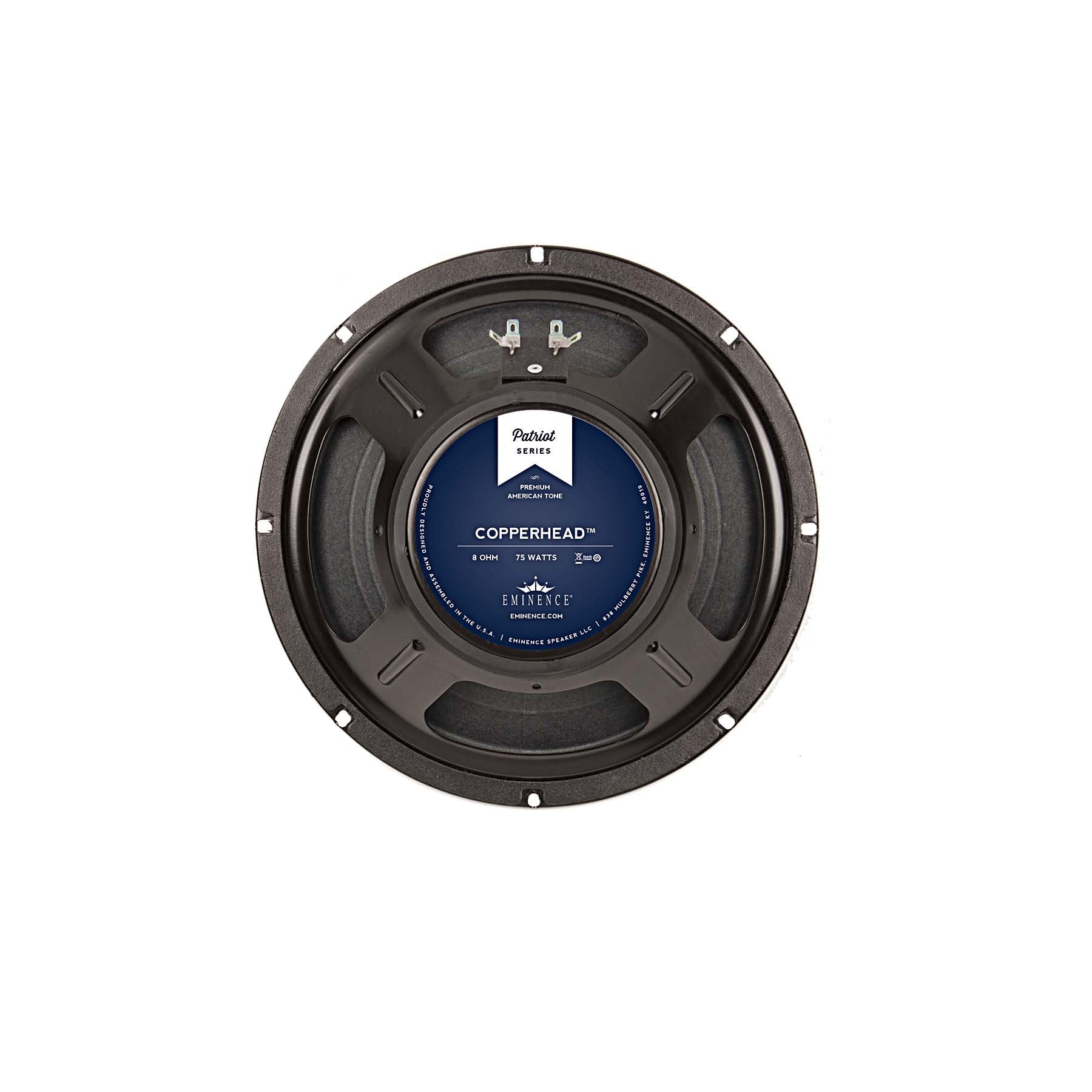

10 inch Eminence Lead / Rhythm Guitar Replacement Speaker- American Eminence Speaker Basket

THE COPPERHEAD 10" Lead / Rhythm Guitar Speaker- American

Name: THE COPPERHEAD 10" Lead / Rhythm Guitar Speaker- American
Brand: Eminence Speakers, LLC
SKU: 101319B-U
Price: 99.99 USD
Availability: InStock

Wholesale customers, please SIGN IN to see pricing and place orders.

The Eminence Copperhead guitar speaker combines the best of two tones, balancing country honk with a touch of classic blues. Extremely balanced vintage tone for smooth, driven leads and clean rhythm.

Characteristics

Series		Patriots
Model		The Copperhead
Application		10" Open or Closed Back
Configuration		1, 2, or 4 X 10"
Low End Response		Moderate
Low End Shape		Tight
Mid-Range Response		Aggressive
Mid-Range Shape		Warm
High-End Response		Moderate
Volume/Power		Louder
Overall Coloration*		Extremely balanced vintage tone with a little country honk and a touch of classic blues tone.
Break-up Modes		Medium
Power Range		Up to 75 watts
Instrument*		Lead/Rhythm Guitar, Harmonica
Genre of Music*		Country, Blues, Bluegrass, and Funk

Specifications

Download Spec Sheet

SPECIFICATION
Nominal Basket Diameter	10", 254 mm
Nominal Impedance*	8 Ω
Power Rating*
Program Power	N/A
Watts	75 W
Resonance	105 Hz
Usable Frequency Range	80 Hz - 4.5 kHz
Sensitivity*	98.8 dB
Magnet Weight	20 oz.
Gap Height	0.312", 7.9 mm
Voice Coil Diameter	1.5", 38 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	105 Hz
DC Resistance (Re)	7.59 Ω
Coil Inductance (Le)	0.37m H
Mechanical Q (Qms)	13.27
Electromagnetic Q (Qes)	1.05
Total Q (Qts)	0.98
Compliance Equivalent Volume (Vas)	27 liters / 0.95 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	0 cc
Mechanical Compliance of Suspension (Cms)	0.14 mm/N
BL Product (BL)	8.8 T-M
Diaphragm Mass Inc. Airload (MMs)	16 grams
Efficiency Bandwidth Product (EBP)	100
Maximum Linear Excursion (Xmax)	0 mm
Surface Area of Cone (Sd)	366.1 cm2
Maximum Mechanical Limit (Xlim)	N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	Acceptable
Vented	Acceptable
Driver Volume Displaced	0.034 cu.ft. / 0.95 liters
Overall Diameter	10.11", 256.8 mm
Baffle Hole Diameter	9.13", 231.9 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	Yes
Mounting Holes Diameter	0.23", 5.8mm
Mounting Holes B.C.D.	9.6", 243.8mm
Depth	4.2", 106.7 mm
Net Weight	4.5 lbs, 2.04 kg
Shipping Weight	6.4 lbs, 2.9 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Copper voice coil
Coil Former	Polyimide former
Magnet Composition	Ferrite magnet
Core Details	Non-vented core

Basket Materials	Pressed steel basket

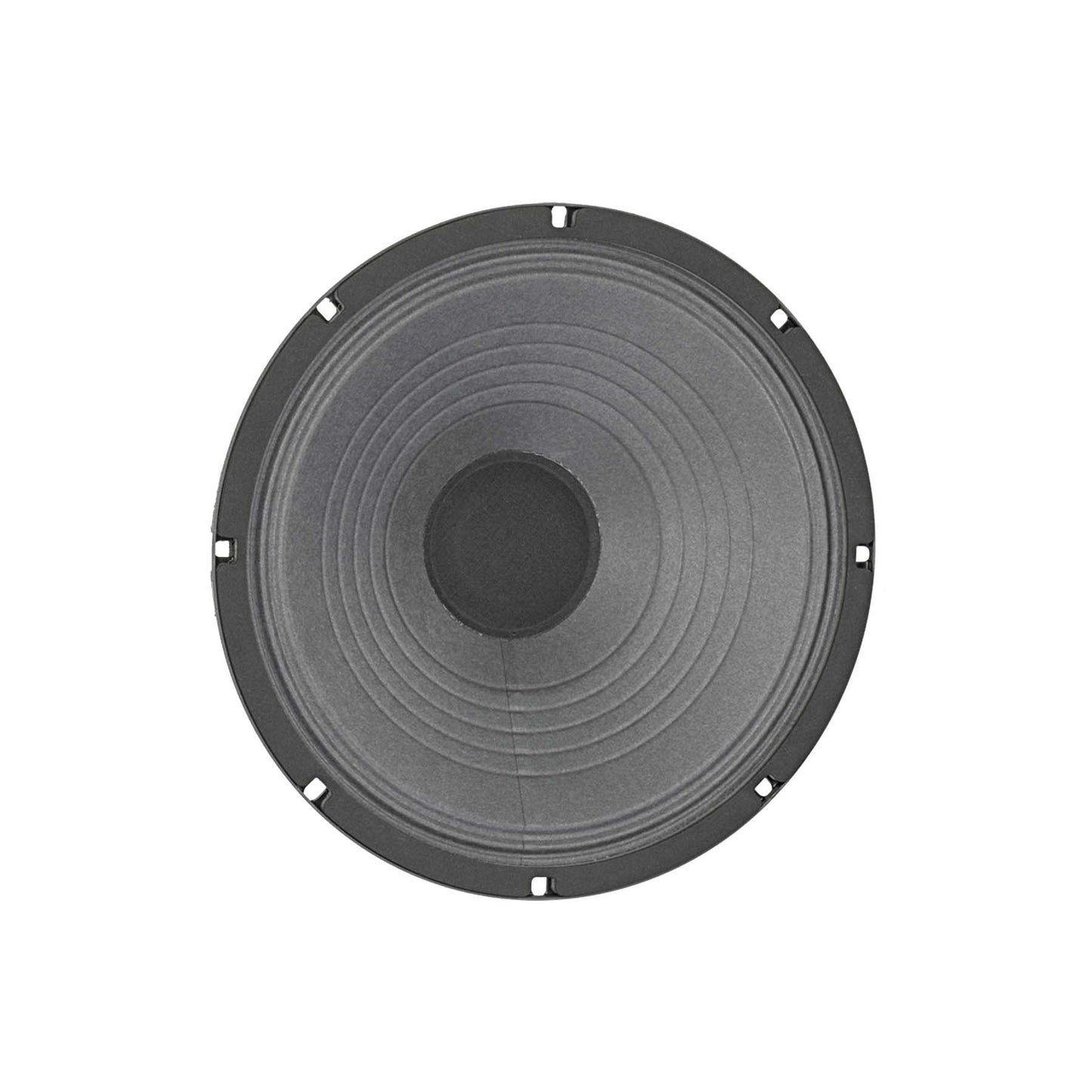

Cone Composition	Paper cone
Cone Edge Composition	Paper cone edge
Dust Cap Composition	Zurette dust cap

Frequency Response

Footnotes

Eminence Speaker Footnotes

From dialing a sound in, to rocking it out, Eminence professional audio and musical instrument loudspeakers have been the leading choice in audio applications worldwide since 1966. Eminence is dedicated to providing the best quality, value and service to meet your needs. Nowhere is that mission more evident than in their wide product selection, industry leading seven-year warranty, and unrivaled customer support. Designed and assembled by hand in the USA, Eminence is the most trusted name in the industry. Find out why the world’s premier brands and countless audio enthusiasts and musicians rely on Eminence.

Emininece Speaker Tech Notes

Multiple units exceed published ratings evaluated under EIA 426A specification while tested in a free-air, non-temperature-controlled environment. Multiple compression drivers exceeded published ratings evaluated under EIA-426A or AES specification while mounted on Eminence’s H290, H290S, or H2EA horn in a non-temperature-controlled environment.

Eminence Speaker frequency response curves are an average of multiple units measured while applying 1W/1m into the speakers’ nominal impedance (e.g. 2.83V/8Ω, 4V/16Ω, etc.). All speakers are measured in a temperature controlled environment using monthly calibrated LMS software with supplied 0.25" microphone mounted on axis 1m distance from baffle. 2 ft. x 2 ft. baffle is flush with anechoic wall and speaker is rear mounted against a thin steel ring for minimum diffraction. Measurements performed using monthly calibrated Yamaha P3500S amplifier and a 2700 cubic foot anechoic chamber with custom made fiberglass surface treatments. Measurements below 200Hz are tail corrected to compensate for chamber volume. Compression drivers measured using a 2ft x 2ft baffle flush with anechoic wall and horn front mounted.

Please note: BETA 8CX, 10CX and 12CX are coaxial speakers with tweeter sold separately. The data for these coaxial woofers was calculated with the ASD:1001 driver screwed into the woofer, but not active.

Prices, specifications and product cosmetics are subject to change without notice.
