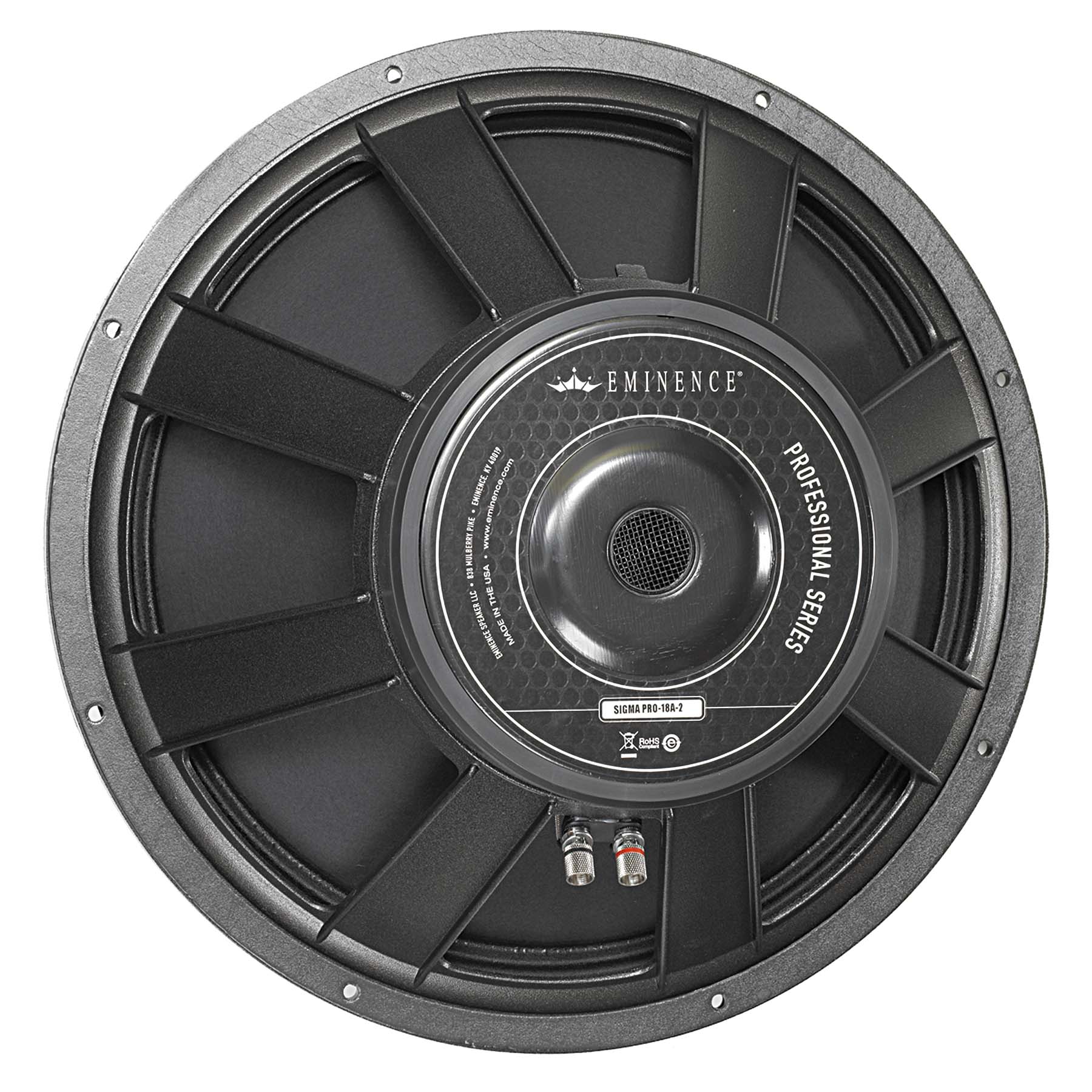

18 inch Eminence Professional Series Replacement Speaker- v.2 Eminence Speaker Basket

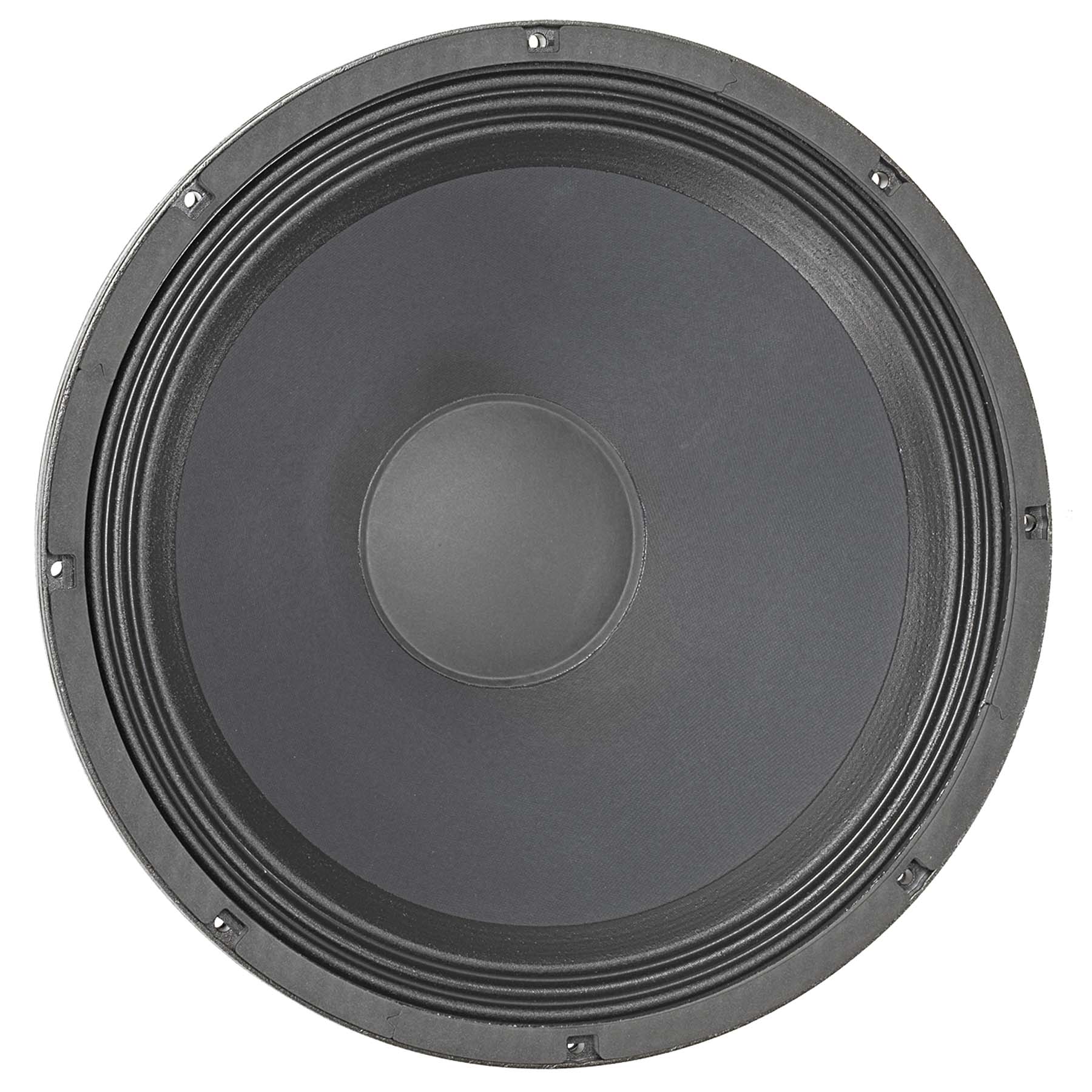

18 inch Eminence Professional Series Replacement Speaker- v.2 Eminence Speaker Cone

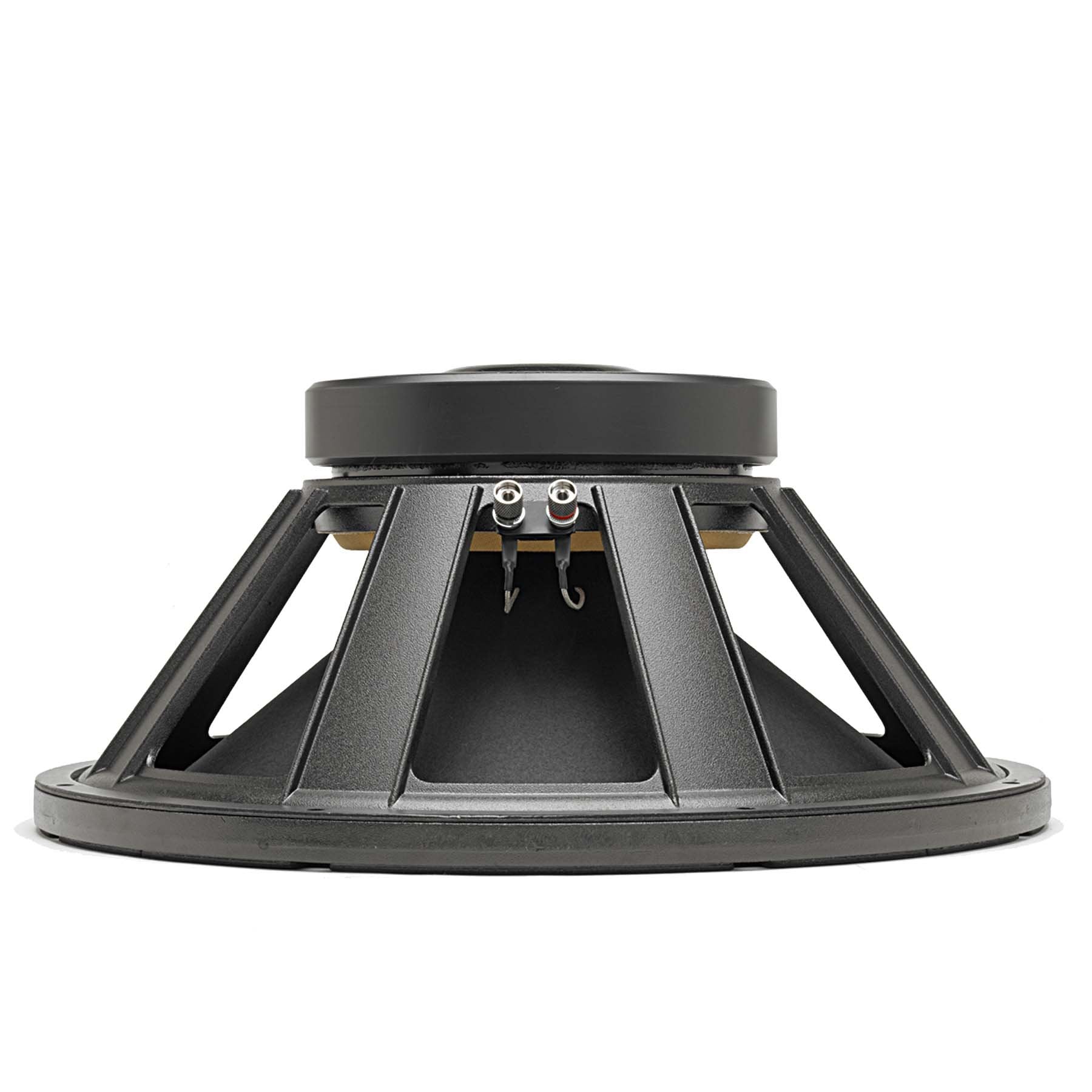

18 inch Eminence Professional Series Replacement Speaker- v.2 Eminence Speaker Side
18 inch Eminence Professional Series Replacement Speaker- v.2 Eminence Speaker Frequency Response
  • Load image into Gallery viewer, 18 inch Eminence Professional Series Replacement Speaker- v.2 Eminence Speaker Basket
  • Load image into Gallery viewer, 18 inch Eminence Professional Series Replacement Speaker- v.2 Eminence Speaker Cone
  • Load image into Gallery viewer, 18 inch Eminence Professional Series Replacement Speaker- v.2 Eminence Speaker Side
  • Load image into Gallery viewer, 18 inch Eminence Professional Series Replacement Speaker- v.2 Eminence Speaker Frequency Response

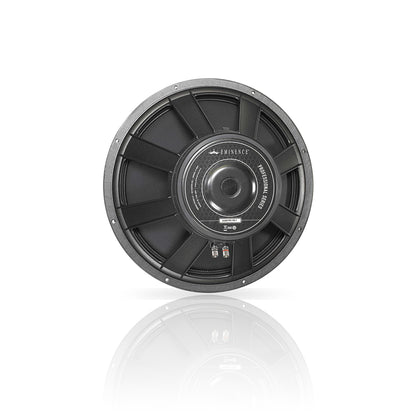

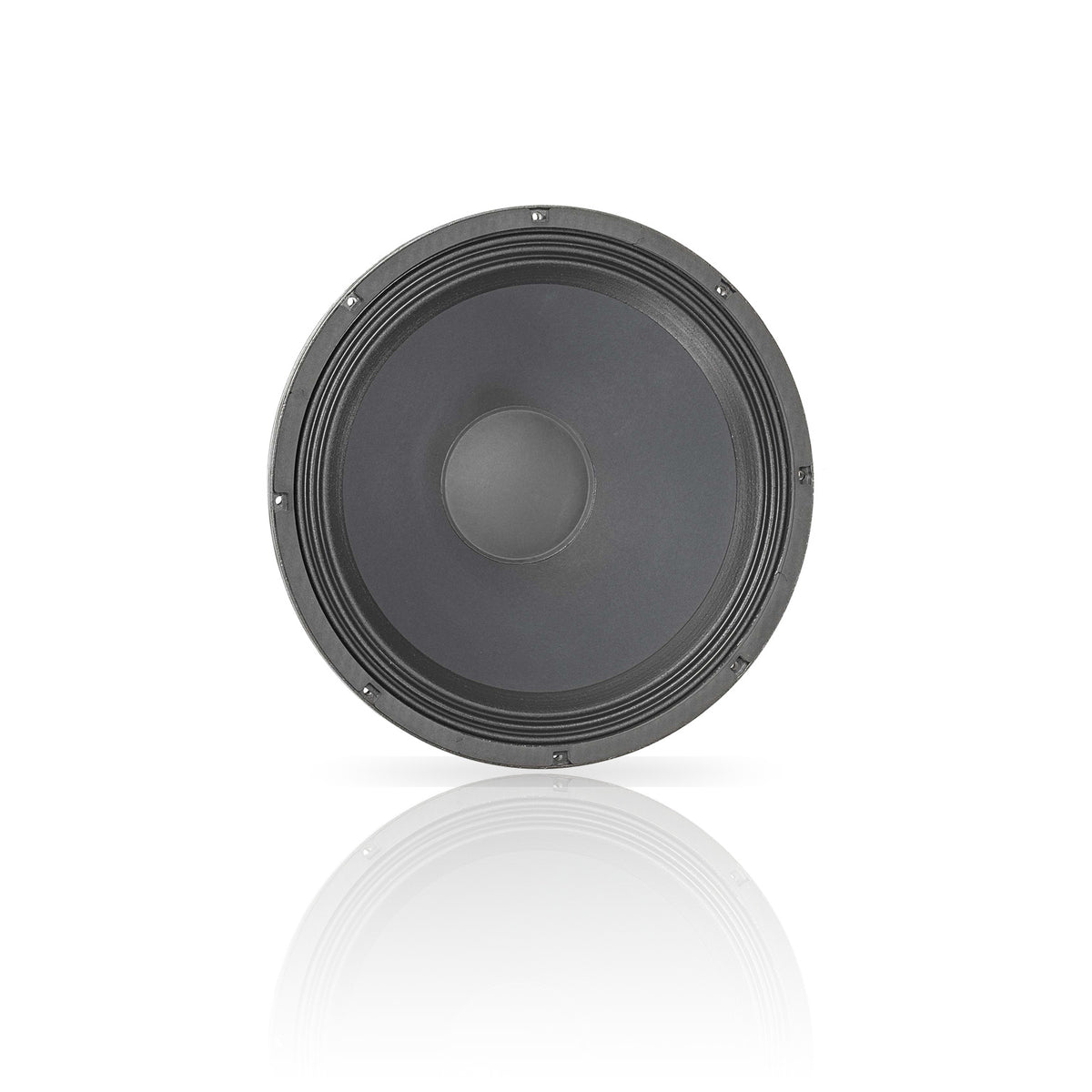

SIGMA PRO-18A 18" Professional Series Speaker- v.2

Wholesale customers, please SIGN IN to see pricing and place orders.

Recommended for professional audio as a woofer in vented enclosures.

Applications

Subwoofer | Woofer | Pro Audio

Box Type: Vented

Specifications

Download Spec Sheet Download Cab Design
SPECIFICATION
Nominal Basket Diameter 18", 457 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power 1300 W
Watts 650 W
Resonance 28 Hz
Usable Frequency Range 41 Hz - 2.4 kHz
Sensitivity* 99 dB
Magnet Weight 120 oz.
Gap Height 0.375", 9.5 mm
Voice Coil Diameter 3", 76 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 28 Hz
DC Resistance (Re) 6.29 Ω
Coil Inductance (Le) 1.9m H
Mechanical Q (Qms) 8.28
Electromagnetic Q (Qes) 0.3
Total Q (Qts) 0.29
Compliance Equivalent Volume (Vas) 441.2 liters / 15.58 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 695 cc
Mechanical Compliance of Suspension (Cms) 0.24 mm/N
BL Product (BL) 22.1 T-M
Diaphragm Mass Inc. Airload (MMs) 130 grams
Efficiency Bandwidth Product (EBP) 93
Maximum Linear Excursion (Xmax) 6.1 mm
Surface Area of Cone (Sd) 1140 cm2
Maximum Mechanical Limit (Xlim) 18 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed N/a
Vented 93-212 liters / 3.3-7.5 cu.ft.
Driver Volume Displaced 0.234 cu.ft. / 6.62 liters
Overall Diameter 18", 457.2 mm
Baffle Hole Diameter 16.56", 420.6 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.28", 7.1mm
Mounting Holes B.C.D. 17.25", 438.2mm
Depth 8.15", 207 mm
Net Weight 24.5 lbs, 11.11 kg
Shipping Weight 28.1 lbs, 12.75 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented and extended core

Basket Materials Die-cast aluminum basket
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Solid composition paper dust cap

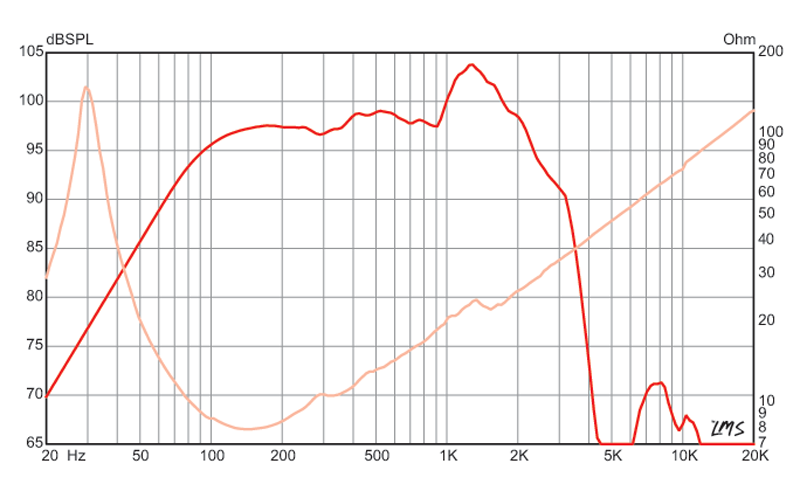

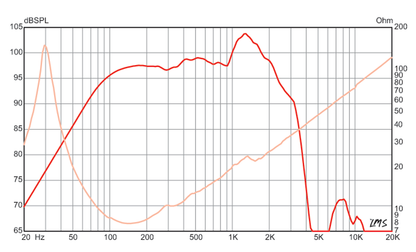

Frequency Response

response graph
