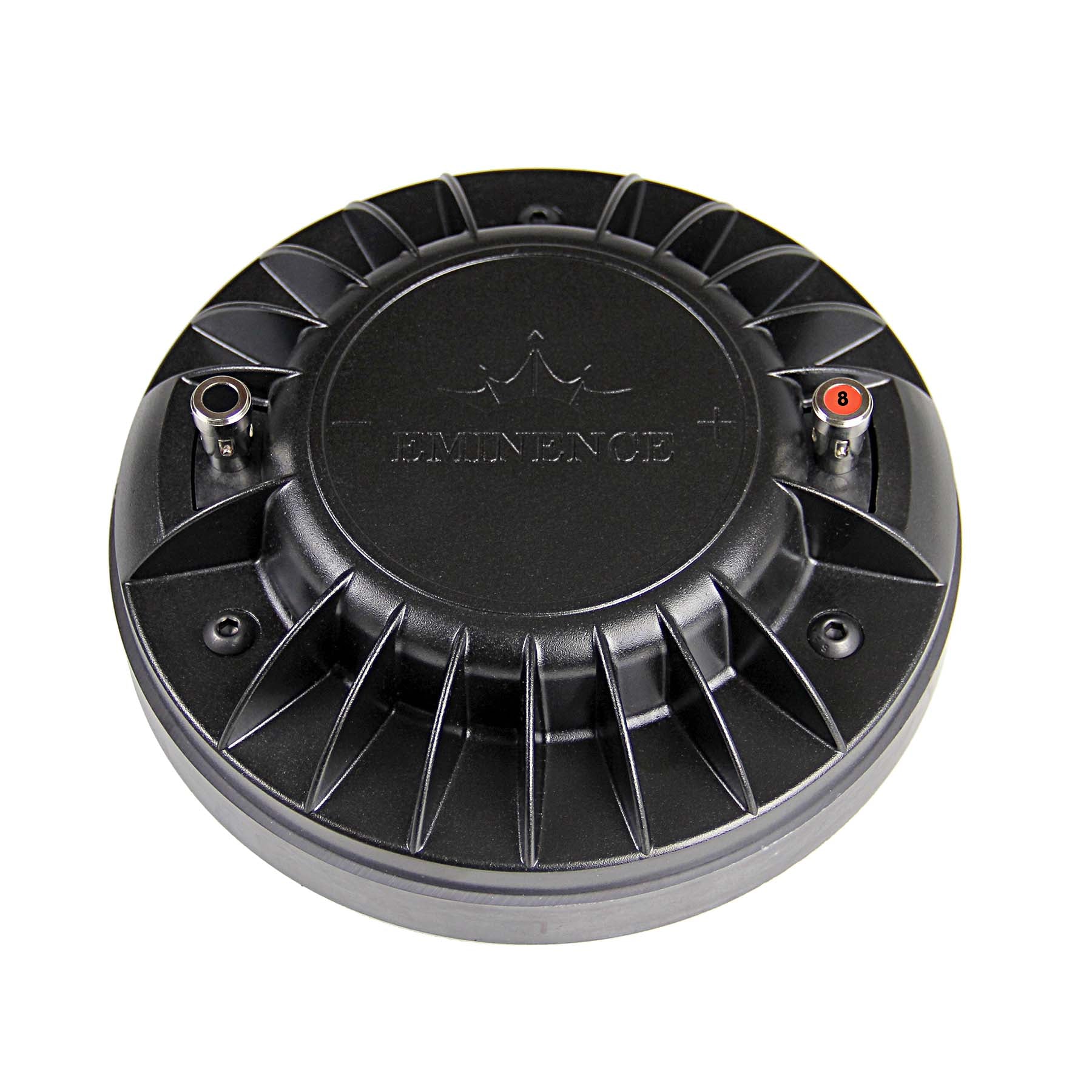

PSD 3014-16 1.4" Throat Size HF Device
PSD 3014-16 1.4" Throat Size HF Device
  • Load image into Gallery viewer, PSD 3014-16 1.4" Throat Size HF Device
  • Load image into Gallery viewer, PSD 3014-16 1.4" Throat Size HF Device
We currently have 41 in stock.

PSD 3014-16 1.4" Throat Size HF Device

Wholesale customers, please SIGN IN to see pricing and place orders.





High frequency 1.4" throat bolt on compression driver.

SPECIFICATIONS
Throat Diameter: 1.4", 35.6 mm
Nominal Impedance: 16 ohms
Power: 100w rms @ 800Hz
Fs: 419 Hz
Re: 10.0 ohms
Freq. Response: 800Hz- 20kHz
Recommended Min. X-over: 800Hz@12db/octave
Sensitivity: 108.6db 1w/1m
Magnet Weight: 80 oz, 2.28 kg
Voice Coil Diameter: 3", 76.2 mm
Voice Coil Former Material: Polyimide
Diaphragm Material: Titanium with geodesic design for increased strength and break up control

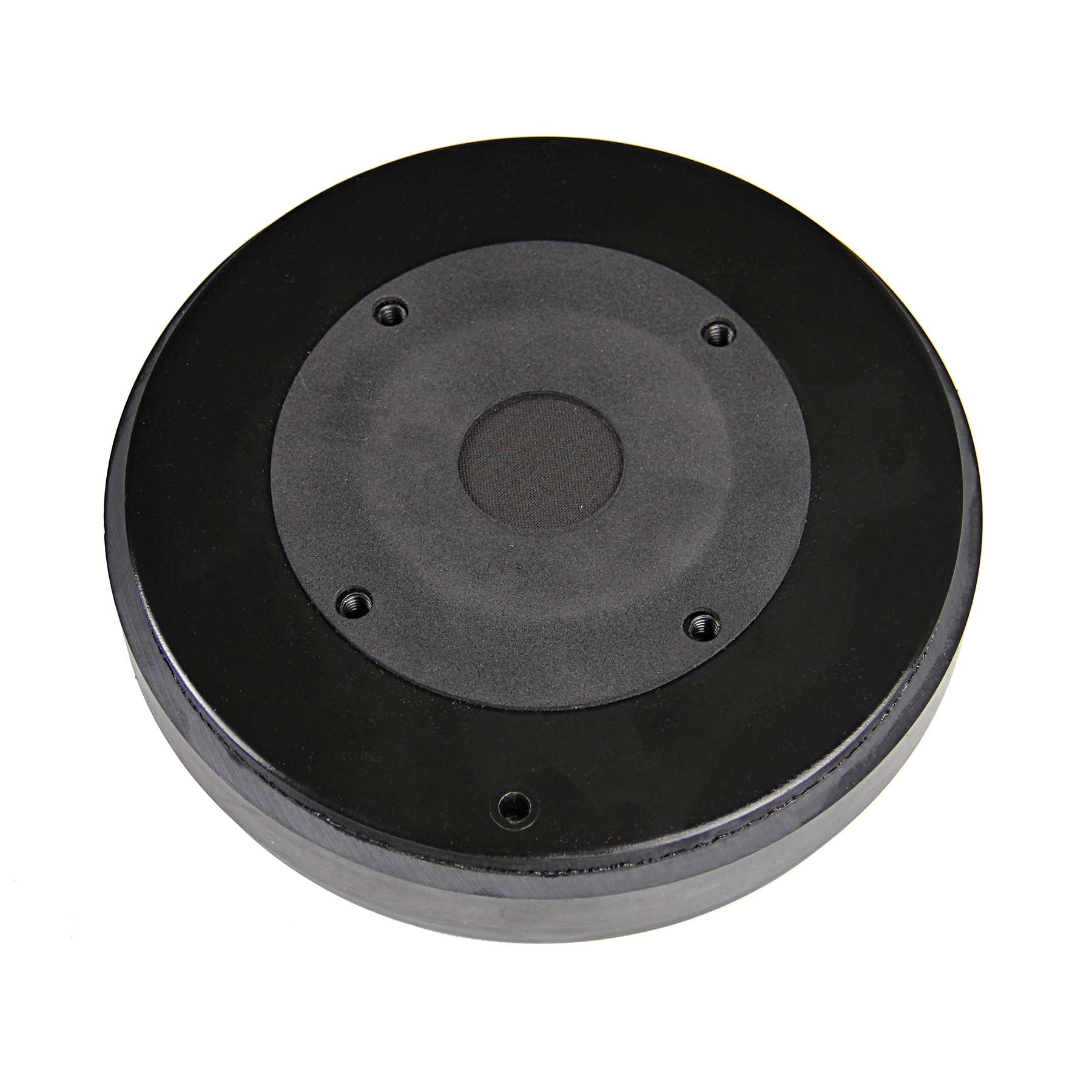

MOUNTING INFORMATION
Mounting Style: Bolt-on
Mounting Bolt Threads: 1/4-20UNC
Mounting Bolt Patterns:
-4 holes on 4", 101.6mm BCD

OVERALL DIMENSIONS
Outside Diameter: 7.9", 200.7mm
Depth: 3.1", 78.7mm
Weight: 13.7 lbs, 6.2 kg
