We currently have 68 in stock.

OMEGA PRO-12-2KW-8 12" Professional Series Speaker

Wholesale customers, please SIGN IN to see pricing and place orders.


What’s inside the Eminence Omega Pro 12-2KW-8? We could bore you with details about the high-power double layer, inside/outside wound copper coil with fiberglass former, weatherproofing treatments, or carefully optimized components. Still, we’re not getting any younger, and neither are you! Incorporated in the Eminence Omega Pro 12-2KW-8 is the experience you can trust derived from fifty-seven years of using, designing, and making loudspeakers.

Here’s why you need the Eminence Omega Pro 12-2KW-8. You’ll forget about lugging those extra subs around because your mains can’t go there. The Omega Pro 12-2KW-8 gets low in those small vented boxes and has 4,000W (peak) AES power handling potential to ensure they get loud.

Not only are the parameters carefully selected to stand alone in the tiny tops of today, but Eminence specifically tailored their smooth frequency responses for the most manageable passive or active network designs you will ever encounter. Eminence engineers invested great care to ensure these drivers do the job for many years to come.

Features include:

  • 2000 W Program Power
  • 4,000W (peak) AES
  • 12” Nominal Diameter
  • 8 Ω
  • Water Resistant Cone and Dust-cap

Applications

Mid-Bass | Subwoofer | Woofer | Pro Audio | Bass Guitar

Box Type: Vented | Scoop Loading | Horn Loading

Specifications

Download Spec Sheet      Download Cab Design
SPECIFICATION
Nominal Basket Diameter 12", 304.8 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power 2000 W
Watts 1000 W
Resonance 48.14 Hz
Usable Frequency Range 42 Hz - 1.6 kHz
Sensitivity* 93.33 dB
Magnet Weight 109 oz.
Gap Height 0.375", 9.5 mm
Voice Coil Diameter 4", 101.6 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 48.14 Hz
DC Resistance (Re) 6.04 Ω
Coil Inductance (Le) 1.13 m H
Mechanical Q (Qms) 14.88
Electromagnetic Q (Qes) 0.40
Total Q (Qts) 0.39
Compliance Equivalent Volume (Vas) 49.55 liters / 1.75 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 387 cc
Mechanical Compliance of Suspension (Cms) 0.12 mm/N
BL Product (BL) 20.40 T-M
Diaphragm Mass Inc. Airload (MMs) 91.96 grams
Efficiency Bandwidth Product (EBP) 119.2
Maximum Linear Excursion (Xmax) 7.1 mm
Surface Area of Cone (Sd) 545.4 cm2
Maximum Mechanical Limit (Xlim) 19.6 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed N/a
Vented 31.15-87.78 liters / 1.1-3.1 cu.ft.
Driver Volume Displaced 183 cu.in. / 3 liters
Overall Diameter 12.38", 314.45 mm
Baffle Hole Diameter 11.06", 280.92 mm
Front Sealing Gasket Yes
Rear Sealing Gasket No
Mounting Holes Diameter 0.28", 7.112mm
Mounting Holes B.C.D. 11.7", 297.18mm
Depth 6.04", 153.416 mm
Net Weight 21.8 lbs, 9.89 kg
Shipping Weight 23.8 lbs, 10.8 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Inside/outside copper voice coil
Coil Former Fiberglass former
Magnet Composition Ferrite magnet
Core Details Vented and extended core
Backplate Details Vented
Basket Materials Die-cast aluminum basket
Cone Composition Water-resistant treated paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Water-resistant treated dust cap

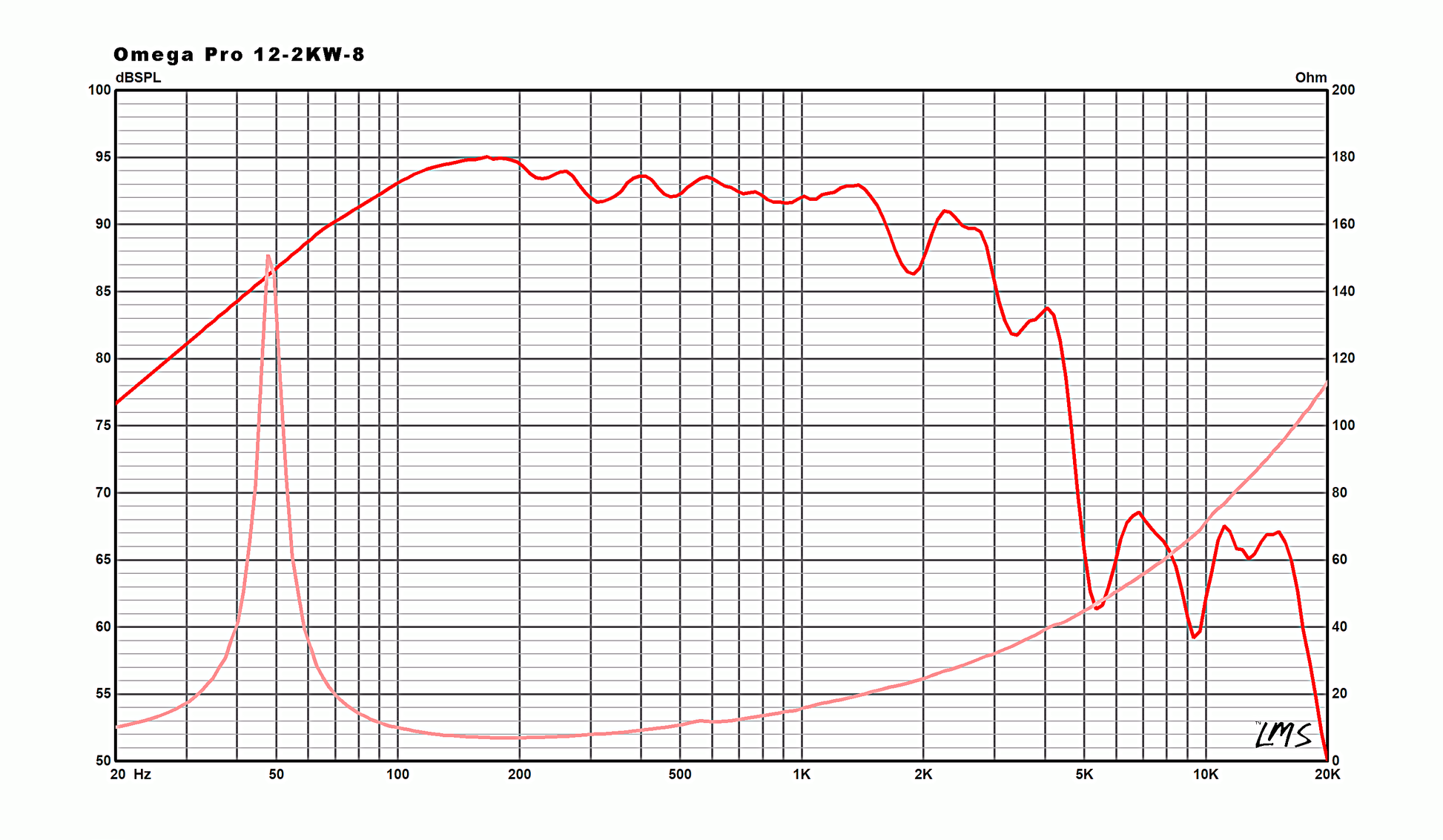

Frequency Response

response graph
