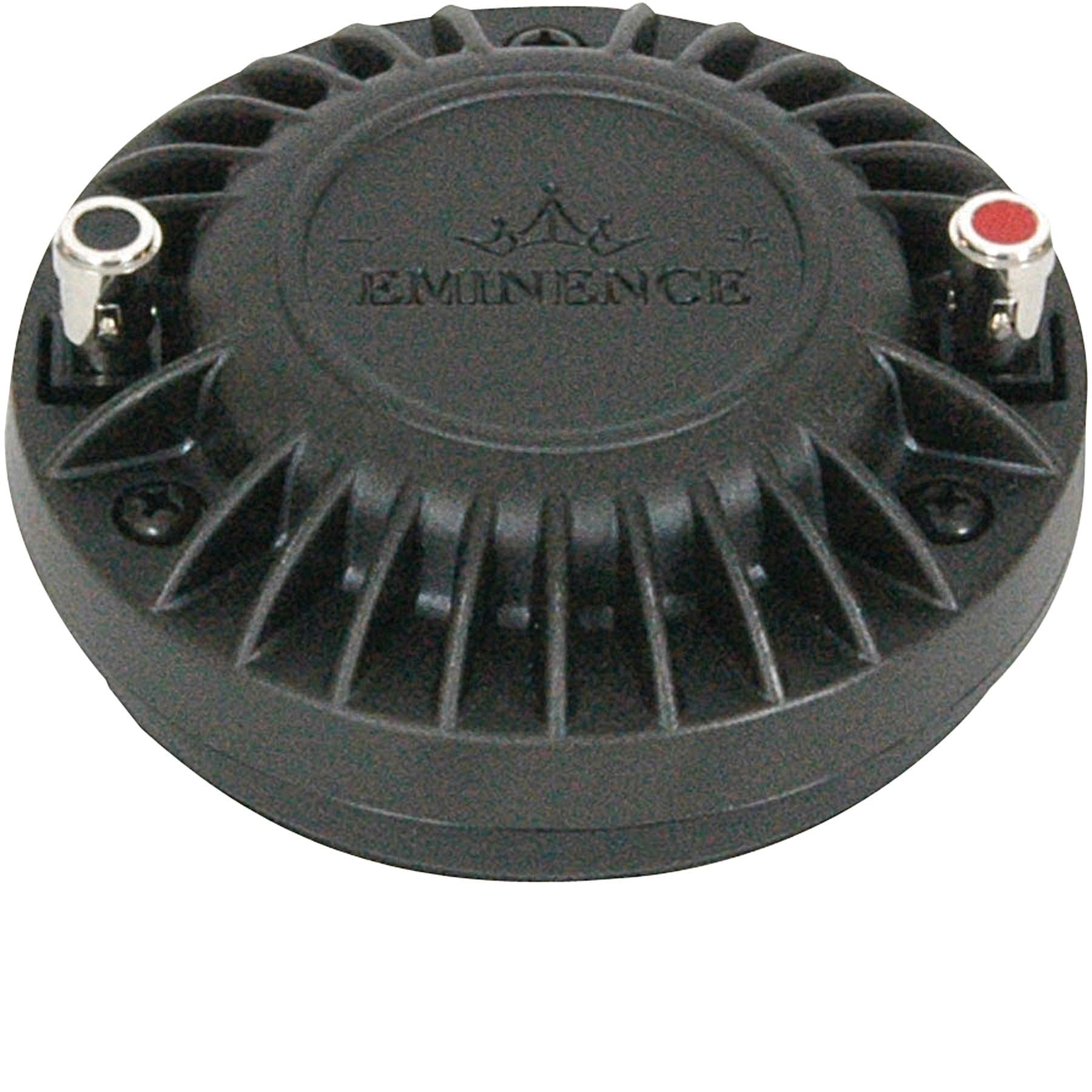

NSD 2005S-16 1" Throat Size HF Device - Neodymium
1" Throat Size HF Device - Neodymium
Specifications
Download Spec Sheet| SPECIFICATION | |
| Throat Size | 1", 25.4mm |
| Nominal Impedance* | 16Ω |
| Minimum Impedance | |
| Power Rating** | 50 W (AES) |
| Resonance | 0.578kHz |
| Usable Frequency Range | 1500Hz-20kHz |
| Recommended Crossover | 12dB/oct @1.5kHz |
| Sensitivity*** | 109 db |
| Magnet Material | Neodymium |
| Magnet Weight | 4.16 oz. |
| Voice Coil Diameter | 2" 50.8mm |
| Voice Coil Former | Polyimide |
| Diaphragm Material | Titanium |
| DC Resistance (Re) | |
| MOUNTING INFORMATION | |
| Overall Diameter | 3.87”, 98.3mm |
| Driver Volume Displaced | 13.63 cu. in. |
| Depth | 2", 50.8mm |
| Weight | 1.7 lbs, 0.8 kg |
| Mounting Thread | N/A |
| Mounting Holes Diameter | 2X 1/4-20 |
| Mounting Holes B.C.D. | 3 in. 76.2 mm |
Frequency Response
