N210T-16 1" Throat Size HF Device - Neodymium - 16 ohm

Wholesale customers, please SIGN IN to see pricing and place orders.


Perhaps the most copied diaphragm of all time.  There’s a reason this dome has been going strong for over 30 years.  It’s unique tange-radial ribbed surround formed from pure Titanium has truly stood the test of time like few other devices in the pro sound industry.  A 2” workhorse voice coil helps with high power handling and a lower cutoff frequency yet somehow crammed in a tiny neo motor with a total weight less than 2lbs.  Fast-on terminal spades yield quick-connect and/or solderability.  A rugged die cast aluminum heat sink back cover adds to the facts that the N210T is a testament to performance and reliability.  Now you can embrace what many of the Pros have been using.

Specifications

Download Spec Sheet

SPECIFICATION
Throat Size 1", 25.4mm
Nominal Impedance* 16Ω
Minimum Impedance  16.1 ohm @ 5.7 kHz
Power Rating** 50 W (AES)
Resonance 0.599 kHz
Usable Frequency Range 1.5kHz-20kHz
Recommended Crossover 1.5kHz / 12 dB kHz
Sensitivity*** 108.5
Magnet Material Neodymium
Magnet Weight 4.16oz, 0.31kg
Voice Coil Diameter 2" / 50.8mm
Voice Coil Former Polyimide
Diaphragm Material Titanium
DC Resistance (Re) 12.9 Ω
MOUNTING INFORMATION
Overall Diameter 3.85", 97.8mm
Driver Volume Displaced 0.008 cu.ft., 0.22 liters
Depth 1.58", 40.2mm
Weight 1.97 lbs, .89 kg
Mounting Thread N/A
Mounting Holes Diameter 2X 1/4-20
Mounting Holes B.C.D. 3 in. 76.2 mm

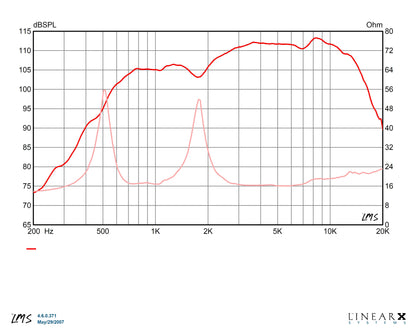

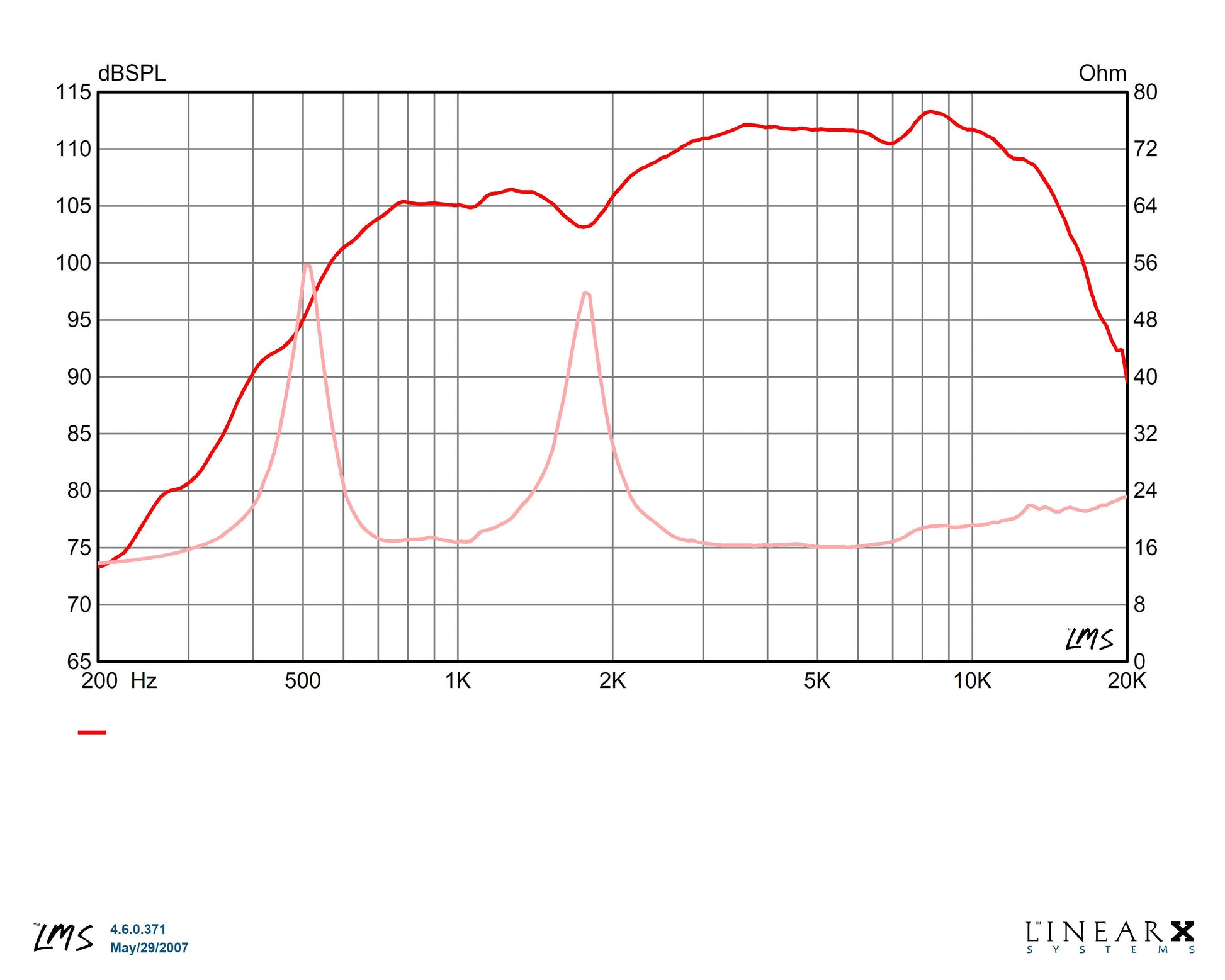

Frequency Response
