Product Details

Description

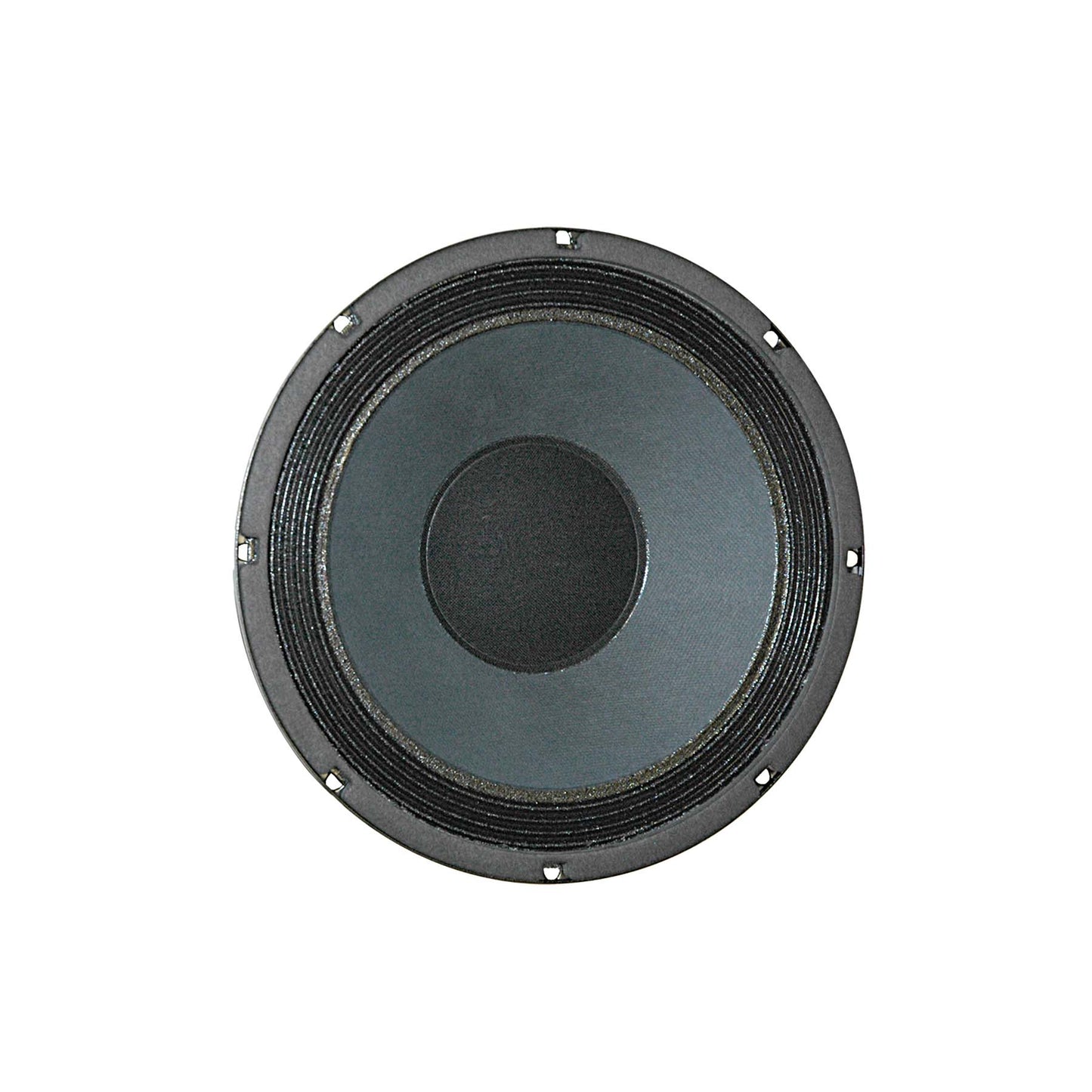

The LEGEND BP 102-4 10" Bass Guitar Speaker is an Eminence bass guitar speaker for musicians, builders, and repair technicians seeking a purposeful replacement or new-cabinet driver. Recommended for professional bass guitar applications in a sealed or vented enclosure. Works well in single or multi driver designs. Key specifications include 200 W power handling, 4 Ω nominal impedance, 40 Hz - 2 kHz usable frequency range, 90.5 dB sensitivity.

Its construction features a ferrite magnet, a paper cone, a 2", 50 mm voice coil, supporting reliable performance in compatible cabinets and amplifiers. Use it for amplifier upgrades, custom cabinet projects, tonal experimentation, or restoring a working rig with a speaker selected for its musical response. Before installation, confirm the amplifier's impedance requirement, available mounting depth, cabinet cutout, and power compatibility. For best results, choose an enclosure and amplifier pairing appropriate for the published specifications and the desired playing style.

Specifications
Nominal basket diameter
10", 254mm
Nominal impedance
4 Ω
Power rating program power
400 W
Power rating watts
200 W
Resonance
35 Hz

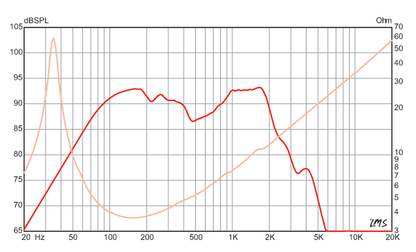

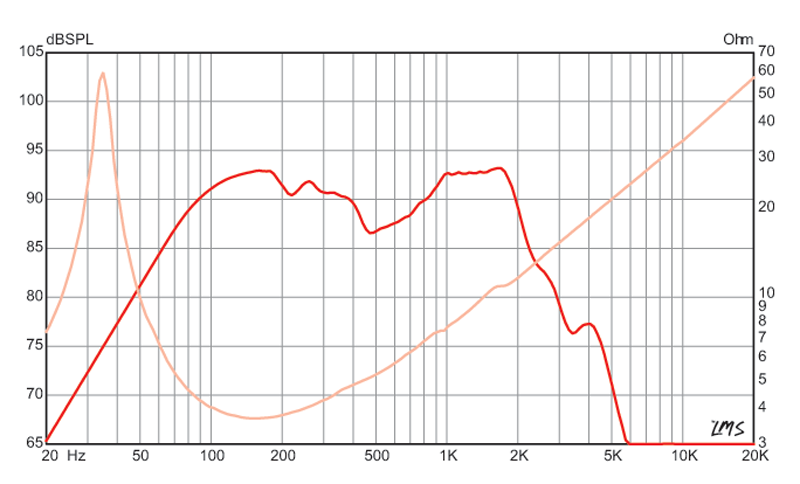

Usable frequency range
40 Hz - 2 kHz
Sensitivity
90.5 dB
Gap height
0.31", 7.9 mm
Voice coil diameter
2", 50 mm
Thiele & Small Parameters
Resonant frequency fs
35 Hz
Dc resistance re
2.7
Coil inductance le
0.68
Mechanical q qms
10.61
Electromagnetic q qes
0.4
Total q qts
0.38
Compliance equivalent volume vas
103.8 liters, 3.67 cu.ft.
Peak diaphragm displacement volume vd
213 cc
Mechanical compliance of suspension cms
0.63 mm/N
Bl product bl
7.1
Diaphragm mass inc airload mms
34
Efficiency bandwidth product ebp
87
Maximum linear excursion xmax
6.2 mm
Surface area of cone sd
344.9 cm²
Mounting Information
Recommended enclosure volume sealed
Acceptable
Recommended enclosure volume vented
Acceptable
Driver volume displaced
0.041 cu.ft. / 1.17 liters
Overall diameter
10.08", 256 mm
Baffle hole diameter
9.18", 233.2 mm
Front sealing gasket
Yes
Rear sealing gasket
Yes
Mounting holes diameter
0.25", 6.4mm
Mounting holes b c d
9.66", 245.4mm

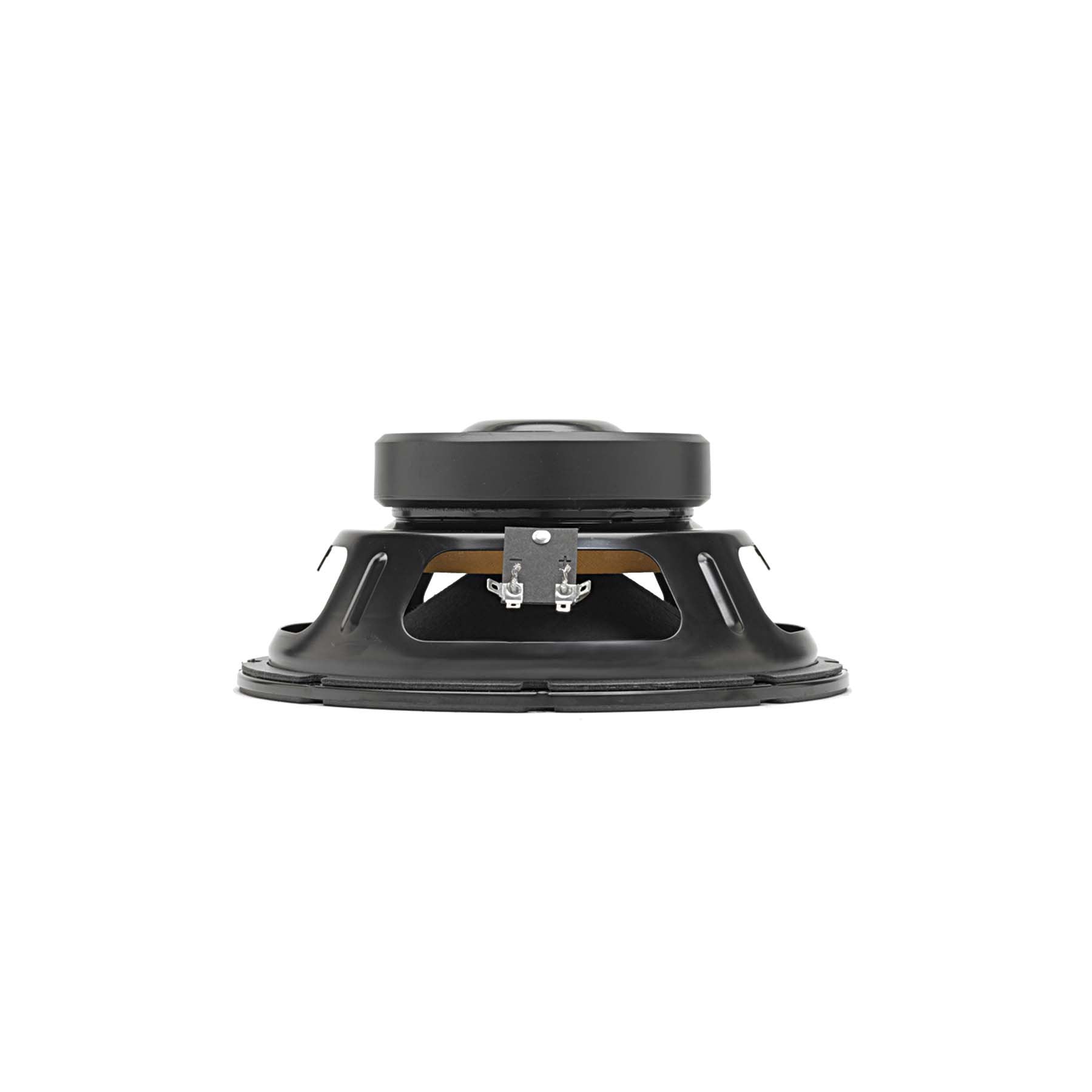

Depth
4.25", 108 mm
Net weight
8.9 lbs, 4.04 kg
Shipping weight
9.1 lbs, 4.13 kgs
Materials of Construction
Coil construction
Edgewound copper
Voice coil former
Polyimide
Magnet material
Ferrite

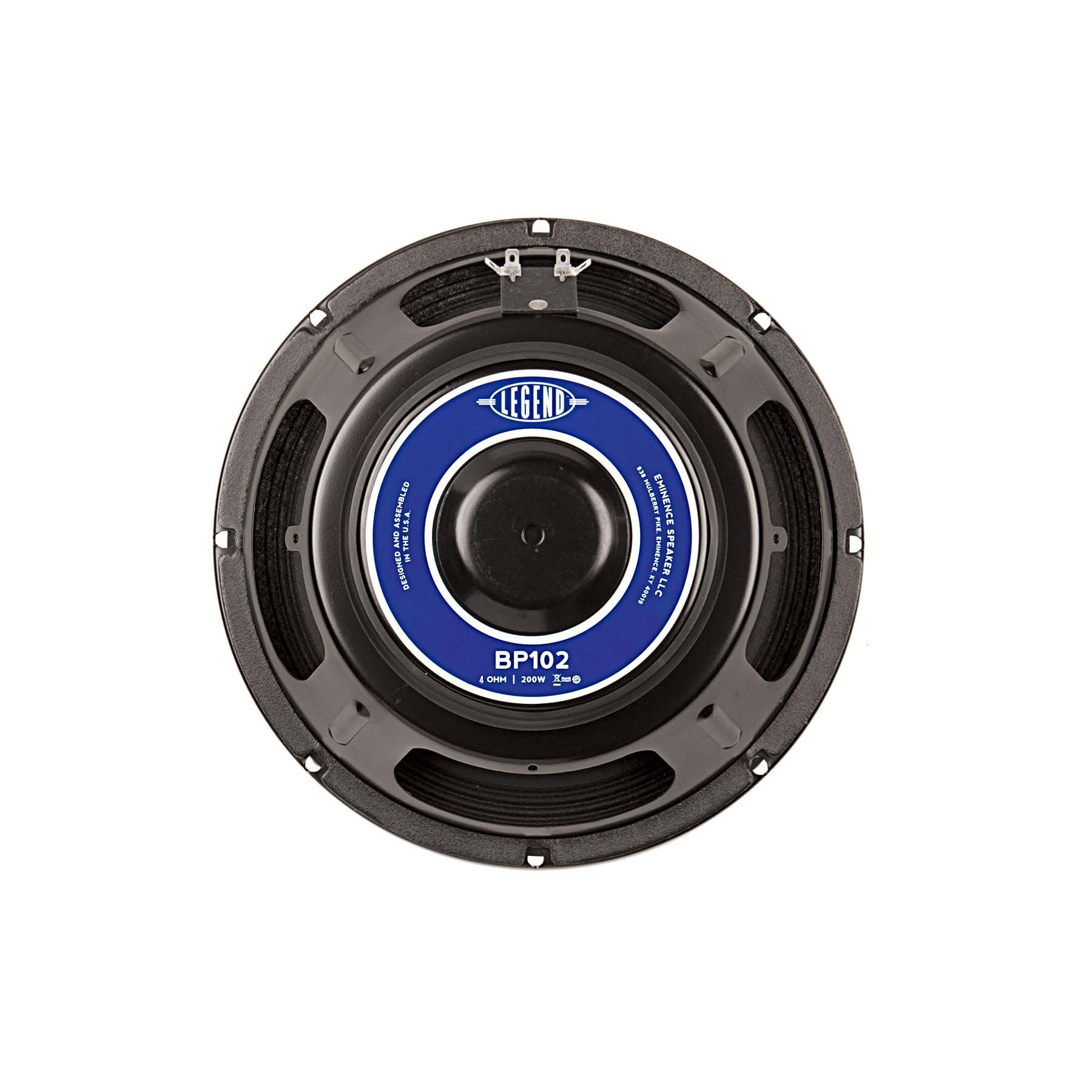

Basket material
Pressed steel

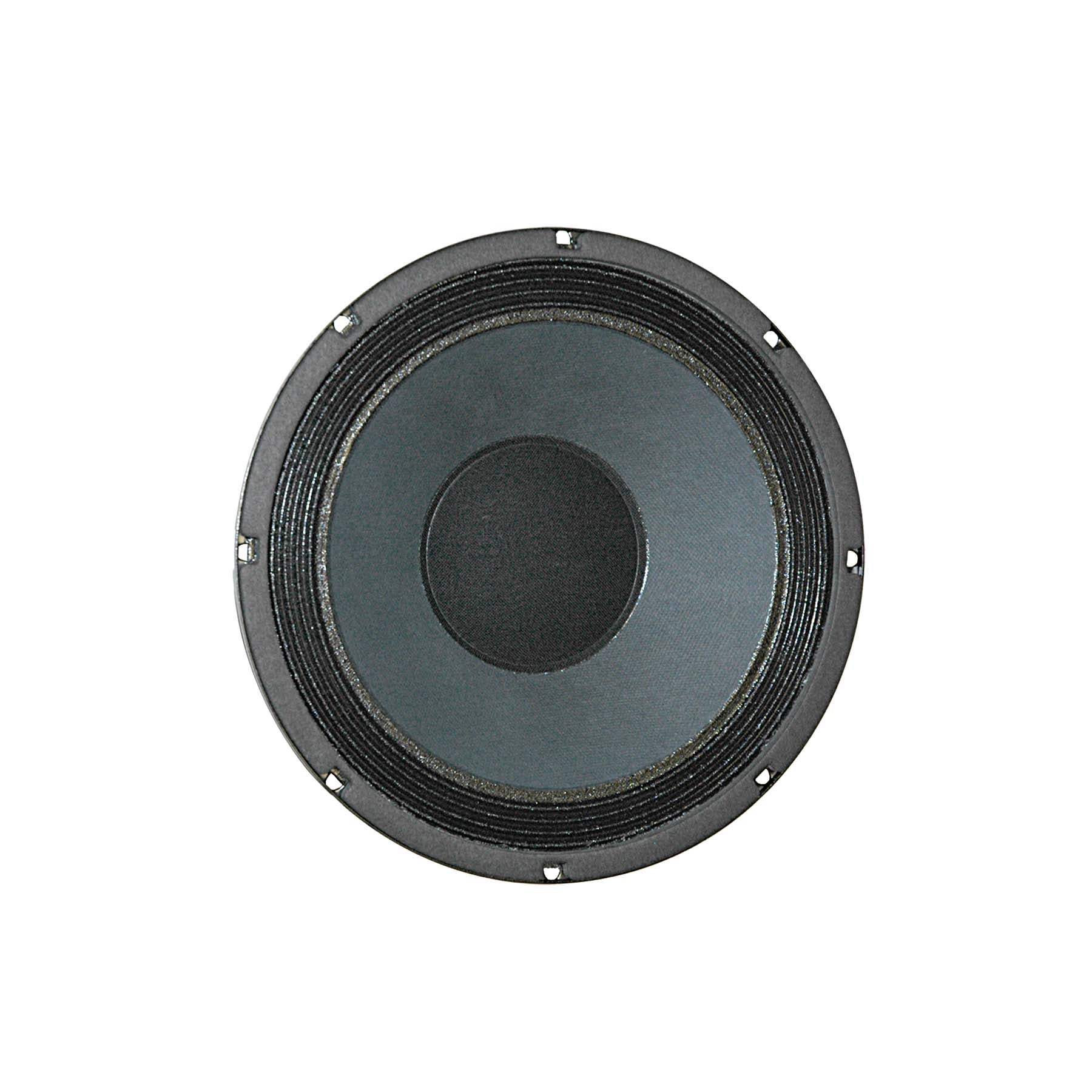

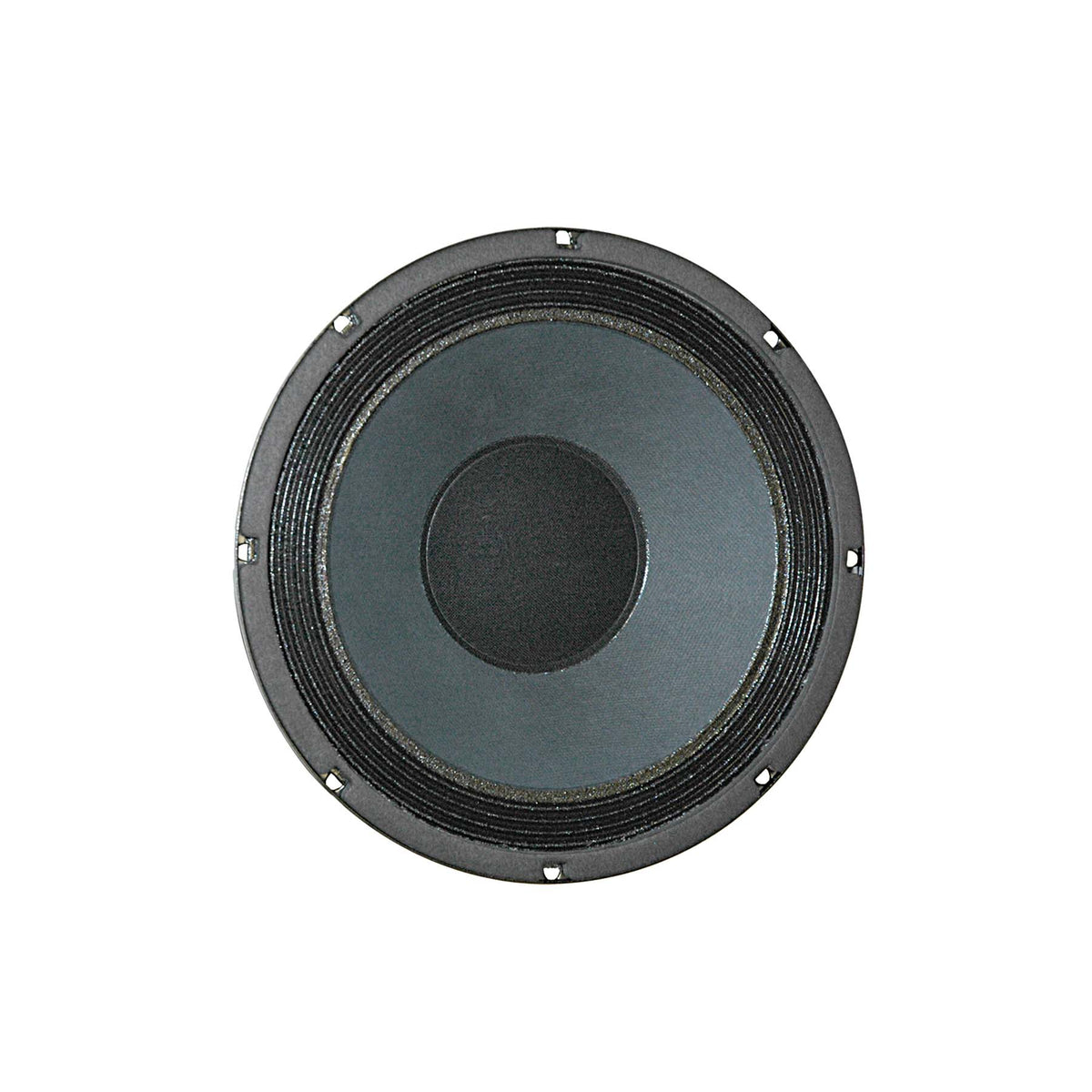

Cone composition
Paper
Surround
Cloth
Dust cap composition
Zurette
