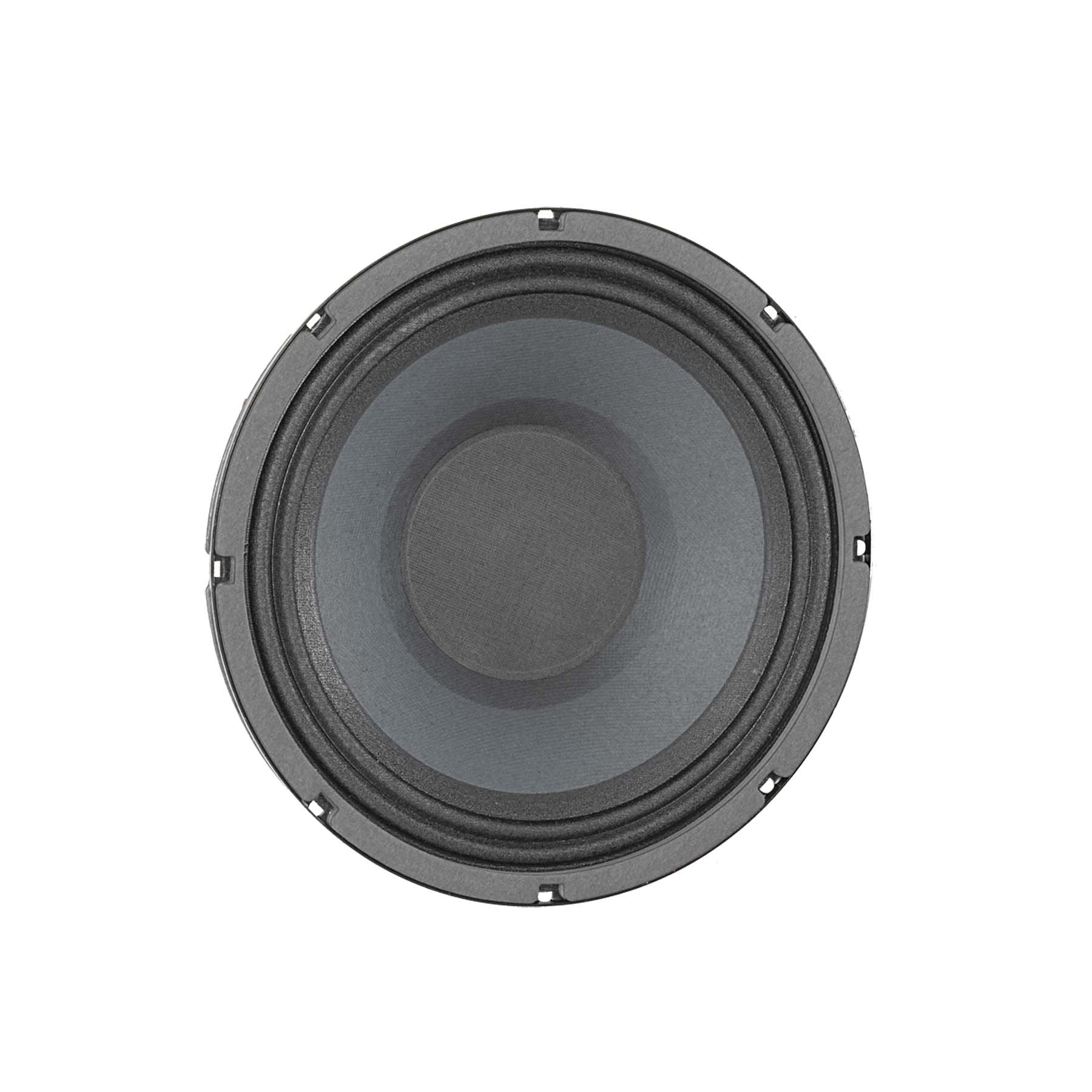

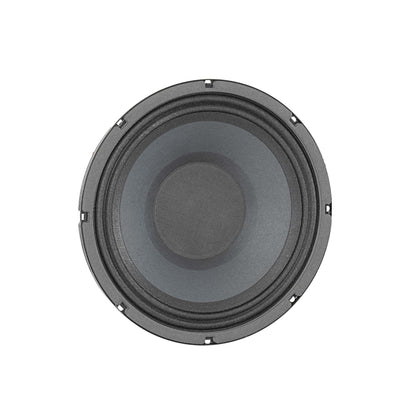

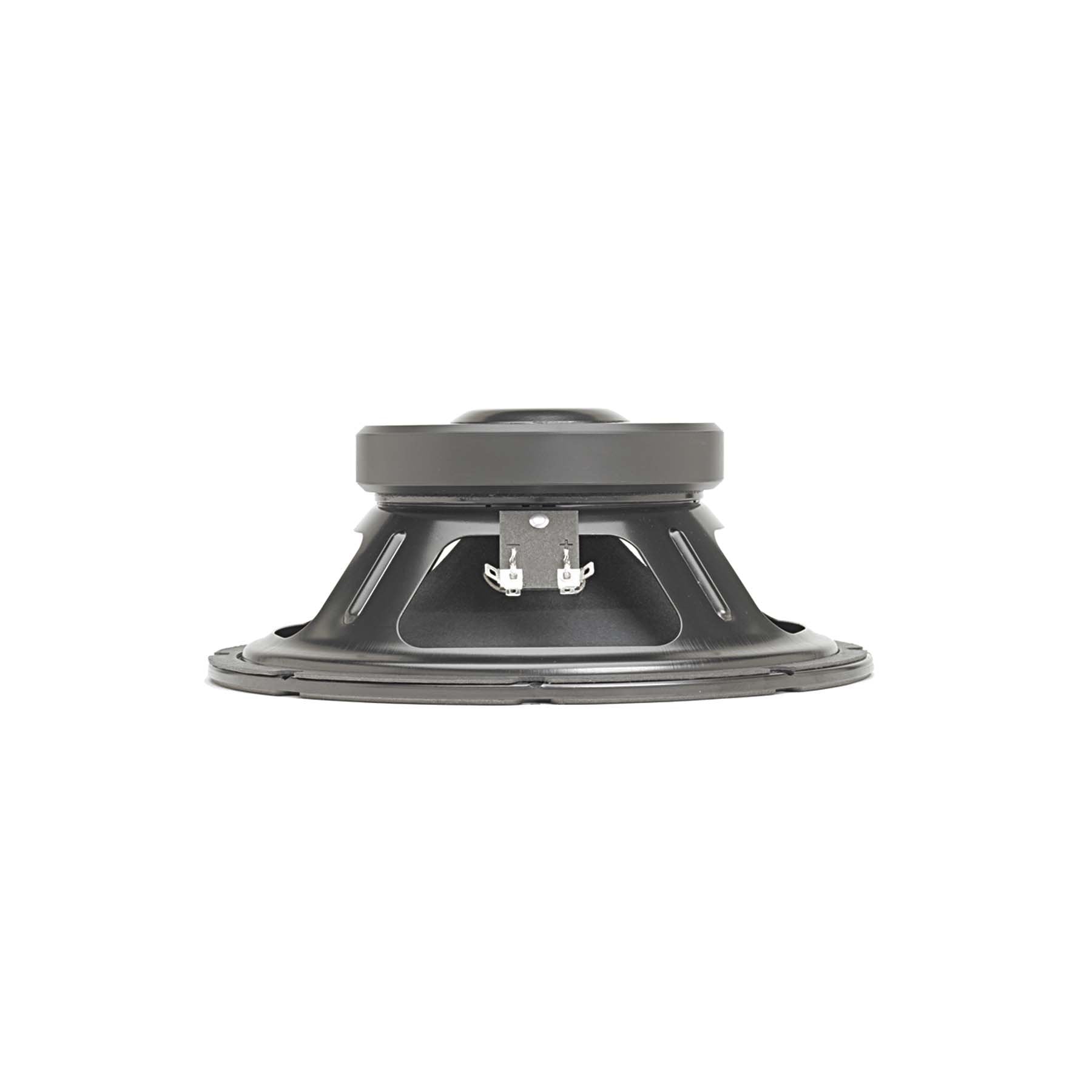

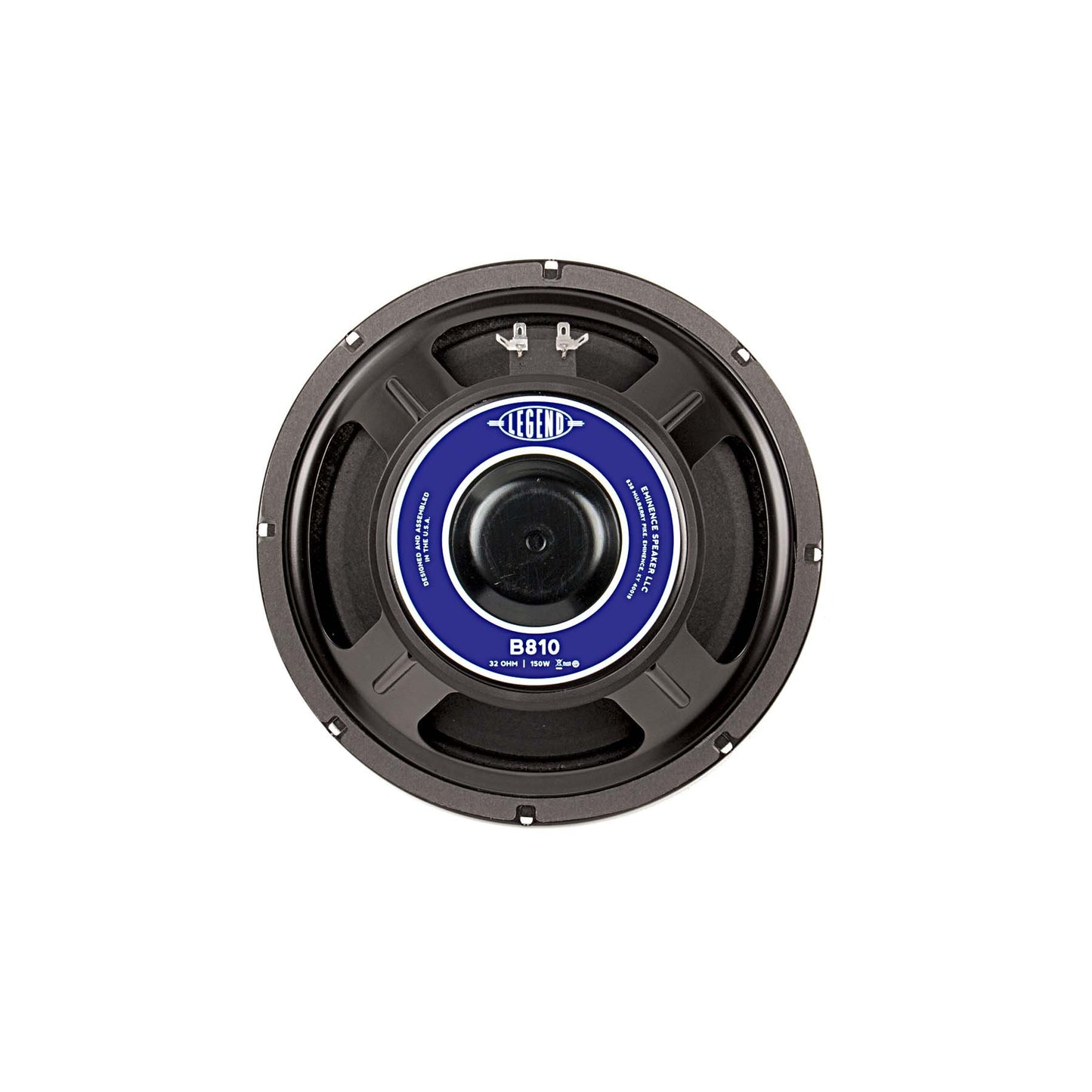

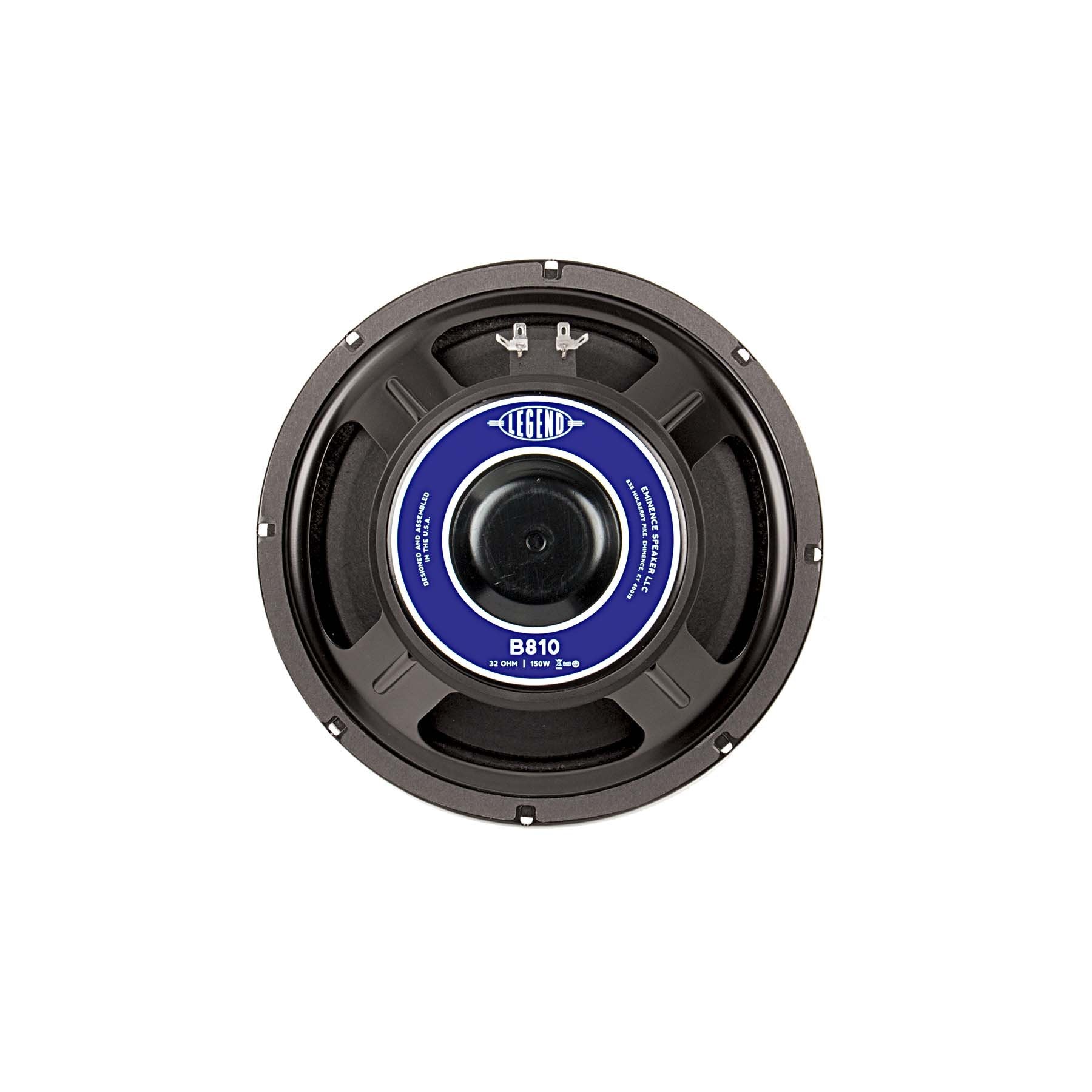

A 32 ohm, 10 inch bass guitar speaker offering classic sound with modern features. A perfect replacement for your 8x10 cabinet.
Specifications
Download Spec Sheet Download Cab Design| SPECIFICATION | |
| Nominal Basket Diameter | 10", 254 mm |
| Nominal Impedance* | 32 Ω |
| Power Rating* | |
| Program Power | 300 W |
| Watts | 150 W |
| Resonance | 52 Hz |
| Usable Frequency Range | 49 Hz - 5.1 kHz |
| Sensitivity* | 92.7 dB |
| Magnet Weight | 30 oz. |
| Gap Height | 0.312", 7.9 mm |
| Voice Coil Diameter | 2", 51 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 52 Hz |
| DC Resistance (Re) | 27.5 Ω |
| Coil Inductance (Le) | 2.72m H |
| Mechanical Q (Qms) | 13.91 |
| Electromagnetic Q (Qes) | 0.68 |
| Total Q (Qts) | 0.65 |
| Compliance Equivalent Volume (Vas) | 66.4 liters / 2.34 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 165.2 cc |
| Mechanical Compliance of Suspension (Cms) | 0.39 mm/N |
| BL Product (BL) | 17.7 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 24 grams |
| Efficiency Bandwidth Product (EBP) | 77 |
| Maximum Linear Excursion (Xmax) | 4.7 mm |
| Surface Area of Cone (Sd) | 350.1 cm2 |
| Maximum Mechanical Limit (Xlim) | 9.5 mm |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | Acceptable |
| Vented | Acceptable |
| Driver Volume Displaced | 0.039 cu.ft. / 1.1 liters |
| Overall Diameter | 10.11", 256.8 mm |
| Baffle Hole Diameter | 9.13", 231.9 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.23", 5.8mm |
| Mounting Holes B.C.D. | 9.6", 243.8mm |
| Depth | 4.08", 103.6 mm |
| Net Weight | 6.7 lbs, 3.04 kg |
| Shipping Weight | 7.9 lbs, 3.58 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Copper voice coil |
| Coil Former | Kapton former |
| Magnet Composition | Ferrite magnet |
| Core Details | Bumped |
| Basket Materials | Pressed steel basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Cloth cone edge |
| Dust Cap Composition | Zurette dust cap |

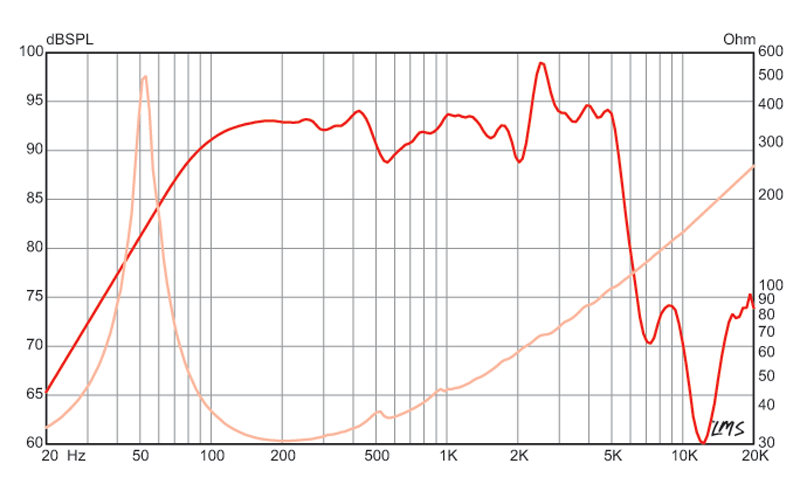

Frequency Response
