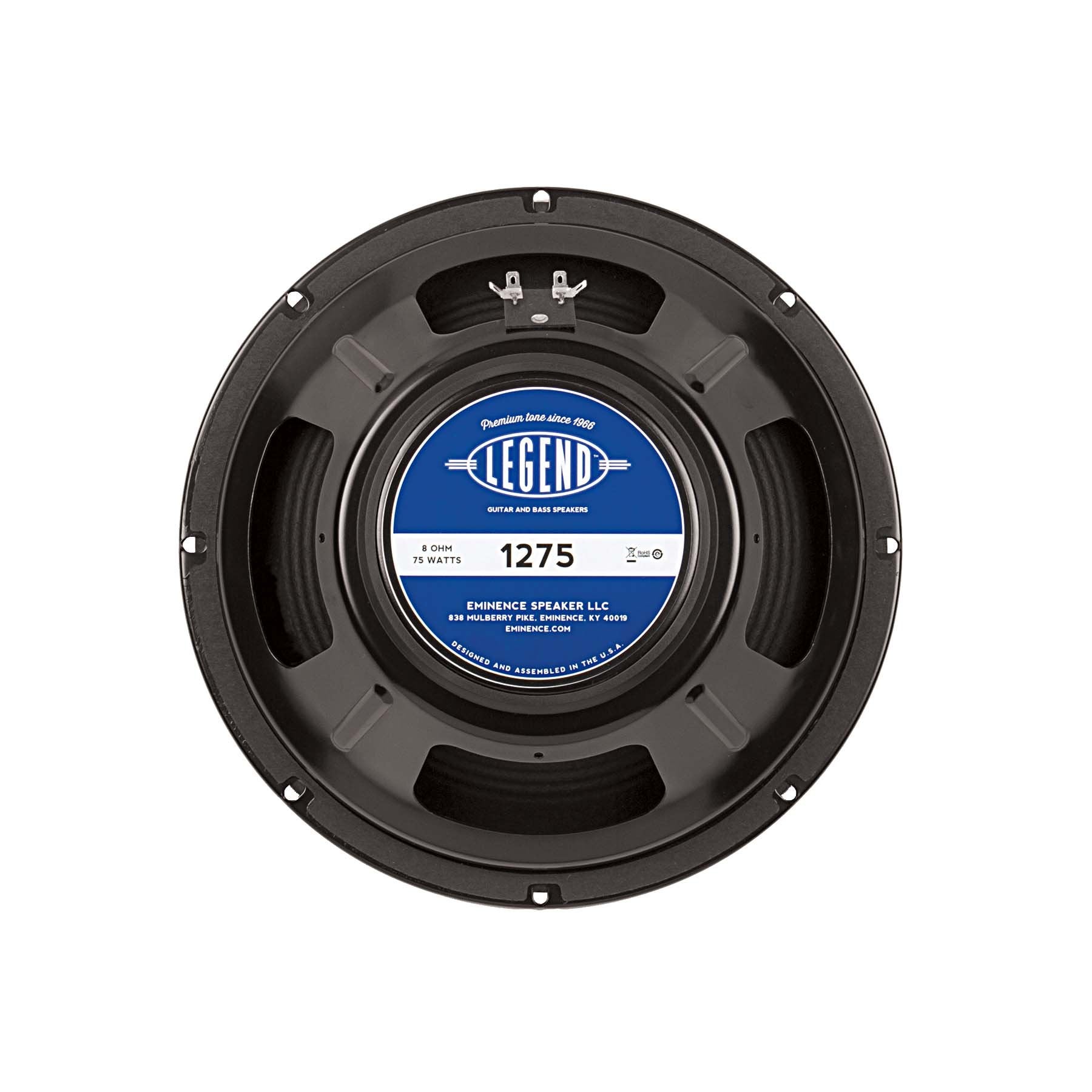

12 inch Eminence Lead / Rhythm Guitar Replacement Speaker Eminence Speaker Basket

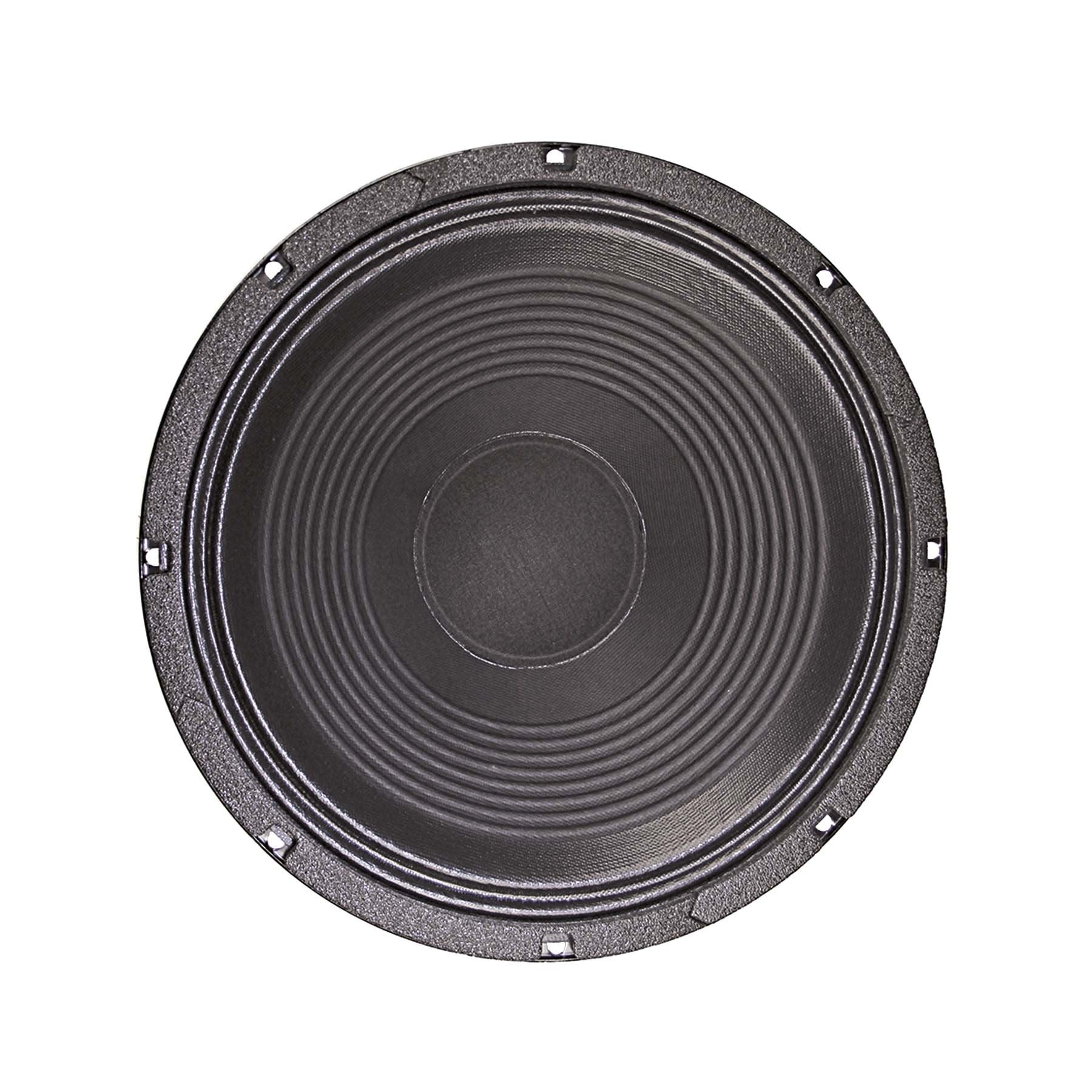

12 inch Eminence Lead / Rhythm Guitar Replacement Speaker Eminence Speaker Cone

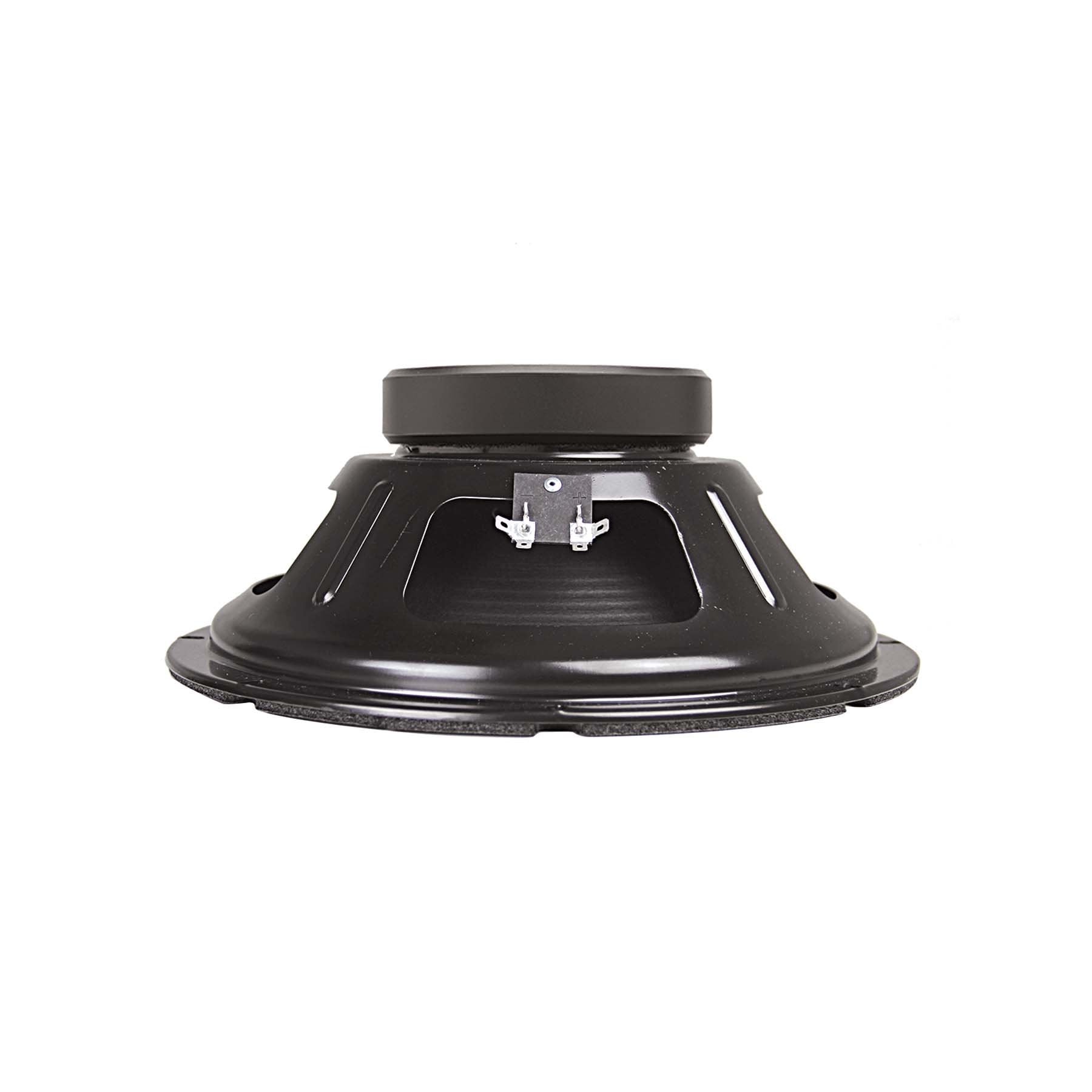

12 inch Eminence Lead / Rhythm Guitar Replacement Speaker Eminence Speaker Side
12 inch Eminence Lead / Rhythm Guitar Replacement Speaker Eminence Speaker Frequency Response
  • Load image into Gallery viewer, 12 inch Eminence Lead / Rhythm Guitar Replacement Speaker Eminence Speaker Basket
  • Load image into Gallery viewer, 12 inch Eminence Lead / Rhythm Guitar Replacement Speaker Eminence Speaker Cone
  • Load image into Gallery viewer, 12 inch Eminence Lead / Rhythm Guitar Replacement Speaker Eminence Speaker Side
  • Load image into Gallery viewer, 12 inch Eminence Lead / Rhythm Guitar Replacement Speaker Eminence Speaker Frequency Response

LEGEND 1275 12" Lead / Rhythm Guitar Speaker

Wholesale customers, please SIGN IN to see pricing and place orders.

A British voiced speaker reminiscent of classic OEM tones from the past with tight, punchy lows, warm mids, and crisp, articulate, open highs.

Characteristics

Series Legends
Model Legend 1275
Application 12" Open or Closed Back
Configuration 1, 2, or 4 X 12"
Low End Response Moderate
Low End Shape Tight
Mid-Range Response Aggressive
Mid-Range Shape Warm
High-End Response Aggressive
Volume/Power Loud
Overall Coloration* Classic Eminence OEM type tone with tight, punchy lows, warm mids, and crisp, articulate, open highs
Break-up Modes Medium
Power Range Up to 75 watts
Instrument* Lead/Rhythm Guitar
Genre of Music* Blues, Rock

Specifications

Download Spec Sheet
SPECIFICATION
Nominal Basket Diameter 12", 305 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power N/A
Watts 75 W
Resonance 111 Hz
Usable Frequency Range 80 Hz - 5.1 kHz
Sensitivity* 101.1 dB
Magnet Weight 34 oz.
Gap Height 0.313", 8 mm
Voice Coil Diameter 1.5", 38 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 111 Hz
DC Resistance (Re) 7.36 Ω
Coil Inductance (Le) 0.55m H
Mechanical Q (Qms) 15.07
Electromagnetic Q (Qes) 1.09
Total Q (Qts) 1.02
Compliance Equivalent Volume (Vas) 29.61 liters / 1.05 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 25.9 cc
Mechanical Compliance of Suspension (Cms) 0.07 mm/N
BL Product (BL) 11.95 T-M
Diaphragm Mass Inc. Airload (MMs) 30 grams
Efficiency Bandwidth Product (EBP) 101
Maximum Linear Excursion (Xmax) 0.47 mm
Surface Area of Cone (Sd) 552 cm2
Maximum Mechanical Limit (Xlim) N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed Acceptable
Vented N/a
Driver Volume Displaced 0.068 cu.ft. / 1.93 liters
Overall Diameter 12.26", 311.4 mm
Baffle Hole Diameter 11.06", 280.9 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.25", 6.4mm
Mounting Holes B.C.D. 11.71", 297.4mm
Depth 4.44", 112.8 mm
Net Weight 7 lbs, 3.18 kg
Shipping Weight 9 lbs, 4.08 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite Magnet
Core Details Non-vented core

Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Paper cone edge
Dust Cap Composition Zurette dust cap

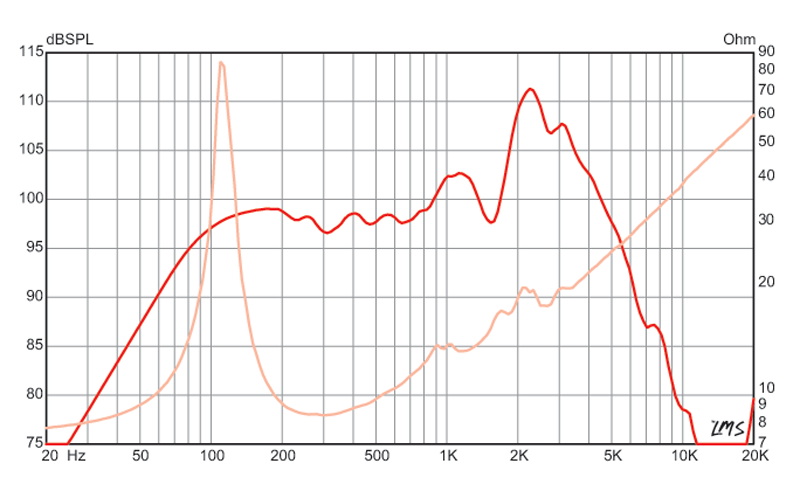

Frequency Response

response graph
