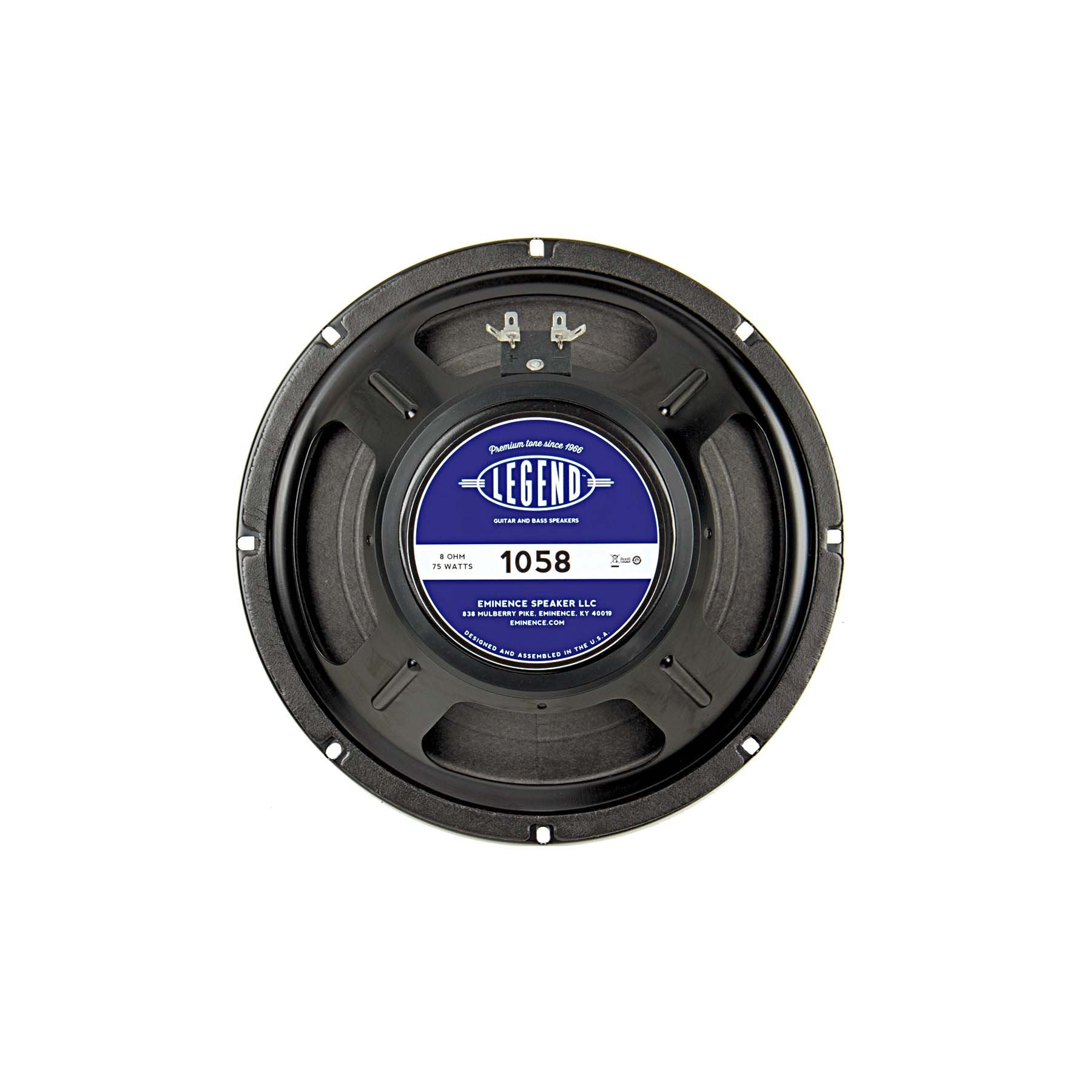

10 inch Eminence Lead / Rhythm Guitar Replacement Speaker Eminence Speaker Basket

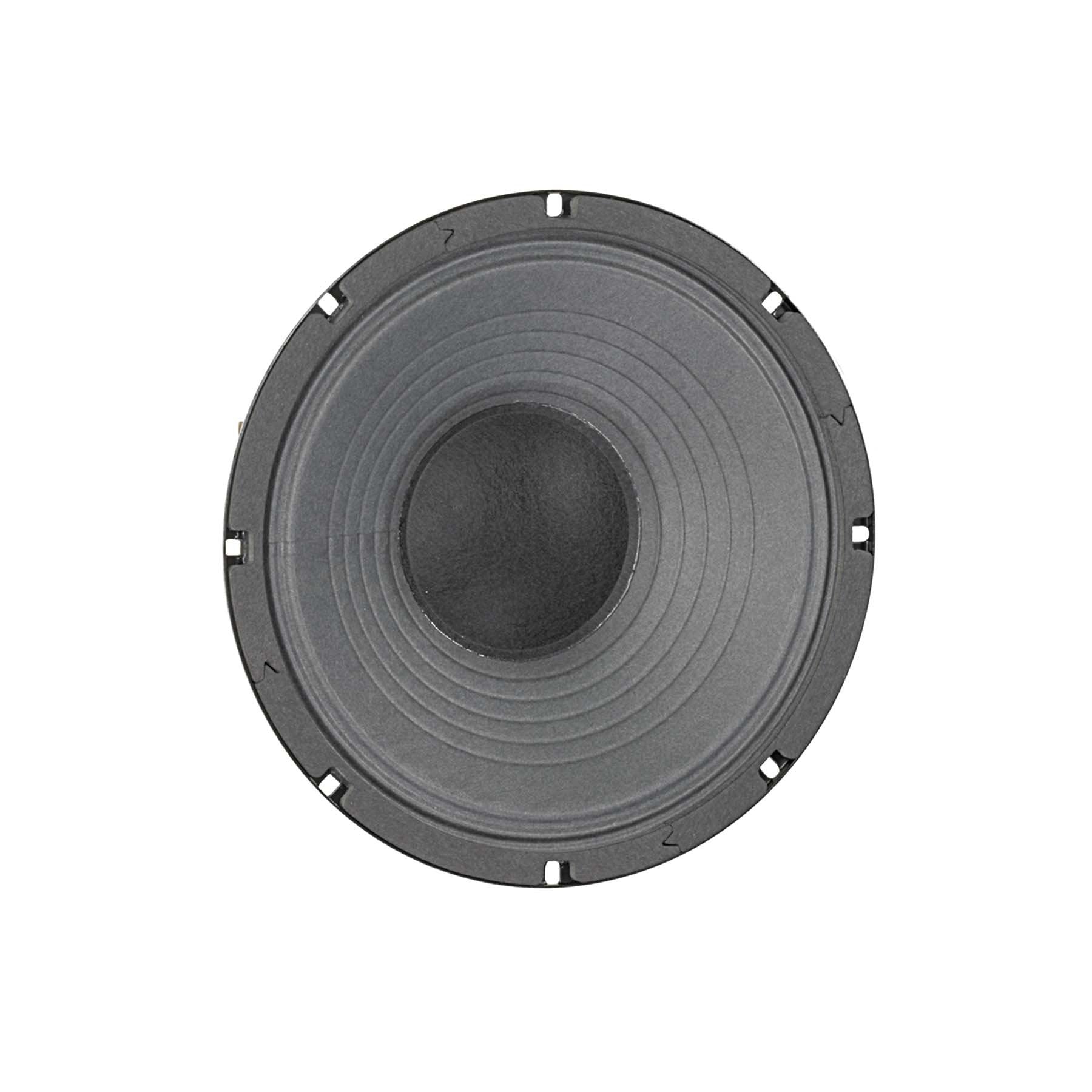

10 inch Eminence Lead / Rhythm Guitar Replacement Speaker Eminence Speaker Cone

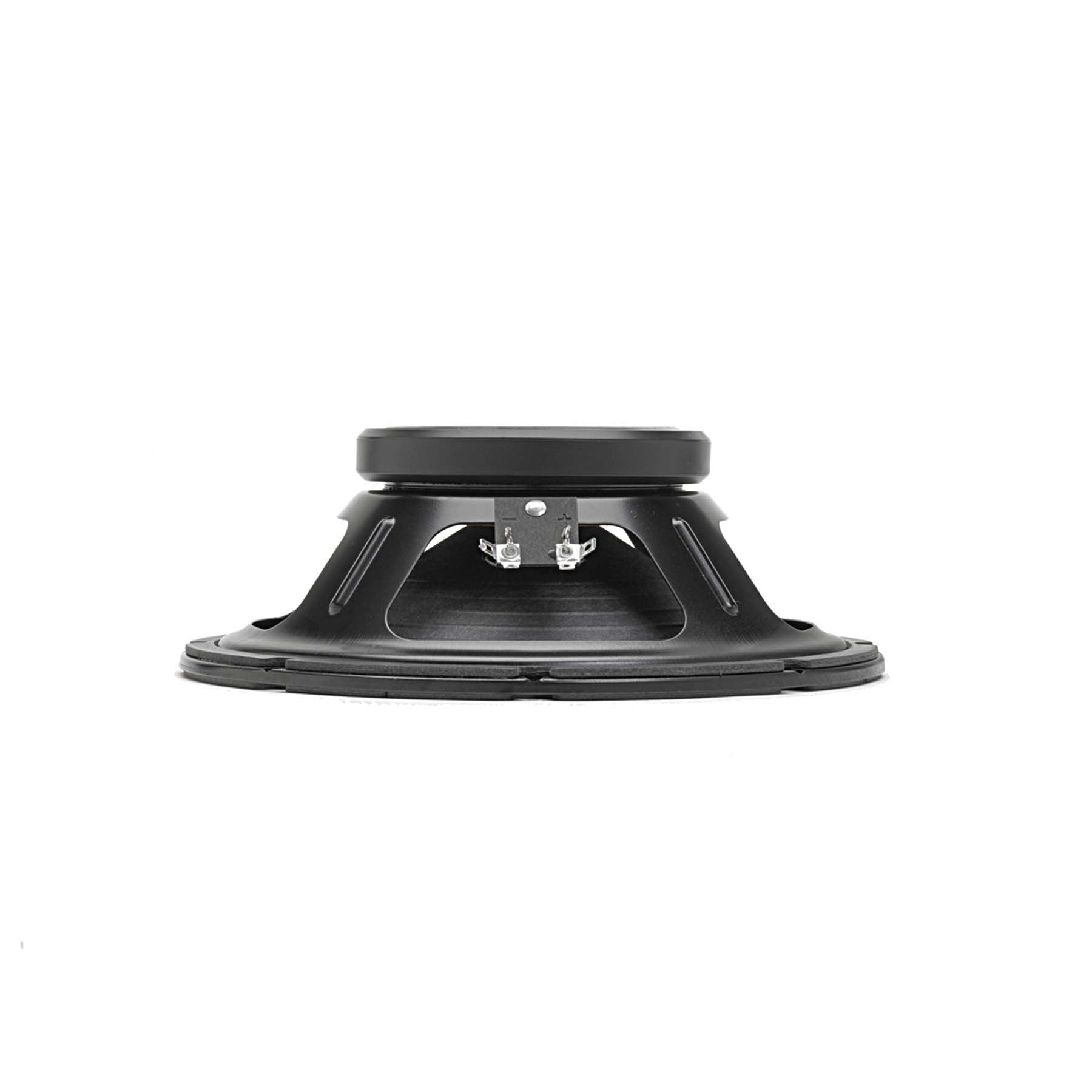

10 inch Eminence Lead / Rhythm Guitar Replacement Speaker Eminence Speaker Side
10 inch Eminence Lead / Rhythm Guitar Replacement Speaker Eminence Speaker Frequency Response
  • Load image into Gallery viewer, 10 inch Eminence Lead / Rhythm Guitar Replacement Speaker Eminence Speaker Basket
  • Load image into Gallery viewer, 10 inch Eminence Lead / Rhythm Guitar Replacement Speaker Eminence Speaker Cone
  • Load image into Gallery viewer, 10 inch Eminence Lead / Rhythm Guitar Replacement Speaker Eminence Speaker Side
  • Load image into Gallery viewer, 10 inch Eminence Lead / Rhythm Guitar Replacement Speaker Eminence Speaker Frequency Response

LEGEND 1058 10" Lead / Rhythm Guitar Speaker

Wholesale customers, please SIGN IN to see pricing and place orders.

The Eminence Legend 1058 guitar speaker takes classic tone a step further. Vintage American tone with punchy lows and warm, smooth, bluesy mids and highs. Fatter Legend 1028K tone with more depth.

Characteristics



Series Legends
Model Legend 1058
Application 10" Open or Closed Back
Configuration 1, 2, or 4 X 10"
Low End Response Moderate
Low End Shape Chunky
Mid-Range Response Moderate
Mid-Range Shape Warm
High-End Response Moderate
Volume/Power Louder
Overall Coloration* Vintage American tone with punchy lows and warm, smooth, bluesy mids and highs.  Fatter Legend 1028K tone with more depth.
Break-up Modes Medium
Power Range Up to 75 watts
Instrument* Lead/Rhythm Guitar
Genre of Music* Country, Blues, Rock, Jazz

Specifications

Download Spec Sheet
SPECIFICATION
Nominal Basket Diameter 10", 254 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power N/A
Watts 75 W
Resonance 97 Hz
Usable Frequency Range 100 Hz - 5 kHz
Sensitivity* 98.7 dB
Magnet Weight 16 oz.
Gap Height 0.25", 6.4 mm
Voice Coil Diameter 1.5", 38 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 97 Hz
DC Resistance (Re) 7.49 Ω
Coil Inductance (Le) 0.56m H
Mechanical Q (Qms) 17.78
Electromagnetic Q (Qes) 1.21
Total Q (Qts) 1.13
Compliance Equivalent Volume (Vas) 26.4 liters / 0.93 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 0 cc
Mechanical Compliance of Suspension (Cms) 0.16 mm/N
BL Product (BL) 8 T-M
Diaphragm Mass Inc. Airload (MMs) 17 grams
Efficiency Bandwidth Product (EBP) 80
Maximum Linear Excursion (Xmax) 0 mm
Surface Area of Cone (Sd) 344.9 cm2
Maximum Mechanical Limit (Xlim) N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed Acceptable
Vented Acceptable
Driver Volume Displaced 0.033 cu.ft. / 0.93 liters
Overall Diameter 10.11", 256.8 mm
Baffle Hole Diameter 9.13", 231.9 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.23", 5.8mm
Mounting Holes B.C.D. 9.6", 243.8mm
Depth 3.5", 88.9 mm
Net Weight 4.4 lbs, 2 kg
Shipping Weight 5.4 lbs, 2.45 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Non-vented core

Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Paper cone edge
Dust Cap Composition Solid composition felt dust cap

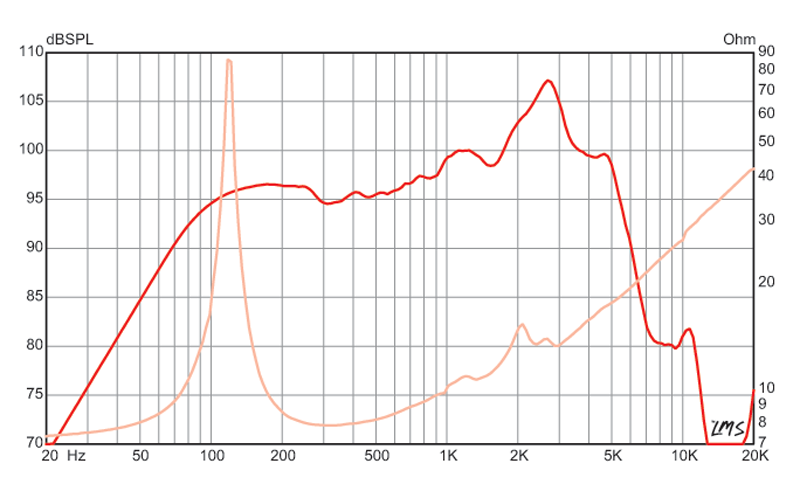

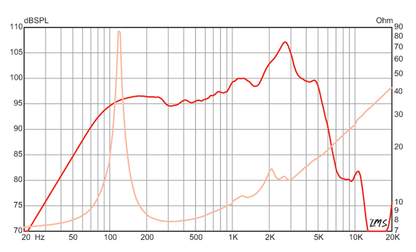

Frequency Response

response graph
