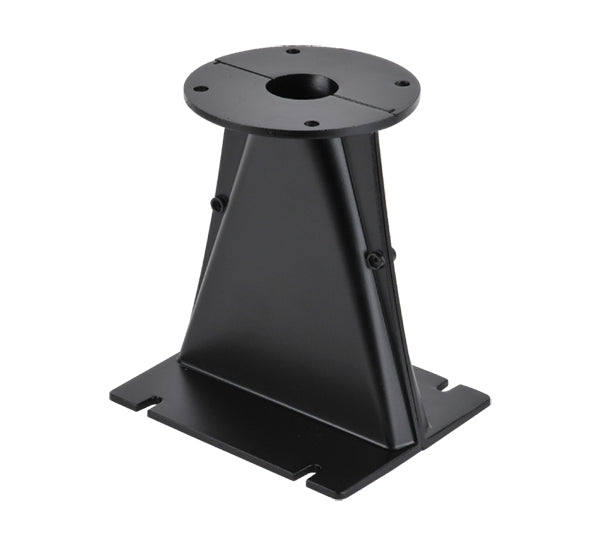

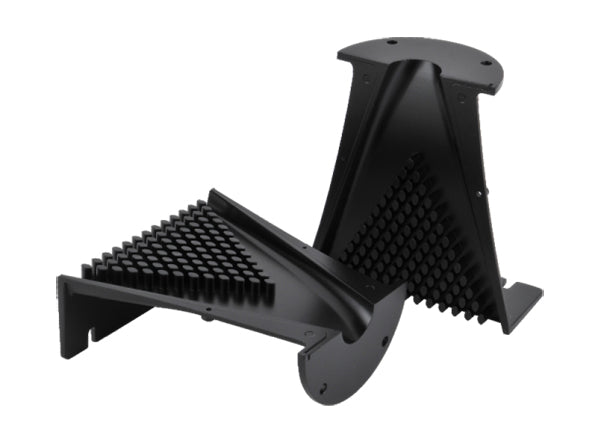

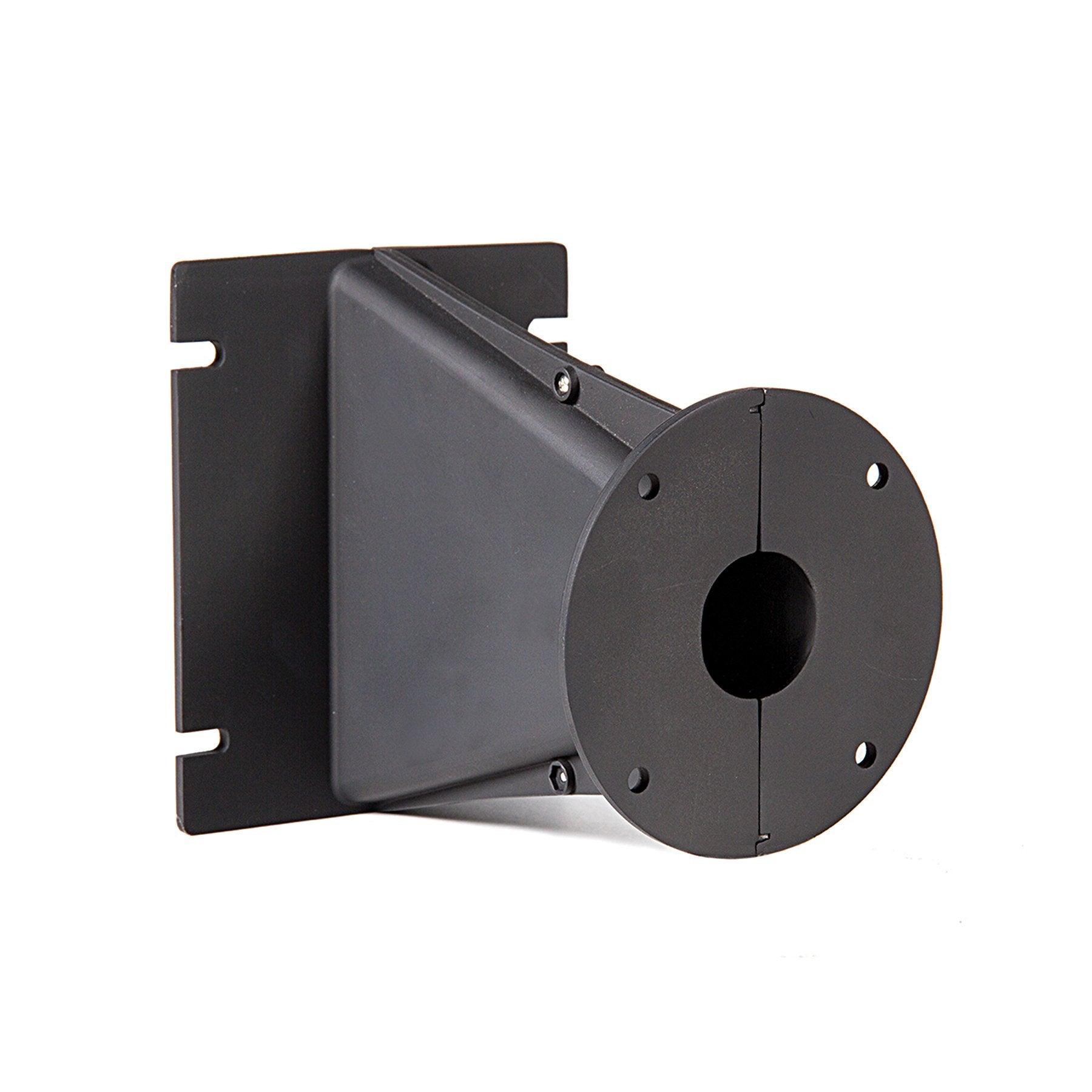

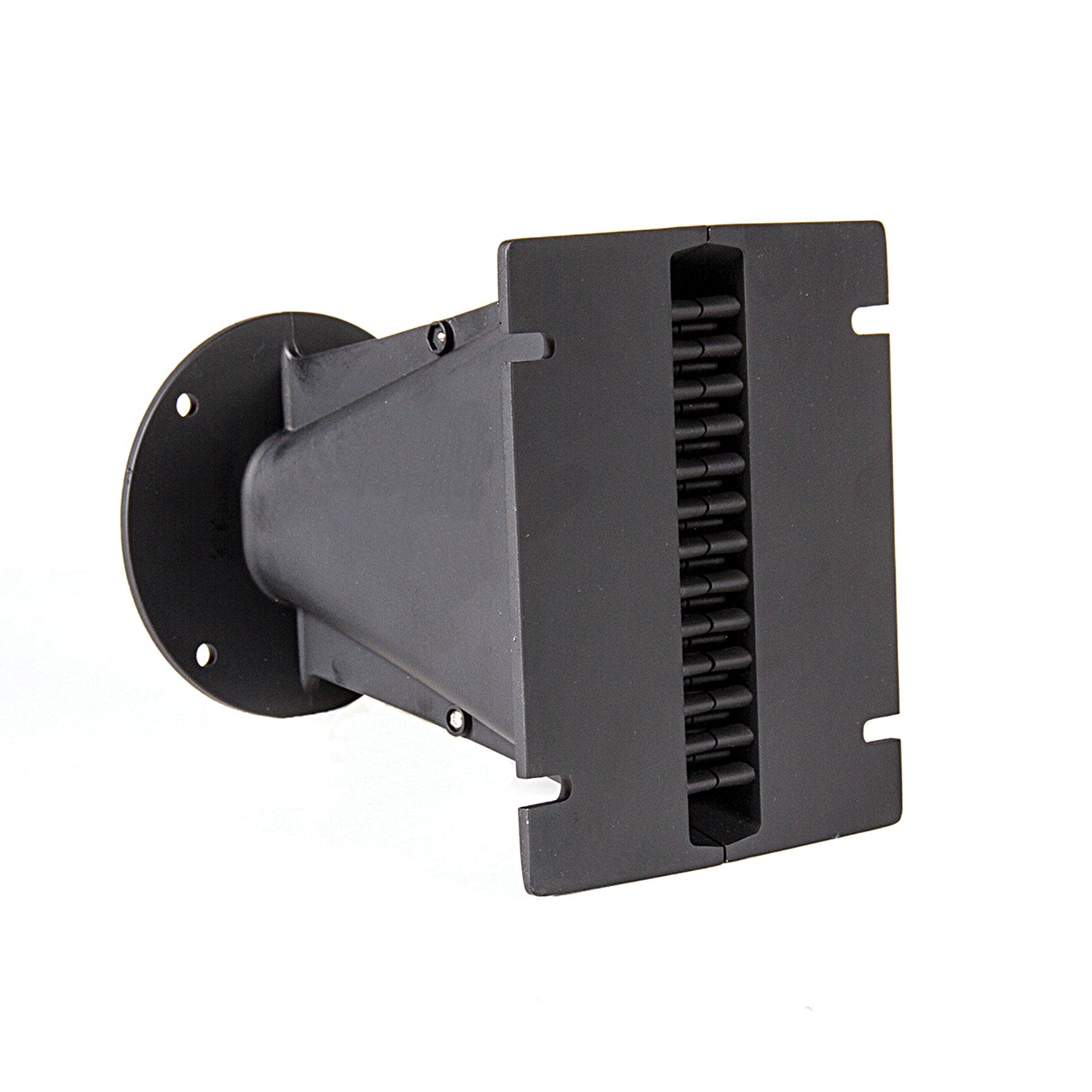

LA-WG14 1.4" Line Array Waveguide
1.4" Bolt-on Line Array 140 x 15 Dispersion Waveguide
Specifications
Download Spec Sheet| SPECIFICATION | |
| Type | Waveguide |
| Throat Size | 1.4", 35.6mm |
| Attachment Method | Bolt-on |

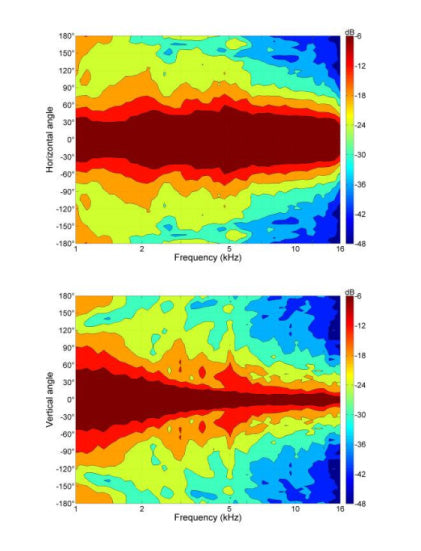

| Dispersion | 140 x 15 |
| Low Rec. Crossover | 1.0 kHz |
| WxHxD (in) | 5.2" x 6.4" x 7.1" |
| WxHxD (mm) | 132.1mm x 162.6mm x 180.3mm |
| Cut Out | 1 x 6", 25.4 x 152.4mm |
| Weight |
2.5lbs, 1.13g |
| Volume Displaced |
54.9 in3 |
