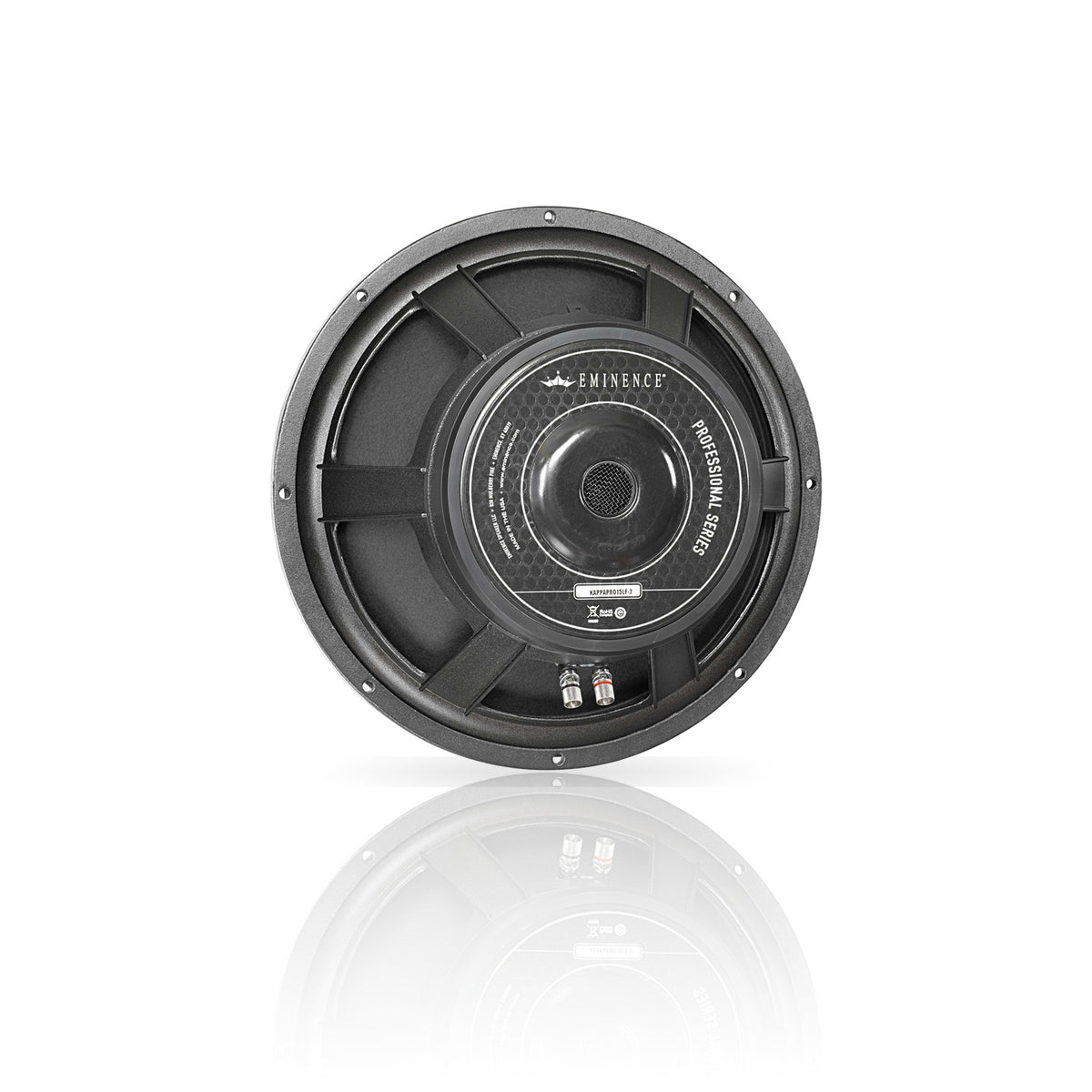

15 inch Eminence Professional Series Replacement Speaker - Cast v.2 Eminence Speaker Basket

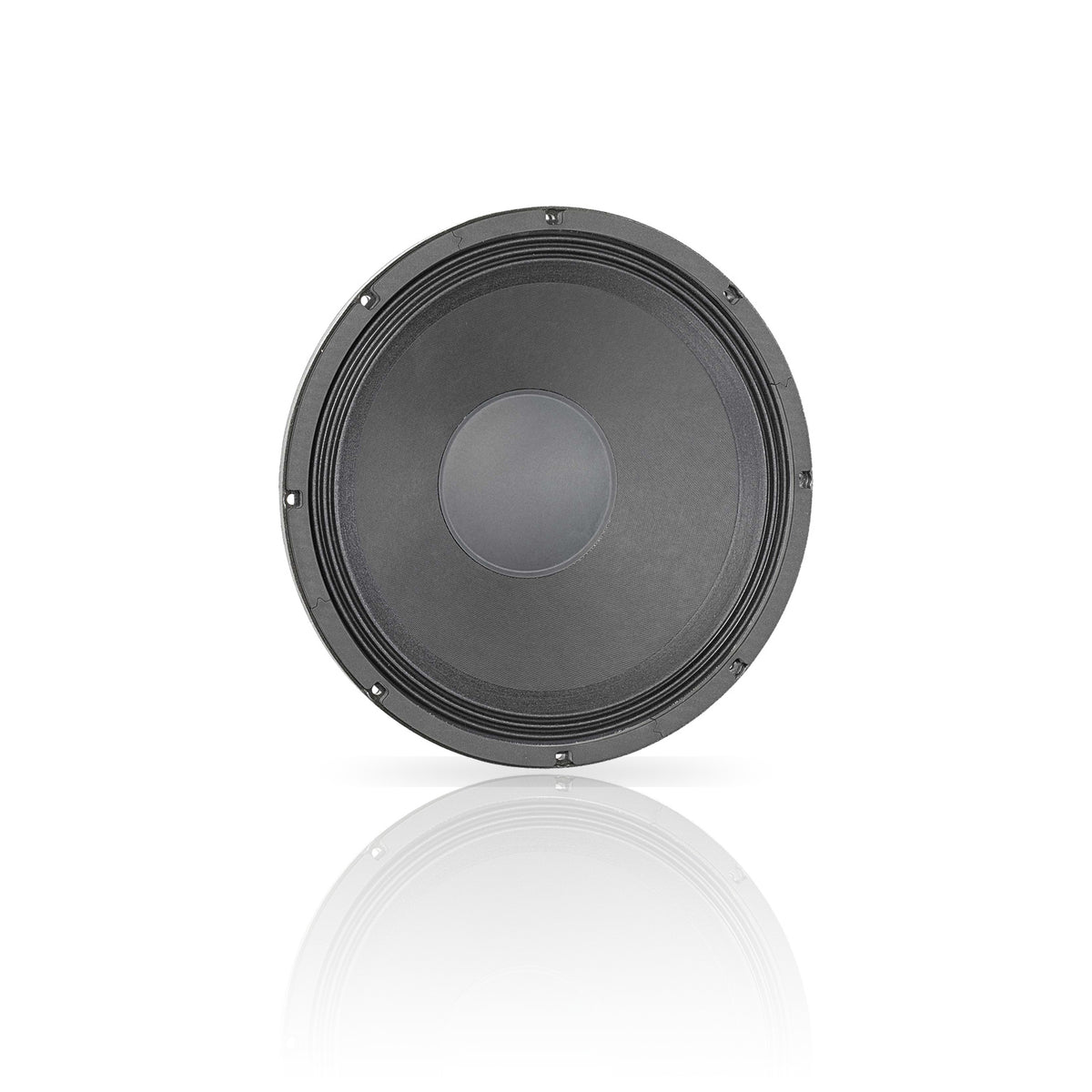

15 inch Eminence Professional Series Replacement Speaker - Cast v.2 Eminence Speaker Cone

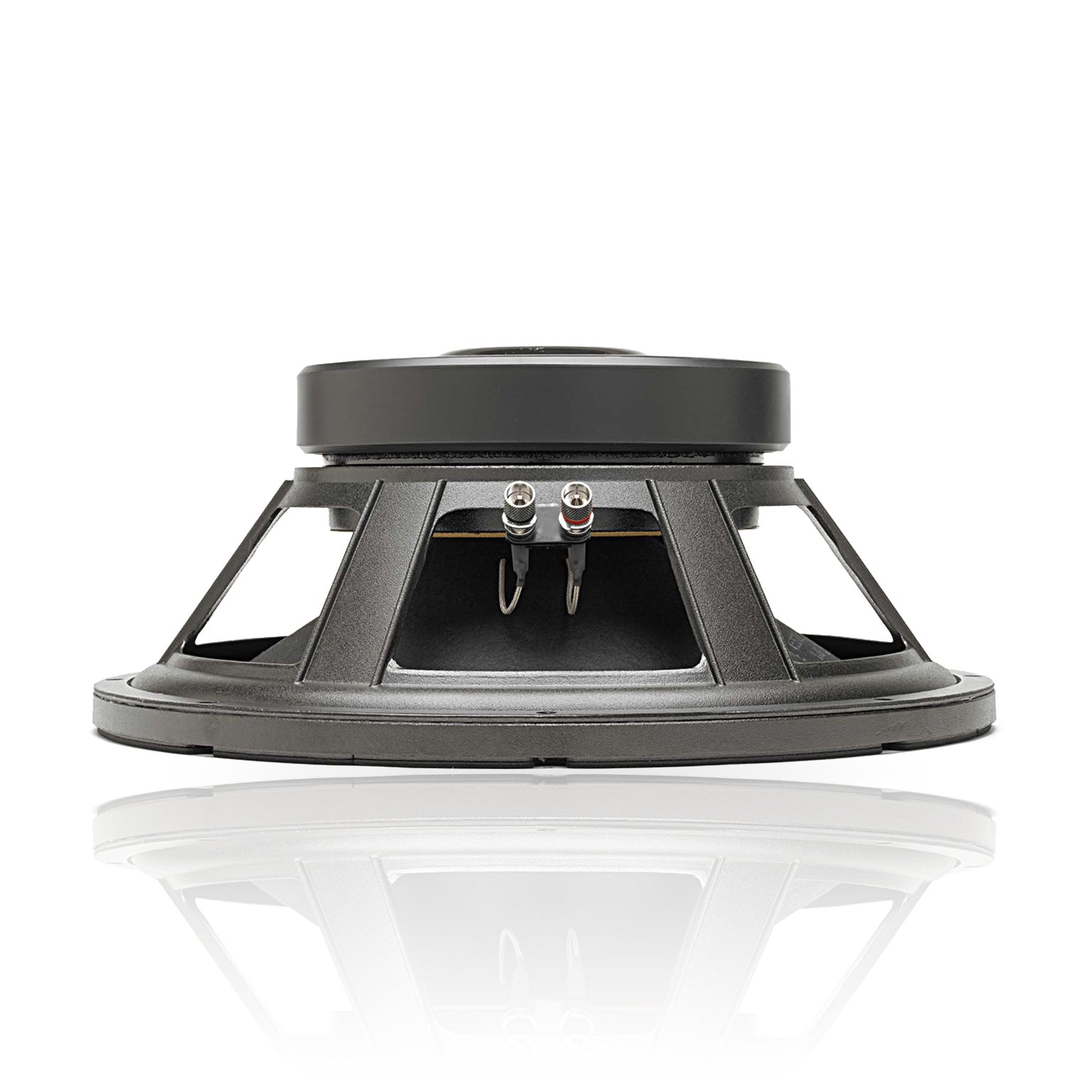

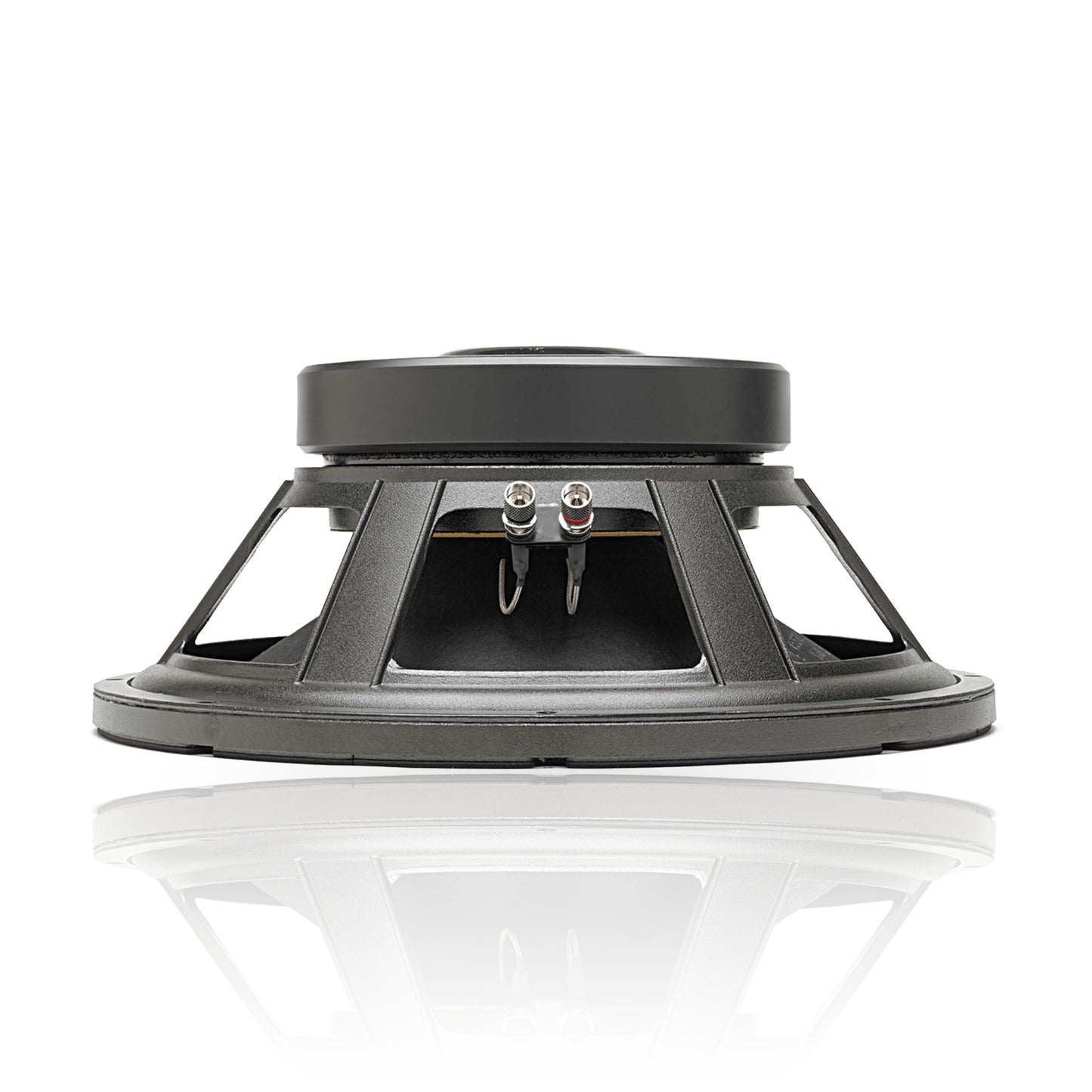

15 inch Eminence Professional Series Replacement Speaker - Cast v.2 Eminence Speaker Side
15 inch Eminence Professional Series Replacement Speaker - Cast v.2 Eminence Speaker Frequency Response
  • Load image into Gallery viewer, 15 inch Eminence Professional Series Replacement Speaker - Cast v.2 Eminence Speaker Basket
  • Load image into Gallery viewer, 15 inch Eminence Professional Series Replacement Speaker - Cast v.2 Eminence Speaker Cone
  • Load image into Gallery viewer, 15 inch Eminence Professional Series Replacement Speaker - Cast v.2 Eminence Speaker Side
  • Load image into Gallery viewer, 15 inch Eminence Professional Series Replacement Speaker - Cast v.2 Eminence Speaker Frequency Response
We currently have 249 in stock.

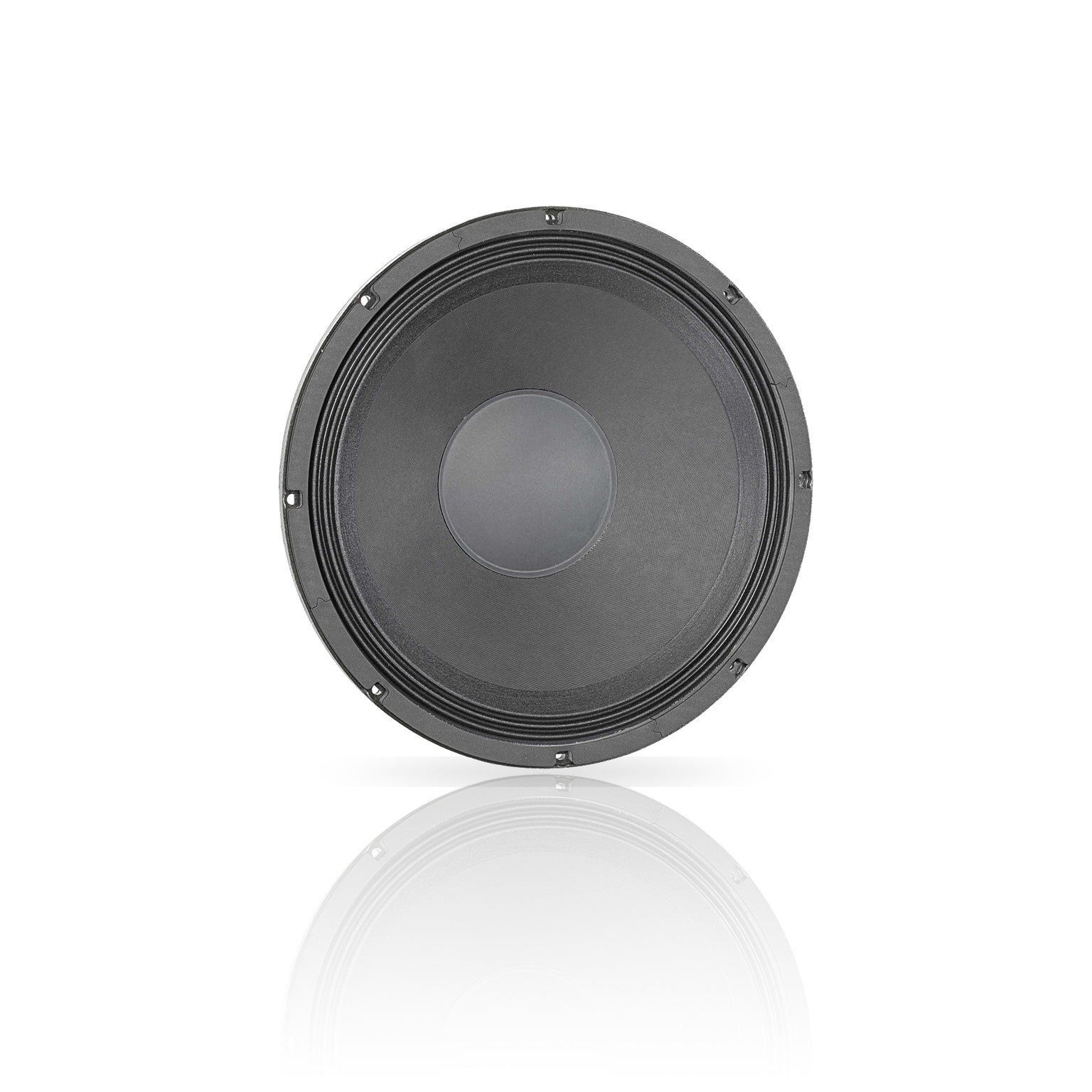

Kappa Pro-15LF 15" Professional Series Speaker - Cast v.2

Regular price
$204.99
Sale price
$204.99
Regular price
$239.99
Sold out
Unit price
per

Long throw, low frequency woofer recommended for pro audio in a vented bass enclosure.

Applications

Subwoofer | Woofer | Pro Audio | Bass Guitar

Box Type: Vented | Scoop Loading | Horn Loading

Specifications

Download Spec Sheet Download Cab Design
SPECIFICATION
Nominal Basket Diameter 15", 381 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power 1200 W
Watts 600 W
Resonance 35 Hz
Usable Frequency Range 38 Hz - 1.8 kHz
Sensitivity* 97.8 dB
Magnet Weight 120 oz.
Gap Height 0.375", 9.5 mm
Voice Coil Diameter 3", 76 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 35 Hz
DC Resistance (Re) 6.5 Ω
Coil Inductance (Le) 1.4m H
Mechanical Q (Qms) 7.3
Electromagnetic Q (Qes) 0.32
Total Q (Qts) 0.3
Compliance Equivalent Volume (Vas) 198.8 liters / 7.02 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 571.2 cc
Mechanical Compliance of Suspension (Cms) 0.2 mm/N
BL Product (BL) 21.6 T-M
Diaphragm Mass Inc. Airload (MMs) 102 grams
Efficiency Bandwidth Product (EBP) 112
Maximum Linear Excursion (Xmax) 6.7 mm
Surface Area of Cone (Sd) 856.3 cm2
Maximum Mechanical Limit (Xlim) 18 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed N/a
Vented 76.5-164 liters / 2.7-5.8 cu.ft.
Driver Volume Displaced 0.152 cu.ft. / 4.31 liters
Overall Diameter 15.21", 386.3 mm
Baffle Hole Diameter 14", 355.6 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.28", 7.1mm
Mounting Holes B.C.D. 14.56", 369.8mm
Depth 6.57", 166.9 mm
Net Weight 22.3 lbs, 10.12 kg
Shipping Weight 24.8 lbs, 11.25 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented and extended core

Basket Materials Die-cast aluminum basket
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Solid composition paper dust cap

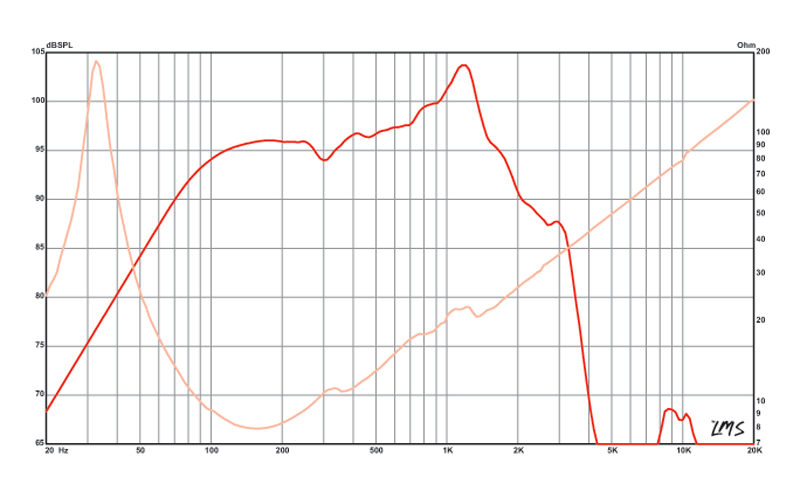

Frequency Response

response graph
