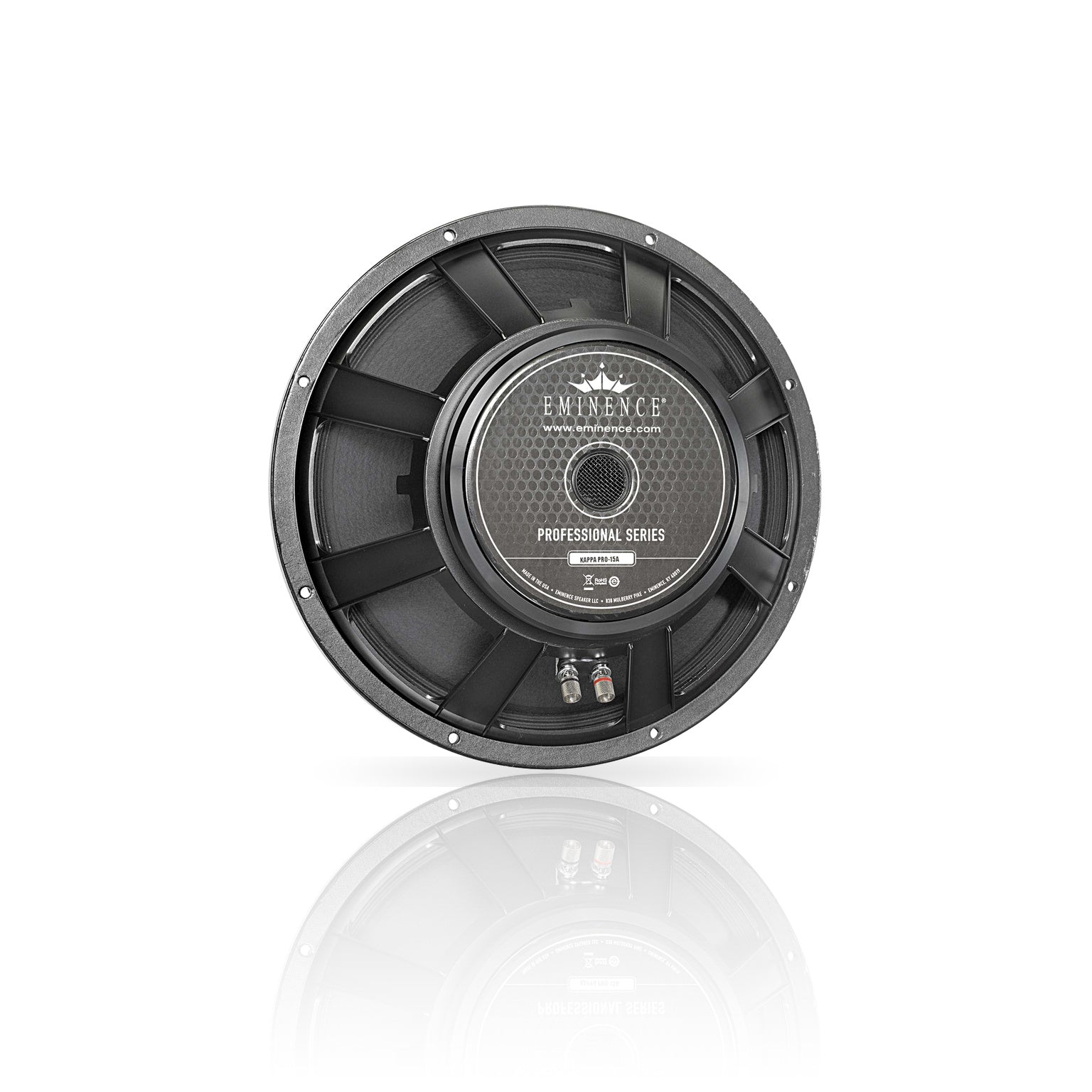

15 inch Eminence Professional Series Replacement Speaker Eminence Speaker Basket

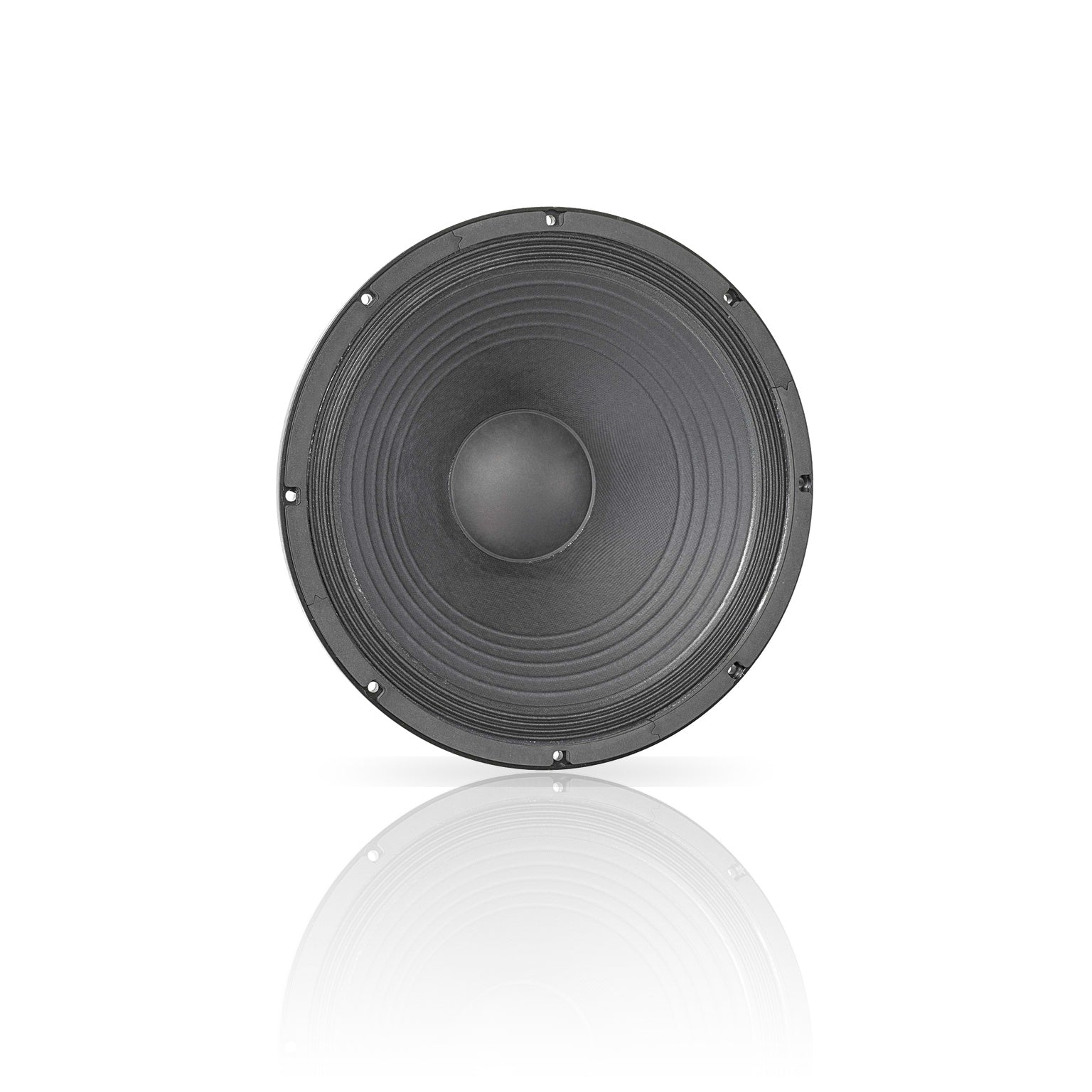

15 inch Eminence Professional Series Replacement Speaker Eminence Speaker Cone

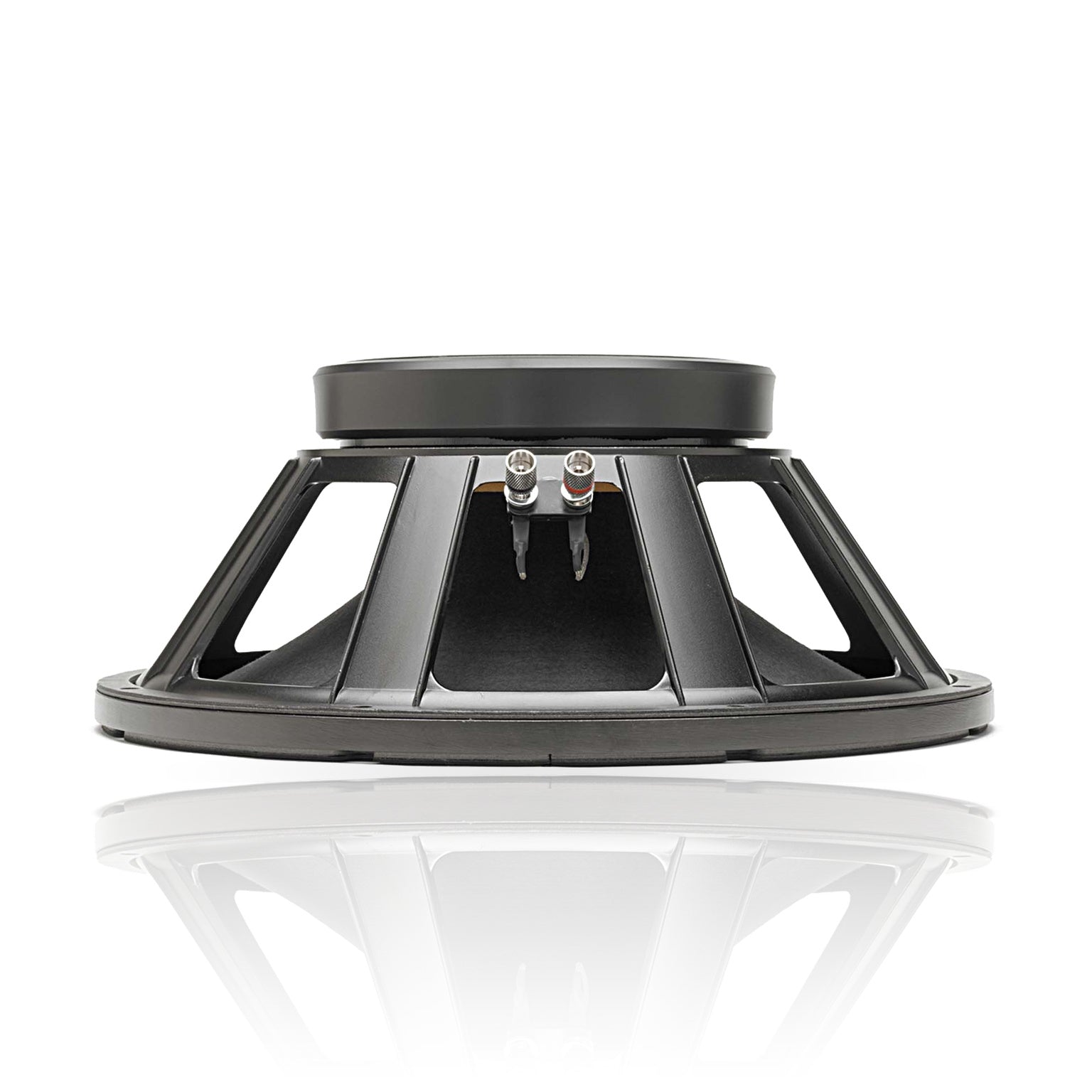

15 inch Eminence Professional Series Replacement Speaker Eminence Speaker Side
15 inch Eminence Professional Series Replacement Speaker Eminence Speaker Frequency Response
  • Load image into Gallery viewer, 15 inch Eminence Professional Series Replacement Speaker Eminence Speaker Basket
  • Load image into Gallery viewer, 15 inch Eminence Professional Series Replacement Speaker Eminence Speaker Cone
  • Load image into Gallery viewer, 15 inch Eminence Professional Series Replacement Speaker Eminence Speaker Side
  • Load image into Gallery viewer, 15 inch Eminence Professional Series Replacement Speaker Eminence Speaker Frequency Response

Kappa Pro-15A 15" Professional Series Speaker

Wholesale customers, please SIGN IN to see pricing and place orders.

Recommended for professional audio in a vented mid-bass or bass enclosure. Also suitable for bass guitar.

Applications

Woofer | Midbass | Pro Audio | Bass Guitar

Box Type: Vented | Scoop Loading

Specifications

Download Spec Sheet Download Cab Design
SPECIFICATION
Nominal Basket Diameter 15", 381 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power 1000 W
Watts 500 W
Resonance 47 Hz
Usable Frequency Range 46 Hz - 4 kHz
Sensitivity* 101 dB
Magnet Weight 80 oz.
Gap Height 0.375", 9.5 mm
Voice Coil Diameter 3", 76 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 47 Hz
DC Resistance (Re) 5.23 Ω
Coil Inductance (Le) 1.01m H
Mechanical Q (Qms) 8.01
Electromagnetic Q (Qes) 0.4
Total Q (Qts) 0.38
Compliance Equivalent Volume (Vas) 167.7 liters / 5.92 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 274 cc
Mechanical Compliance of Suspension (Cms) 0.16 mm/N
BL Product (BL) 16.6 T-M
Diaphragm Mass Inc. Airload (MMs) 72 grams
Efficiency Bandwidth Product (EBP) 118
Maximum Linear Excursion (Xmax) 3.2 mm
Surface Area of Cone (Sd) 856.3 cm2
Maximum Mechanical Limit (Xlim) 13.2 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed N/a
Vented 54-184 liters / 1.9-6.5 cu.ft.
Driver Volume Displaced 0.138 cu.ft. / 3.92 liters
Overall Diameter 15.32", 389.1 mm
Baffle Hole Diameter 14", 355.6 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.28", 7.1mm
Mounting Holes B.C.D. 14.56", 369.8mm
Depth 6.06", 153.9 mm
Net Weight 16.9 lbs, 7.67 kg
Shipping Weight 19.5 lbs, 8.85 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Aluminum voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented core

Basket Materials Die-cast aluminum basket
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Solid composition paper dust cap

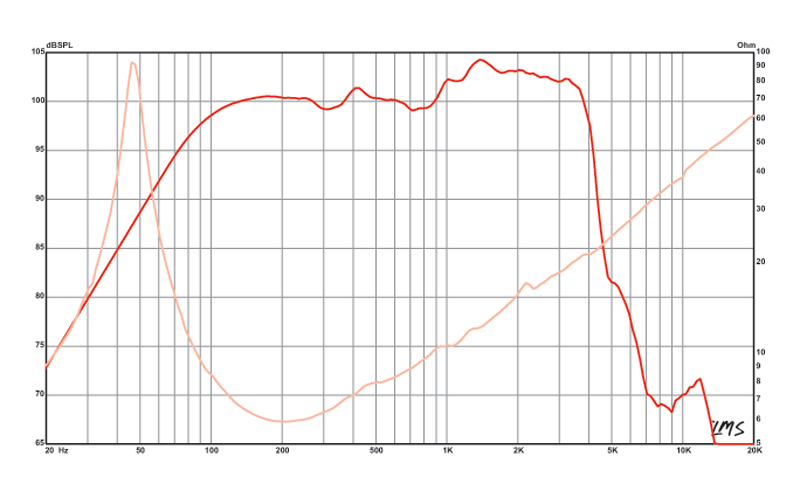

Frequency Response

response graph
