GUIT-FIDDLE 12" Lead / Rhythm Guitar Speaker

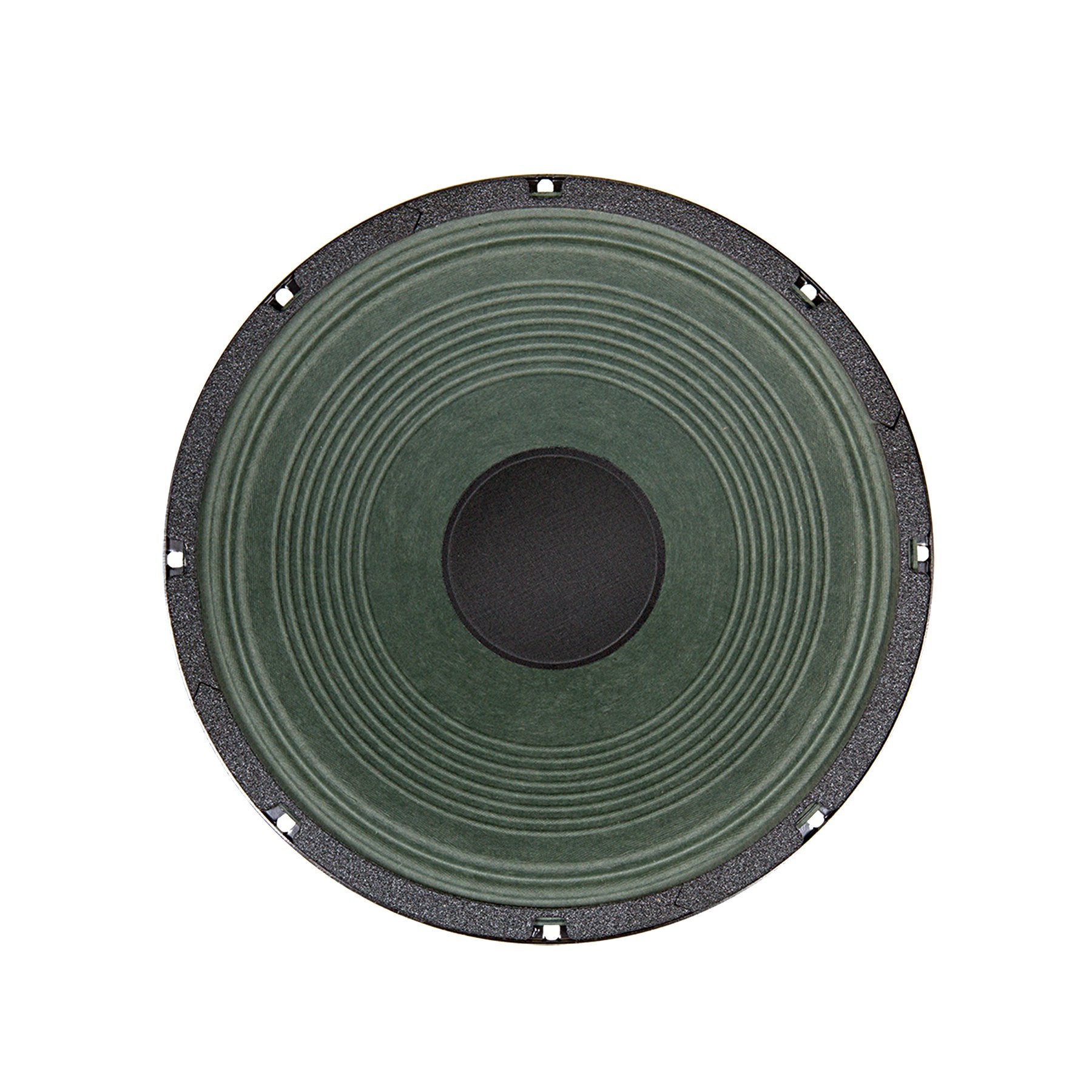

12 inch Eminence Lead / Rhythm Guitar Replacement Speaker Eminence Speaker Cone

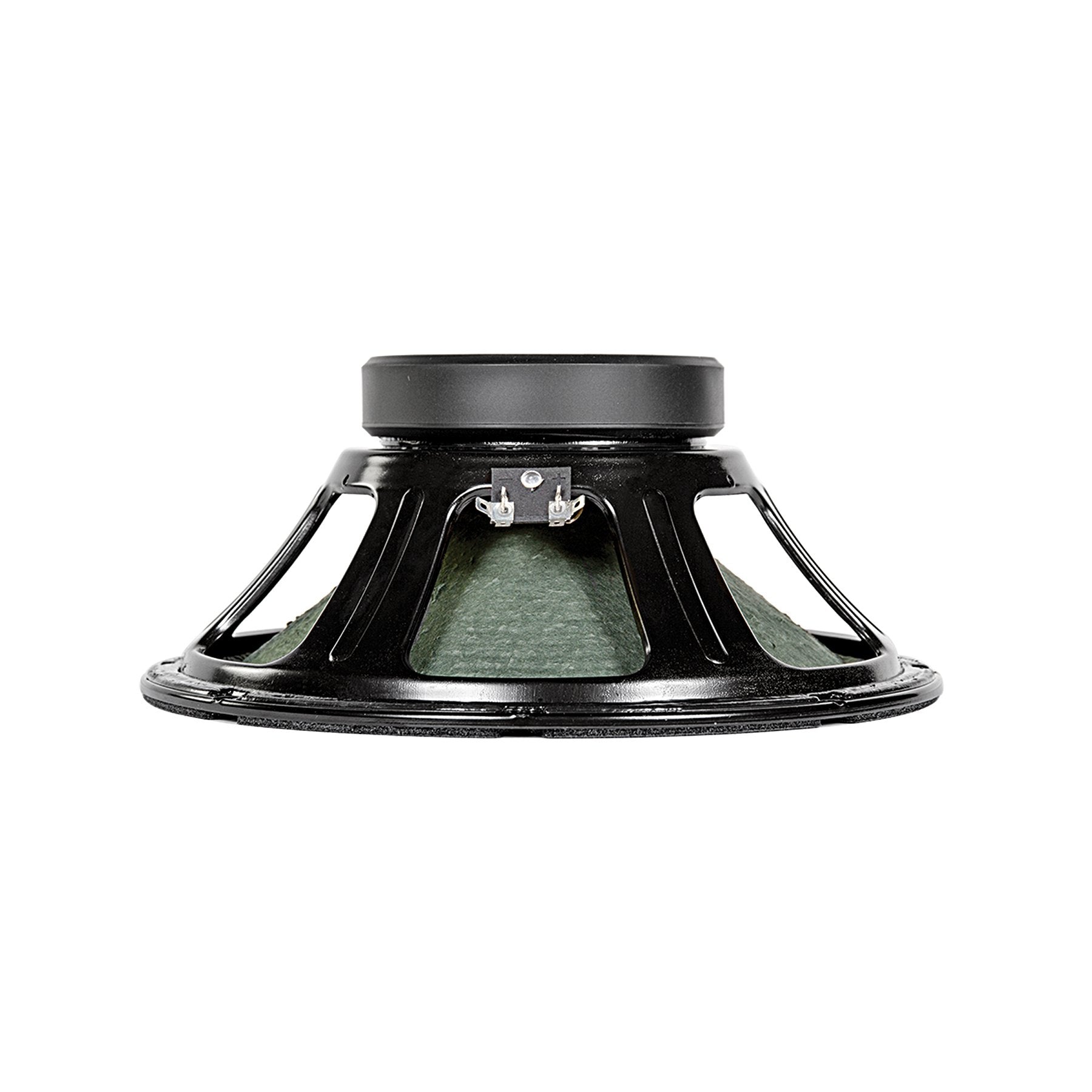

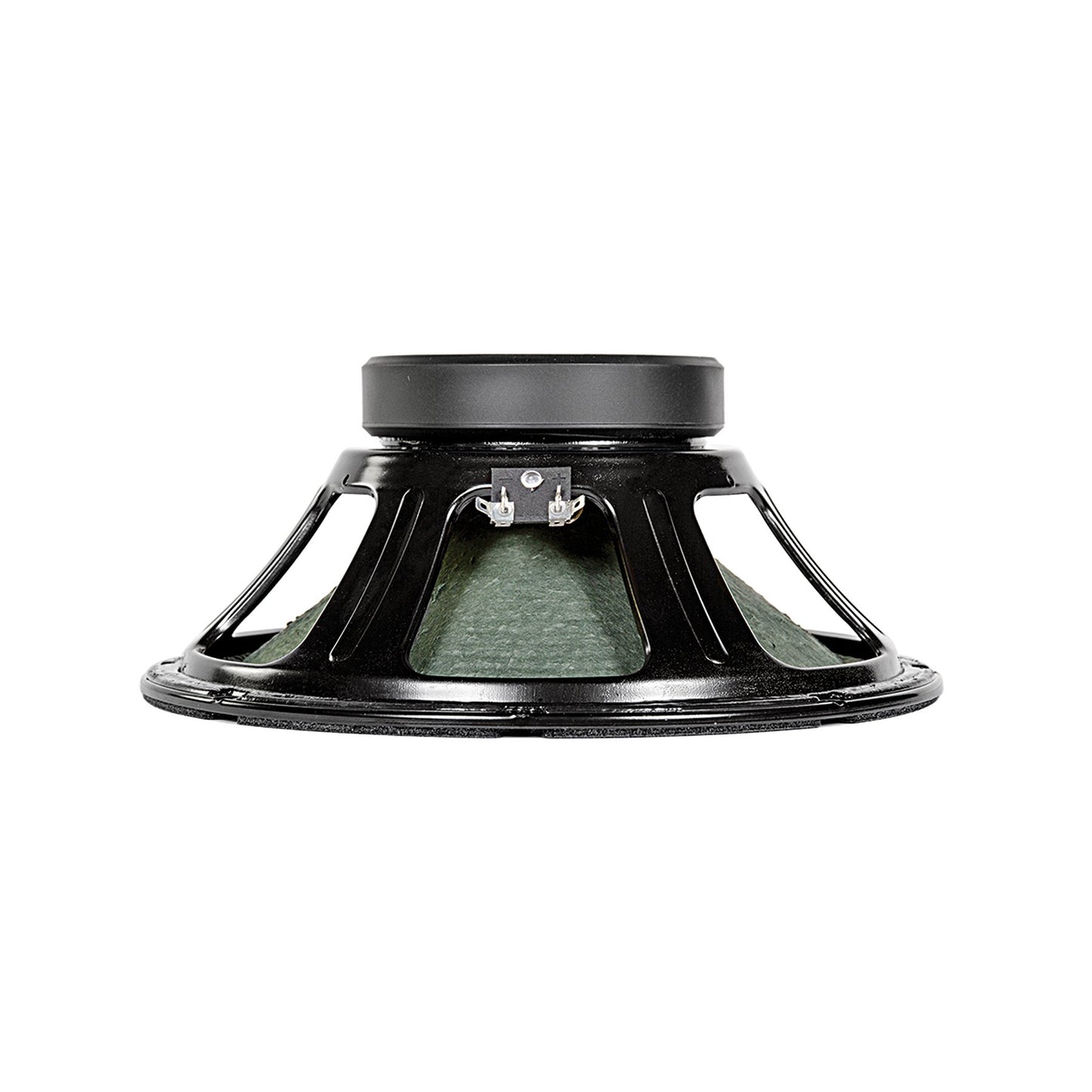

12 inch Eminence Lead / Rhythm Guitar Replacement Speaker Eminence Speaker Side

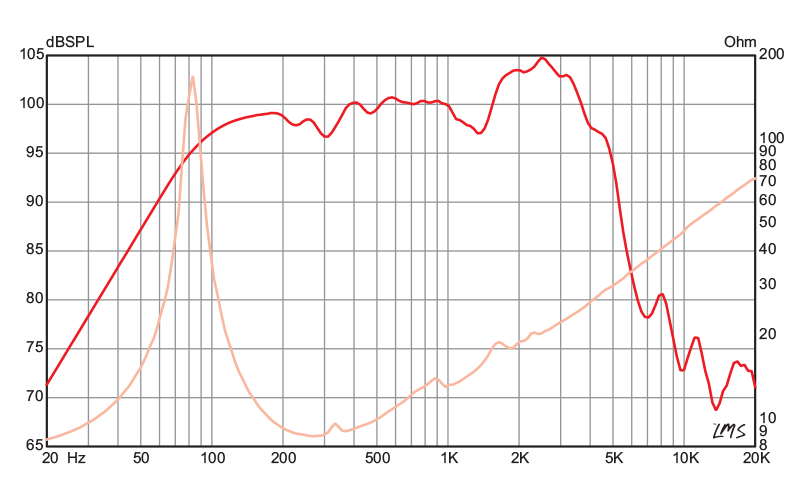

12 inch Eminence Lead / Rhythm Guitar Replacement Speaker Eminence Speaker Frequency Response

GUIT-FIDDLE 12" Lead / Rhythm Guitar Speaker

Shop the Eminence GUIT-FIDDLE guitar speaker with 100 W, 8 Ω, 100.1 dB, engineered for amplifier upgrades, custom cabinets, stage use and studio recording.

$103.99
Shipping calculated at checkout.

Product Details

Description

The GUIT-FIDDLE 12" Lead / Rhythm Guitar Speaker is an Eminence guitar speaker for musicians, builders, and repair technicians seeking a purposeful replacement or new-cabinet driver. Finally, a 12" speaker voiced specifically for fiddle. Reduced bow friction noise and tame upper-mids. Key specifications include 100 W power handling, 8 Ω nominal impedance, 80 Hz - 4.5 kHz usable frequency range, 100.1 dB sensitivity.

Its construction features a 2", 50 mm voice coil, supporting reliable performance in compatible cabinets and amplifiers. Use it for amplifier upgrades, custom cabinet projects, tonal experimentation, or restoring a working rig with a speaker selected for its musical response. Before installation, confirm the amplifier's impedance requirement, available mounting depth, cabinet cutout, and power compatibility. For best results, choose an enclosure and amplifier pairing appropriate for the published specifications and the desired playing style.

Characteristics
Filter series
Patriot
Model
Guit-Fiddle
Characteristics application
12" Open or Closed Back
Configuration
1, 2, or 4 x 12"
Low end response
Aggressive
High end response
Subdued
Overall coloration
Finally, a 12" speaker voiced specifically for fiddle. Reduced bow friction noise and tame upper-mids. It's also great for guitar, if you want thick tone with warm, smooth, more mellow mids and highs.
Break up modes
Warm
Characteristics power range

100

Instrument

Lead/Rhythm Guitar

Characteristics genre

Blues
Country
Jazz
Metal

Specifications
Nominal basket diameter
12", 305mm
Nominal impedance
8 Ω
Power rating watts
100 W
Resonance
82 Hz
Usable frequency range
80 Hz - 4.5 kHz
Sensitivity
100.1 dB
Gap height
0.313", 8 mm
Voice coil diameter
2", 50 mm
Thiele & Small Parameters
Resonant frequency fs
82 Hz
Dc resistance re
7.34
Coil inductance le
0.63
Mechanical q qms
15.49
Electromagnetic q qes
0.58
Total q qts
0.56
Compliance equivalent volume vas
57.81 liters, 2.04 cu.ft.
Peak diaphragm displacement volume vd
43.1 cc
Mechanical compliance of suspension cms
0.14 mm/N
Bl product bl
13.11
Diaphragm mass inc airload mms
26
Efficiency bandwidth product ebp
141
Maximum linear excursion xmax
0.79 mm
Surface area of cone sd
545.4 cm²
Mounting Information
Driver volume displaced
0.000 cu.ft. / 0 liters
Overall diameter
12.17", 309.1 mm
Baffle hole diameter
11.13", 282.7 mm
Front sealing gasket
Yes
Rear sealing gasket
Yes
Mounting holes diameter
0.24", 6.1mm
Mounting holes b c d
11.75", 298.5mm
Depth
5.13", 130.2 mm
Net weight
7.9 lbs, 3.58 kg
Shipping weight
9.8 lbs, 4.45 kgs
Materials of Construction
Coil construction
Edgewound copper
Voice coil former
Polyimide
Basket material
Pressed steel
Surround
Paper
Dust cap composition
Zurette
