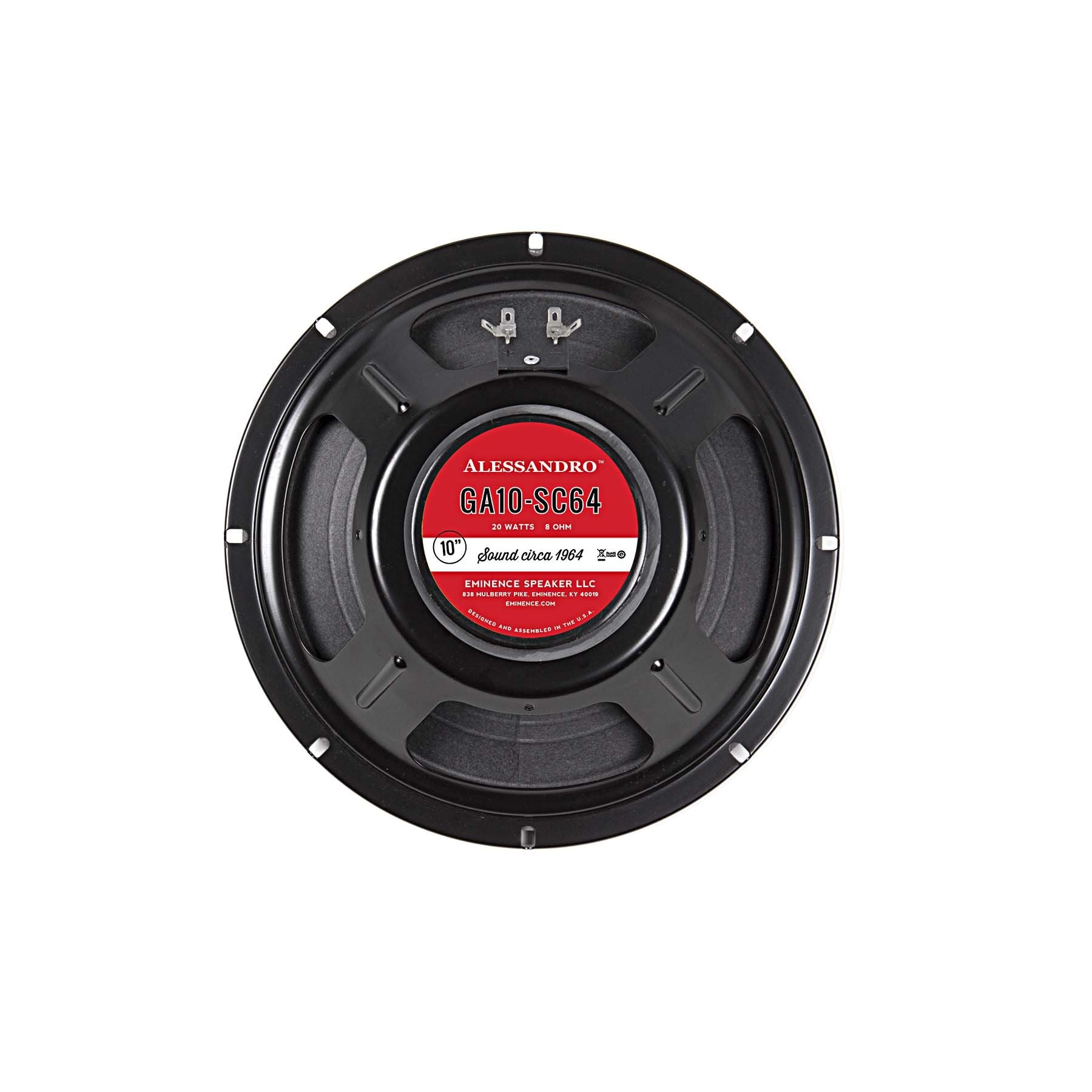

10 inch Eminence Signature Guitar Replacement Speaker Eminence Speaker Basket

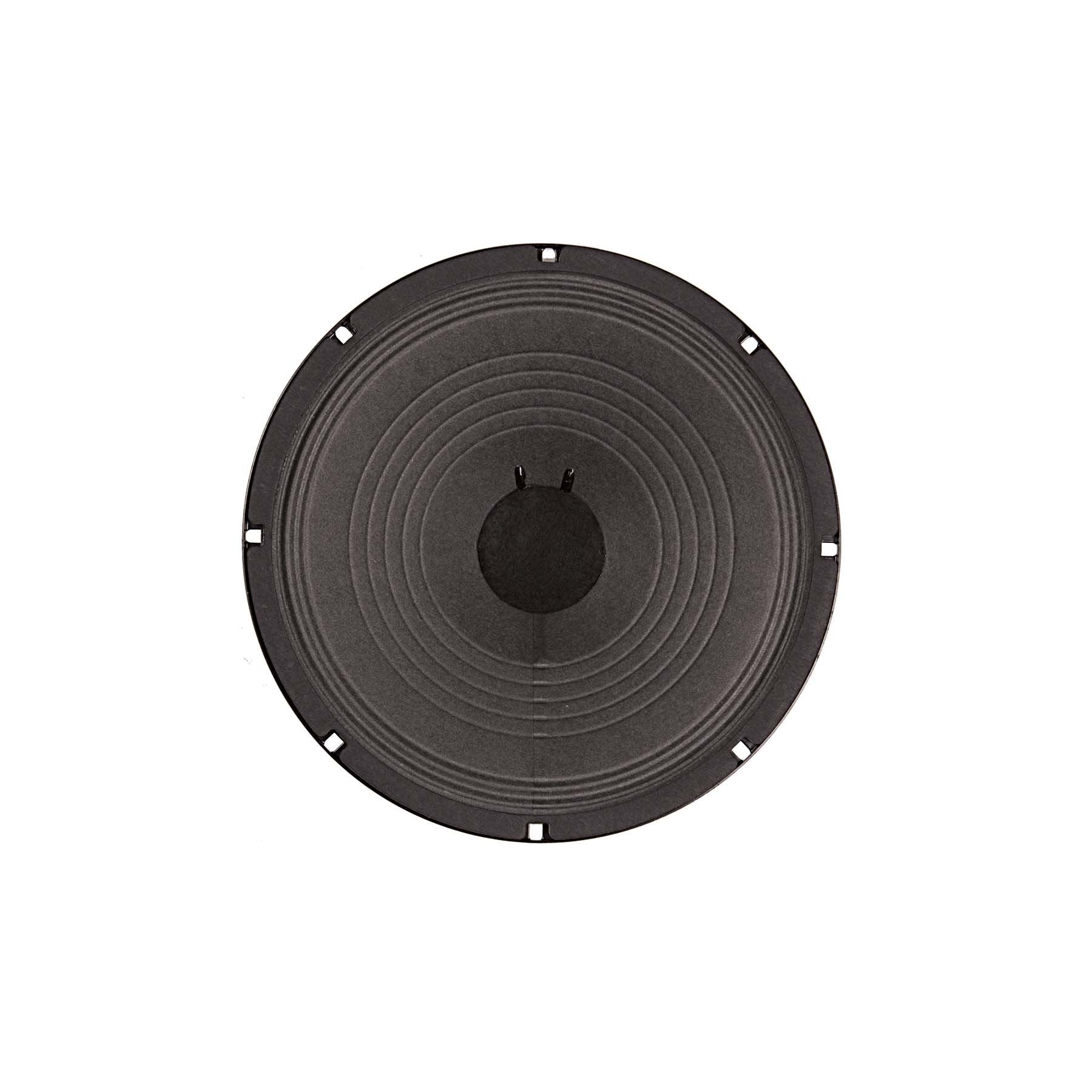

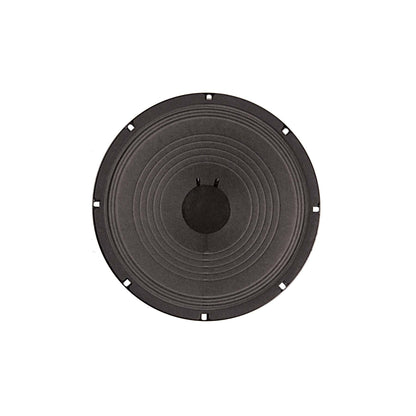

10 inch Eminence Signature Guitar Replacement Speaker Eminence Speaker Cone

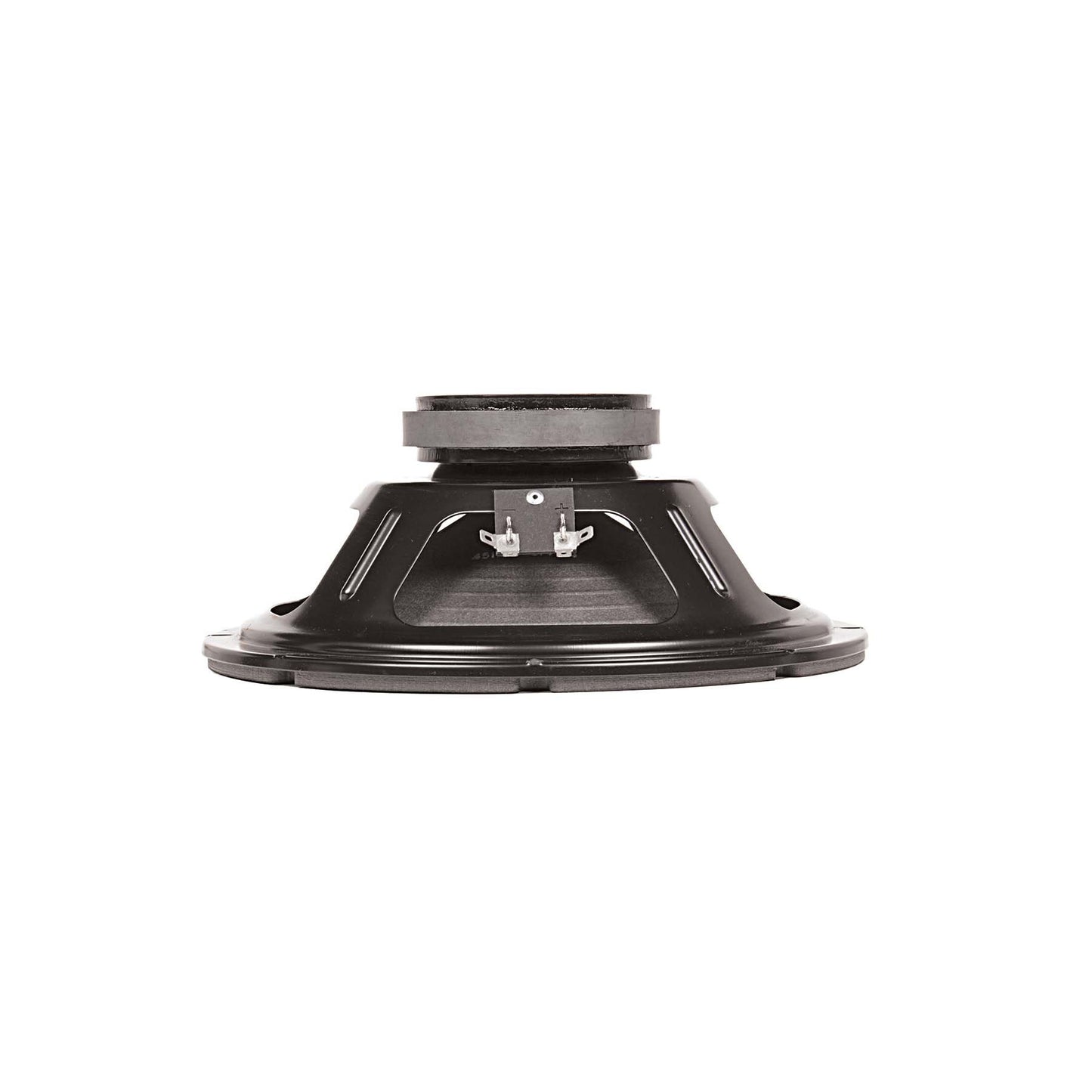

10 inch Eminence Signature Guitar Replacement Speaker Eminence Speaker Side
10 inch Eminence Signature Guitar Replacement Speaker Eminence Speaker Frequency Response
  • Load image into Gallery viewer, 10 inch Eminence Signature Guitar Replacement Speaker Eminence Speaker Basket
  • Load image into Gallery viewer, 10 inch Eminence Signature Guitar Replacement Speaker Eminence Speaker Cone
  • Load image into Gallery viewer, 10 inch Eminence Signature Guitar Replacement Speaker Eminence Speaker Side
  • Load image into Gallery viewer, 10 inch Eminence Signature Guitar Replacement Speaker Eminence Speaker Frequency Response

GA10-SC64 10" Guitar Speaker - 8-Ohm

Wholesale customers, please SIGN IN to see pricing and place orders.

Tones of 1964 still ring true in this vintage voiced 10-inch speaker by amp guru George Alessandro. Very balanced with dynamic character, this ceramic 10 inch speaker offers tight, punchy tone with nice warmth, richness, and sparkling highs.

Characteristics



Series Signature
Model GA10-SC64
Application 10" Open or Closed Back
Configuration 1, 2, or 4 X 10"
Low End Response Moderate
Low End Shape Tight/Punchy
Mid-Range Response Moderate
Mid-Range Shape Warm
High-End Response Moderate
Volume/Power Loud
Overall Coloration* Vintage American ceramic magnet tone in a 10" approved by legendary amp builder, George Alessandro.  A tight, punchy tone with nice warmth, richness, and sparkling highs.
Break-up Modes Medium
Power Range Up to 20 watts
Instrument* Lead/Rhythm Guitar
Genre of Music* Rock, Blues, Country

Specifications

Download Spec Sheet
SPECIFICATION
Nominal Basket Diameter 10", 254 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power N/A
Watts 20 W
Resonance 100 Hz
Usable Frequency Range 100 Hz - 5.5 kHz
Sensitivity* 98.2 dB
Magnet Weight 15 oz.
Gap Height 0.25", 6.4 mm
Voice Coil Diameter 1", 25 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 100 Hz
DC Resistance (Re) 7.58 Ω
Coil Inductance (Le) 0.48m H
Mechanical Q (Qms) 16.89
Electromagnetic Q (Qes) 1.38
Total Q (Qts) 1.28
Compliance Equivalent Volume (Vas) 33.49 liters / 1.18 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 58.2 cc
Mechanical Compliance of Suspension (Cms) 0.18 mm/N
BL Product (BL) 7.05 T-M
Diaphragm Mass Inc. Airload (MMs) 14 grams
Efficiency Bandwidth Product (EBP) 72
Maximum Linear Excursion (Xmax) 1.59 mm
Surface Area of Cone (Sd) 366.1 cm2
Maximum Mechanical Limit (Xlim) N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed Acceptable
Vented Acceptable
Driver Volume Displaced 0.027 cu.ft. / 0.77 liters
Overall Diameter 10.11", 256.8 mm
Baffle Hole Diameter 9.13", 231.9 mm
Front Sealing Gasket Yes
Rear Sealing Gasket N/A
Mounting Holes Diameter 0.22", 5.6mm
Mounting Holes B.C.D. 9.6", 243.8mm
Depth 3.93", 99.7 mm
Net Weight 3.3 lbs, 1.5 kg
Shipping Weight 4.4 lbs, 2 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Paper former
Magnet Composition Ferrite magnet
Core Details Non-vented core

Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Paper cone edge
Dust Cap Composition Solid composition felt dust cap

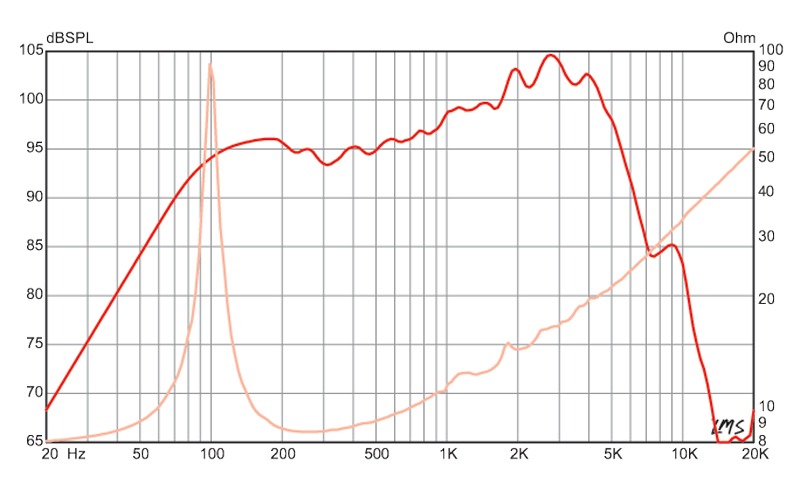

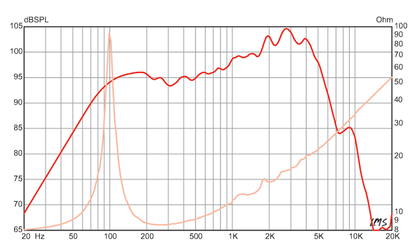

Frequency Response

response graph
