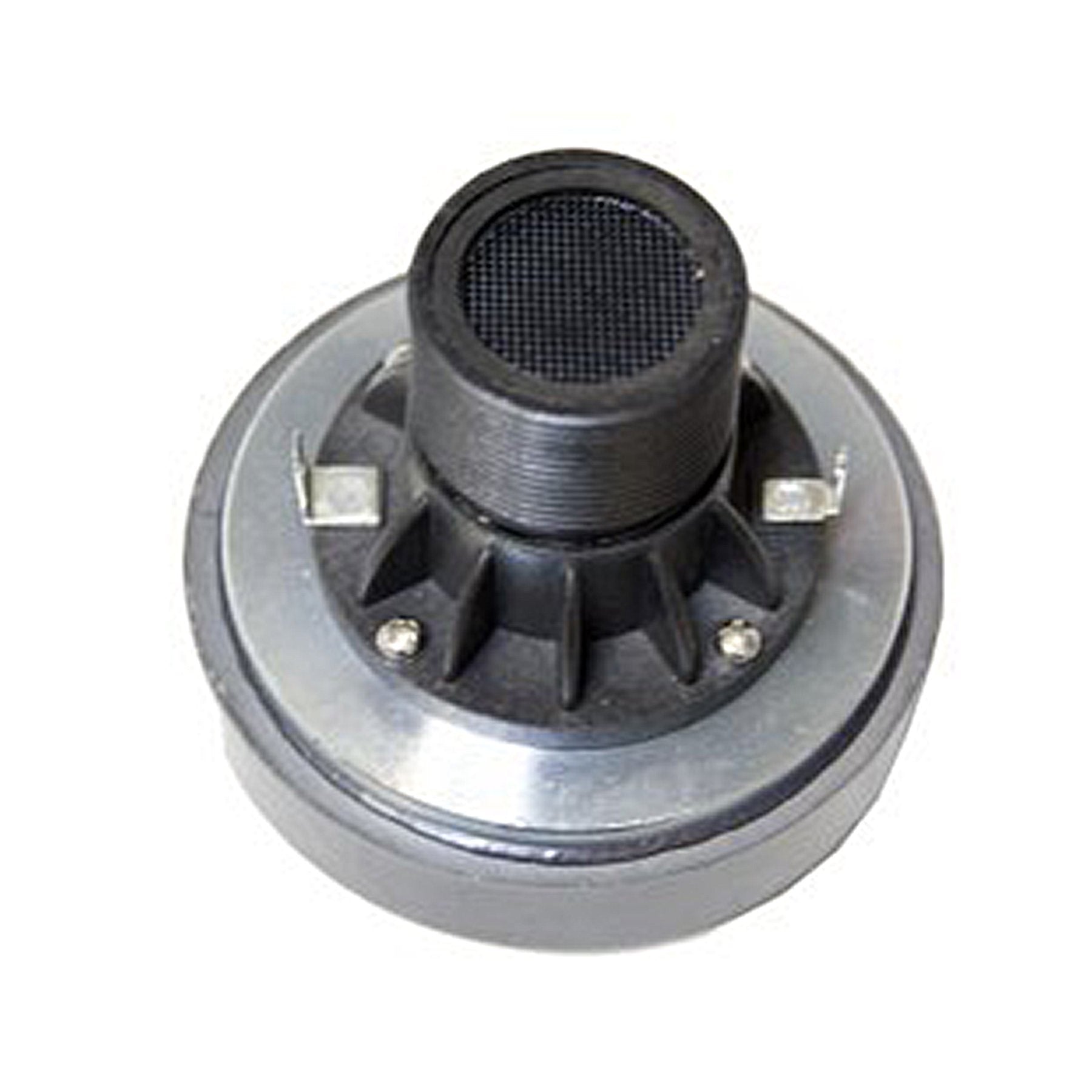

F110M-8 1" Throat Size HF Device

Wholesale customers, please SIGN IN to see pricing and place orders.

The next addition to the Eminence compression driver family. The F110M-8 offers all the performance benefits of our new ring radiator devices in a smaller format which performs remarkably well on screw on type horns or coaxial woofers.

Specifications

Download Spec Sheet
SPECIFICATION
Throat Size 1", 25.4mm
Nominal Impedance*
Minimum Impedance 5.5 ohm @ 7.9 kHz
Power Rating** 25 W (AES)
Resonance 1.2kHz
Usable Frequency Range 2000Hz-20kHz
Recommended Crossover 2 kHz @ 12 dBkHz
Sensitivity*** 108.4
Magnet Material Ferrite
Magnet Weight 12oz, 0.34kg
Voice Coil Diameter 1" / 25.4mm
Voice Coil Former Polyimide
Diaphragm Material Mylar
DC Resistance (Re) 4.5Ω
MOUNTING INFORMATION
Overall Diameter 3.35", 85mm
Driver Volume Displaced 0.006 cu.ft., 0.18 liters
Depth 2.83", 72mm
Weight 1.71 lbs, 0.78 kg
Mounting Thread 1 3/8 in. 18 ext
Mounting Holes Diameter N/A
Mounting Holes B.C.D. N/A


Frequency Response

response graph
