Recommended for pro audio as a mid/hi or full-range and monitor. Also suited for bass guitar and works well in sealed or vented enclosures.
Applications
Woofer | Midbass | Pro Audio | Bass Guitar
Box Type: Sealed | Vented | Horn Loading
Specifications
Download Spec Sheet Download Cab Design| SPECIFICATION | |
| Nominal Basket Diameter | 10", 254 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power | 500 W |
| Watts | 250 W |
| Resonance | 53 Hz |
| Usable Frequency Range | 60 Hz - 4 kHz |
| Sensitivity* | 97.3 dB |
| Magnet Weight | 7 oz. |
| Gap Height | 0.275", 7 mm |
| Voice Coil Diameter | 2.5", 64 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 53 Hz |
| DC Resistance (Re) | 5.06 Ω |
| Coil Inductance (Le) | 0.4m H |
| Mechanical Q (Qms) | 5.76 |
| Electromagnetic Q (Qes) | 0.45 |
| Total Q (Qts) | 0.42 |
| Compliance Equivalent Volume (Vas) | 52.5 liters / 1.85 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 147 cc |
| Mechanical Compliance of Suspension (Cms) | 0.3 mm/N |
| BL Product (BL) | 10.6 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 31 grams |
| Efficiency Bandwidth Product (EBP) | 117 |
| Maximum Linear Excursion (Xmax) | 4.2 mm |
| Surface Area of Cone (Sd) | 350.1 cm2 |
| Maximum Mechanical Limit (Xlim) | 8 mm |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | 12.7-17 liters / 0.45-0.6 cu.ft. |
| Vented | 17-39.6 liters / 0.6-1.4 cu.ft. |
| Driver Volume Displaced | 0.026 cu.ft. / 0.74 liters |
| Overall Diameter | 10.25", 260.4 mm |
| Baffle Hole Diameter | 9.15", 232.4 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.28", 7.1mm |
| Mounting Holes B.C.D. | 9.73", 247.1mm |
| Depth | 4.9", 124.5 mm |
| Net Weight | 4.6 lbs, 2.09 kg |
| Shipping Weight | 5.7 lbs, 2.59 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Aluminum voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Neodymium magnet |
| Core Details | Vented core |
| Basket Materials | Die-cast aluminum basket/ heatsink |
| Cone Composition | Paper Cone |
| Cone Edge Composition | Cloth cone edge |
| Dust Cap Composition | Solid composition paper dust cap |

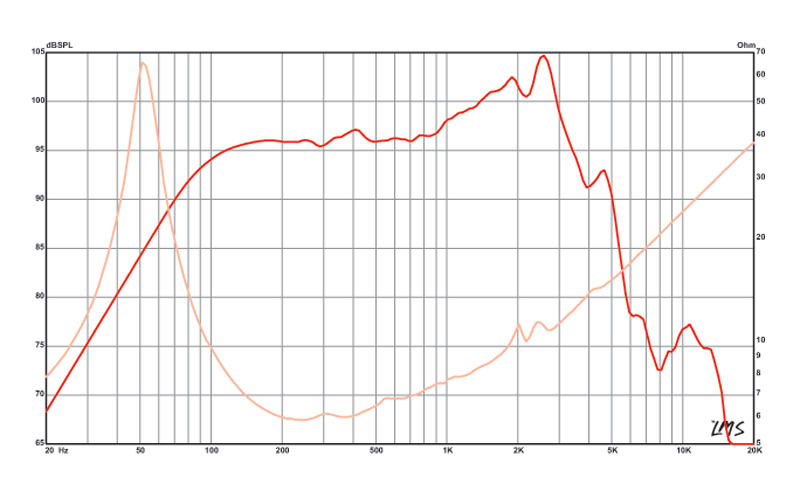

Frequency Response
