BGH25-8 25 watt, 8 ohm driver and conical horn combination

Wholesale customers, please SIGN IN to see pricing and place orders.

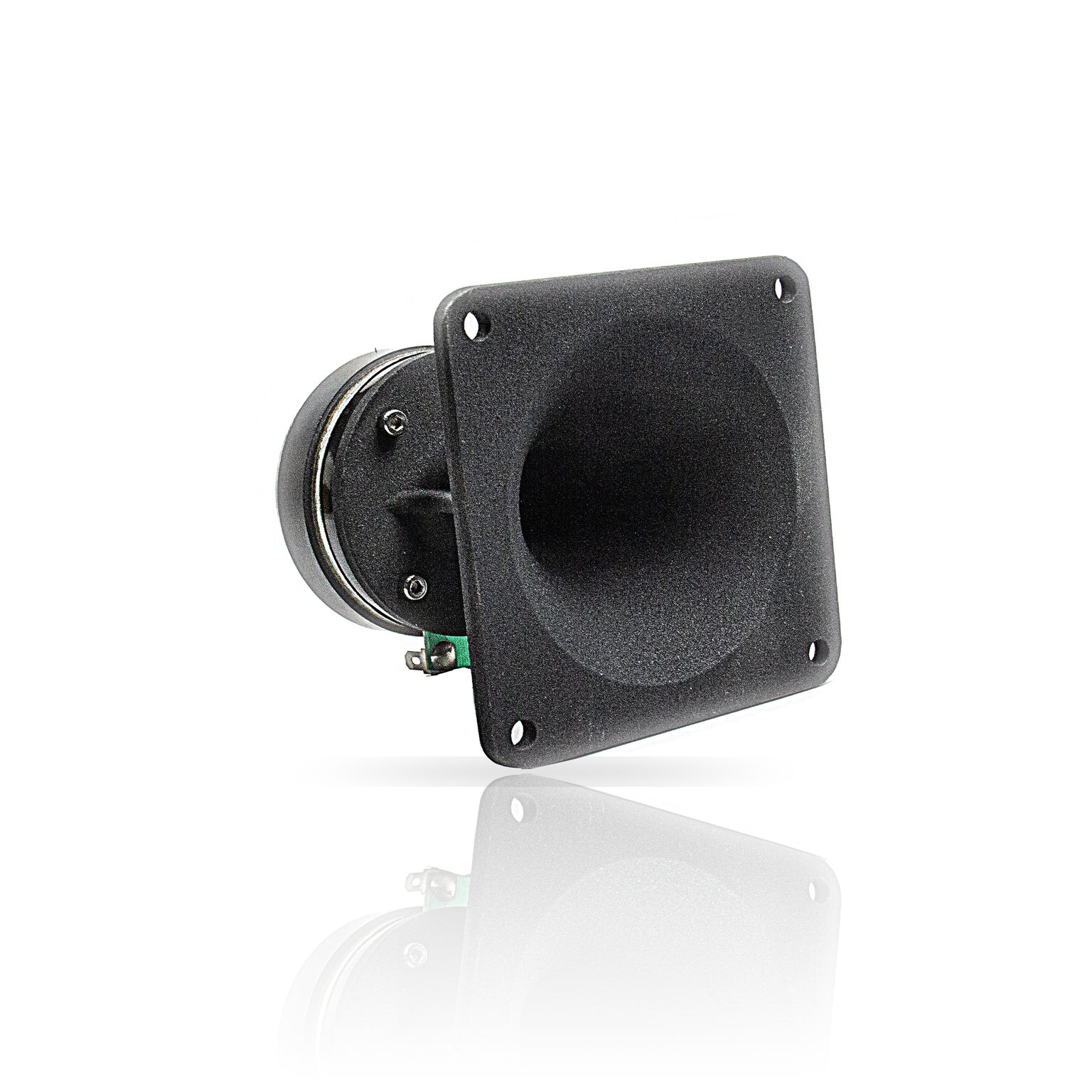

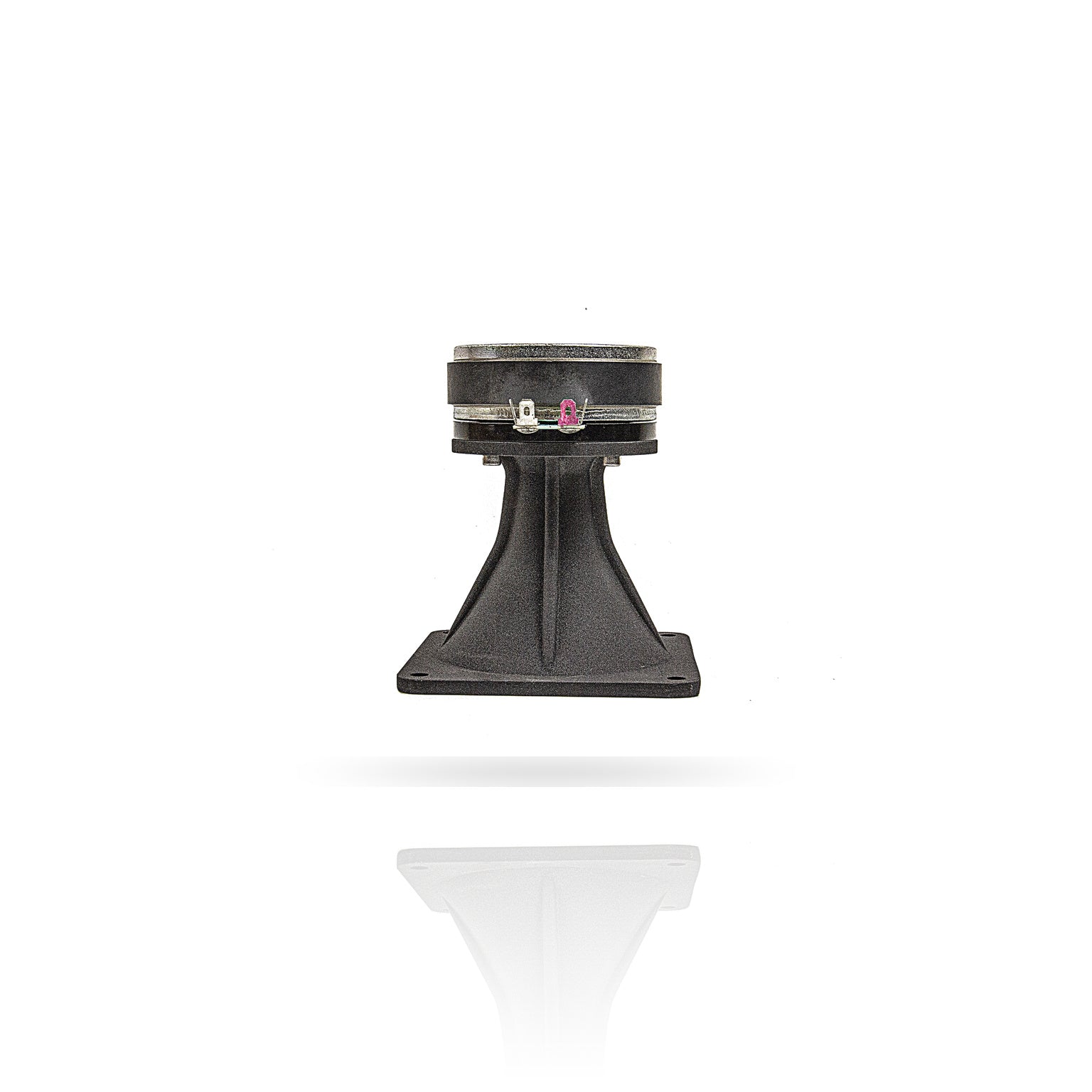

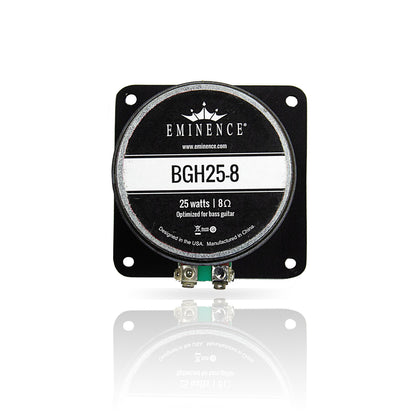

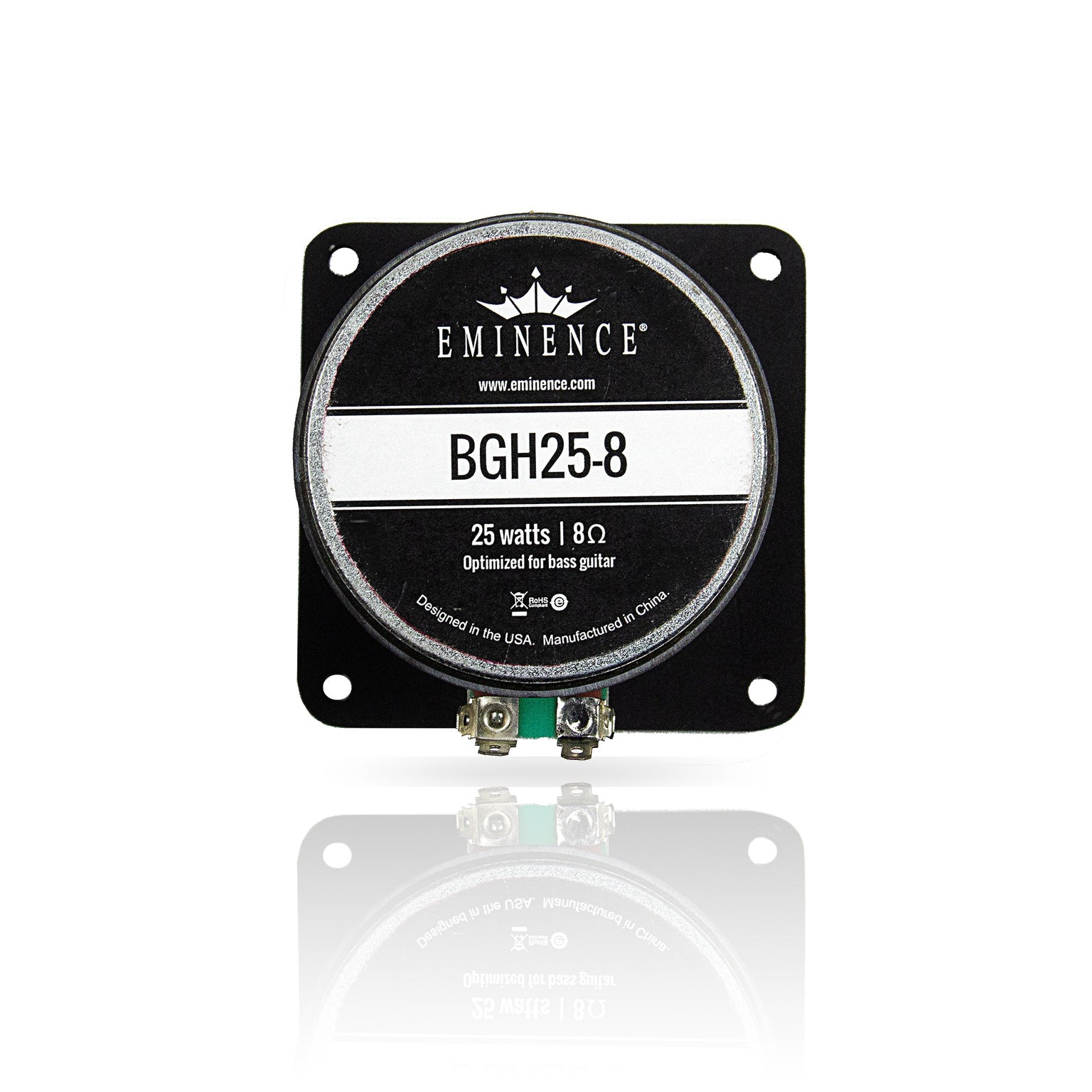

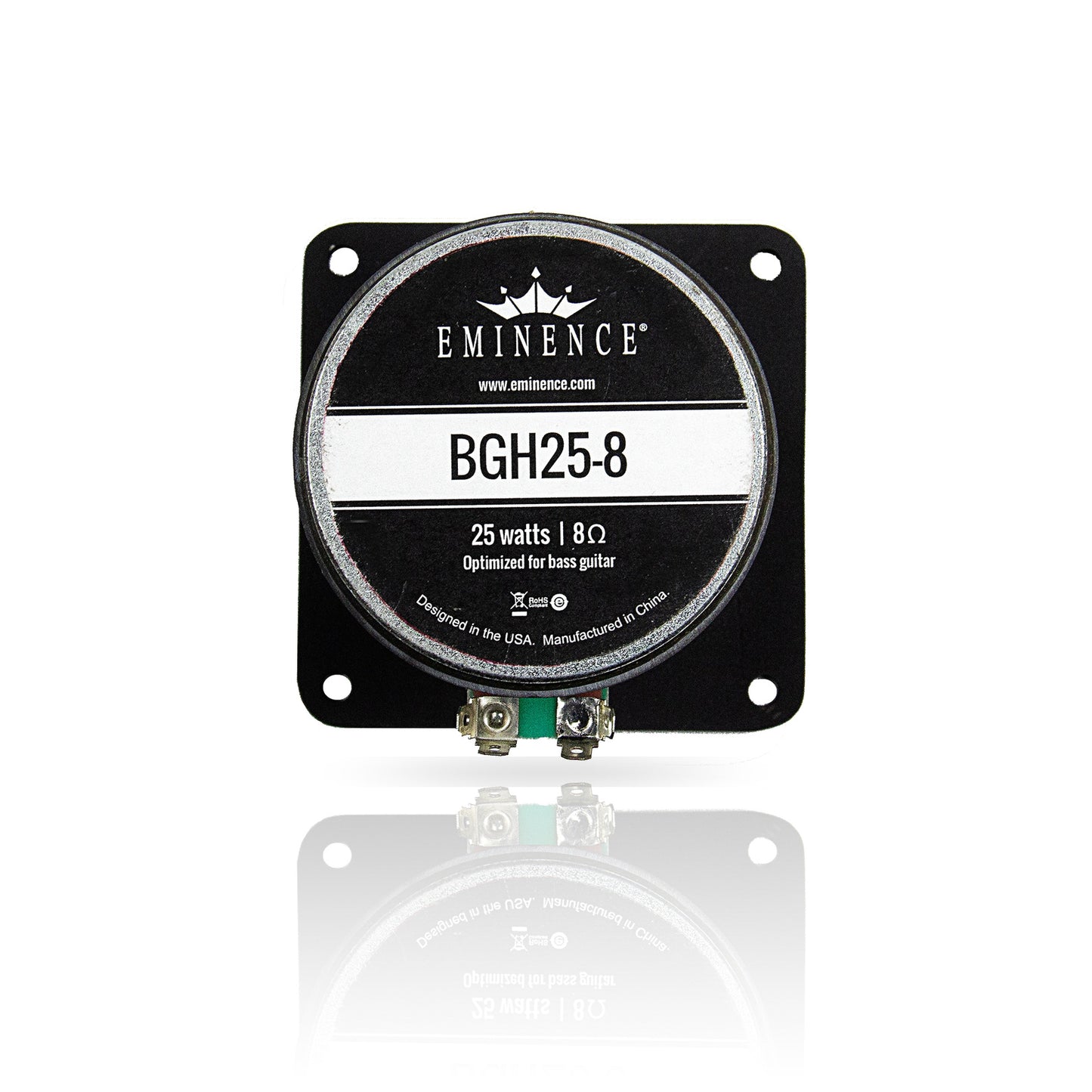

The 8-ohm BGH25-8 super tweeter is a 25-watt driver and die-cast horn combination optimized specifically for bass guitar applications. Perfect for adding high-frequency detail to your bass amp.

Key Features:

  • A small footprint makes it easy to upgrade existing cabinets

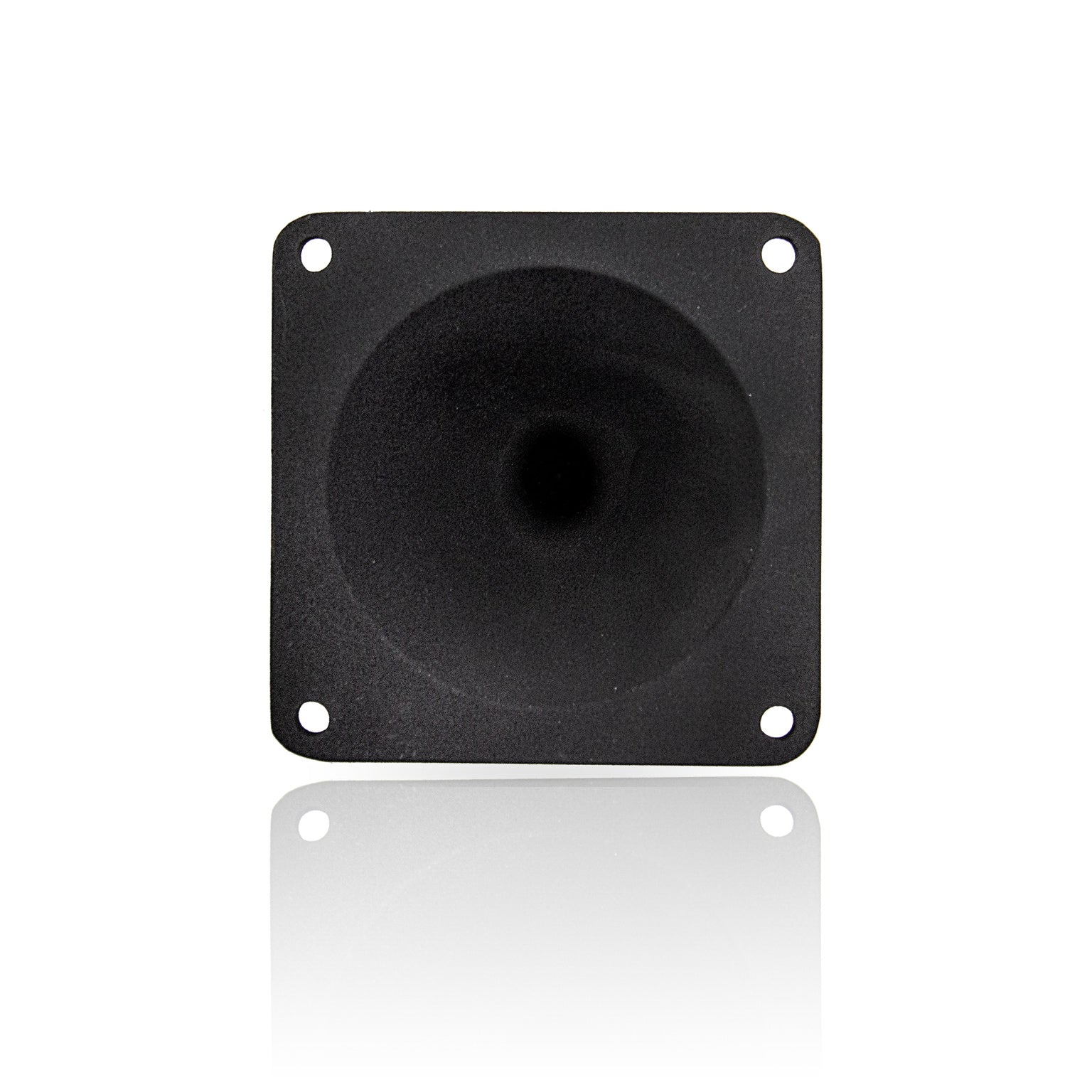

  • Rugged, non-resonant reinforced aluminum horn
  • Smooth frequency response from 2,500 to 20,000 Hz 105.2 dB efficient will keep up with the most efficient bass speakers

Specifications

Download Spec Sheet
SPECIFICATION
Type Exponential
Throat Size 1", 25.4mm
Dispersion 60
Power Rating 25W (AES)
Nominal impedance 8 ?
Minimum impedance 8.6 ? @ 7.4 kHz
Sensitivity 105.2 dB
Resonance 1.3 kHz
Usable Frequency Range 2500 Hz – 20 kHz
Low Rec. Crossover 2.5 kHz
W x H x D (in) 4.2" x 4.2" x 4.8"
W x H x D (mm) 106.7 x 106.7 x 121.9mm
Cut Out 3.5 in., 88.9 mm
Weight 2.2lbs, 1kg
Material ABS


Frequency Response

response graph
