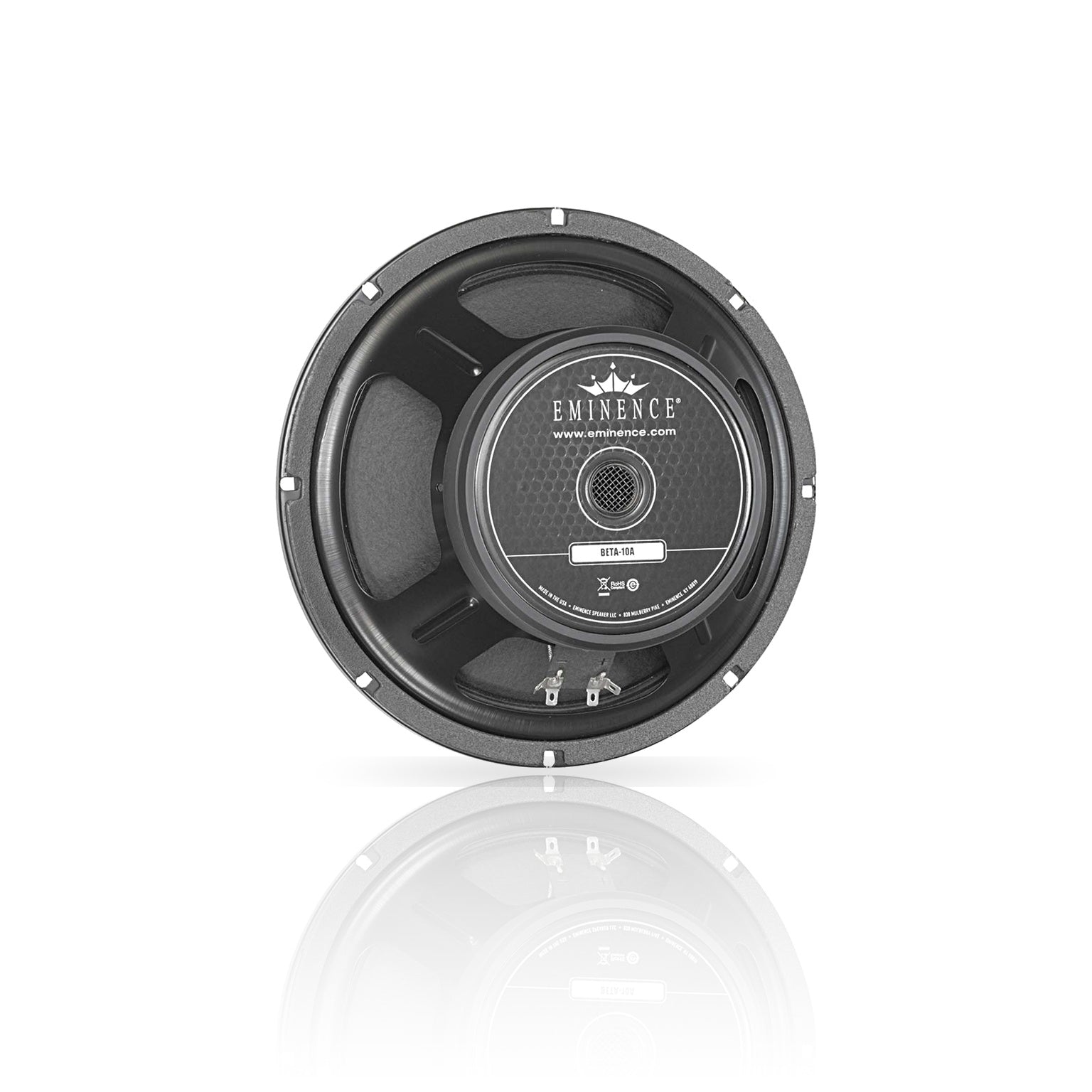

10 inch Eminence American Standard Series Replacement Speaker Eminence Speaker Basket

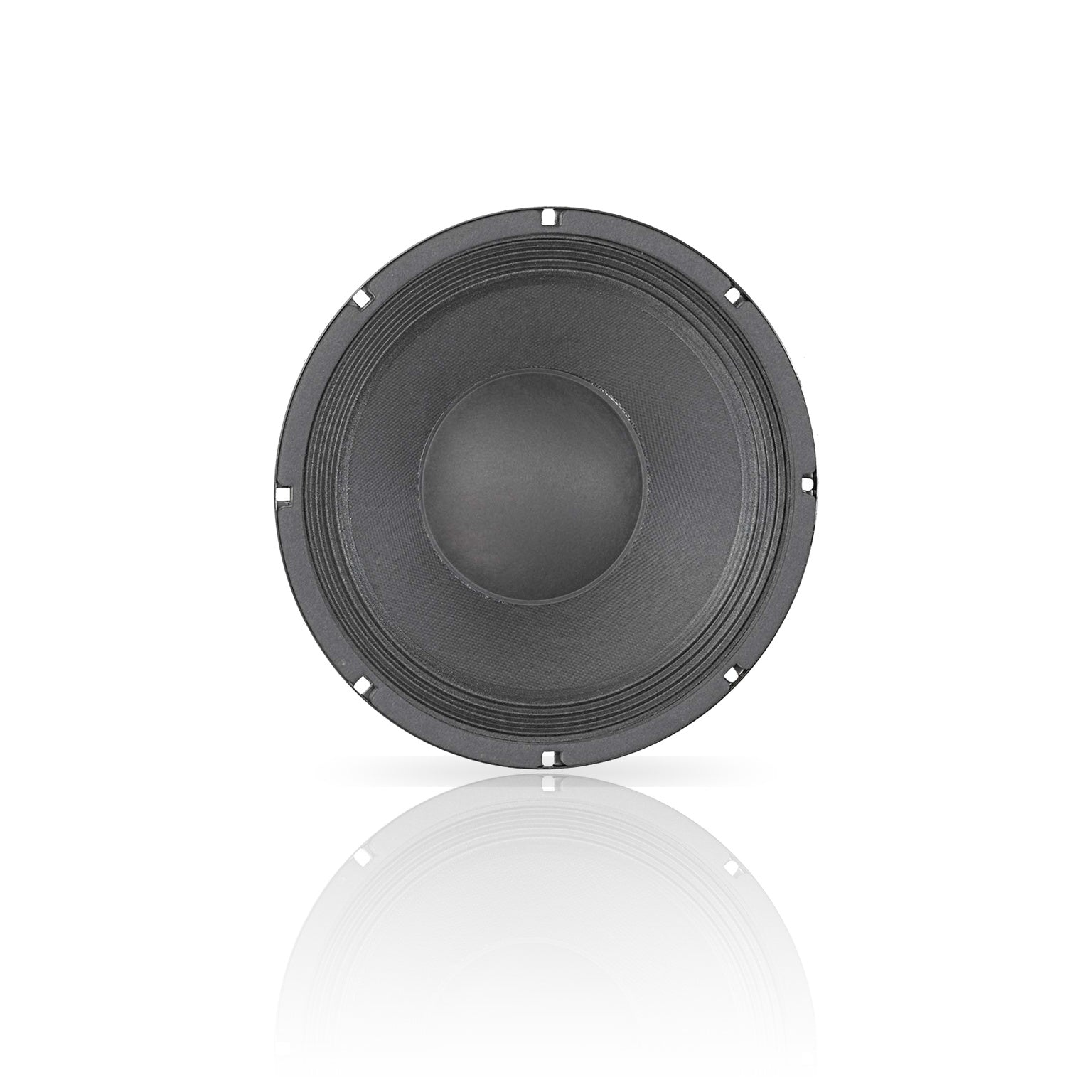

10 inch Eminence American Standard Series Replacement Speaker Eminence Speaker Cone

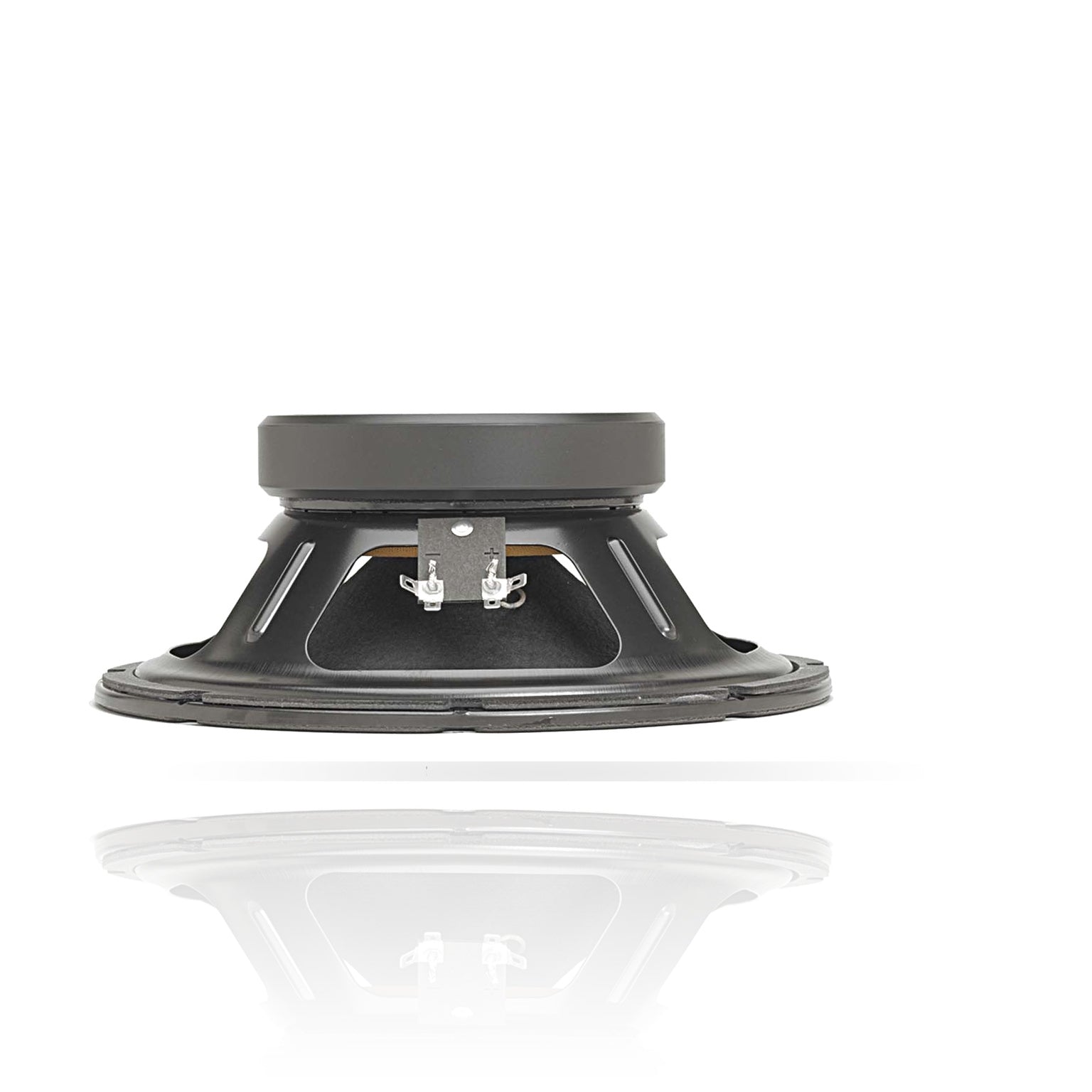

10 inch Eminence American Standard Series Replacement Speaker Eminence Speaker Side
10 inch Eminence American Standard Series Replacement Speaker Eminence Speaker Frequency Response
  • Load image into Gallery viewer, 10 inch Eminence American Standard Series Replacement Speaker Eminence Speaker Basket
  • Load image into Gallery viewer, 10 inch Eminence American Standard Series Replacement Speaker Eminence Speaker Cone
  • Load image into Gallery viewer, 10 inch Eminence American Standard Series Replacement Speaker Eminence Speaker Side
  • Load image into Gallery viewer, 10 inch Eminence American Standard Series Replacement Speaker Eminence Speaker Frequency Response

BETA-10A 10" American Standard Series Speaker

Wholesale customers, please SIGN IN to see pricing and place orders.

Recommended for professional audio, bass guitar, mid-bass or floor monitor applications in sealed enclosures. Also works well as a mid-bass or woofer in vented enclosures.

Applications

Woofer | Midbass | Pro Audio | Bass Guitar

Box Type: Sealed | Vented | Horn Loading

Specifications

Download Spec Sheet Download Cab Design
SPECIFICATION
Nominal Basket Diameter 10", 254 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power 500 W
Watts 250 W
Resonance 53 Hz
Usable Frequency Range 51 Hz - 3.8 kHz
Sensitivity* 97 dB
Magnet Weight 34 oz.
Gap Height 0.312", 7.9 mm
Voice Coil Diameter 2", 51 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 53 Hz
DC Resistance (Re) 5.75 Ω
Coil Inductance (Le) 0.67m H
Mechanical Q (Qms) 8.14
Electromagnetic Q (Qes) 0.52
Total Q (Qts) 0.49
Compliance Equivalent Volume (Vas) 60.1 liters / 2.12 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 103.5 cc
Mechanical Compliance of Suspension (Cms) 0.36 mm/N
BL Product (BL) 9.6 T-M
Diaphragm Mass Inc. Airload (MMs) 25 grams
Efficiency Bandwidth Product (EBP) 102
Maximum Linear Excursion (Xmax) 3 mm
Surface Area of Cone (Sd) 344.9 cm2
Maximum Mechanical Limit (Xlim) 8.6 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed 8.5-14.2 liters / 0.3-0.5 cu.ft.
Vented 19.8-70.8 liters / 0.7-2.5 cu.ft.
Driver Volume Displaced 0.04 cu.ft. / 1.13 liters
Overall Diameter 10.11", 256.8 mm
Baffle Hole Diameter 9.13", 231.9 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.23", 5.8mm
Mounting Holes B.C.D. 9.6", 243.8mm
Depth 3.98", 101.1 mm
Net Weight 6.8 lbs, 3.08 kg
Shipping Weight 7.8 lbs, 3.54 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Aluminum voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented core

Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Solid composition paper dust cap


Frequency Response

response graph
