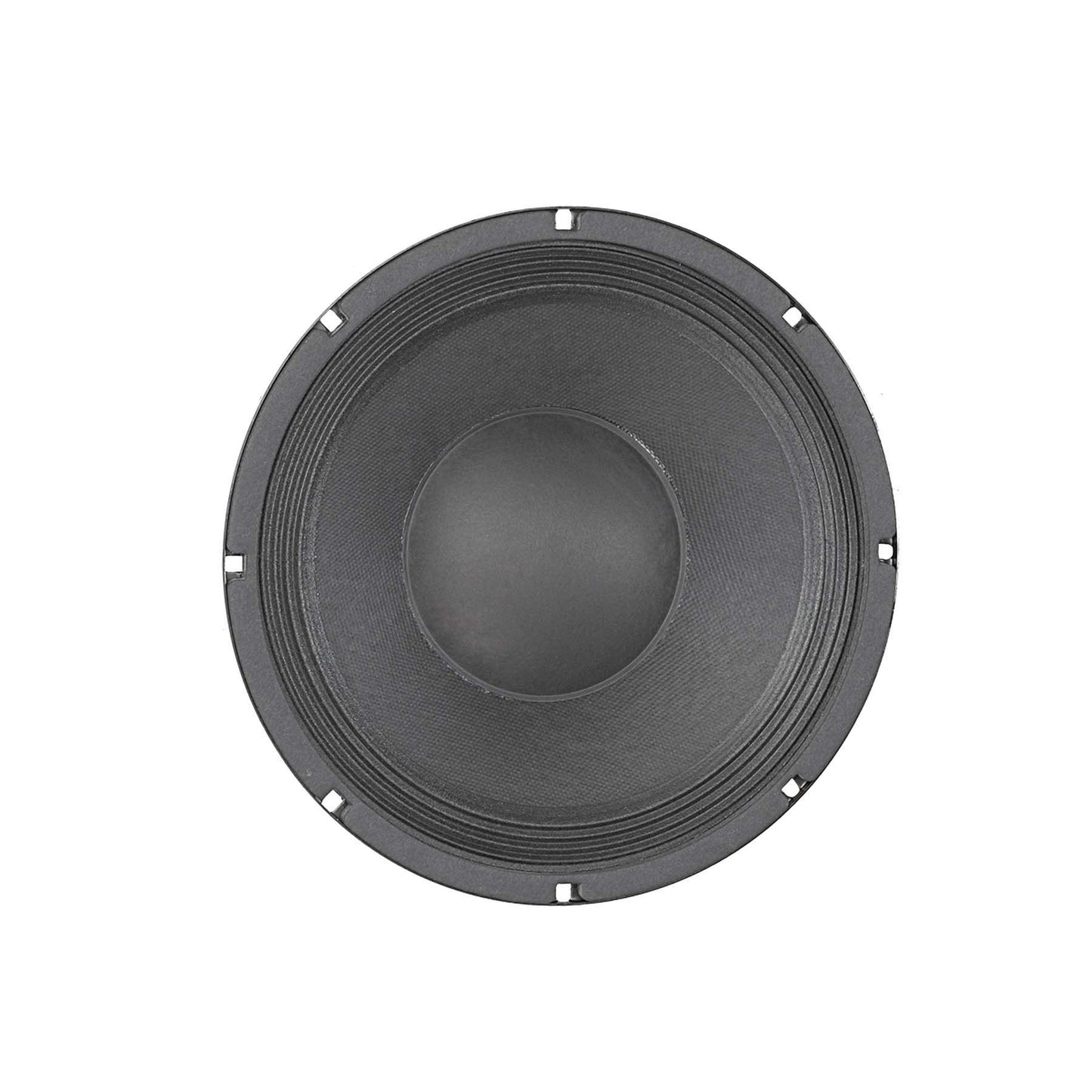

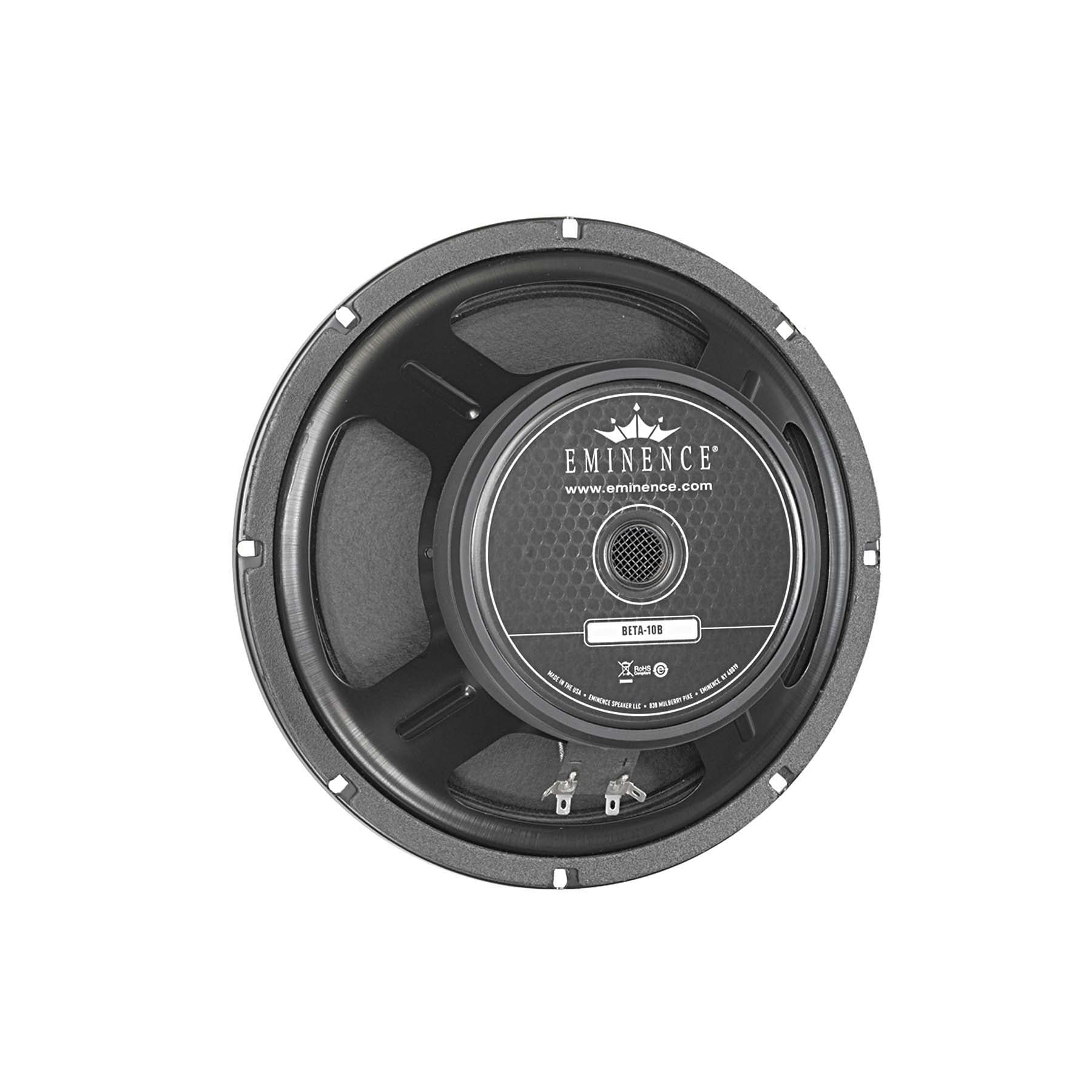

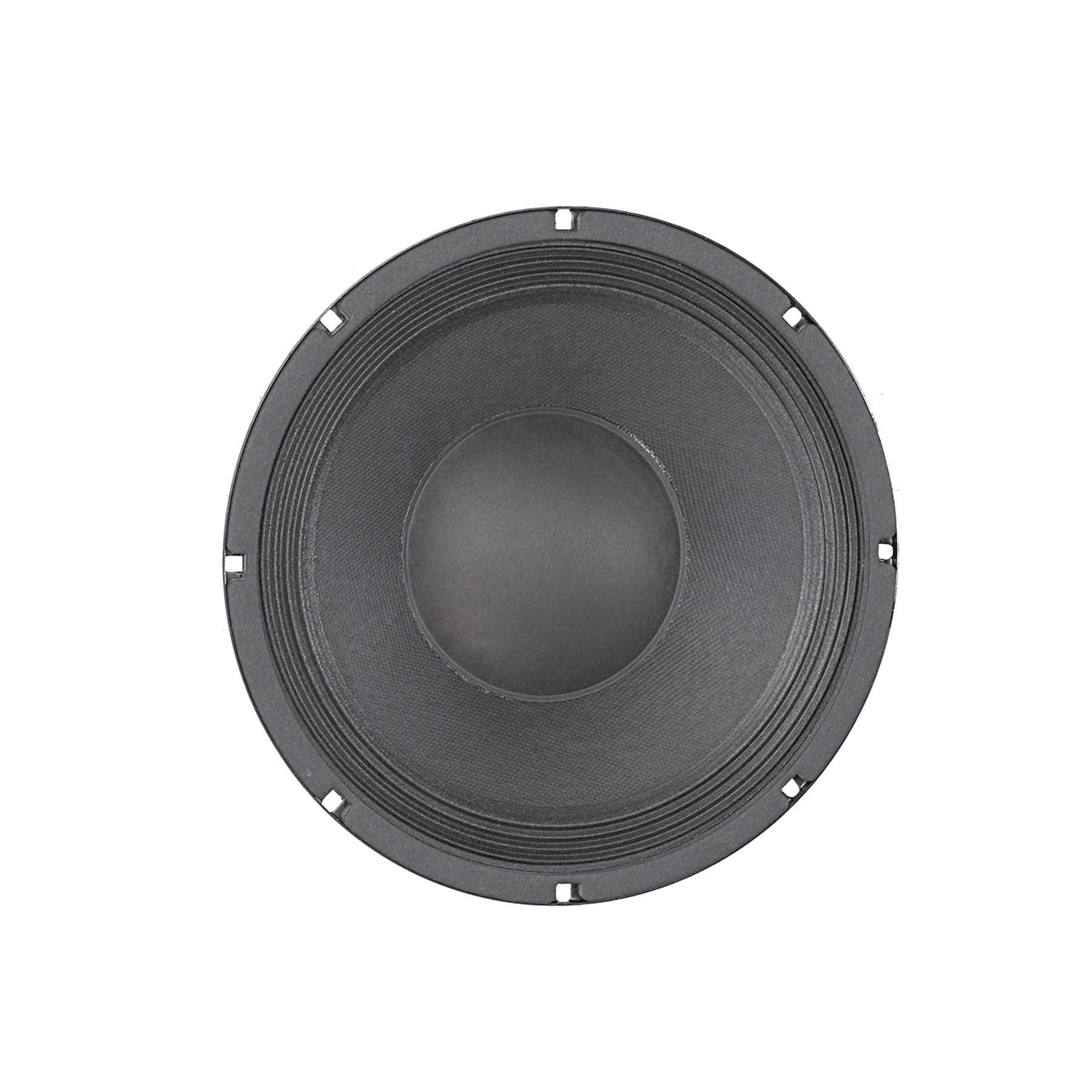

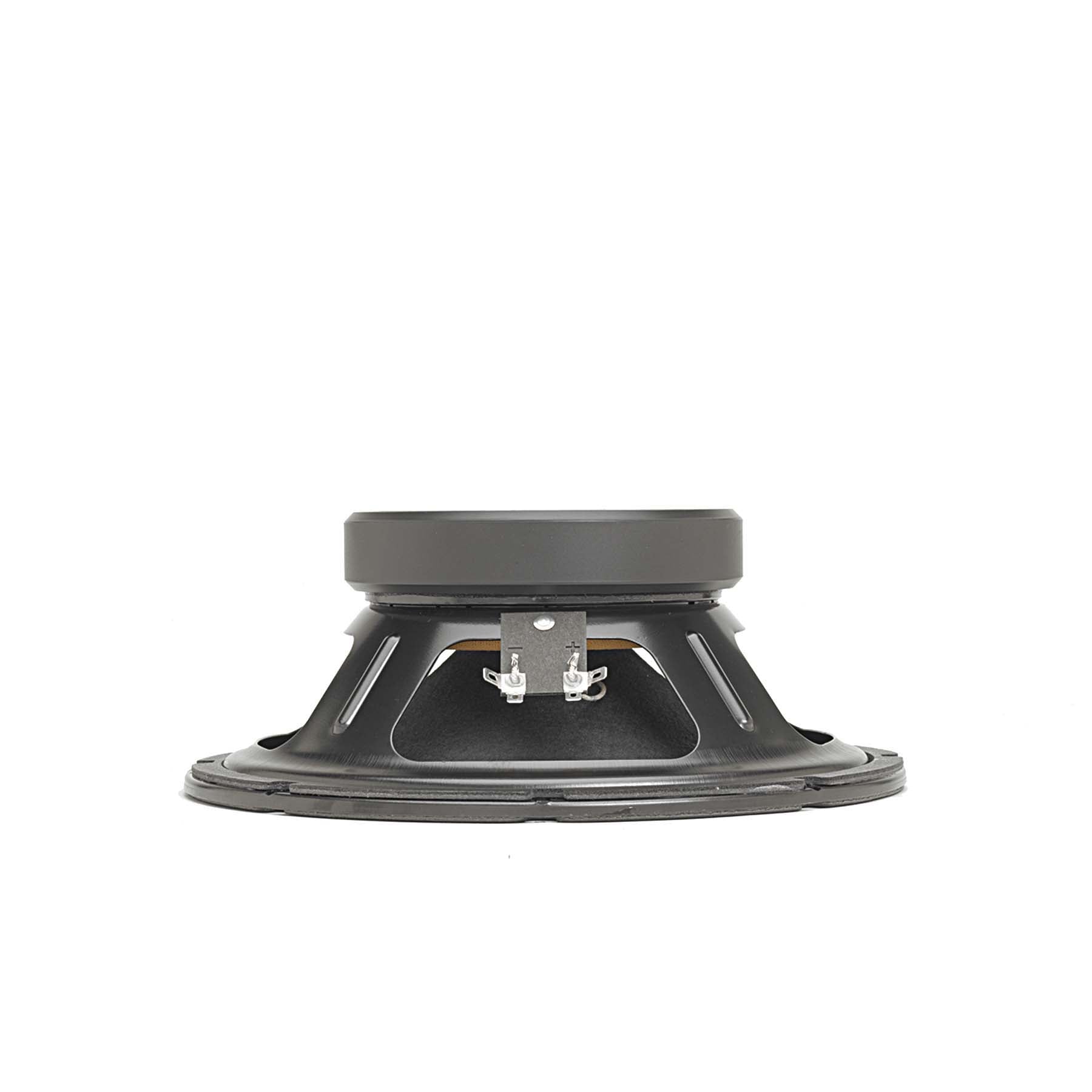

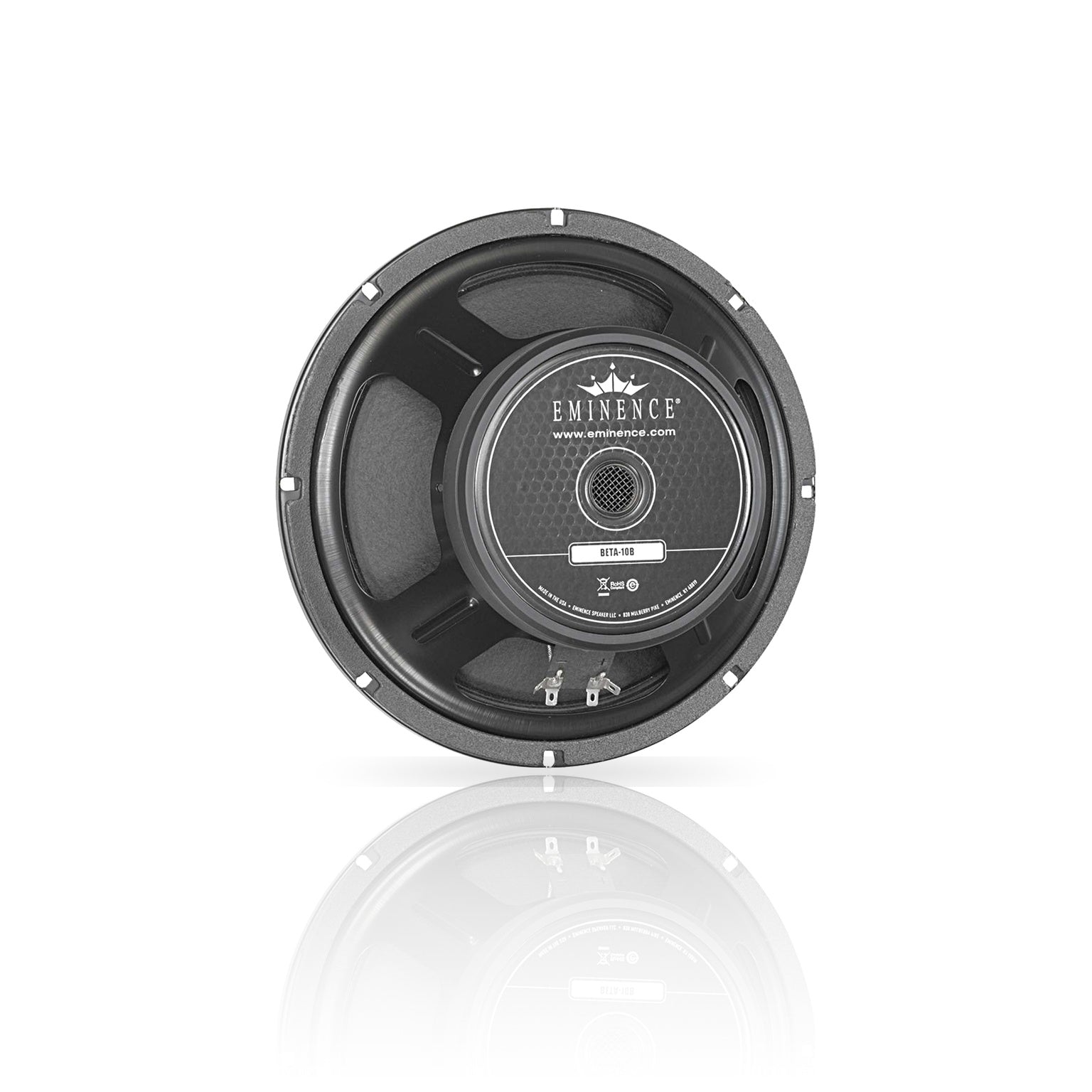

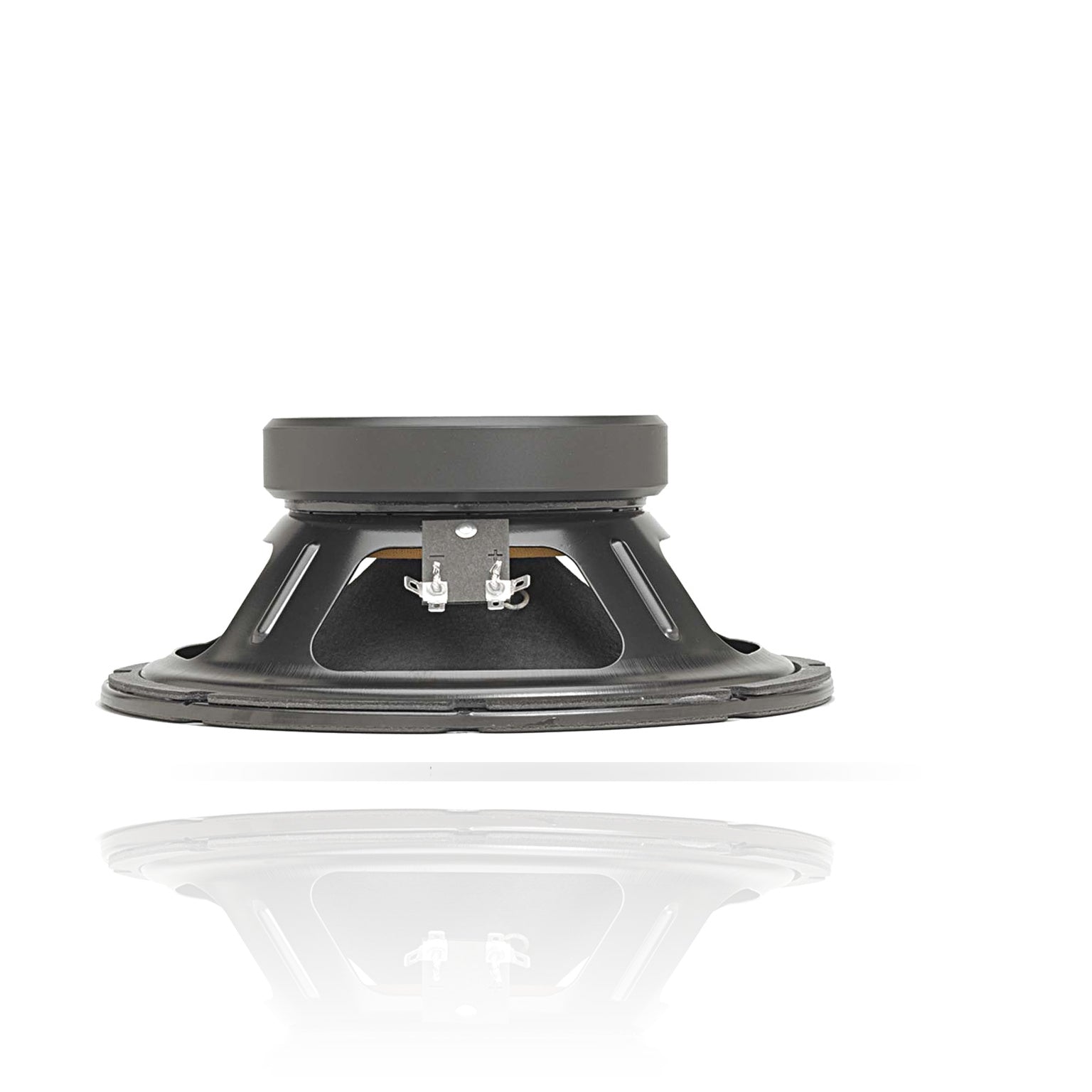

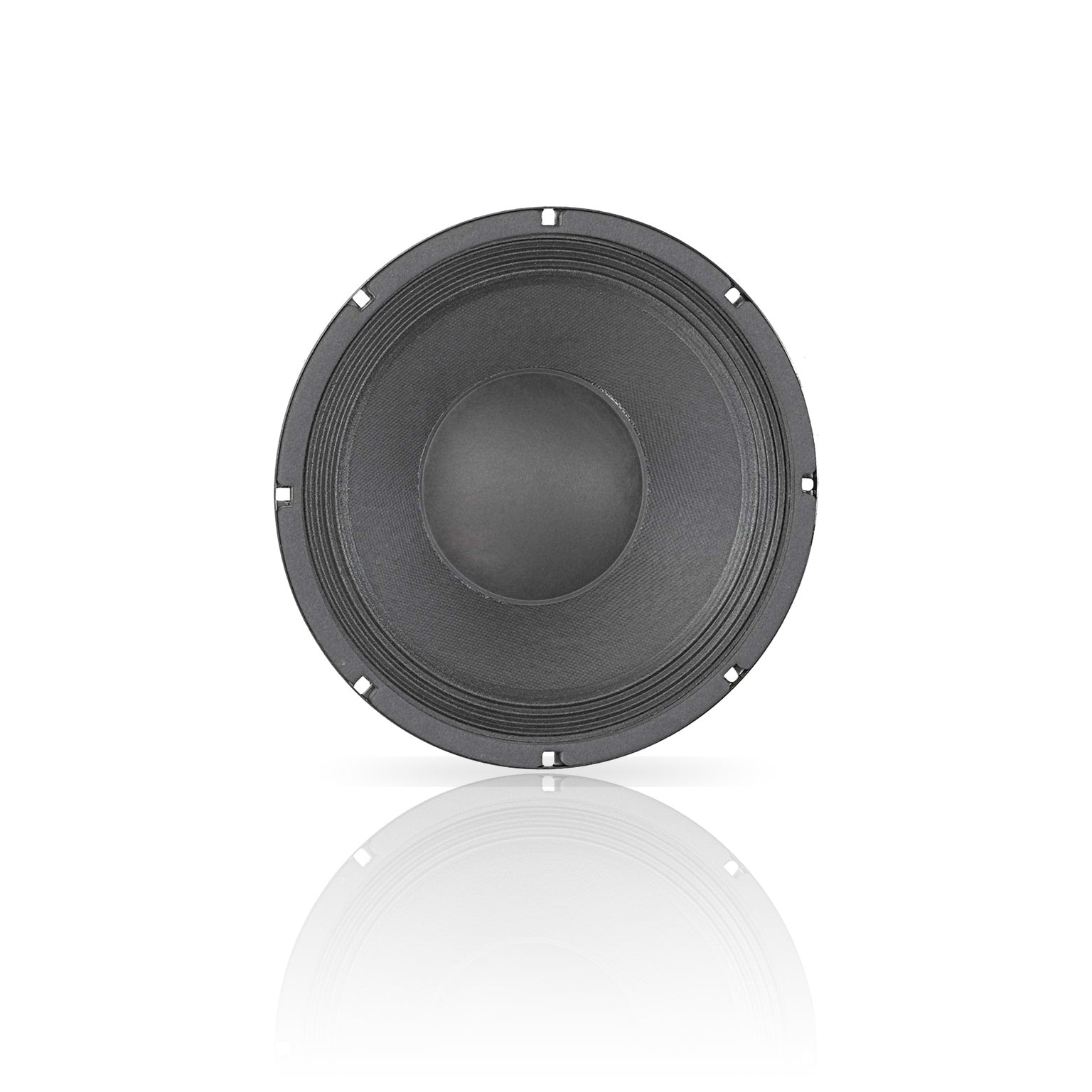

BETA-10B 16-Ohm 10" American Standard Series Speaker
BETA-10B 16-Ohm 10" American Standard Series Speaker
BETA-10B 16-Ohm 10" American Standard Series Speaker
BETA-10B 16-Ohm 10" American Standard Series Speaker
  • Load image into Gallery viewer, BETA-10B 16-Ohm 10" American Standard Series Speaker
  • Load image into Gallery viewer, BETA-10B 16-Ohm 10" American Standard Series Speaker
  • Load image into Gallery viewer, BETA-10B 16-Ohm 10" American Standard Series Speaker
  • Load image into Gallery viewer, BETA-10B 16-Ohm 10" American Standard Series Speaker
We currently have 36 in stock.

BETA-10B 16-Ohm 10" American Standard Series Speaker

Regular price
$99.99
Sale price
$99.99
Regular price
$139.99
Sold out
Unit price
per

16 Ohm Version of the Popular Beta 10. Great for PA top boxes or for Bass Guitar. You can easily parallel two for an 8-ohm load or four for a 4-ohm load. Recommended for professional audio, bass guitar, mid-bass, or floor monitor applications in sealed enclosures. Also works well as a mid-bass or woofer in vented enclosures.

Applications

Woofer | Midbass | Pro Audio | Bass Guitar

Box Type: Sealed | Vented | Horn Loading

Specifications

Download Spec Sheet Download Cab Design
SPECIFICATION
Nominal Basket Diameter 10", 254 mm
Nominal Impedance* 16 Ω
Power Rating*
Program Power 500 W
Watts 250 W
Resonance 51.6 Hz
Usable Frequency Range 50 Hz - 3.5 kHz
Sensitivity* 94.1 dB
Magnet Weight 34 oz.
Gap Height 0.312", 7.9 mm
Voice Coil Diameter 2", 51 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 51.6 Hz
DC Resistance (Re) 15.1 Ω
Coil Inductance (Le) 1.33 m H
Mechanical Q (Qms) 4.33
Electromagnetic Q (Qes) 0.58
Total Q (Qts) 0.51
Compliance Equivalent Volume (Vas) 61.37 liters / 2.17 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 106.6 cc
Mechanical Compliance of Suspension (Cms) 0.35 mm/N
BL Product (BL) 15.14 T-M
Diaphragm Mass Inc. Airload (MMs) 25 grams
Efficiency Bandwidth Product (EBP) 89.26
Maximum Linear Excursion (Xmax) 3 mm
Surface Area of Cone (Sd) 344.9 cm2
Maximum Mechanical Limit (Xlim) 8.6 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed 14.72-42.8 liters / 0.52-1.5 cu.ft.
Vented 28.32-84.95 liters / 1-3 cu.ft.
Driver Volume Displaced 0.04 cu.ft. / 1.13 liters
Overall Diameter 10.11", 256.8 mm
Baffle Hole Diameter 9.13", 231.9 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.23", 5.8mm
Mounting Holes B.C.D. 9.6", 243.8mm
Depth 3.98", 101.1 mm
Net Weight 6.8 lbs, 3.08 kg
Shipping Weight 7.8 lbs, 3.54 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Aluminum voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented core

Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Solid composition paper dust cap

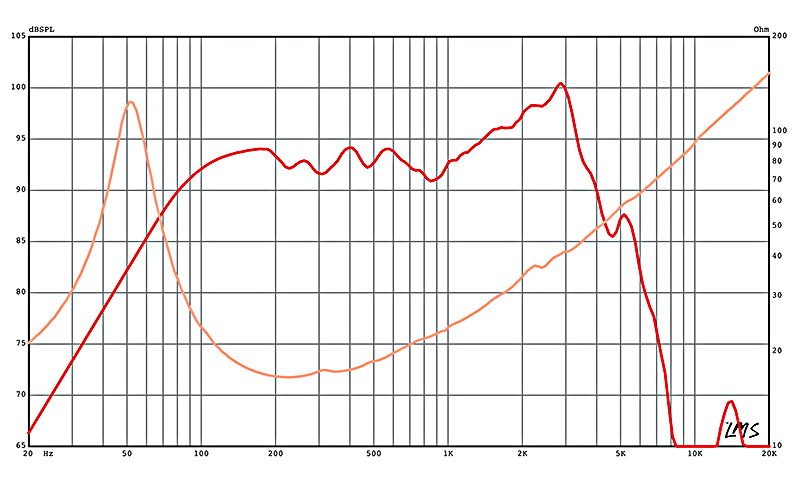

Frequency Response

response graph
