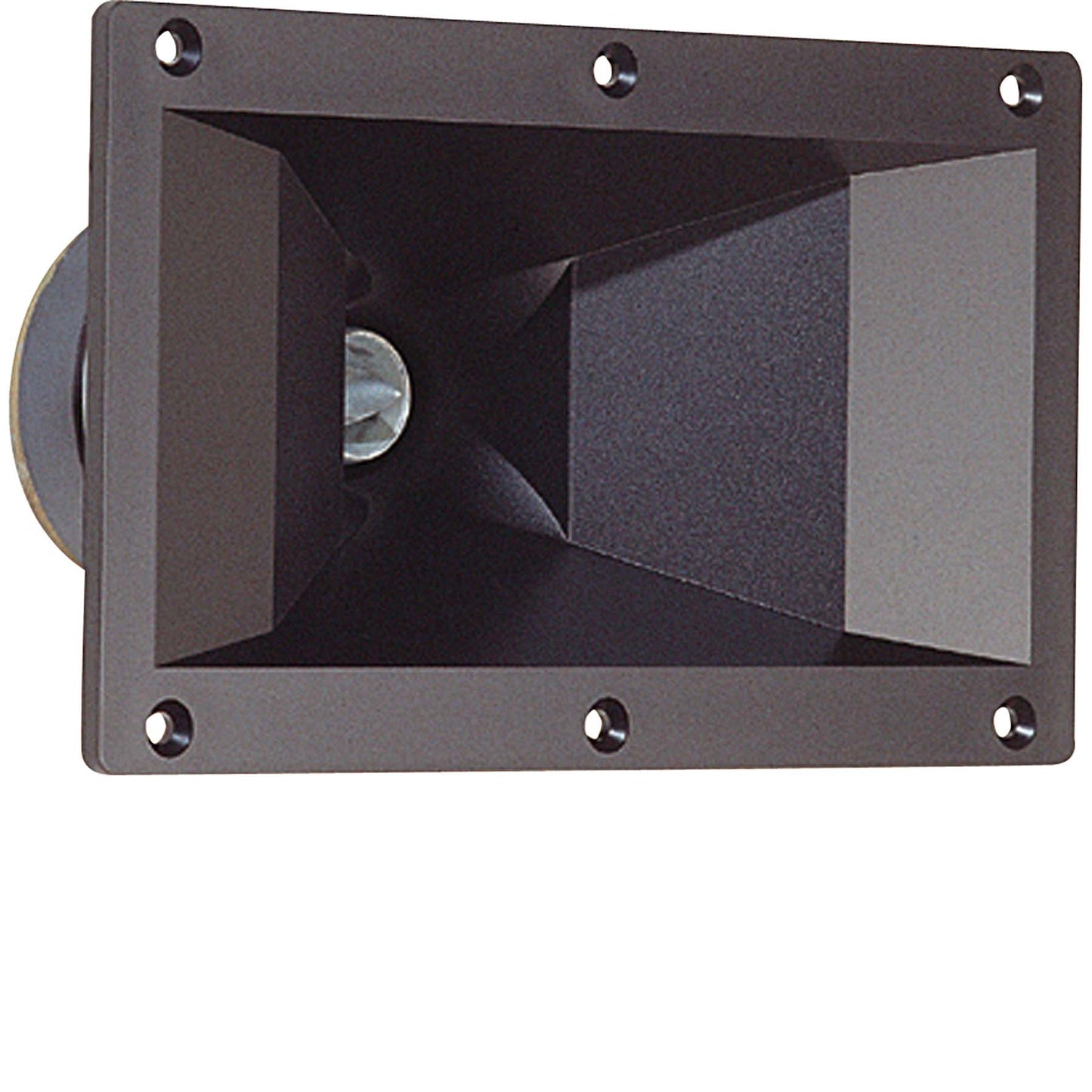

7.5 inch Eminence x 4.5 inch Eminence HF Device Eminence Speaker Basket

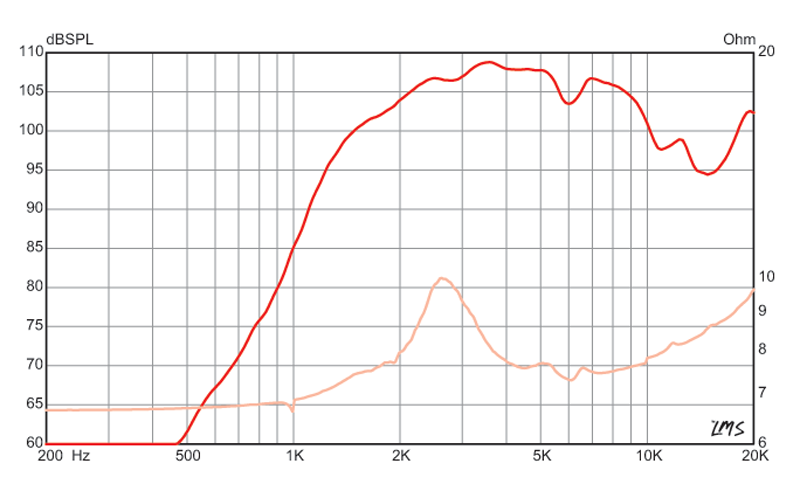

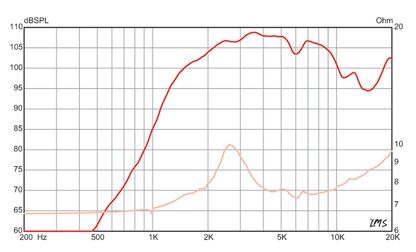

7.5 inch Eminence x 4.5 inch Eminence HF Device Eminence Speaker Frequency Response
  • Load image into Gallery viewer, 7.5 inch Eminence x 4.5 inch Eminence HF Device Eminence Speaker Basket
  • Load image into Gallery viewer, 7.5 inch Eminence x 4.5 inch Eminence HF Device Eminence Speaker Frequency Response

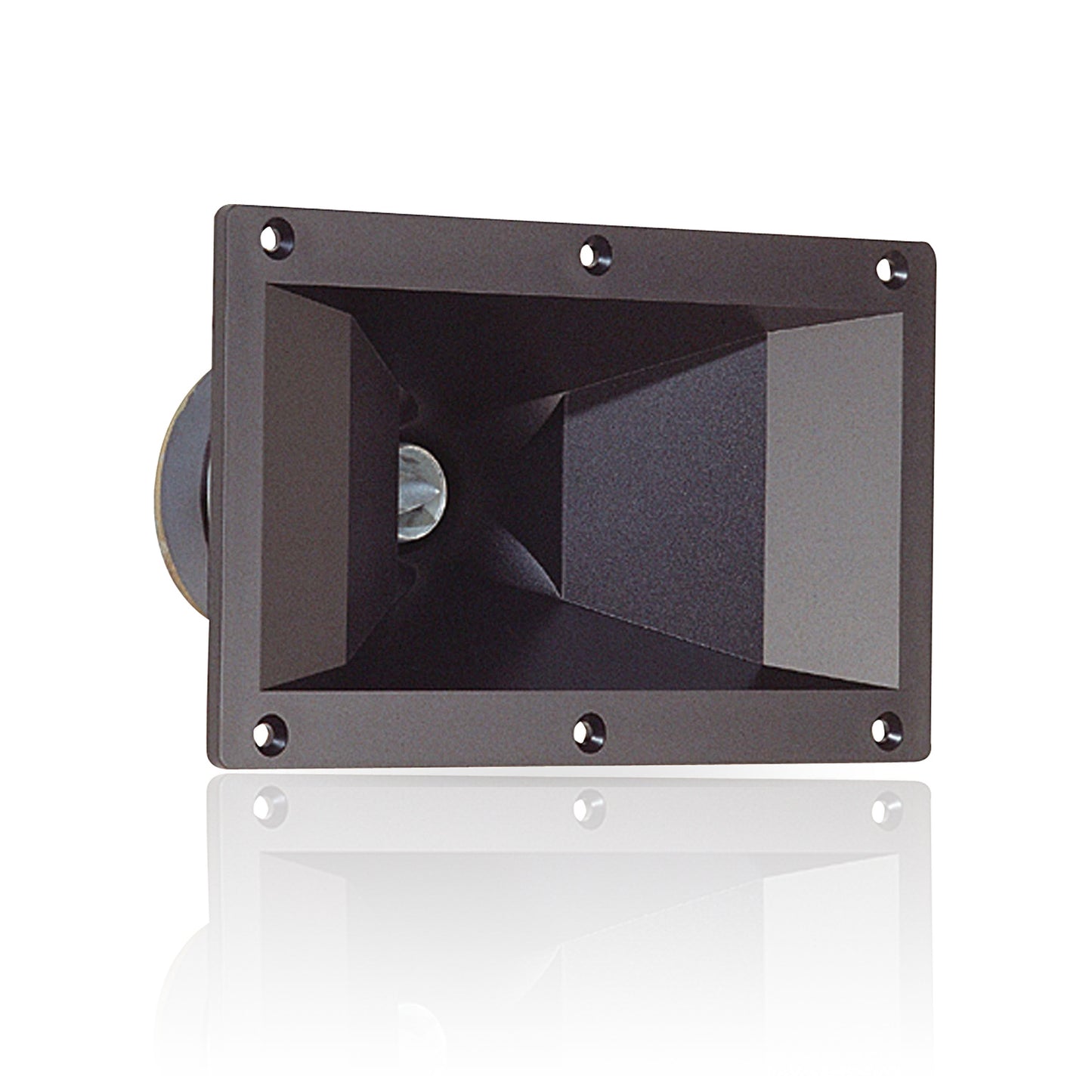

APT 150 7.5"x4.5" HF Device

Wholesale customers, please SIGN IN to see pricing and place orders.

APT:50 Driver with APT:150S Horn

Specifications

Download Spec Sheet
SPECIFICATION
Type Constant Directivity
Throat Size 1", 25.4mm
Dispersion 100 x 50
Power Rating 35W (AES)
Nominal impedance 8 Ω
Minimum impedance 7.7 @ 6 kHz
Sensitivity 102.4 dB
Resonance 2.7 kHz
Usable Frequency Range 3500 Hz – 20 kHz
Low Rec. Crossover 3.5 kHz
W x H x D (in) 4.5" x 7.6" x 5.1"
W x H x D (mm) 114.3 x 193 x 129.5mm
Cut Out 6.7 x 3.4 , 170 x 86 mm
Weight 1.9lbs, 0.86kg
Material ABS
