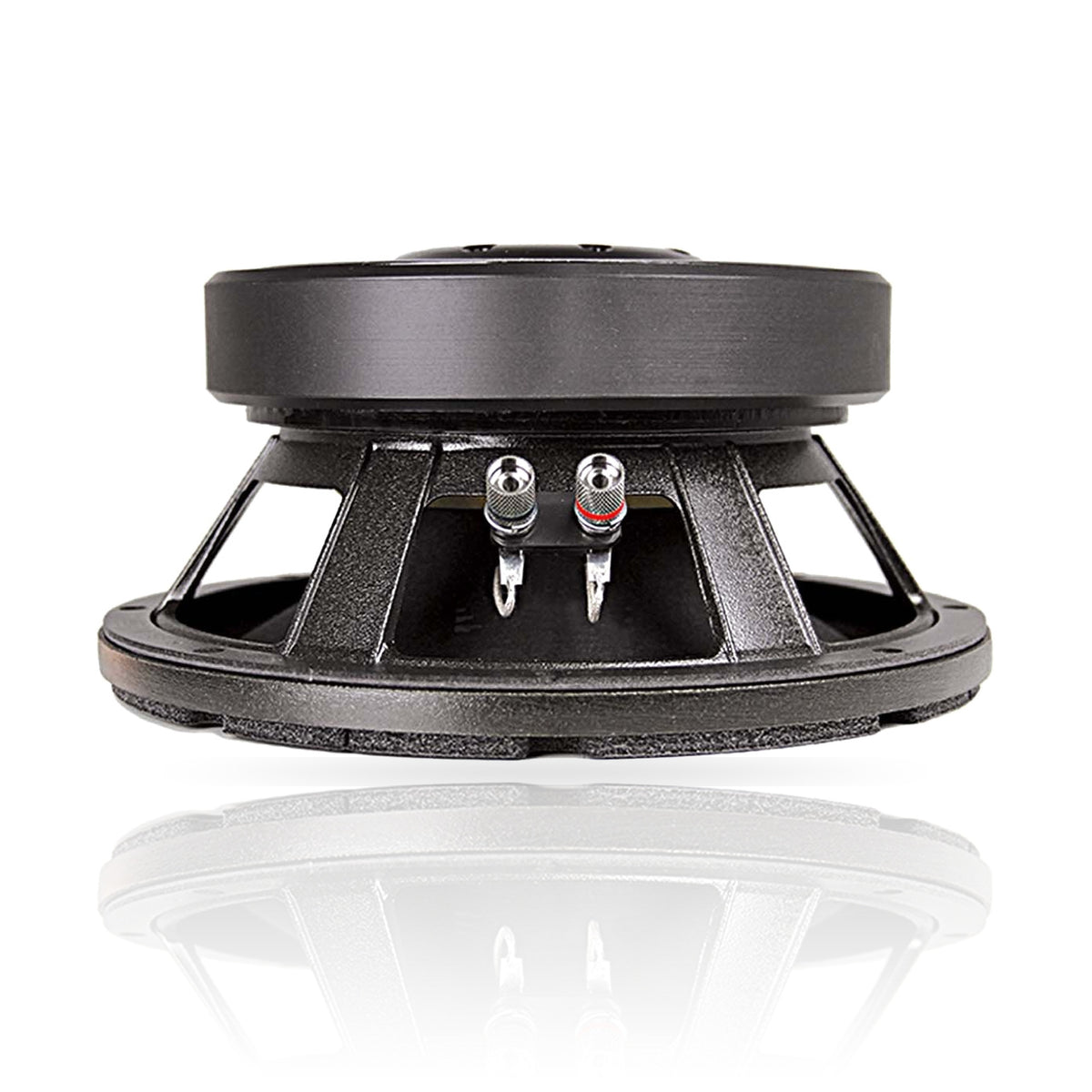

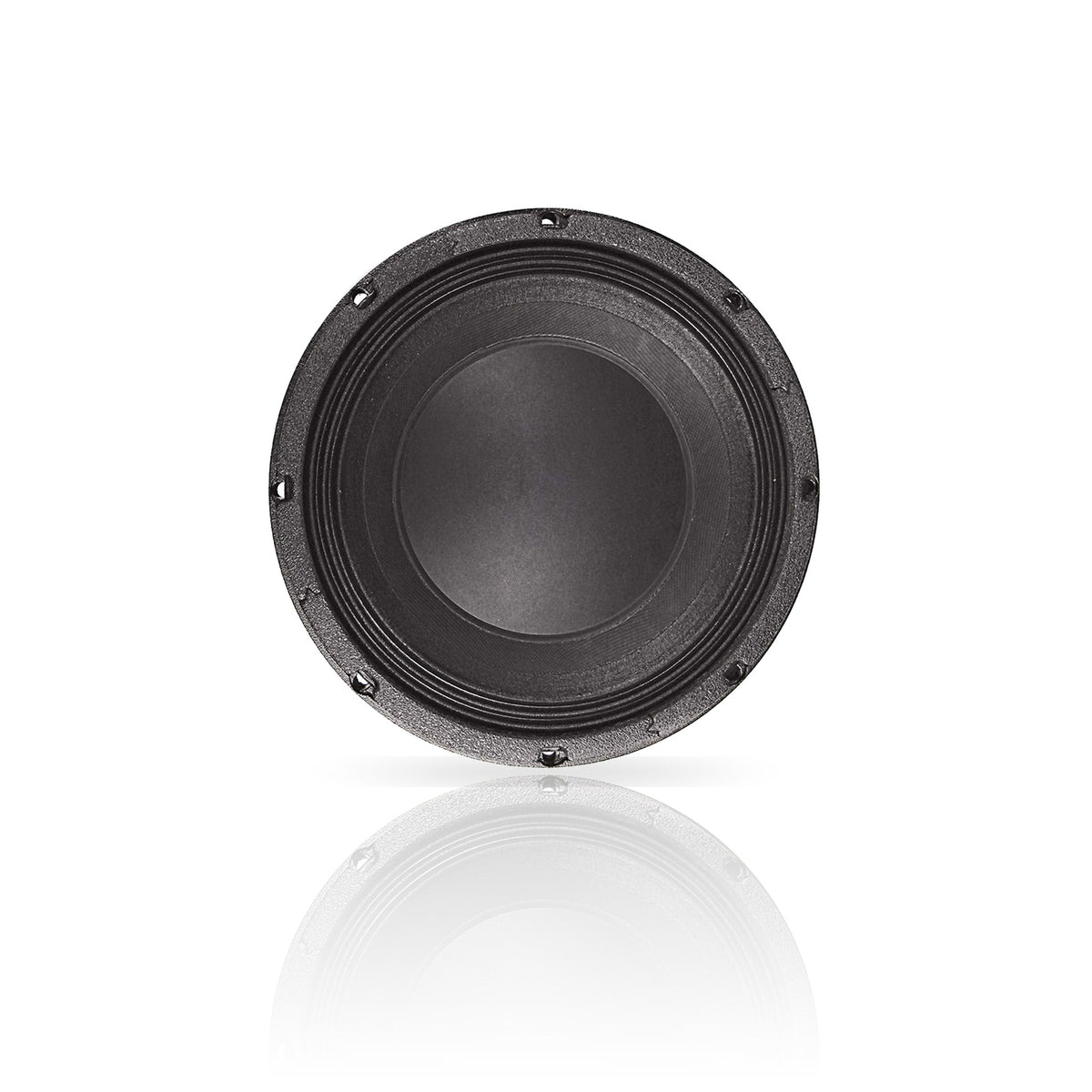

Kappa Pro-10LF 10" Professional Series Speaker
An enhanced low frequency version of the Kappa Pro 10. Excels in very compact vented or horn loaded bass guitar or subwoofer enclosures.
Applications
Subwoofer | Woofer | Pro Audio | Bass Guitar
Box Type: Vented | Horn Loading
Specifications
Download Spec Sheet Download Cab Design| SPECIFICATION | |
| Nominal Basket Diameter | 10", 254 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power | 1200 W |
| Watts | 600 W |
| Resonance | 39 Hz |
| Usable Frequency Range | 47 Hz - 2 kHz |
| Sensitivity* | 91.6 dB |
| Magnet Weight | 105 oz. |
| Gap Height | 0.375", 9.5 mm |
| Voice Coil Diameter | 3", 76 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 39 Hz |
| DC Resistance (Re) | 5.47 Ω |
| Coil Inductance (Le) | 0.97m H |
| Mechanical Q (Qms) | 8.97 |
| Electromagnetic Q (Qes) | 0.29 |
| Total Q (Qts) | 0.28 |
| Compliance Equivalent Volume (Vas) | 72.97 liters / 2.58 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 271.4 cc |
| Mechanical Compliance of Suspension (Cms) | 0.37 mm/N |
| BL Product (BL) | 14.46 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 46 grams |
| Efficiency Bandwidth Product (EBP) | 132 |
| Maximum Linear Excursion (Xmax) | 7.2 mm |
| Surface Area of Cone (Sd) | 376.9 cm2 |
| Maximum Mechanical Limit (Xlim) | 16 mm |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | N/a |
| Vented | 25.49-49.55 liters / 0.9-1.75 cu.ft. |
| Driver Volume Displaced | 0.067 cu.ft. / 1.9 liters |
| Overall Diameter | 10.27", 260.9 mm |
| Baffle Hole Diameter | 9.14", 232.2 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.28", 7.1mm |
| Mounting Holes B.C.D. | 9.75", 247.7mm |
| Depth | 5", 127 mm |
| Net Weight | 17.2 lbs, 7.8 kg |
| Shipping Weight | 18.35 lbs, 8.32 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Aluminum voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Vented and extended core |
| Basket Materials | Die-cast aluminum basket |
| Cone Composition | Treated paper cone |
| Cone Edge Composition | Paper cone edge |
| Dust Cap Composition | Treated Paper dust cap |

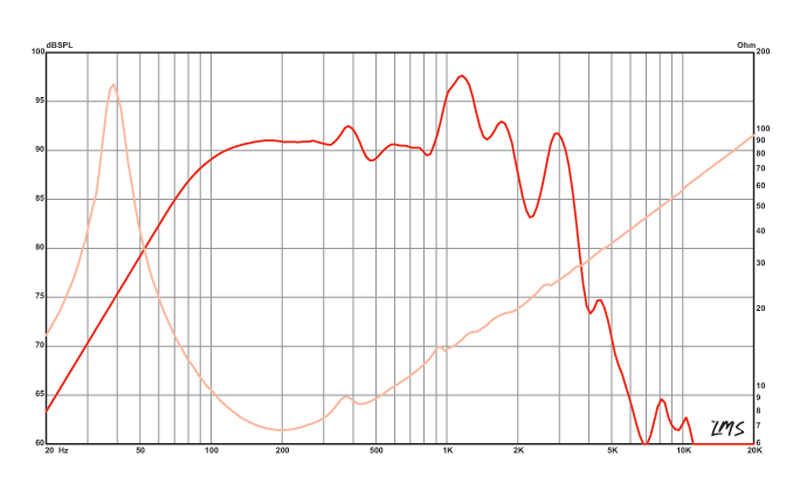

Frequency Response
