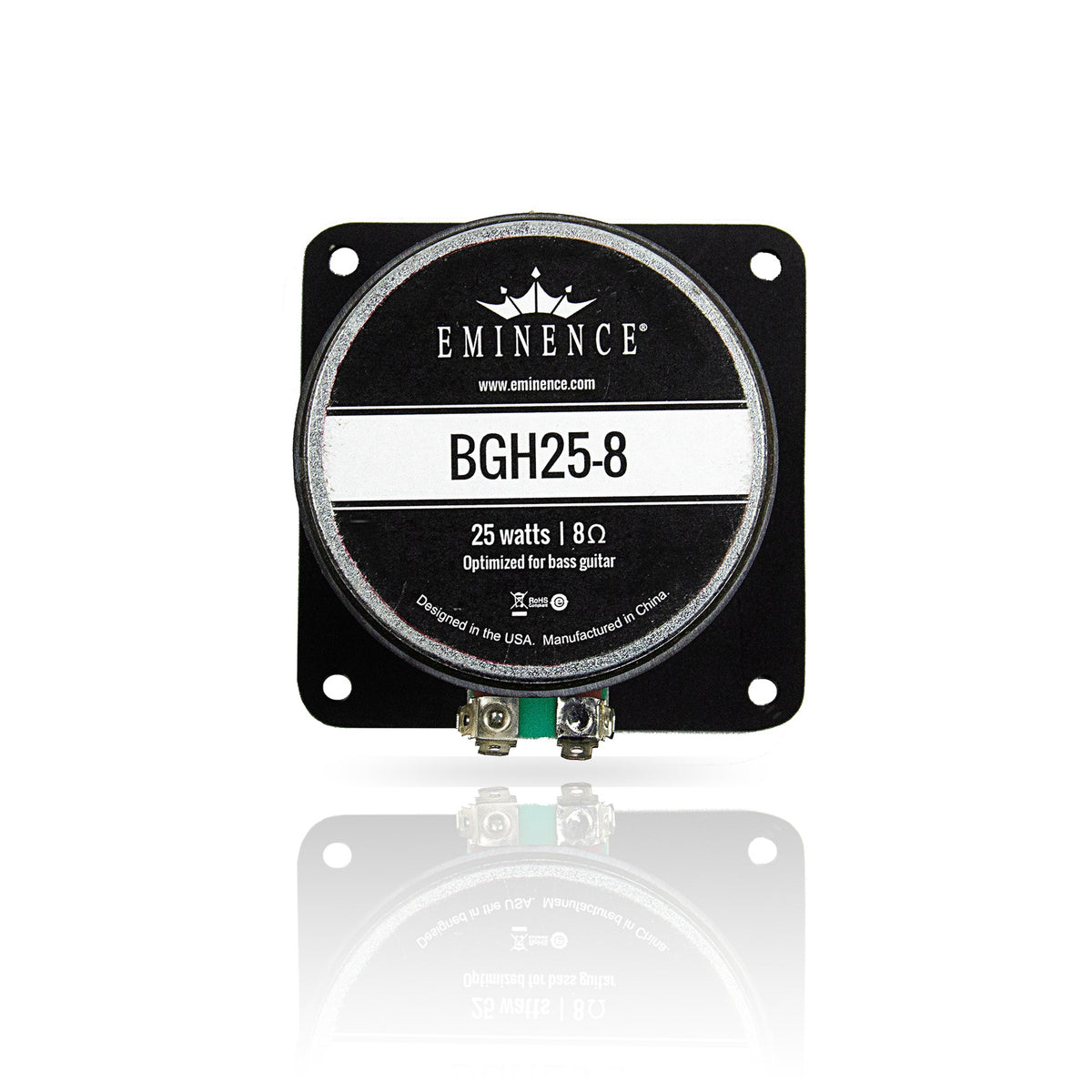

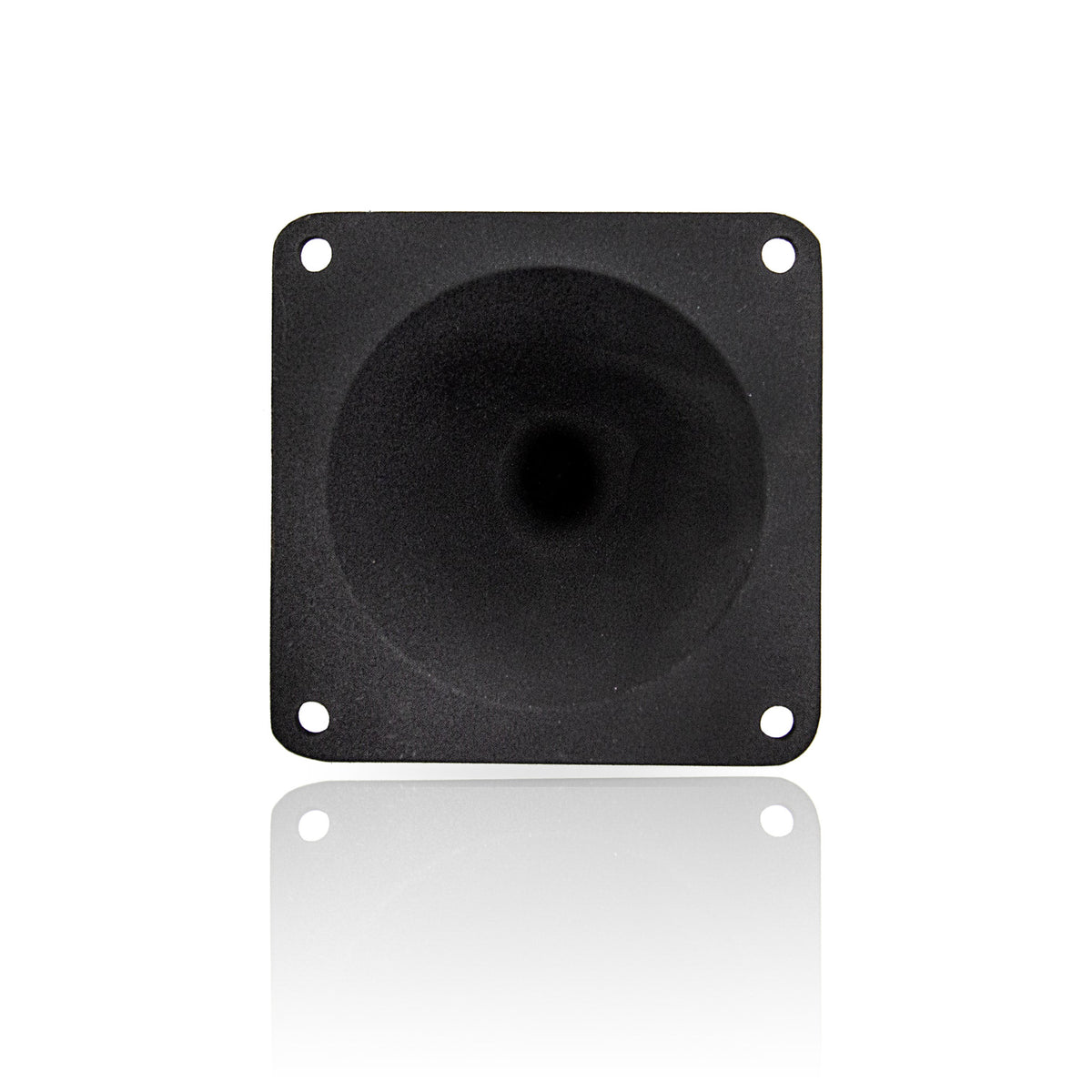

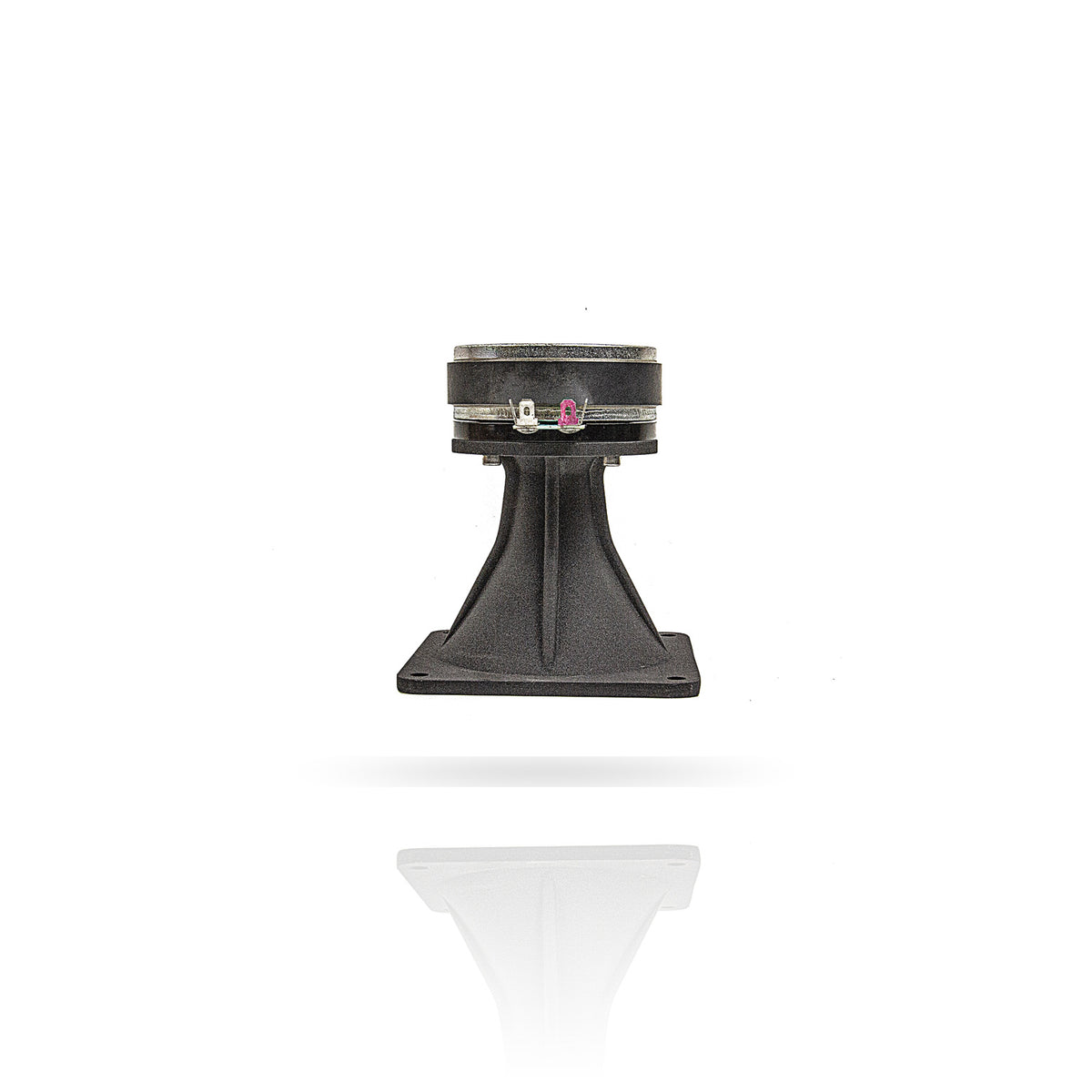

BGH25-8 25 watt, 8 ohm driver and conical horn combination
The 8-ohm BGH25-8 super tweeter is a 25-watt driver and die-cast horn combination optimized specifically for bass guitar applications. Perfect for adding high-frequency detail to your bass amp.
Key Features:
- A small footprint makes it easy to upgrade existing cabinets
- Rugged, non-resonant reinforced aluminum horn
- Smooth frequency response from 2,500 to 20,000 Hz 105.2 dB efficient will keep up with the most efficient bass speakers
Specifications
| SPECIFICATION | |
| Type | Exponential |
| Throat Size | 1", 25.4mm |
| Dispersion | 60 |
| Power Rating | 25W (AES) |
| Nominal impedance | 8Ω |
| Minimum impedance | 8.6 ohm @ 7.4 kHz |
| Sensitivity | 105.2 dB |
| Resonance | 1.3 kHz |
| Usable Frequency Range | 2500 Hz – 20 kHz |
| Low Rec. Crossover | 2.5 kHz |
| W x H x D (in) | 4.2" x 4.2" x 4.8" |
| W x H x D (mm) | 106.7 x 106.7 x 121.9mm |
| Cut Out | 3.5 in., 88.9 mm |
| Weight | 2.2lbs, 1kg |
| Material | ABS |

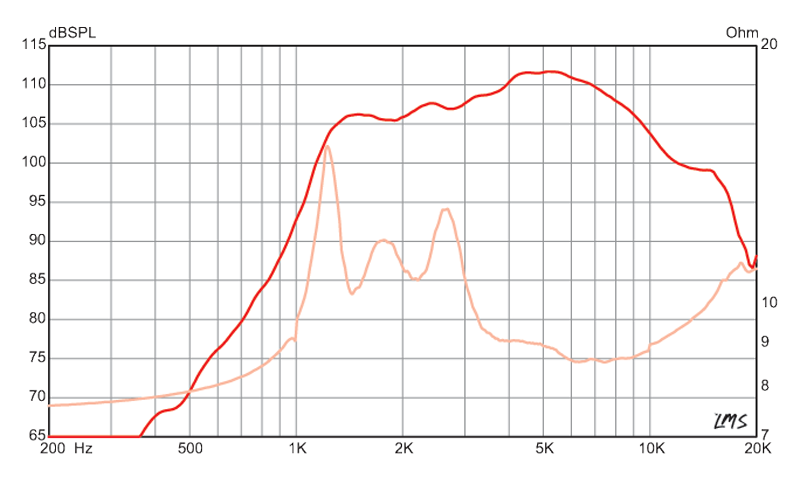

Frequency Response
