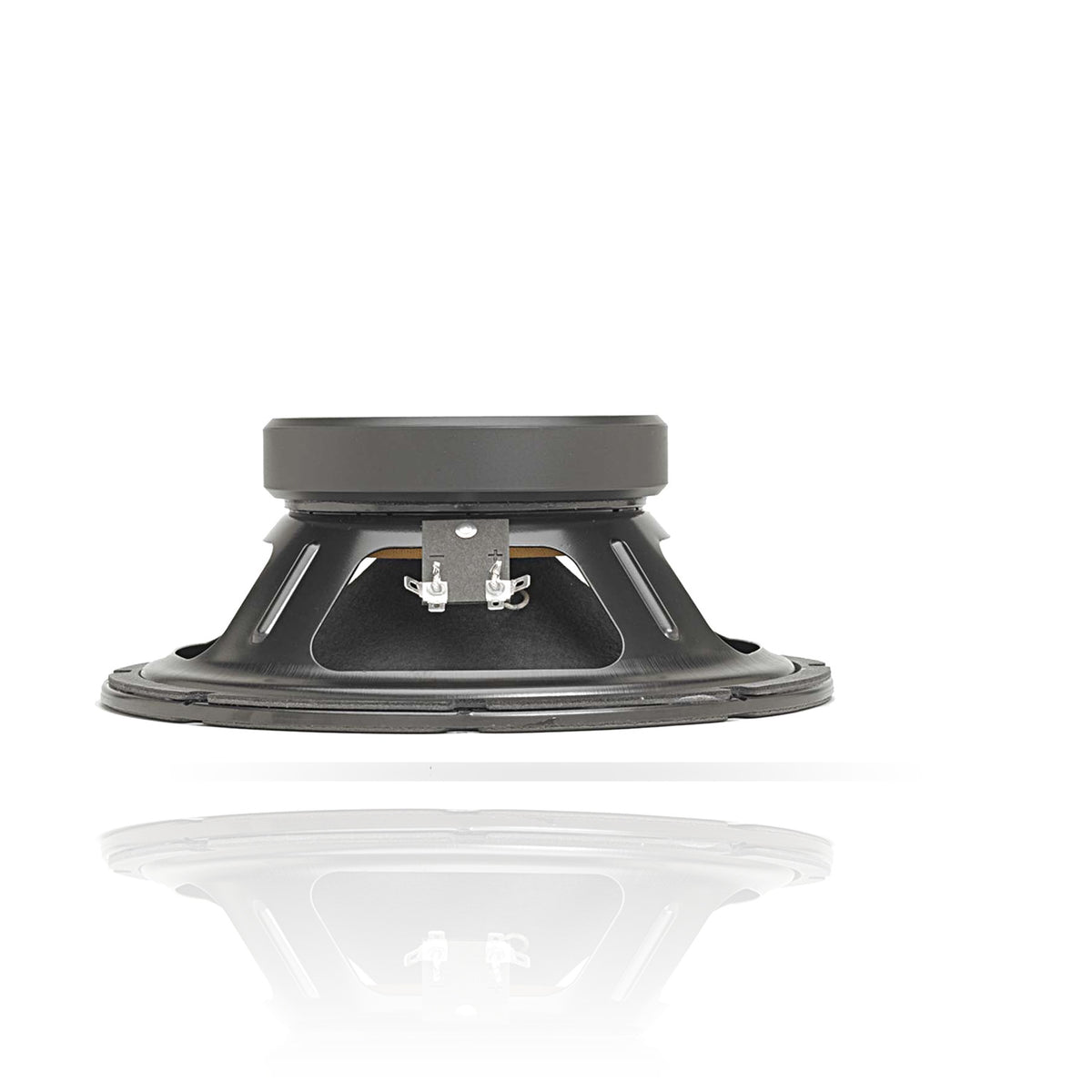

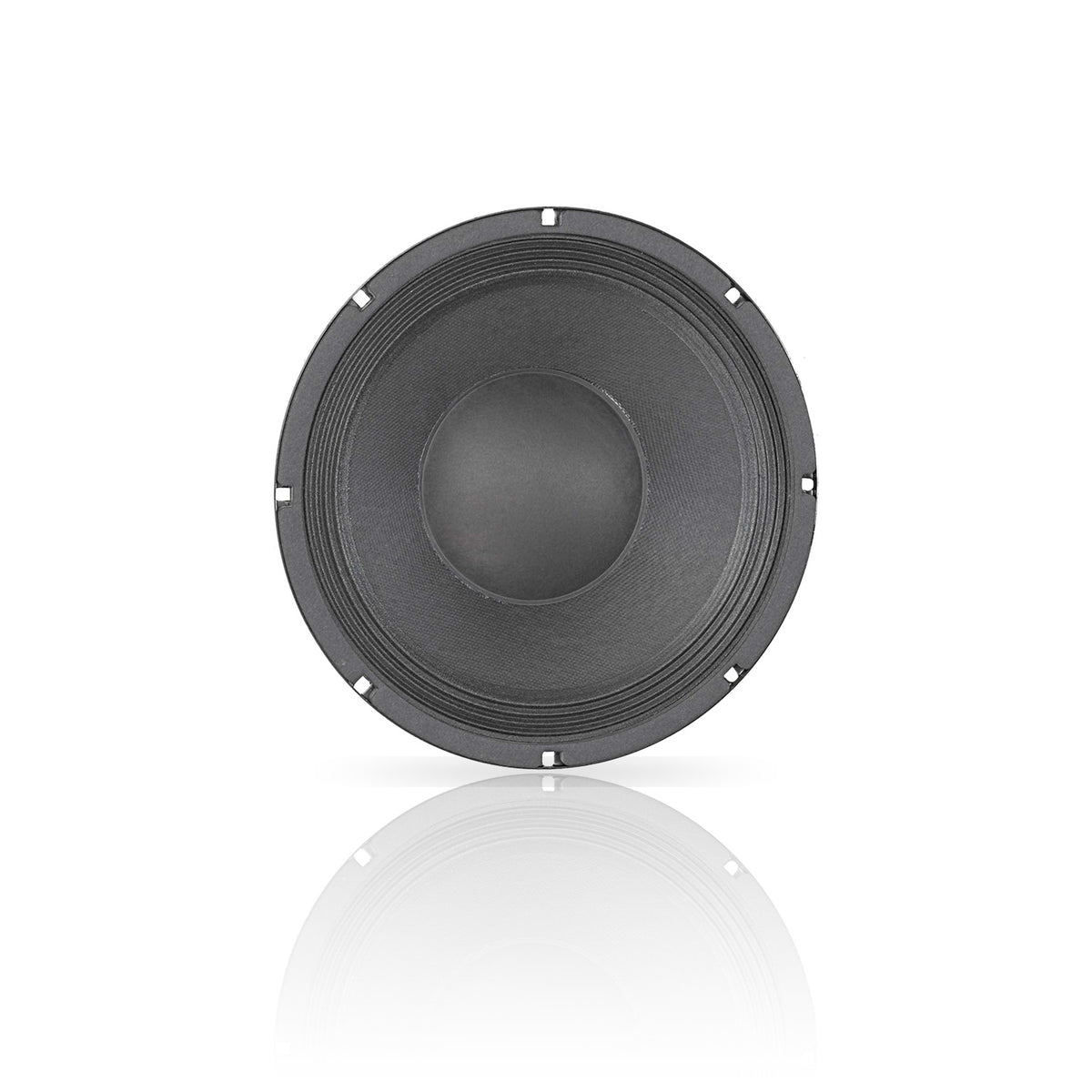

BETA-10B 16-Ohm 10" American Standard Series Speaker
16 Ohm Version of the Popular Beta 10. Great for PA top boxes or for Bass Guitar. You can easily parallel two for an 8-ohm load or four for a 4-ohm load. Recommended for professional audio, bass guitar, mid-bass, or floor monitor applications in sealed enclosures. Also works well as a mid-bass or woofer in vented enclosures.
Applications
Woofer | Midbass | Pro Audio | Bass Guitar
Box Type: Sealed | Vented | Horn Loading
Specifications
Download Spec Sheet Download Cab Design| SPECIFICATION | |
| Nominal Basket Diameter | 10", 254 mm |
| Nominal Impedance* | 16 Ω |
| Power Rating* | |
| Program Power | 500 W |
| Watts | 250 W |
| Resonance | 51.6 Hz |
| Usable Frequency Range | 50 Hz - 3.5 kHz |
| Sensitivity* | 94.1 dB |
| Magnet Weight | 34 oz. |
| Gap Height | 0.312", 7.9 mm |
| Voice Coil Diameter | 2", 51 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 51.6 Hz |
| DC Resistance (Re) | 15.1 Ω |
| Coil Inductance (Le) | 1.33 m H |
| Mechanical Q (Qms) | 4.33 |
| Electromagnetic Q (Qes) | 0.58 |
| Total Q (Qts) | 0.51 |
| Compliance Equivalent Volume (Vas) | 61.37 liters / 2.17 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 106.6 cc |
| Mechanical Compliance of Suspension (Cms) | 0.35 mm/N |
| BL Product (BL) | 15.14 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 25 grams |
| Efficiency Bandwidth Product (EBP) | 89.26 |
| Maximum Linear Excursion (Xmax) | 3 mm |
| Surface Area of Cone (Sd) | 344.9 cm2 |
| Maximum Mechanical Limit (Xlim) | 8.6 mm |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | 14.72-42.8 liters / 0.52-1.5 cu.ft. |
| Vented | 28.32-84.95 liters / 1-3 cu.ft. |
| Driver Volume Displaced | 0.04 cu.ft. / 1.13 liters |
| Overall Diameter | 10.11", 256.8 mm |
| Baffle Hole Diameter | 9.13", 231.9 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.23", 5.8mm |
| Mounting Holes B.C.D. | 9.6", 243.8mm |
| Depth | 3.98", 101.1 mm |
| Net Weight | 6.8 lbs, 3.08 kg |
| Shipping Weight | 7.8 lbs, 3.54 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Aluminum voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Vented core |
| Basket Materials | Pressed steel basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Cloth cone edge |
| Dust Cap Composition | Solid composition paper dust cap |

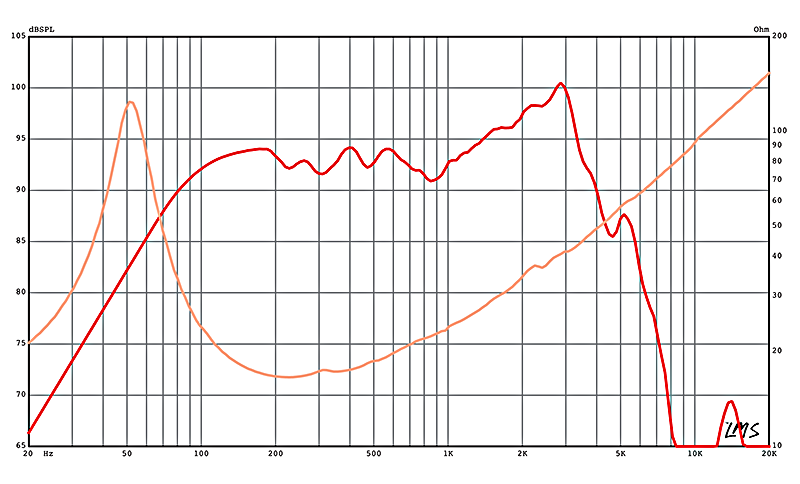

Frequency Response
