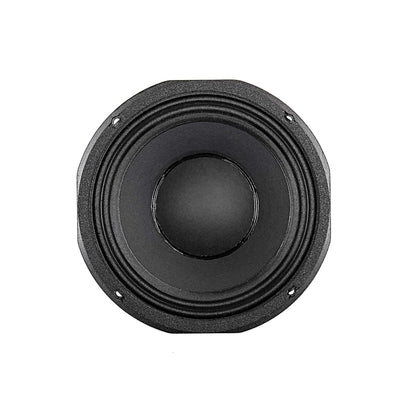

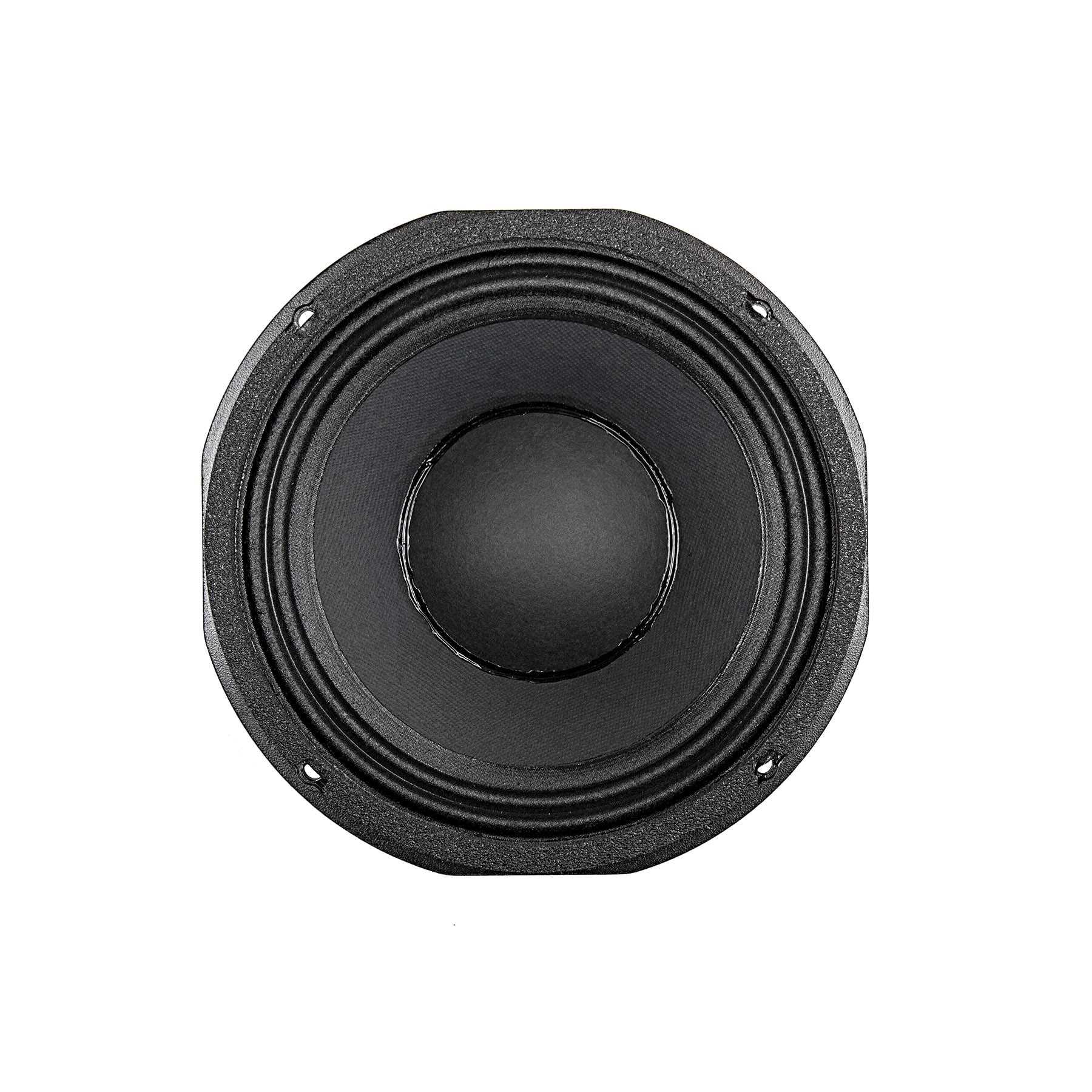

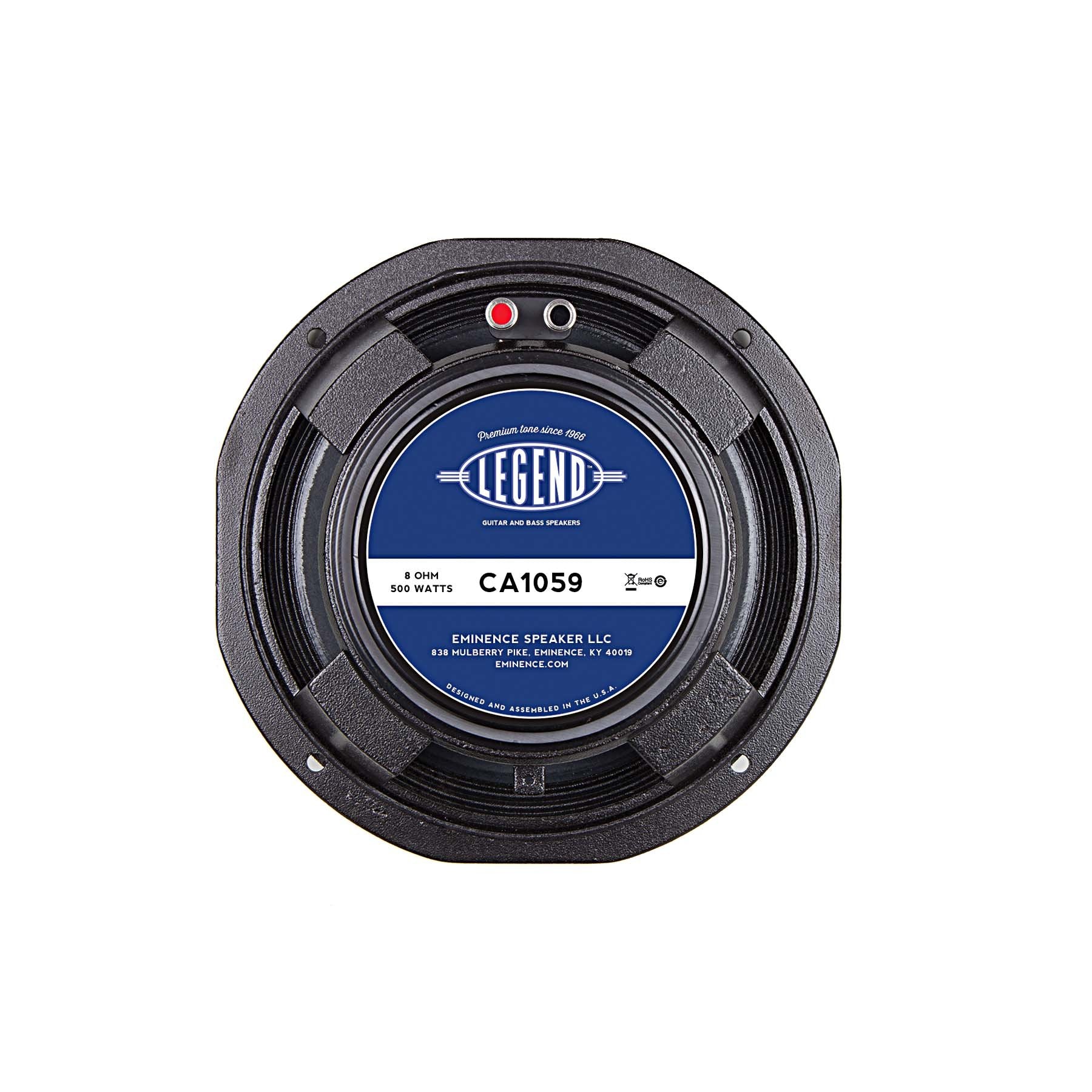

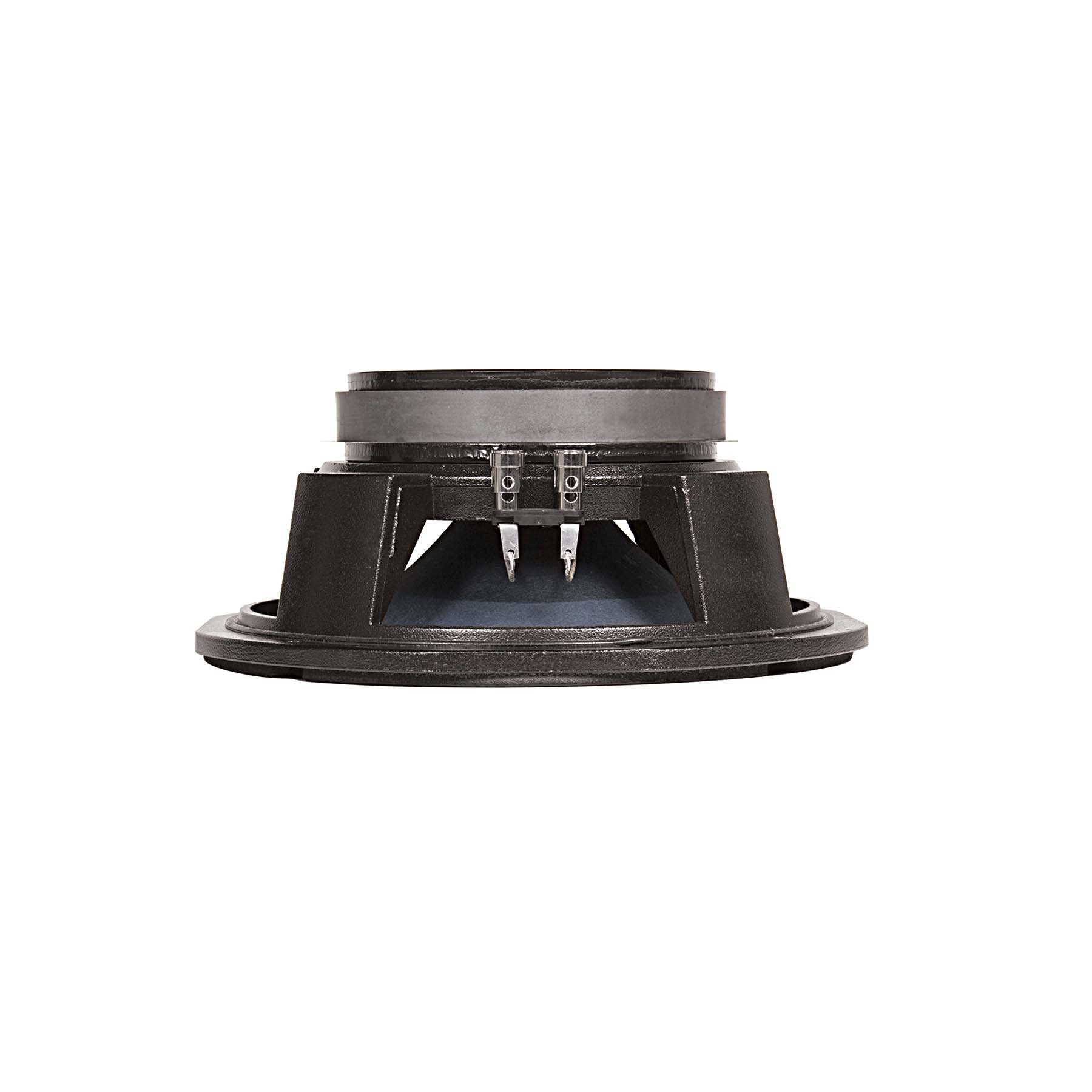

A larger magnet version of the popular Legend CA10, the Legend CA1059 is a 10 inch cast-frame bass guitar speaker with a proven track record as THE speaker for punch and clarity in many famous OEM cabinets throughout the decades. Like the CA10, the CA1059?s chassis is truncated on the sides for tight fitting in 2x, 4x, and 8x10 configurations. Along with higher Xmax, the CA1059 also features a larger 59 oz. ferrite magnet, producing higher efficiency, and lower Qts for dampening than its smaller magnet version.
Specifications
Download Spec Sheet Cab Design| SPECIFICATION | |
| Nominal Basket Diameter | 10", 0 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power | 500 W |
| Watts | 250 W |
| Resonance | 48 Hz |
| Usable Frequency Range | 50 Hz - 3.2 kHz |
| Sensitivity* | 98.7 dB |
| Magnet Weight | 59 oz. |
| Gap Height | 0.313", 8 mm |
| Voice Coil Diameter | 2", 51 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 48 Hz |
| DC Resistance (Re) | 5.53 Ω |
| Coil Inductance (Le) | 0.11m H |
| Mechanical Q (Qms) | 3.27 |
| Electromagnetic Q (Qes) | 0.28 |
| Total Q (Qts) | 0.26 |
| Compliance Equivalent Volume (Vas) | 71.47 liters / 2.52 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 165.3 cc |
| Mechanical Compliance of Suspension (Cms) | 0.42 mm/N |
| BL Product (BL) | 12.54 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 27 grams |
| Efficiency Bandwidth Product (EBP) | 169 |
| Maximum Linear Excursion (Xmax) | 4.72 mm |
| Surface Area of Cone (Sd) | 350.1 cm2 |
| Maximum Mechanical Limit (Xlim) | 8 mm |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | Not Recommended |
| Vented | 0.6 cu. ft. to 2.9 cu. ft. |
| Driver Volume Displaced | 0.061 cu.ft. / 1.72 liters |
| Overall Diameter | 10.5", 266.7 mm |
| Baffle Hole Diameter | 9.01", 228.9 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.32", 8.1mm |
| Mounting Holes B.C.D. | 9.71", 246.5mm |
| Depth | 4.53", 115.1 mm |
| Net Weight | 11.2 lbs, 5.08 kg |
| Shipping Weight | 12.7 lbs, 5.76 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Edge wound Aluminum Voice Coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Non-vented core |
| Basket Materials | Die-cast aluminum basket |
| Cone Composition | Cloth cone edge |
| Cone Edge Composition | Cloth cone edge |
| Dust Cap Composition | Paper dust cap |

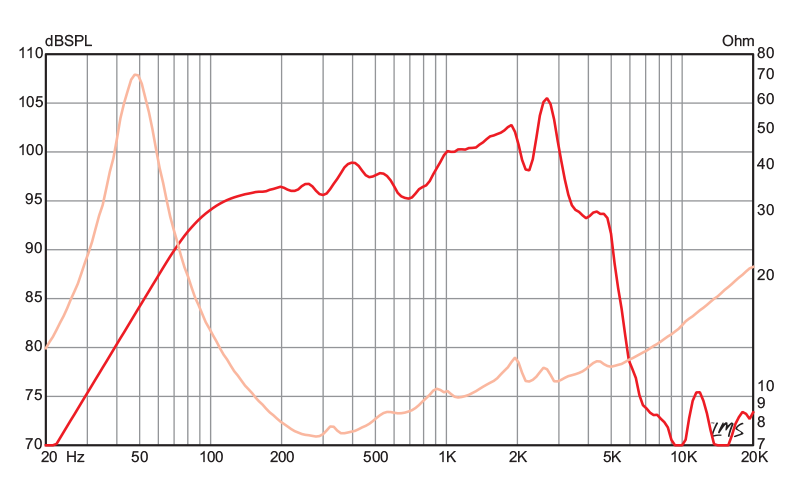

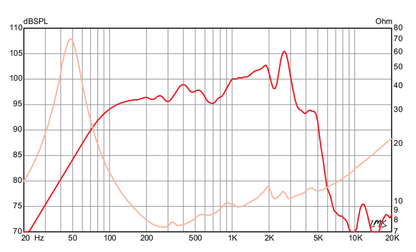

Frequency Response
