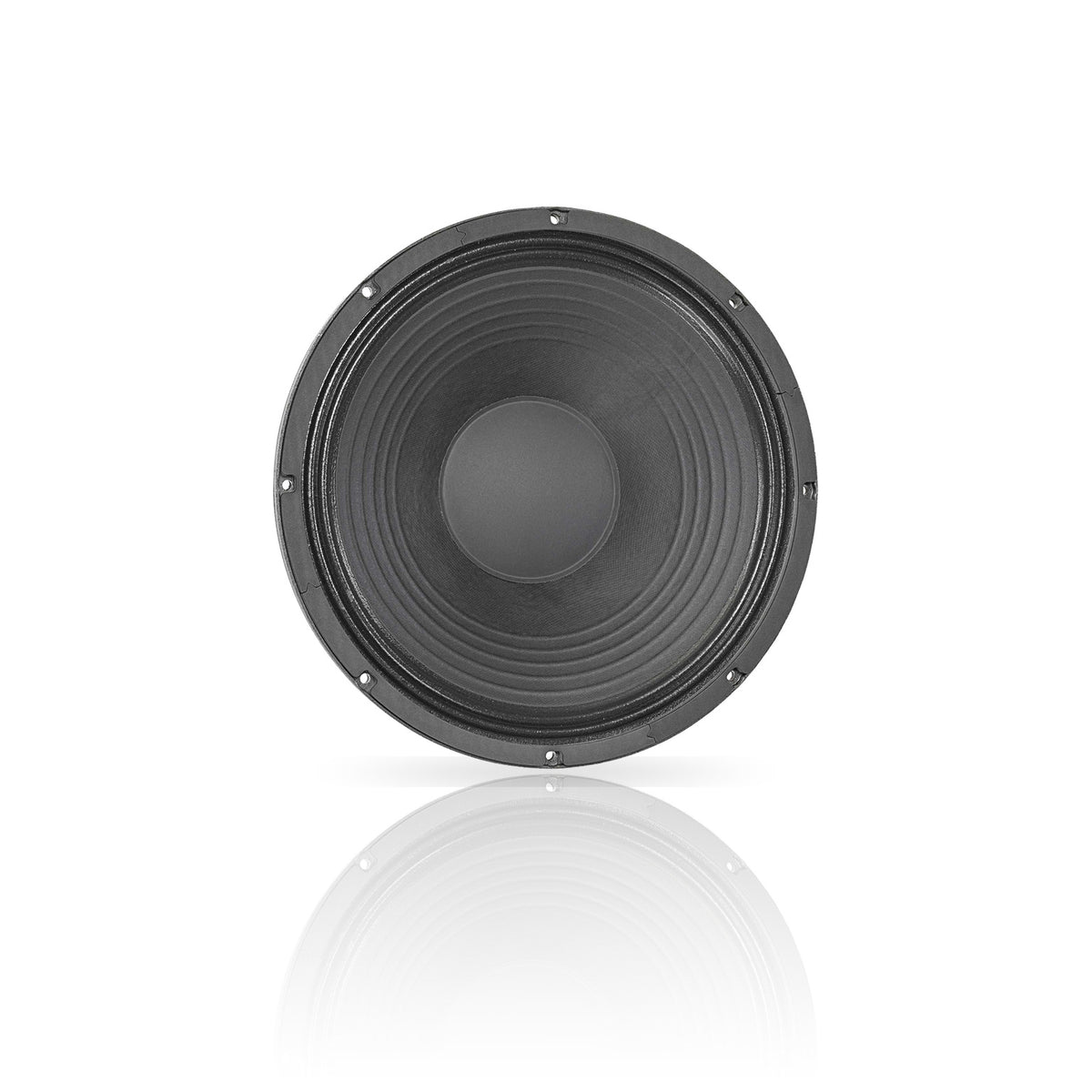

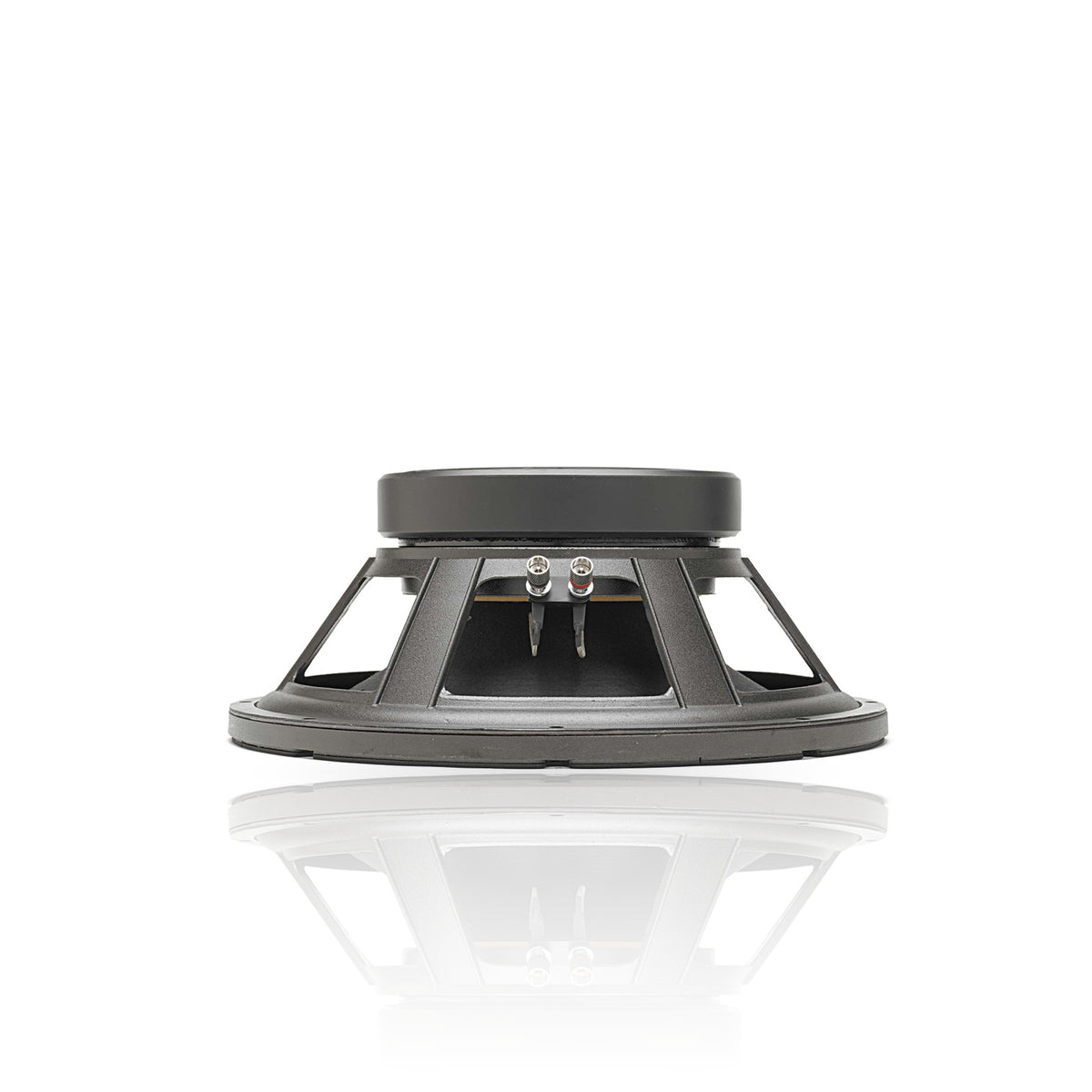

OMEGA PRO-15A 15" Professional Series Speaker
High power driver for pro audio as a woofer in vented enclosures. It is also suitable for horn loading and scoops.
Applications
Subwoofer | Woofer | Pro Audio | Bass Guitar
Box Type: Vented | Scoop Loading
Specifications
Download Spec Sheet Download Cab Design| SPECIFICATION | |
| Nominal Basket Diameter | 15", 381 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power | 1600 W |
| Watts | 800 W |
| Resonance | 33 Hz |
| Usable Frequency Range | 51 Hz - 1.7 kHz |
| Sensitivity* | 97.3 dB |
| Magnet Weight | 109 oz. |
| Gap Height | 0.375", 9.5 mm |
| Voice Coil Diameter | 4", 102 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 33 Hz |
| DC Resistance (Re) | 5.28 Ω |
| Coil Inductance (Le) | 1.04m H |
| Mechanical Q (Qms) | 5.69 |
| Electromagnetic Q (Qes) | 0.33 |
| Total Q (Qts) | 0.32 |
| Compliance Equivalent Volume (Vas) | 258.5 liters / 9.13 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 411 cc |
| Mechanical Compliance of Suspension (Cms) | 0.25 mm/N |
| BL Product (BL) | 17.5 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 94 grams |
| Efficiency Bandwidth Product (EBP) | 99 |
| Maximum Linear Excursion (Xmax) | 4.8 mm |
| Surface Area of Cone (Sd) | 856.3 cm2 |
| Maximum Mechanical Limit (Xlim) | 12.2 mm |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | N/a |
| Vented | 57-108 liters / 2-3.8 cu.ft. |
| Driver Volume Displaced | 0.152 cu.ft. / 4.31 liters |
| Overall Diameter | 15.21", 386.3 mm |
| Baffle Hole Diameter | 14", 355.6 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.28", 7.1mm |
| Mounting Holes B.C.D. | 14.56", 369.8mm |
| Depth | 6.35", 161.3 mm |
| Net Weight | 22.7 lbs, 10.3 kg |
| Shipping Weight | 25.2 lbs, 11.43 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Vented and extended core |
| Basket Materials | Die-cast aluminum basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Cloth cone edge |
| Dust Cap Composition | Solid composition paper dust cap |

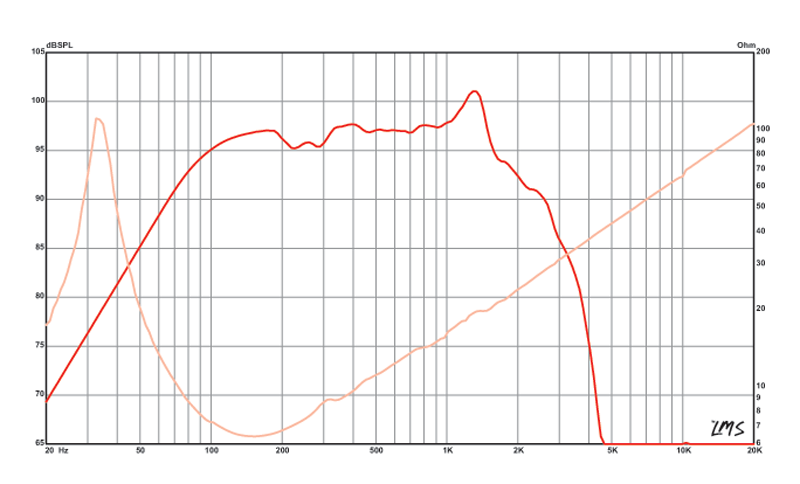

Frequency Response
