APT 80 3.4"x3.4" HF Device
APT:50 Driver with APT:80S Horn
Specifications
| SPECIFICATION | |
| Type | Conical |
| Throat Size | 1", 25.4mm |
| Dispersion | 80 |
| Power Rating | 35W (AES) |
| Nominal impedance | 8Ω |
| Minimum impedance | 7.3 ohms @ 6 kHz |
| Sensitivity | 102.3 dB |
| Resonance | 1.5 kHz |
| Usable Frequency Range | 3500 Hz – 20 kHz |
| Low Rec. Crossover | 3.5 kHz |
| W x H x D (in) | 3.4" x 3.4" x 3.7" |
| W x H x D (mm) | 86.4 x 86.4 x 94mm |
| Cut Out | 3.15 in., 80 mm |
| Weight | 1.8lbs, 0.82kg |
| Material | ABS |

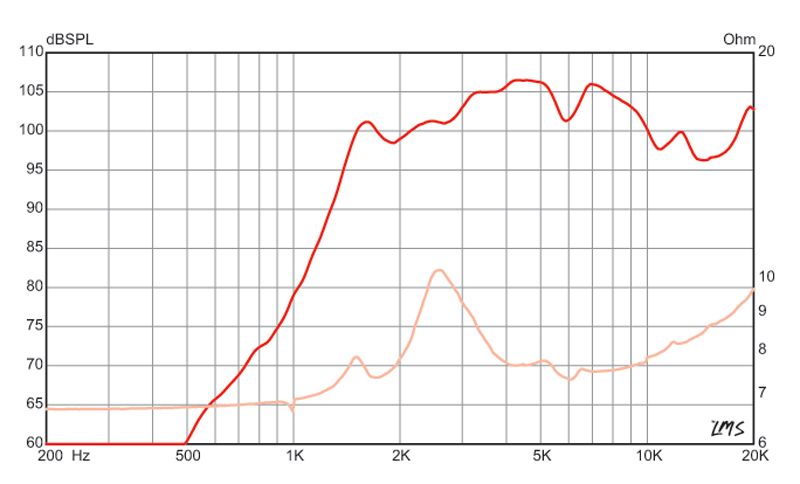

Frequency Response
