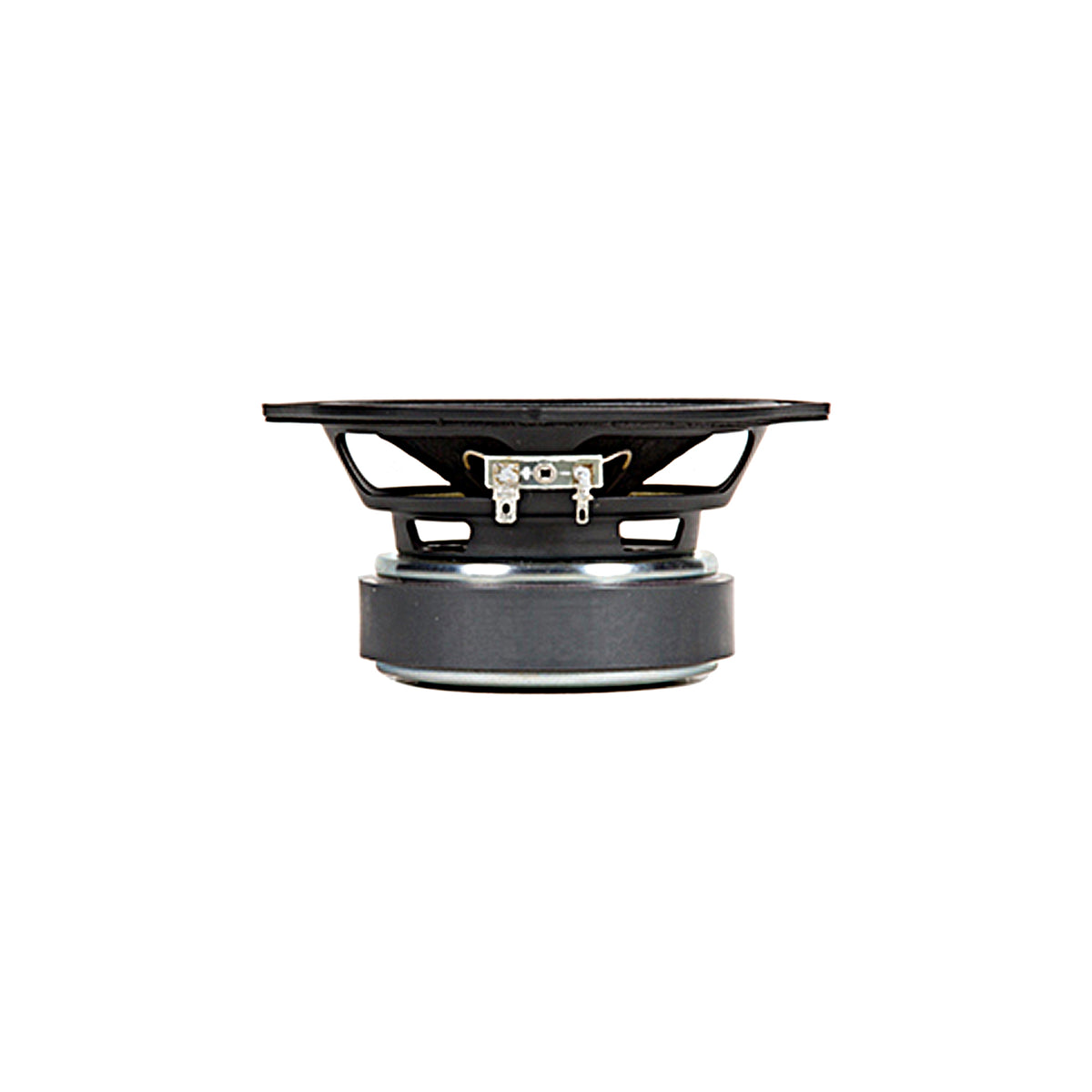

ALPHA 5-8 5" American Standard Series Speaker

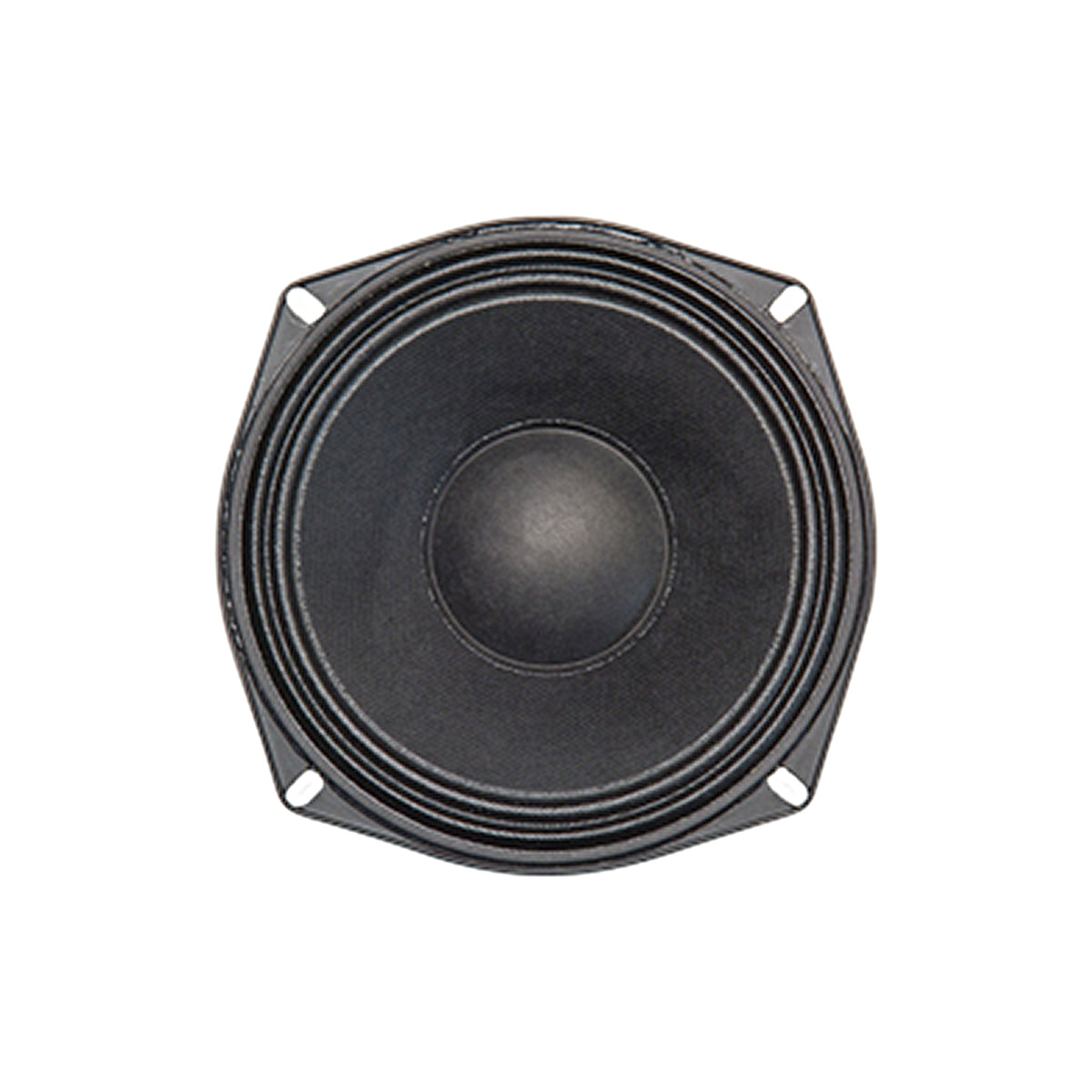

ALPHA 5-8 5" American Standard Series Speaker
ALPHA 5-8 5" American Standard Series Speaker
5 inch Eminence American Standard Series Replacement Speaker Eminence Speaker Frequency Response
  • Load image into Gallery viewer, ALPHA 5-8 5" American Standard Series Speaker
  • Load image into Gallery viewer, ALPHA 5-8 5" American Standard Series Speaker
  • Load image into Gallery viewer, ALPHA 5-8 5" American Standard Series Speaker
  • Load image into Gallery viewer, 5 inch Eminence American Standard Series Replacement Speaker Eminence Speaker Frequency Response

ALPHA 5-8 5" American Standard Series Speaker

Wholesale customers, please SIGN IN to see pricing and place orders.

The Alpha 5 offers unmistakable performance emphasizing value. Rated at 250 watts of program power, this 5” midbass features a water-resistant cone and dust cap, making it an excellent choice for line array or column array applications.

Applications

Midrange | Full Range Line Array | Pro Audio | Car Audio | Bookshelf Speakers | Tower Speakers

Box Type: Sealed | Vented | Horn Loading

Specifications

Download Spec Sheet     Download Cab Design
SPECIFICATION
Nominal Basket Diameter 5", 127 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power 250 W
Watts 125 W
Resonance 87 Hz
Usable Frequency Range 87 Hz - 3.5 kHz
Sensitivity* 89.4 dB
Magnet Weight 20 oz.
Gap Height 0.23", 5.8 mm
Voice Coil Diameter 1.5", 38 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 87 Hz
DC Resistance (Re) 5 Ω
Coil Inductance (Le) 0.29m H
Mechanical Q (Qms) 11.81
Electromagnetic Q (Qes) 0.56
Total Q (Qts) 0.54
Compliance Equivalent Volume (Vas) 6.14 liters / 0.22 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 60.8 cc
Mechanical Compliance of Suspension (Cms) 0.42 mm/N
BL Product (BL) 6.22 T-M
Diaphragm Mass Inc. Airload (MMs) 8 grams
Efficiency Bandwidth Product (EBP) 155
Maximum Linear Excursion (Xmax) 5.92 mm
Surface Area of Cone (Sd) 102.6 cm2
Maximum Mechanical Limit (Xlim) 6.4 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed Acceptable
Vented Acceptable
Driver Volume Displaced 1.091 cu.ft. / 30.9 liters
Overall Diameter 5.87", 149.1 mm
Baffle Hole Diameter 4.8", 121.9 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.2", 5mm
Mounting Holes B.C.D. 5.39", 136.9mm
Depth 2.91", 73.9 mm
Net Weight 3.1 lbs, 1.41 kg
Shipping Weight 3.5 lbs, 1.59 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Aluminum voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented core

Basket Materials Pressed steel basket
Cone Composition Water resistant pulp
Cone Edge Composition Cloth cone edge
Dust Cap Composition Water resistant paper


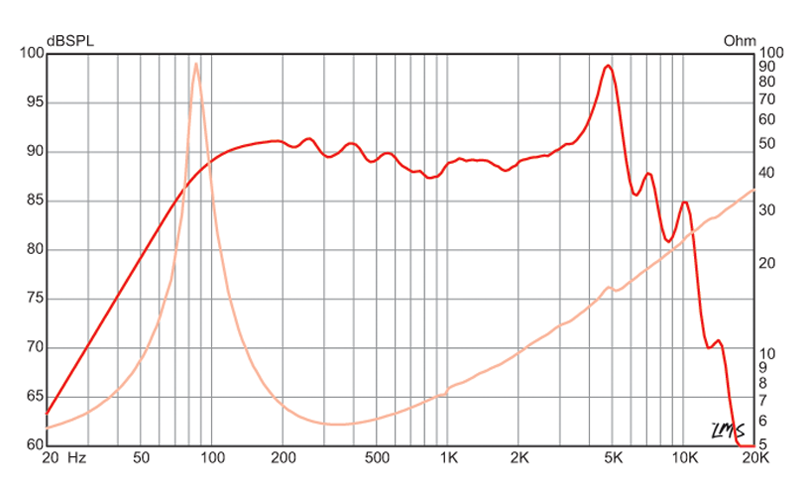

Frequency Response

response graph
