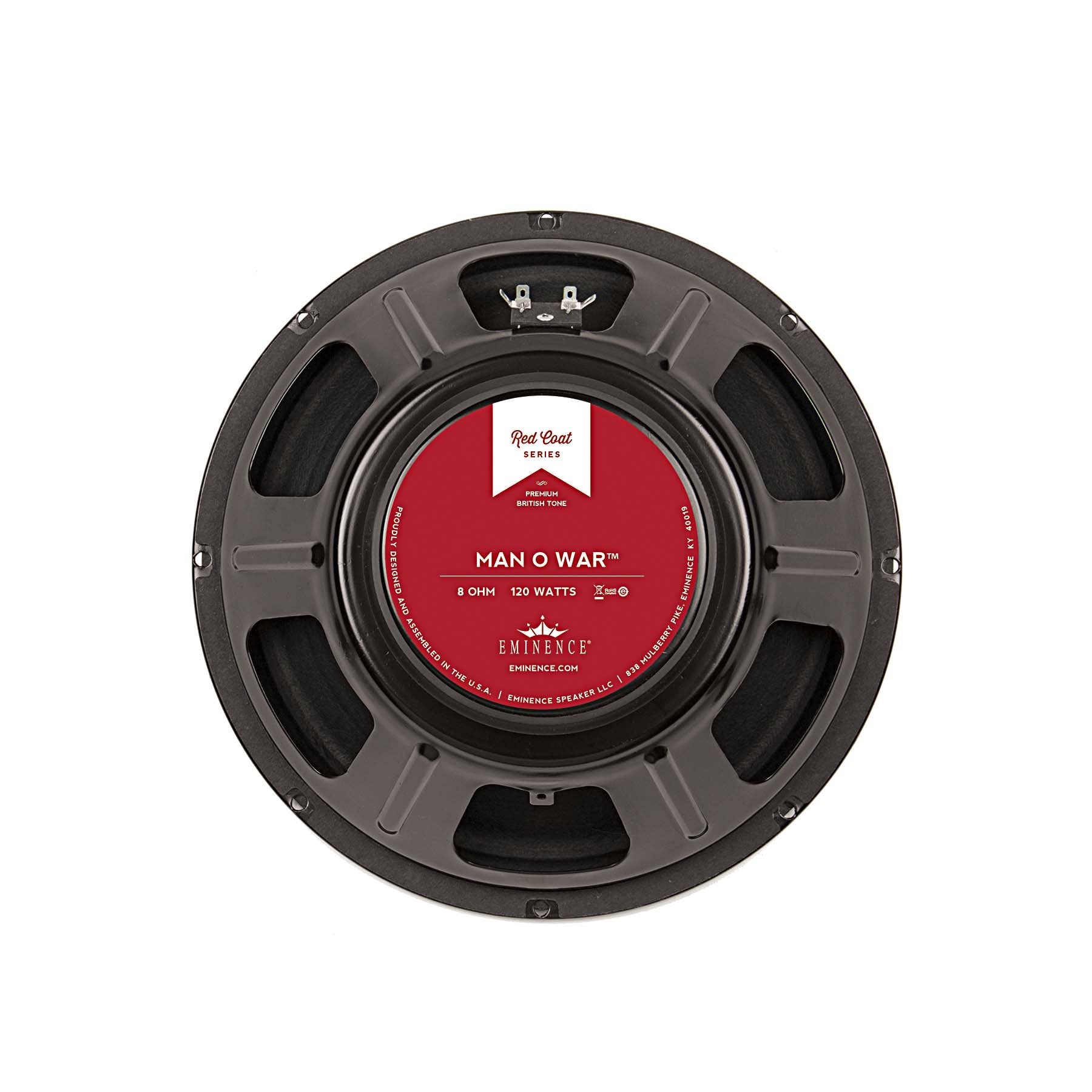

12 inch Eminence Lead / Rhythm Guitar Replacement Speaker- British Eminence Speaker Basket

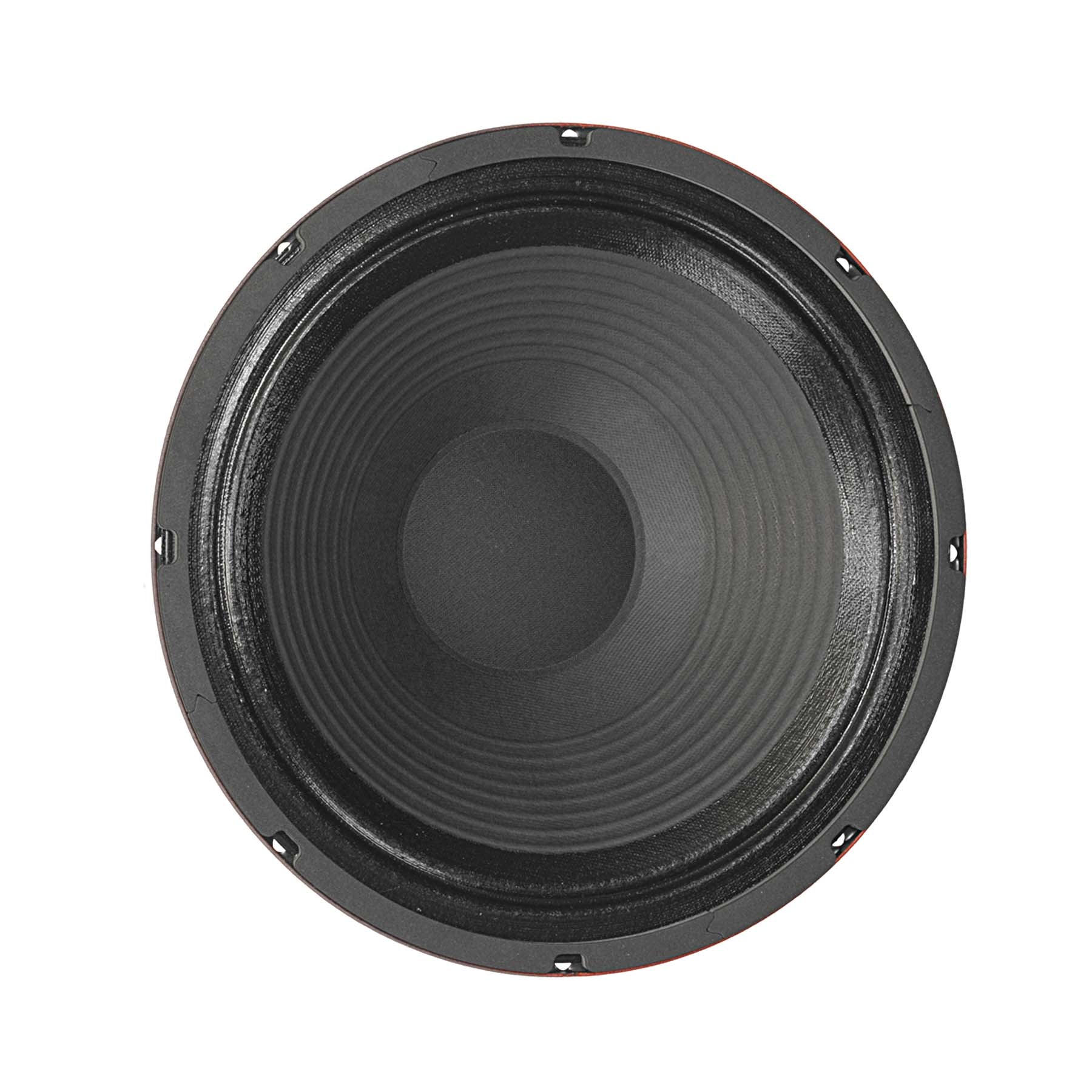

12 inch Eminence Lead / Rhythm Guitar Replacement Speaker- British Eminence Speaker Cone

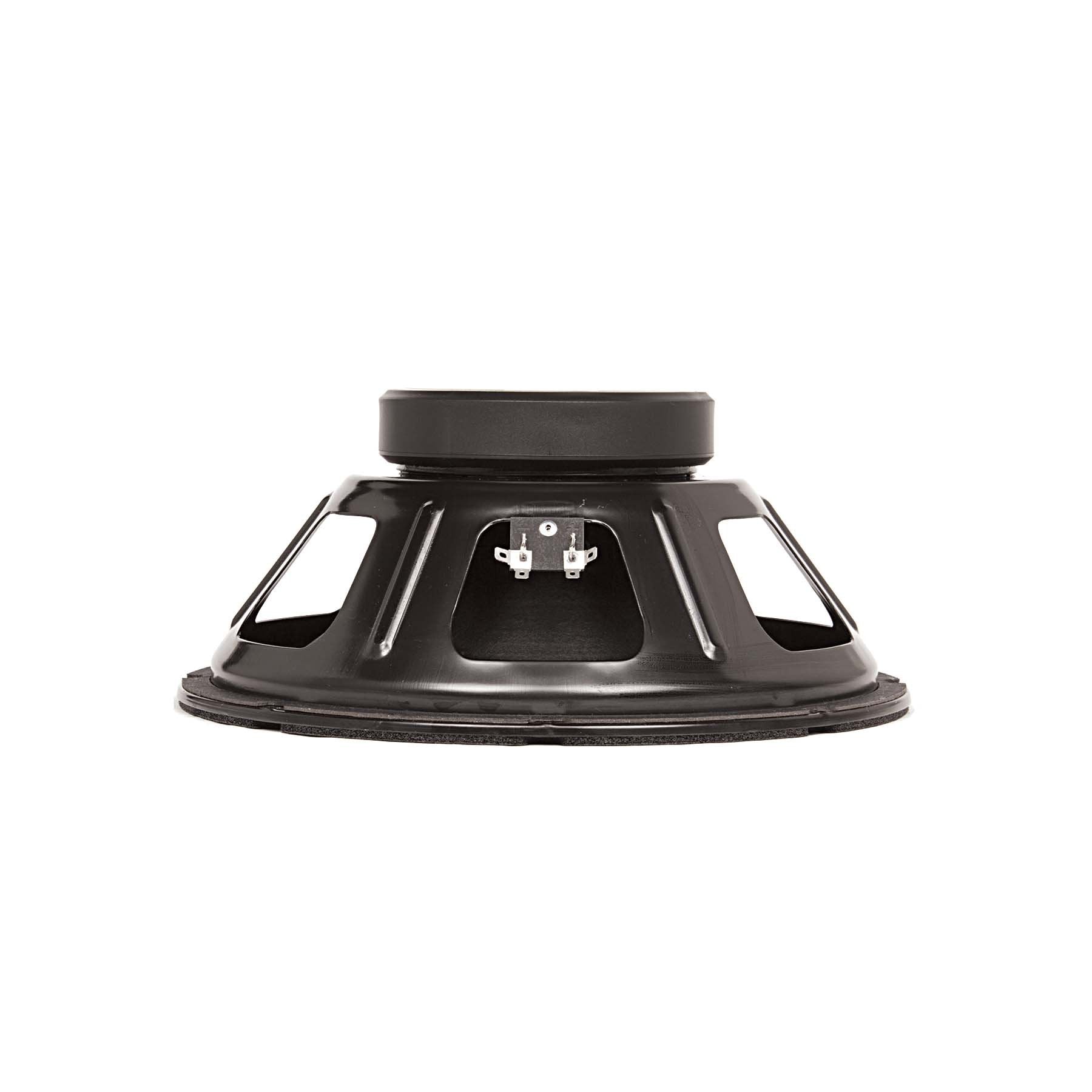

12 inch Eminence Lead / Rhythm Guitar Replacement Speaker- British Eminence Speaker Side
12 inch Eminence Lead / Rhythm Guitar Replacement Speaker- British Eminence Speaker Frequency Response
  • Load image into Gallery viewer, 12 inch Eminence Lead / Rhythm Guitar Replacement Speaker- British Eminence Speaker Basket
  • Load image into Gallery viewer, 12 inch Eminence Lead / Rhythm Guitar Replacement Speaker- British Eminence Speaker Cone
  • Load image into Gallery viewer, 12 inch Eminence Lead / Rhythm Guitar Replacement Speaker- British Eminence Speaker Side
  • Load image into Gallery viewer, 12 inch Eminence Lead / Rhythm Guitar Replacement Speaker- British Eminence Speaker Frequency Response
The product is out of stock

MAN O WAR 12" Lead / Rhythm Guitar Speaker- British

Regular price
$124.99
Sale price
$124.99
Regular price
$159.99
Sold out
Unit price
per

The Eminence Man O War guitar speaker is the work horse of tone. A proven and revered sound, very loud and responsive/articulate in every register. Chunky and solid sound with a little top end sparkle.

Characteristics

Series Redcoats
Model Man O War
Application 12" Open or Closed Back
Configuration 1, 2, or 4 X 12"
Low End Response Moderate
Low End Shape Chunky
Mid-Range Response Aggressive
Mid-Range Shape Crisp
High-End Response Aggressive
Volume/Power Loudest
Overall Coloration* A proven and revered sound,  very loud and responsive/articulate in every register.  Chunky and solid sound with  a little top end sparkle
Break-up Modes Slow
Power Range Up to 120 watts
Instrument* Lead/Rhythm  Guitar, Harmonica
Genre of Music* Great for College Rock, Classic Rock, Grunge, and Heavy Metal

Specifications

Download Spec Sheet
SPECIFICATION
Nominal Basket Diameter 12", 305 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power N/A
Watts 120 W
Resonance 91 Hz
Usable Frequency Range 80 Hz - 5 kHz
Sensitivity* 101.6 dB
Magnet Weight 38 oz.
Gap Height 0.312", 7.9 mm
Voice Coil Diameter 1.75", 44 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 91 Hz
DC Resistance (Re) 6.2 Ω
Coil Inductance (Le) 0.43m H
Mechanical Q (Qms) 11.66
Electromagnetic Q (Qes) 0.72
Total Q (Qts) 0.68
Compliance Equivalent Volume (Vas) 38 liters / 1.34 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 41.6 cc
Mechanical Compliance of Suspension (Cms) 0.1 mm/N
BL Product (BL) 12.3 T-M
Diaphragm Mass Inc. Airload (MMs) 31 grams
Efficiency Bandwidth Product (EBP) 127
Maximum Linear Excursion (Xmax) 0.8 mm
Surface Area of Cone (Sd) 519.5 cm2
Maximum Mechanical Limit (Xlim) N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed Acceptable
Vented Acceptable
Driver Volume Displaced 0.071 cu.ft. / 2 liters
Overall Diameter 12.03", 305.6 mm
Baffle Hole Diameter 11.07", 281.2 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.25", 6.4mm
Mounting Holes B.C.D. 11.59", 294.4mm
Depth 5.2", 132.1 mm
Net Weight 8.1 lbs, 3.67 kg
Shipping Weight 9.9 lbs, 4.49 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Non-vented core

Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Paper cone edge
Dust Cap Composition Zurette dust cap

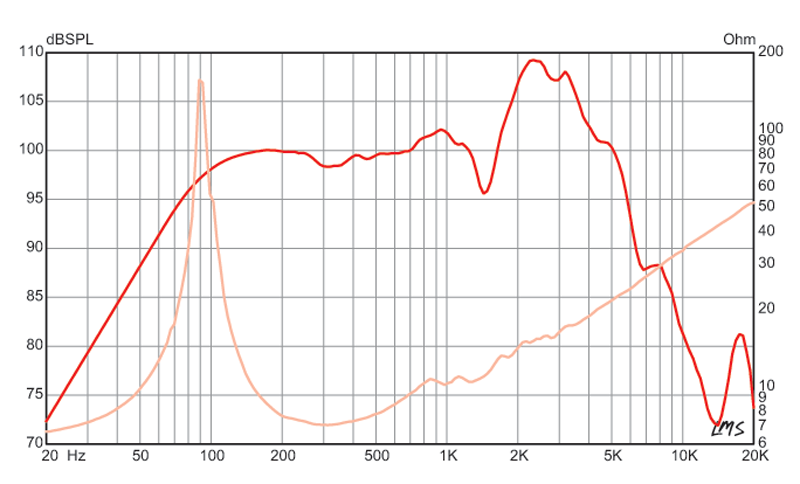

Frequency Response

response graph
