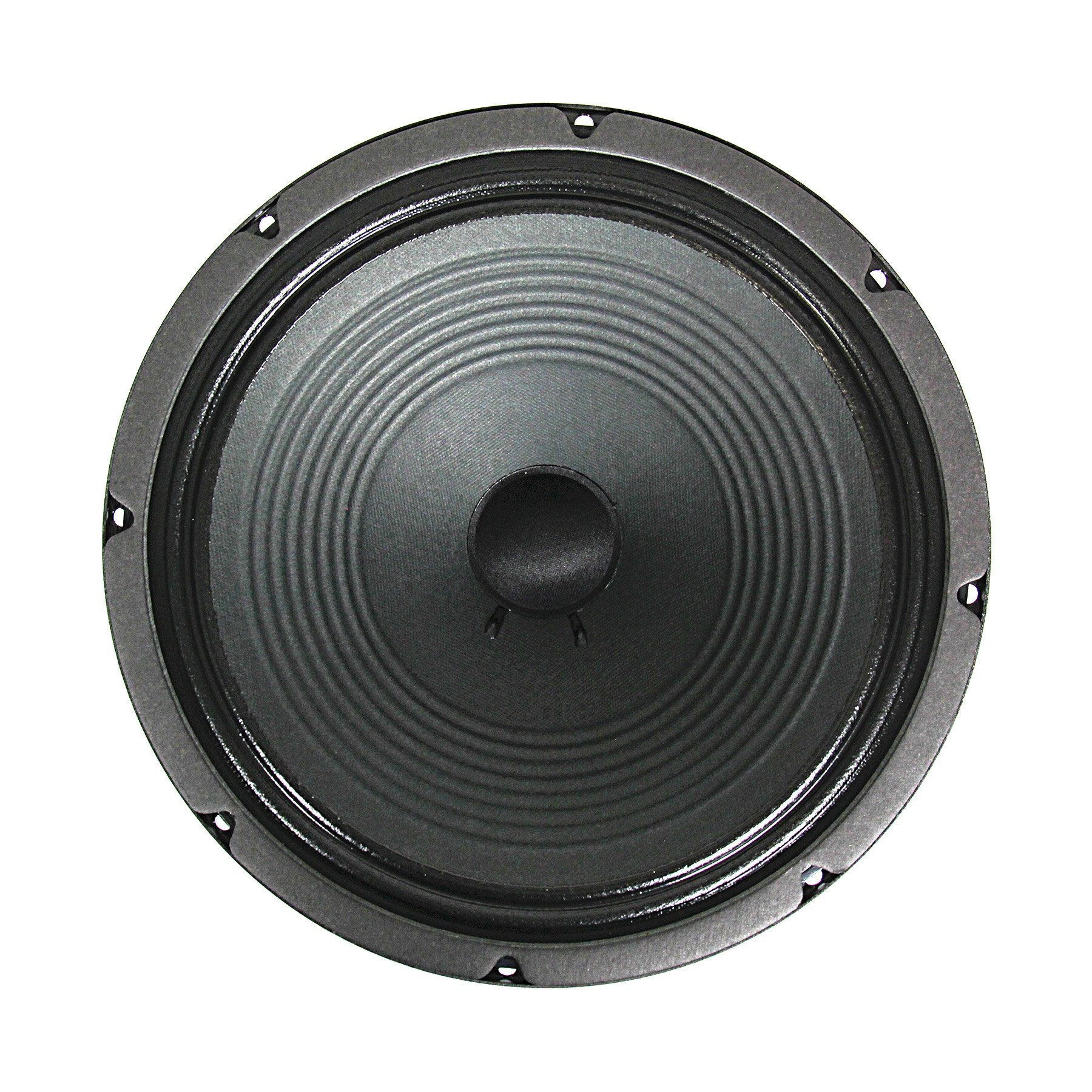

12 inch Eminence Mick Thomson Signature Replacement Speaker Eminence Speaker Cone

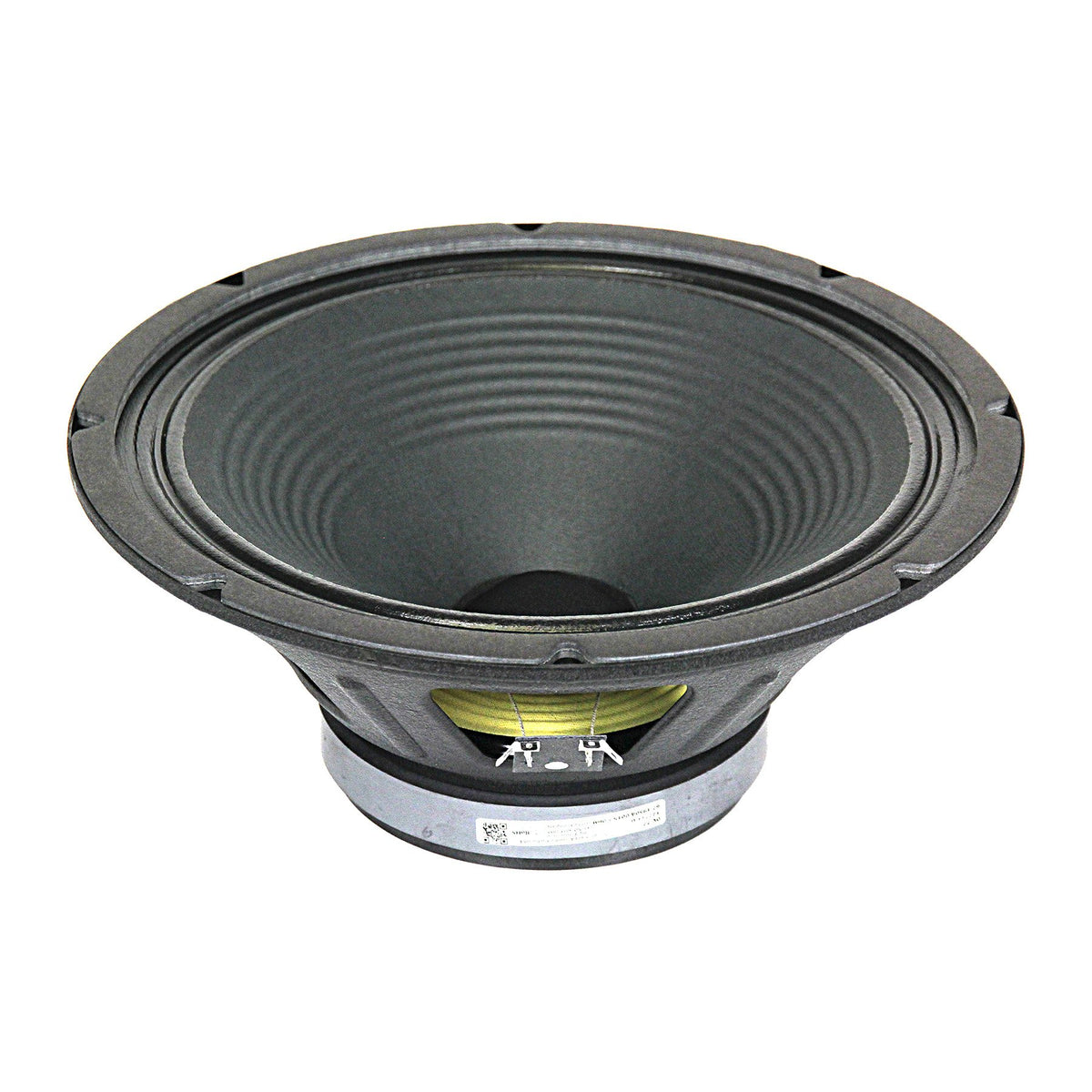

12 inch Eminence Mick Thomson Signature Replacement Speaker Eminence Speaker Side
12 inch Eminence Mick Thomson Signature Replacement Speaker Eminence Speaker Frequency Response
  • Load image into Gallery viewer, DV-77 12" Mick Thomson Signature Speaker
  • Load image into Gallery viewer, 12 inch Eminence Mick Thomson Signature Replacement Speaker Eminence Speaker Cone
  • Load image into Gallery viewer, 12 inch Eminence Mick Thomson Signature Replacement Speaker Eminence Speaker Side
  • Load image into Gallery viewer, 12 inch Eminence Mick Thomson Signature Replacement Speaker Eminence Speaker Frequency Response

DV-77 12" Mick Thomson Signature Speaker

Wholesale customers, please SIGN IN to see pricing and place orders.

Introducing the DV-77 Mick Thomson Signature Speaker. Designed by Mike Smith of OMEGA and Mick Thomson of Slipknot, this speaker represents the future of Mick's signature tone. Assembled in the USA by Eminence, the DV-77 leverages a new custom-designed basket, new voice coil design, new spider design, and a carefully chosen UK made Kurt Mueller cone to deliver exceptional tone and reliability.

From the beginning, the focus of this speaker was balance, response, and a very musical tone. Delivering tight punchy lows, thick harmonically complex mid-range & detailed highs without excess fizz. Not a clone or a copy, this speaker was designed in the studio and proven on the stage. With over a year of real-world testing by Mick, the DV-77 Mick Thomson Signature Speaker is the perfect addition to your rig.

Specifications

Download Spec Sheet

SPECIFICATION
Nominal Basket Diameter 12", 304 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power N/A
Watts 70 W
Resonance 70 Hz
Usable Frequency Range 70 Hz - 5.3 kHz
Sensitivity* 100.6 dB
Magnet Weight 50 oz.
Gap Height 0.313", 7.95 mm
Voice Coil Diameter 1.75", 44 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 70 Hz
DC Resistance (Re) 6.47 Ω
Coil Inductance (Le) 0.49m H
Mechanical Q (Qms) 11.46
Electromagnetic Q (Qes) 0.45
Total Q (Qts) 0.43
Compliance Equivalent Volume (Vas) 71.19 liters / 2.51 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 41.04 cc
Mechanical Compliance of Suspension (Cms) 0.19 mm/N
BL Product (BL) 13.18 T-M
Diaphragm Mass Inc. Airload (MMs) 27 grams
Efficiency Bandwidth Product (EBP) 156
Maximum Linear Excursion (Xmax) 0.79 mm
Surface Area of Cone (Sd) 519.5 cm2
Maximum Mechanical Limit (Xlim) N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed Acceptable
Vented Acceptable
Driver Volume Displaced 0.079 cu.ft. / 2.25 liters
Overall Diameter 12.24", 310.9 mm
Baffle Hole Diameter 11.09", 281.69 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.25", 6.4mm
Mounting Holes B.C.D. 11.69", 296.93mm
Depth 5.19", 131.826 mm
Net Weight 10.4 lbs, 4.72 kg
Shipping Weight 12.1 lbs, 5.49 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Nomex former
Magnet Composition Ferrite magnet
Core Details Non-vented core

Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Paper cone edge
Dust Cap Composition Zurette dust cap

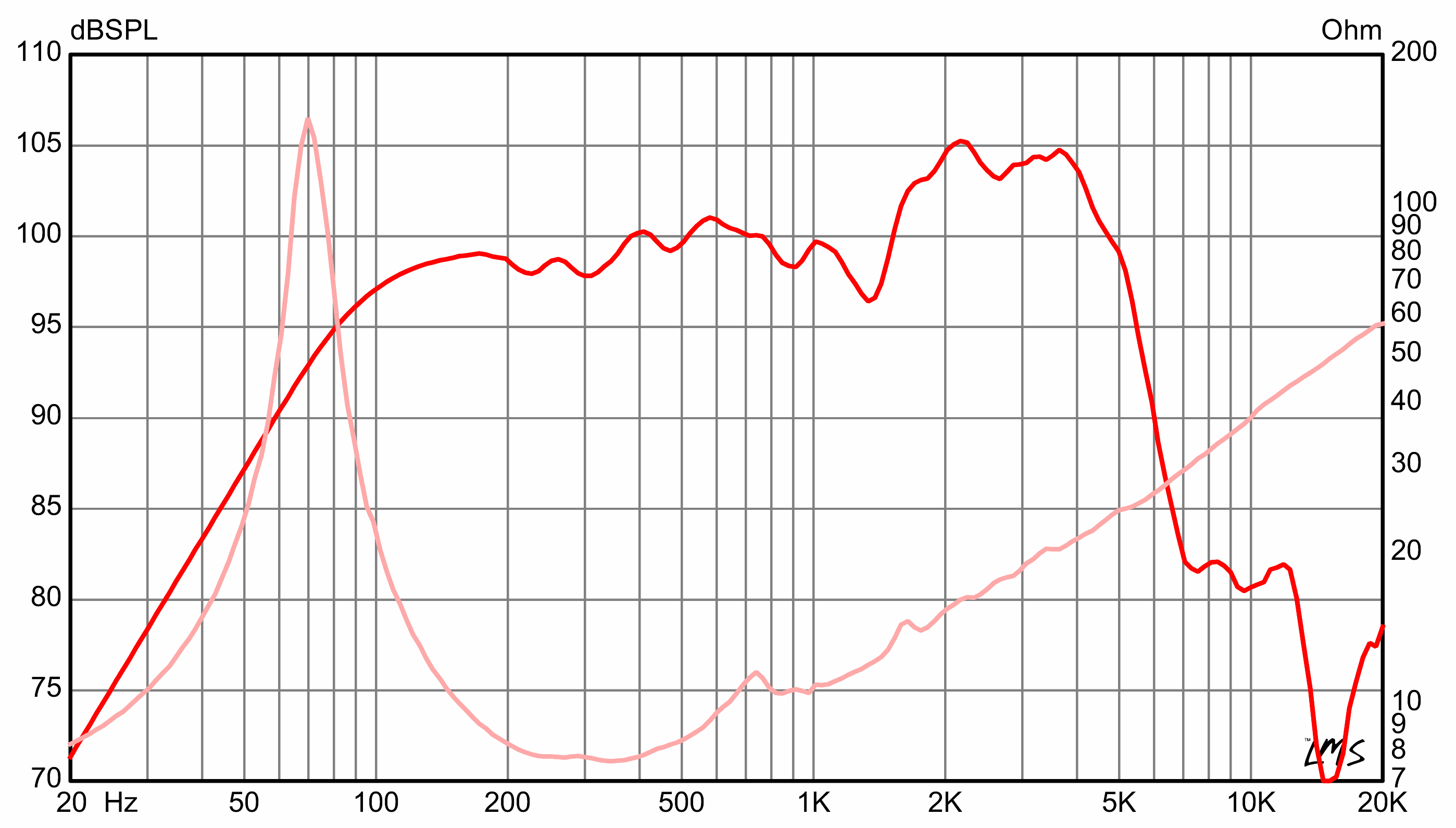

Frequency Response

response graph
