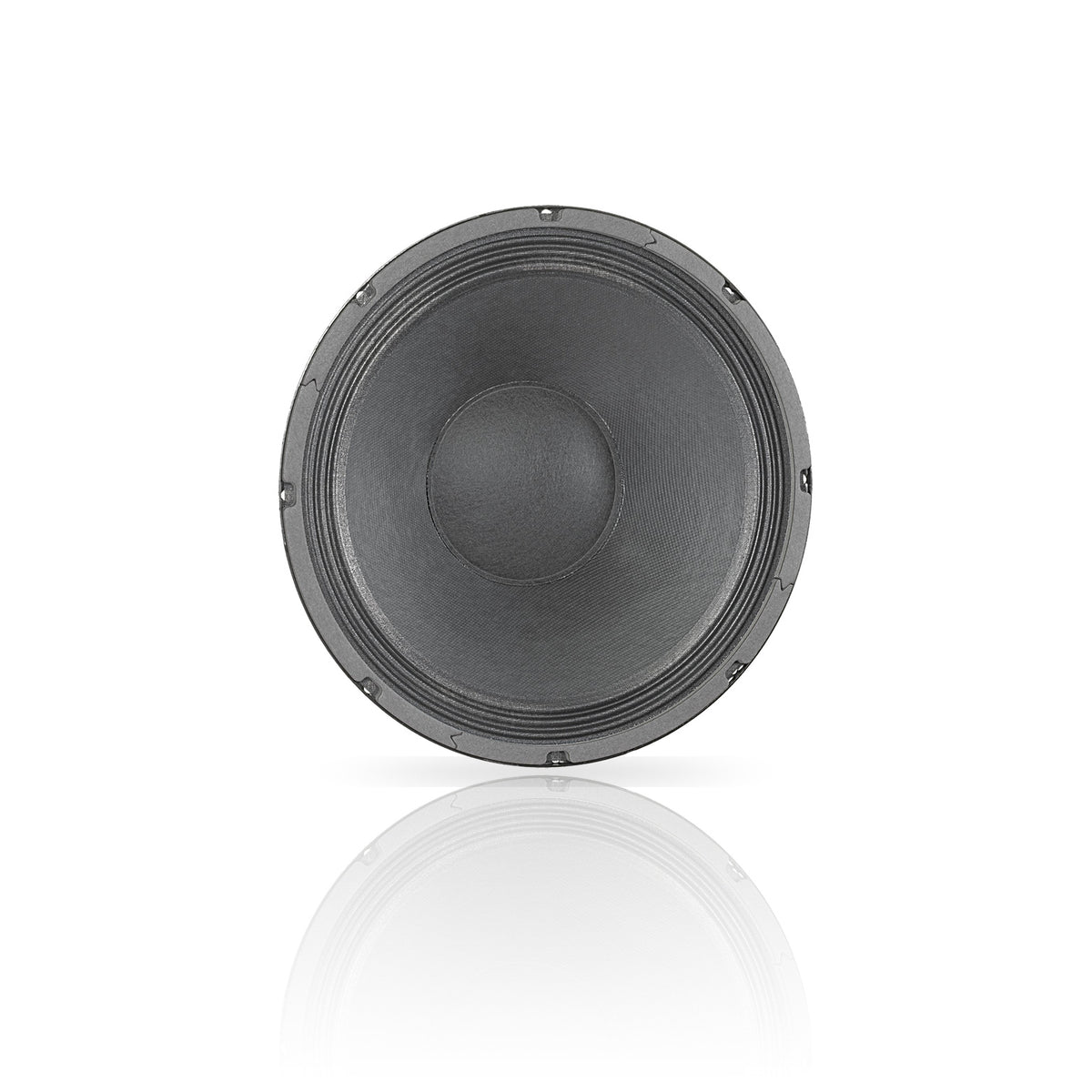

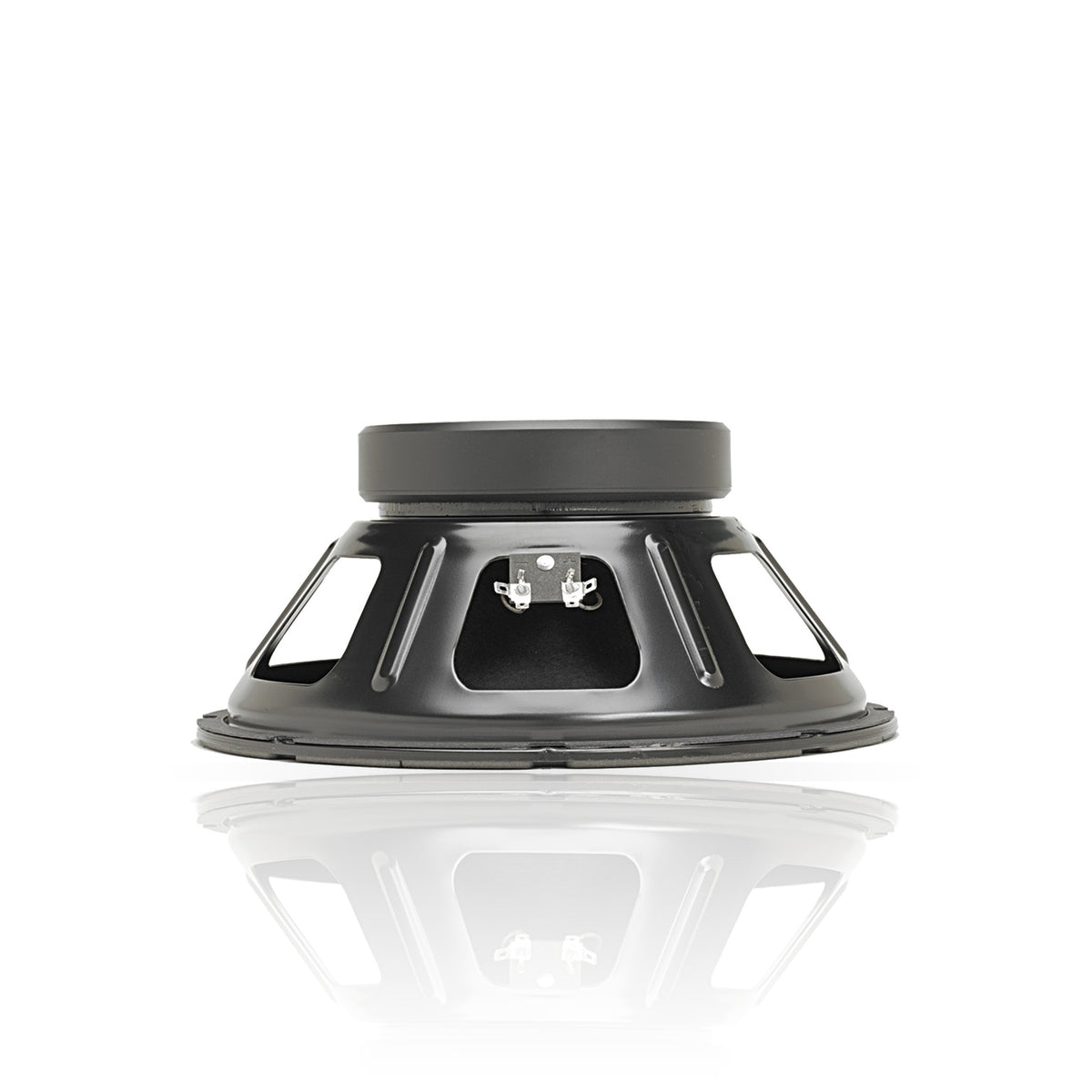

DELTA 12B 12" American Standard Series Speaker | 16-Ohms
Recommended for professional audio as a mid-bass or woofer (with high-pass filter) in vented enclosures.
Applications
Woofer | Midbass | Midrange | Pro Audio
Box Type: Vented
Specifications
Download Spec Sheet Download Cab Design| SPECIFICATION | |
| Nominal Basket Diameter | 12", 305 mm |
| Nominal Impedance* | 16 Ω |
| Power Rating* | |
| Program Power | 800 W |
| Watts | 400 W |
| Resonance | 58 Hz |
| Usable Frequency Range | 65 Hz - 5 kHz |
| Sensitivity* | 98.3 dB |
| Magnet Weight | 56 oz. |
| Gap Height | 0.375", 9.5 mm |
| Voice Coil Diameter | 2.5", 64 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 58 Hz |
| DC Resistance (Re) | 11.4 Ω |
| Coil Inductance (Le) | 0.77m H |
| Mechanical Q (Qms) | 7.04 |
| Electromagnetic Q (Qes) | 0.52 |
| Total Q (Qts) | 0.48 |
| Compliance Equivalent Volume (Vas) | 87 liters / 3.07 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 140 cc |
| Mechanical Compliance of Suspension (Cms) | 0.23 mm/N |
| BL Product (BL) | 16 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 32 grams |
| Efficiency Bandwidth Product (EBP) | 112 |
| Maximum Linear Excursion (Xmax) | 2.7 mm |
| Surface Area of Cone (Sd) | 519.5 cm2 |
| Maximum Mechanical Limit (Xlim) | 9 mm |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | 15.6-18.4 liters / 0.55-0.65 cu.ft. |
| Vented | 34-68 liters / 1.2-2.4 cu.ft. |
| Driver Volume Displaced | 0.079 cu.ft. / 2.25 liters |
| Overall Diameter | 12.03", 305.6 mm |
| Baffle Hole Diameter | 11.07", 281.2 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.25", 6.4mm |
| Mounting Holes B.C.D. | 11.59", 294.4mm |
| Depth | 5.35", 135.9 mm |
| Net Weight | 11.4 lbs, 5.17 kg |
| Shipping Weight | 13.5 lbs, 6.12 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Vented core |
| Basket Materials | Pressed steel basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Cloth cone edge |
| Dust Cap Composition | Solid composition felt dust cap |

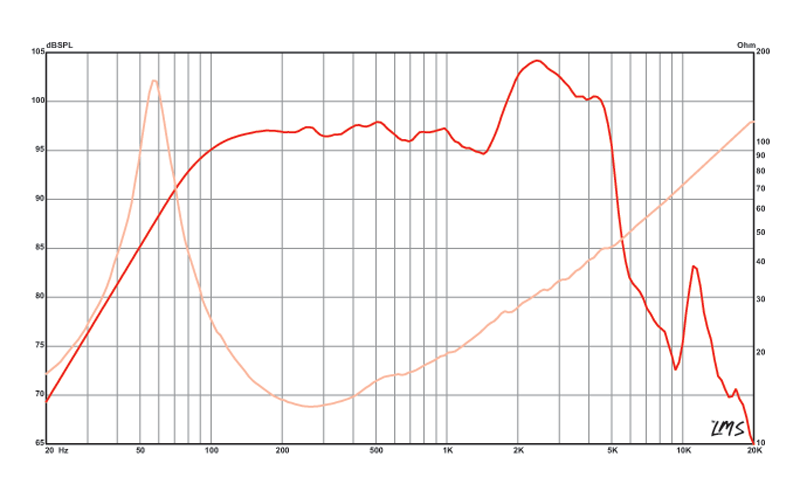

Frequency Response
