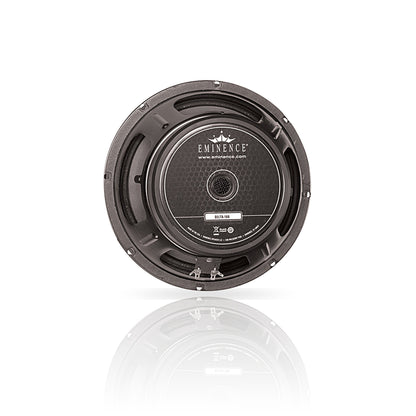

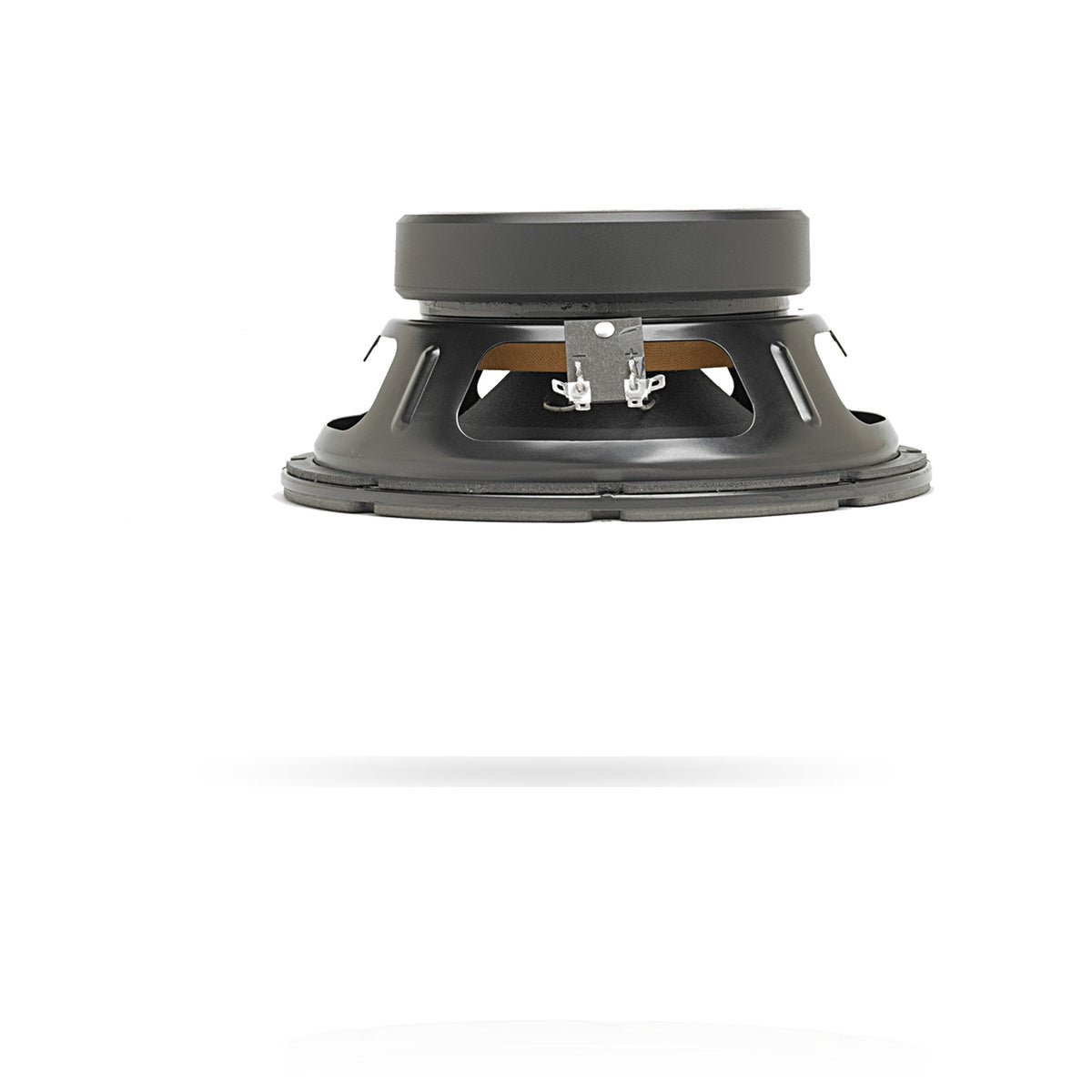

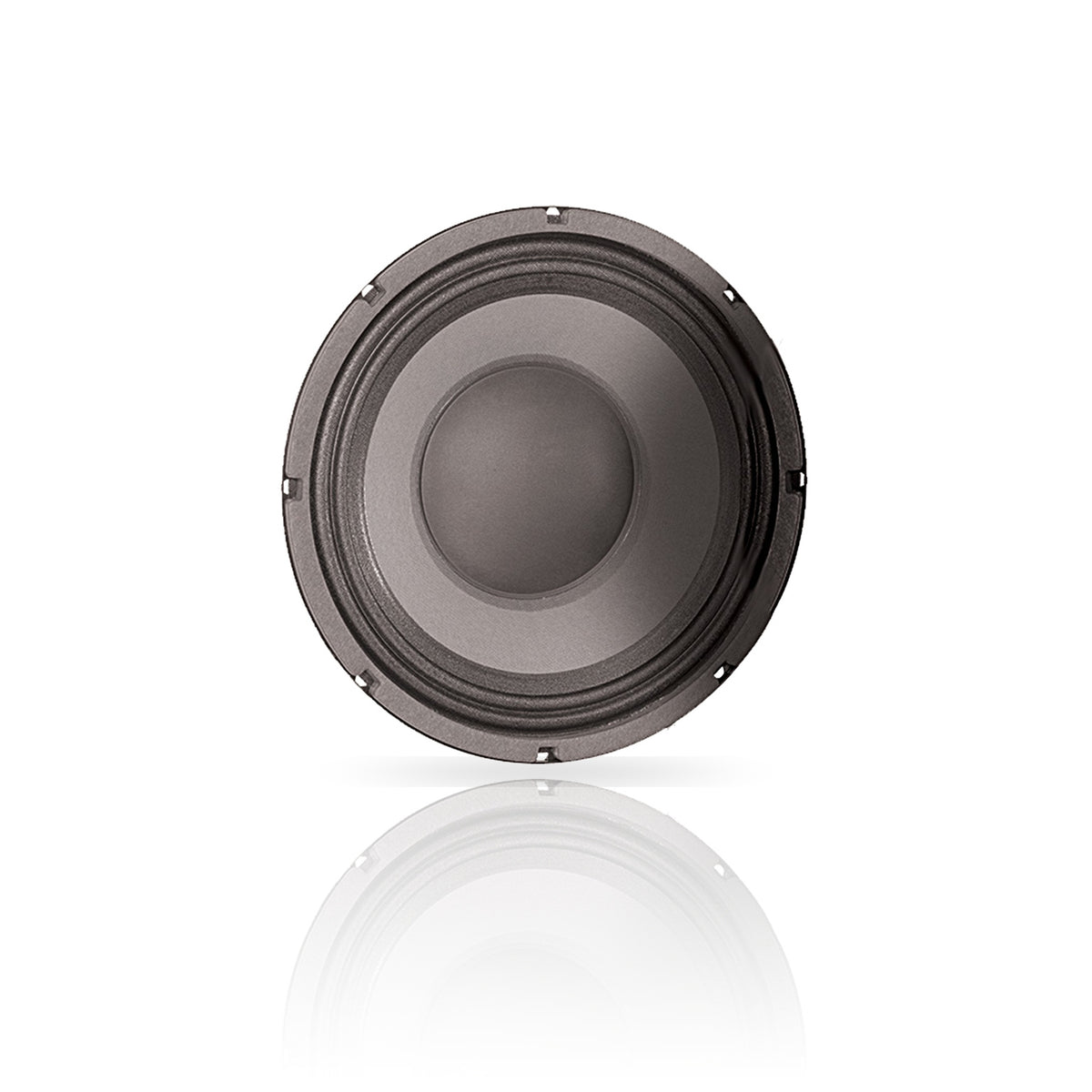

DELTA 10B 10" American Standard Series Speaker - 16-Ohms
Recommended for professional audio and bass guitar applications as a woofer/mid-bass or midrange in vented monitors, satellites and multi-way enclosures.
Applications
Woofer | Midbass | Midrange | Pro Audio | Bass Guitar
Box Type: Vented | Horn Loading
Specifications
Download Spec Sheet Download Cab Design| SPECIFICATION | |
| Nominal Basket Diameter | 10", 254 mm |
| Nominal Impedance* | 16 Ω |
| Power Rating* | |
| Program Power | 700 W |
| Watts | 350 W |
| Resonance | 65 Hz |
| Usable Frequency Range | 71 Hz - 3.7 kHz |
| Sensitivity* | 98 dB |
| Magnet Weight | 56 oz. |
| Gap Height | 0.375", 9.5 mm |
| Voice Coil Diameter | 2.5", 64 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 65 Hz |
| DC Resistance (Re) | 11.6 Ω |
| Coil Inductance (Le) | 0.79m H |
| Mechanical Q (Qms) | 8.34 |
| Electromagnetic Q (Qes) | 0.35 |
| Total Q (Qts) | 0.33 |
| Compliance Equivalent Volume (Vas) | 36 liters / 1.27 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 62 cc |
| Mechanical Compliance of Suspension (Cms) | 0.21 mm/N |
| BL Product (BL) | 19.5 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 28 grams |
| Efficiency Bandwidth Product (EBP) | 186 |
| Maximum Linear Excursion (Xmax) | 3.5 mm |
| Surface Area of Cone (Sd) | 344.9 cm2 |
| Maximum Mechanical Limit (Xlim) | 9 mm |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | 9.9-12.7 liters / 0.35-0.45 cu.ft. |
| Vented | 10.8-34 liters / 0.38-1.2 cu.ft. |
| Driver Volume Displaced | 0.05 cu.ft. / 1.42 liters |
| Overall Diameter | 10.09", 256.3 mm |
| Baffle Hole Diameter | 9.18", 233.2 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.25", 6.4mm |
| Mounting Holes B.C.D. | 9.66", 245.4mm |
| Depth | 4.25", 108 mm |
| Net Weight | 10.8 lbs, 4.9 kg |
| Shipping Weight | 12 lbs, 5.44 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Vented core |
| Basket Materials | Pressed steel basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Cloth cone edge |
| Dust Cap Composition | Solid composition paper dust cap |

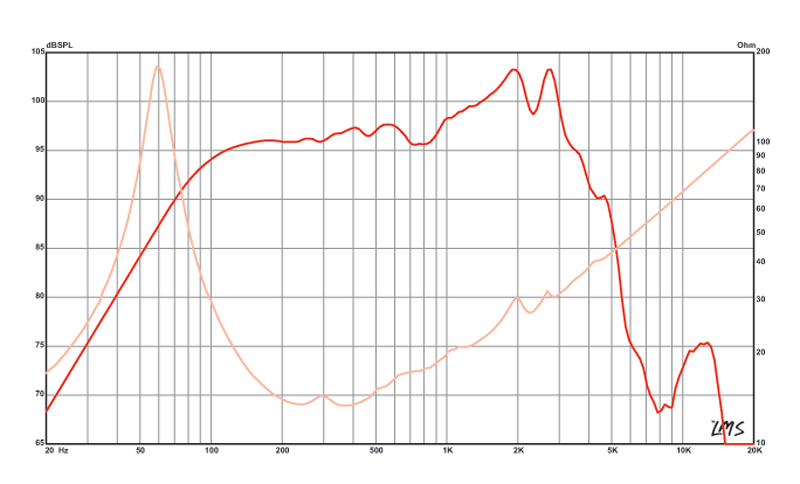

Frequency Response
