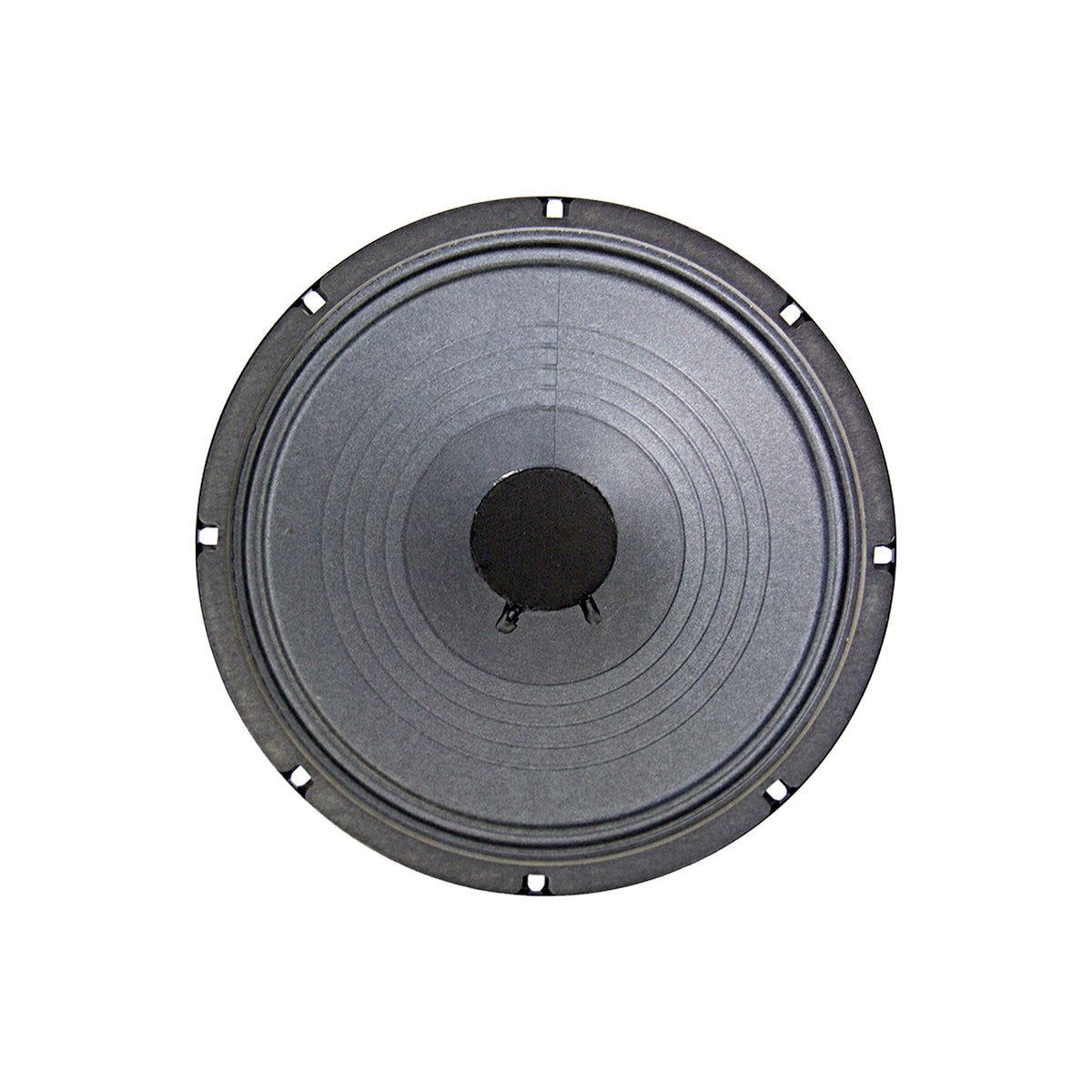

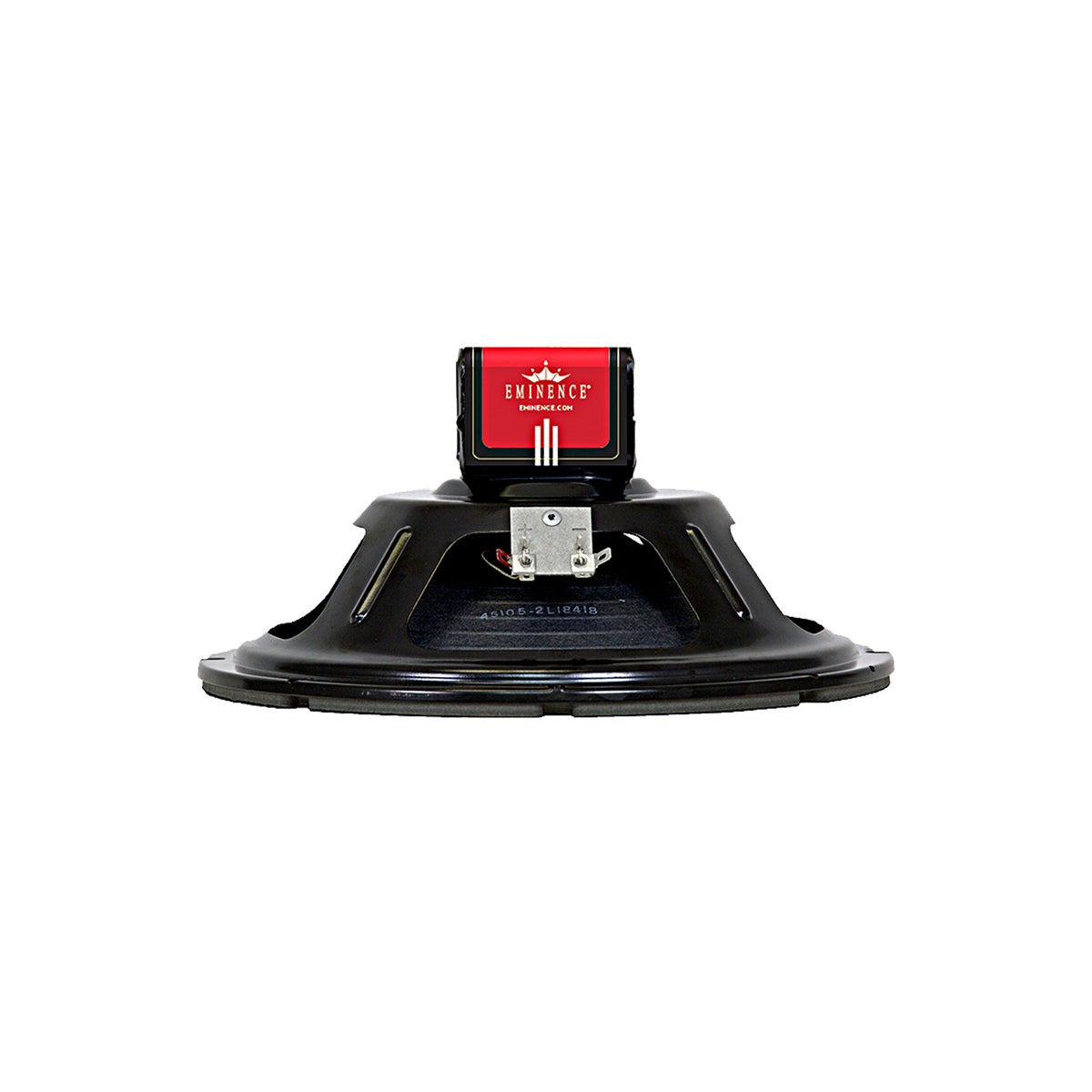

GA10-SC59 10" Signature Guitar Speaker
GA10-SC59 10" Signature Guitar Speaker
GA10-SC59 10" Signature Guitar Speaker
10 inch Eminence Signature Guitar Replacement Speaker Eminence Speaker Frequency Response
  • Load image into Gallery viewer, GA10-SC59 10" Signature Guitar Speaker
  • Load image into Gallery viewer, GA10-SC59 10" Signature Guitar Speaker
  • Load image into Gallery viewer, GA10-SC59 10" Signature Guitar Speaker
  • Load image into Gallery viewer, 10 inch Eminence Signature Guitar Replacement Speaker Eminence Speaker Frequency Response

GA10-SC59 10" Signature Guitar Speaker

Wholesale customers, please SIGN IN to see pricing and place orders.

Circa 1959 tone in a vintage American alnico magnet design approved by George Alessandro. Tight, punchy, percussive lows and top end chime with sparkle. A nice bright musical Tweed tone.

Characteristics

Series Signature
Model GA10-SC59
Application 10" Open or Closed Back
Configuration 1, 2, or 4x10"
Low End Response Moderate
Low End Shape Tight/Punchy
Mid-Range Response Moderate
Mid-Range Shape Warm
High-End Response Aggressive
Volume/Power Loud
Overall Coloration* Vintage American Alnico tone approved by George Alessandro.  Vintage tone sound circa '59, tight, punchy, percussive, and sweet, extended highs.
Break-up Modes Medium
Power Range Up to 20 watts
Instrument* Lead/Rhythm Guitar
Genre of Music* Rock, Blues, Country

Specifications

Download Spec Sheet
SPECIFICATION
Nominal Basket Diameter 10", 254 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power N/A
Watts 20 W
Resonance 102 Hz
Usable Frequency Range 100 Hz - 5.3 kHz
Sensitivity* 97 dB
Magnet Weight 6 oz.
Gap Height 0.25", 6.35 mm
Voice Coil Diameter 1", 25 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 102 Hz
DC Resistance (Re) 7.58 Ω
Coil Inductance (Le) 0.44m H
Mechanical Q (Qms) 19.66
Electromagnetic Q (Qes) 1.67
Total Q (Qts) 1.54
Compliance Equivalent Volume (Vas) 27.91 liters / 0.99 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 58.21 cc
Mechanical Compliance of Suspension (Cms) 0.15 mm/N
BL Product (BL) 6.94 T-M
Diaphragm Mass Inc. Airload (MMs) 17 grams
Efficiency Bandwidth Product (EBP) 61
Maximum Linear Excursion (Xmax) 1.59 mm
Surface Area of Cone (Sd) 366.1 cm2
Maximum Mechanical Limit (Xlim) 0 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed Acceptable
Vented Acceptable
Driver Volume Displaced 0.027 cu.ft. / 0.77 liters
Overall Diameter 10.11", 256.8 mm
Baffle Hole Diameter 9.13", 231.9 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.22", 5.6mm
Mounting Holes B.C.D. 9.6", 243.8mm
Depth 4.8", 121.9 mm
Net Weight 2.9 lbs, 1.32 kg
Shipping Weight 4 lbs, 1.81 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Paper former
Magnet Composition Alnico magnet
Core Details Non-vented core

Basket Materials Pressed steel basket
Cone Composition Full molded Paper cone
Cone Edge Composition Paper cone edge
Dust Cap Composition Solid composition felt dust cap

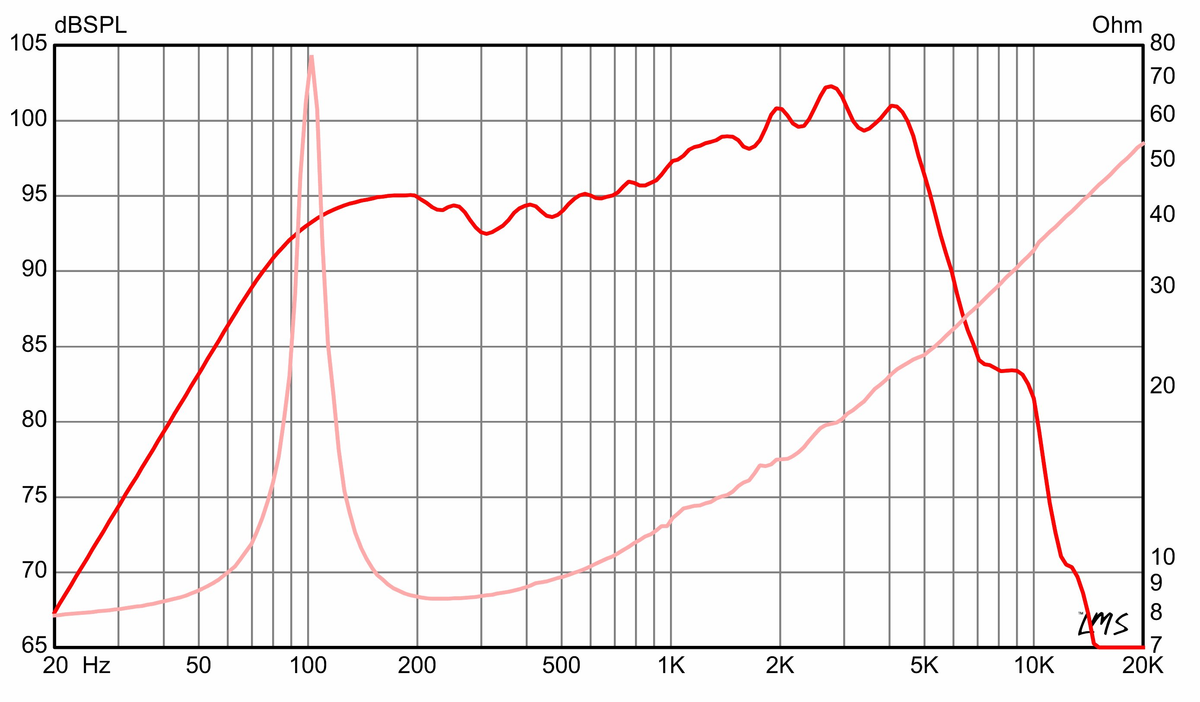

Frequency Response

response graph
