DV-77-16 12" Mick Thomson Signature Speaker 16 Ohm
DV-77-16 12" Mick Thomson Signature Speaker 16 Ohm
DV-77-16 12" Mick Thomson Signature Speaker 16 Ohm

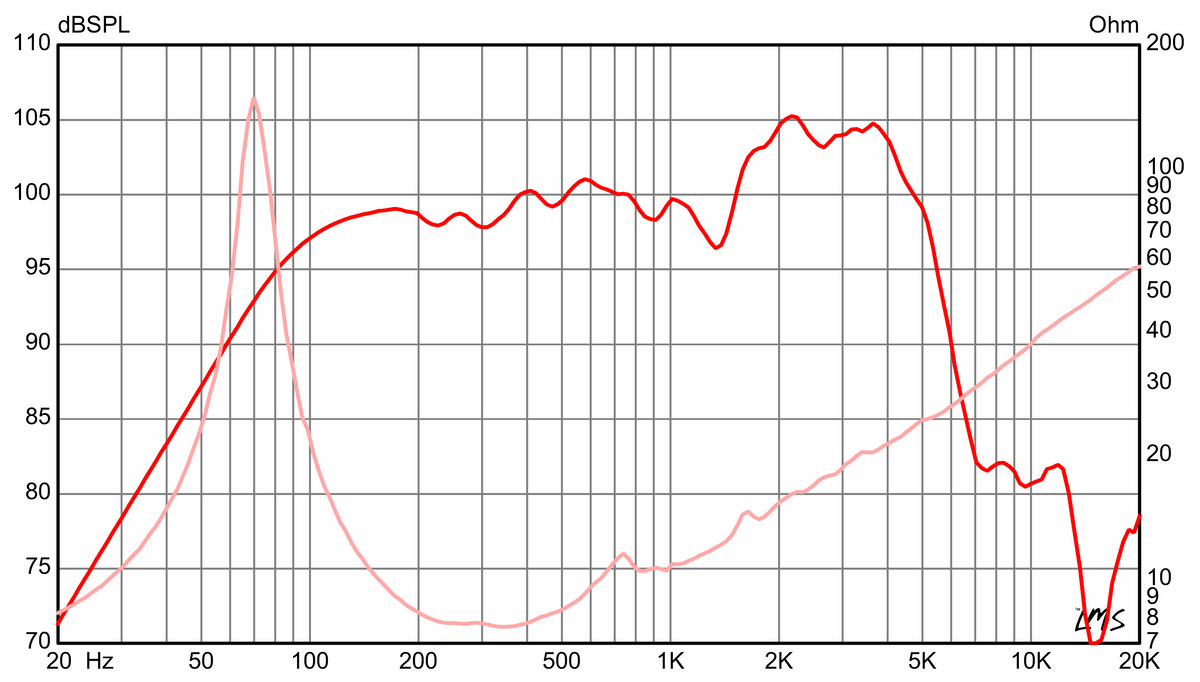

12 inch Eminence Mick Thomson Signature Replacement Speaker Eminence Speaker Frequency Response

DV-77-16 12" Mick Thomson Signature Speaker 16 Ohm

The Eminence DV-77 is a 12-inch, 70-watt Mick Thomson signature guitar speaker engineered for tight, punchy lows, harmonically rich mids, and detailed highs without excess fizz. Available in 8- and 16-ohm versions, it delivers the aggressive clarity modern rock and metal players demand.

$164.99
Shipping calculated at checkout.
Bundle It:

See It in Action

Product Details

Description

Developed with Slipknot guitarist Mick Thomson, the Eminence DV-77 is a 12-inch guitar speaker built for powerful, articulate modern tone. Tight, punchy lows provide a solid foundation, while its thick, harmonically complex midrange adds depth and aggression. Detailed, controlled highs preserve clarity without the harsh fizz often associated with high-gain rigs.

Rated at 70 watts with 100.6 dB sensitivity and a usable frequency range of 70 Hz to 5.3 kHz, the DV-77 delivers exceptional projection and musical response for stage, studio, and custom cabinet applications. Available in 8- and 16-ohm versions, it is an ideal replacement guitar speaker for metal and hard rock players seeking definition, balance, and authority.

Characteristics
Characteristics application
12" Open or Closed Back
Configuration
1, 2, or 4 x 12"
Low end response
Aggressive
High end response
Moderate
Overall coloration
Balanced and highly responsive, with tight, punchy lows, a thick and harmonically complex midrange, and detailed highs without excessive fizz.
Break up modes
Balanced
Characteristics power range

70

Instrument

Lead/Rhythm Guitar

Characteristics genre

Heavy Metal
Metalcore
Progressive Metal
Metal
Rock

Specifications
Nominal basket diameter
12", 305mm
Nominal impedance
16 Ω
Power rating program power
70 W
Power rating watts
70 W
Resonance
73 Hz
Usable frequency range
70 Hz - 5.3 kHz
Sensitivity
100.6 dB
Gap height
0.313", 8mm
Voice coil diameter
1.75", 44 mm
Thiele & Small Parameters
Resonant frequency fs
70 Hz
Materials of Construction
Voice coil former
Nomex
Magnet material
Ferrite
