Description

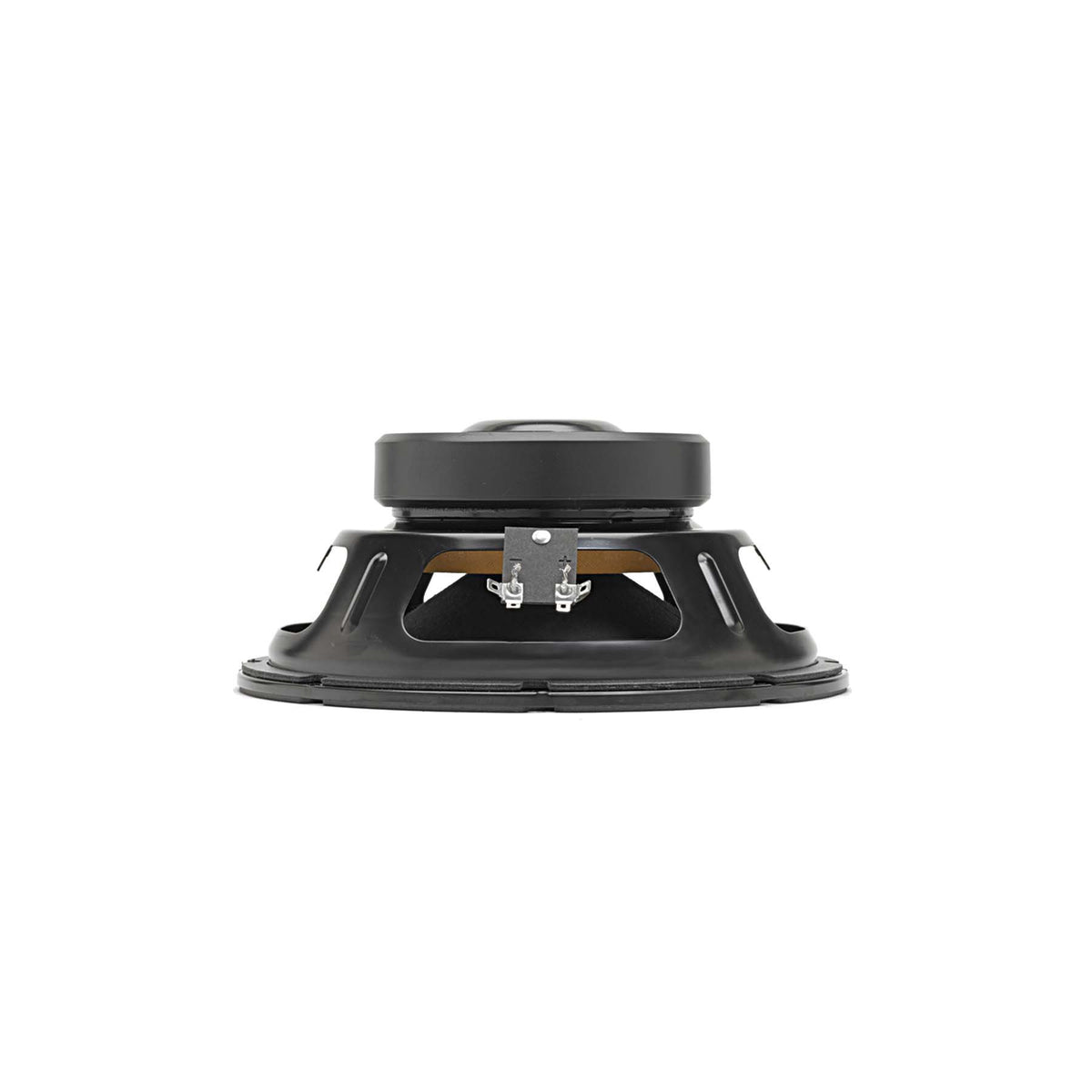

The LEGEND BP102 10" Bass Guitar Speaker is an Eminence bass guitar speaker for musicians, builders, and repair technicians seeking a purposeful replacement or new-cabinet driver. Recommended for professional bass guitar applications in a sealed or vented enclosure. Works well in single or multi driver designs. Key specifications include 200 W power handling, 8 Ω nominal impedance, 40 Hz - 2 kHz usable frequency range, 91.8 dB sensitivity.

Its construction features a ferrite magnet, a paper cone, a 2", 50 mm voice coil, supporting reliable performance in compatible cabinets and amplifiers. Use it for amplifier upgrades, custom cabinet projects, tonal experimentation, or restoring a working rig with a speaker selected for its musical response. Before installation, confirm the amplifier's impedance requirement, available mounting depth, cabinet cutout, and power compatibility. For best results, choose an enclosure and amplifier pairing appropriate for the published specifications and the desired playing style.

Specifications

Nominal basket diameter

10", 254mm

Nominal impedance

8 Ω

Power rating program power

400 W

Power rating watts

200 W

Resonance

35 Hz

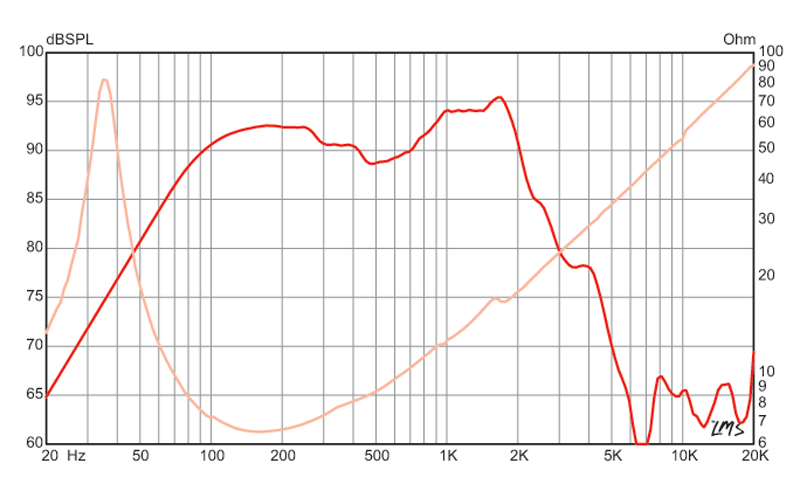

Usable frequency range

40 Hz - 2 kHz

Sensitivity

91.8 dB

Gap height

0.312", 7.9 mm

Voice coil diameter

2", 50 mm
Thiele & Small Parameters

Resonant frequency fs

35 Hz

Dc resistance re

5.59

Coil inductance le

0.83

Mechanical q qms

5.36

Electromagnetic q qes

0.47

Total q qts

0.43

Compliance equivalent volume vas

91.2 liters, 3.22 cu.ft.

Peak diaphragm displacement volume vd

207.4 cc

Mechanical compliance of suspension cms

0.54 mm/N

Bl product bl

10

Diaphragm mass inc airload mms

38

Efficiency bandwidth product ebp

75

Maximum linear excursion xmax

6.2 mm

Surface area of cone sd

334.5 cm²
Mounting Information

Recommended enclosure volume sealed

Acceptable

Recommended enclosure volume vented

Acceptable

Driver volume displaced

0.041 cu.ft. / 1.17 liters

Overall diameter

10.08", 256 mm

Baffle hole diameter

9.18", 233.2 mm

Front sealing gasket

Yes

Rear sealing gasket

Yes

Mounting holes diameter

0.25", 6.4mm

Mounting holes b c d

9.66", 245.4mm

Depth

4.25", 108 mm

Net weight

8.9 lbs, 4.04 kg

Shipping weight

9.1 lbs, 4.13 kgs
Materials of Construction

Coil construction

Edgewound copper

Voice coil former

Polyimide

Magnet material

Ferrite

Basket material

Pressed steel

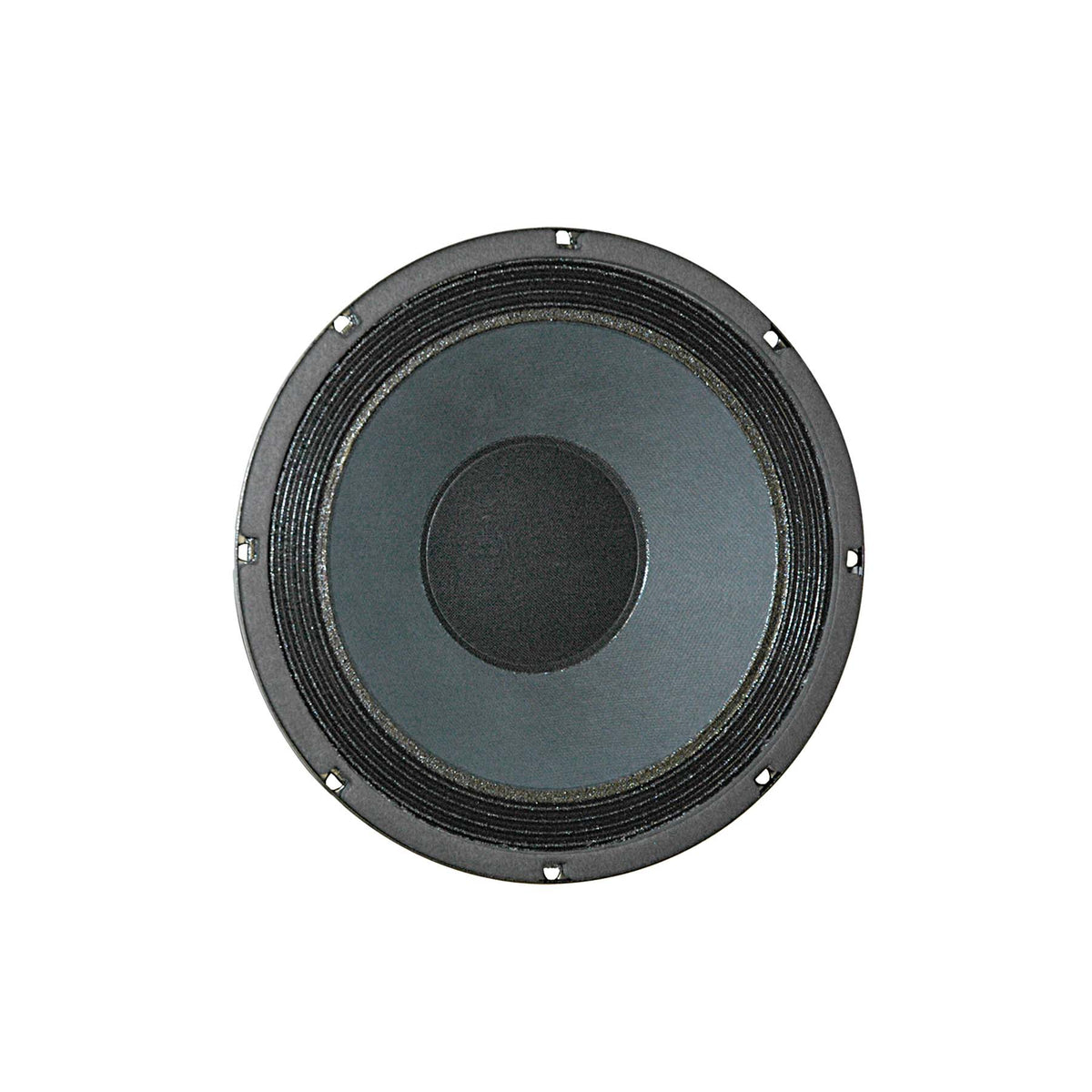

Cone composition

Paper

Surround

Cloth

Dust cap composition

Zurette
