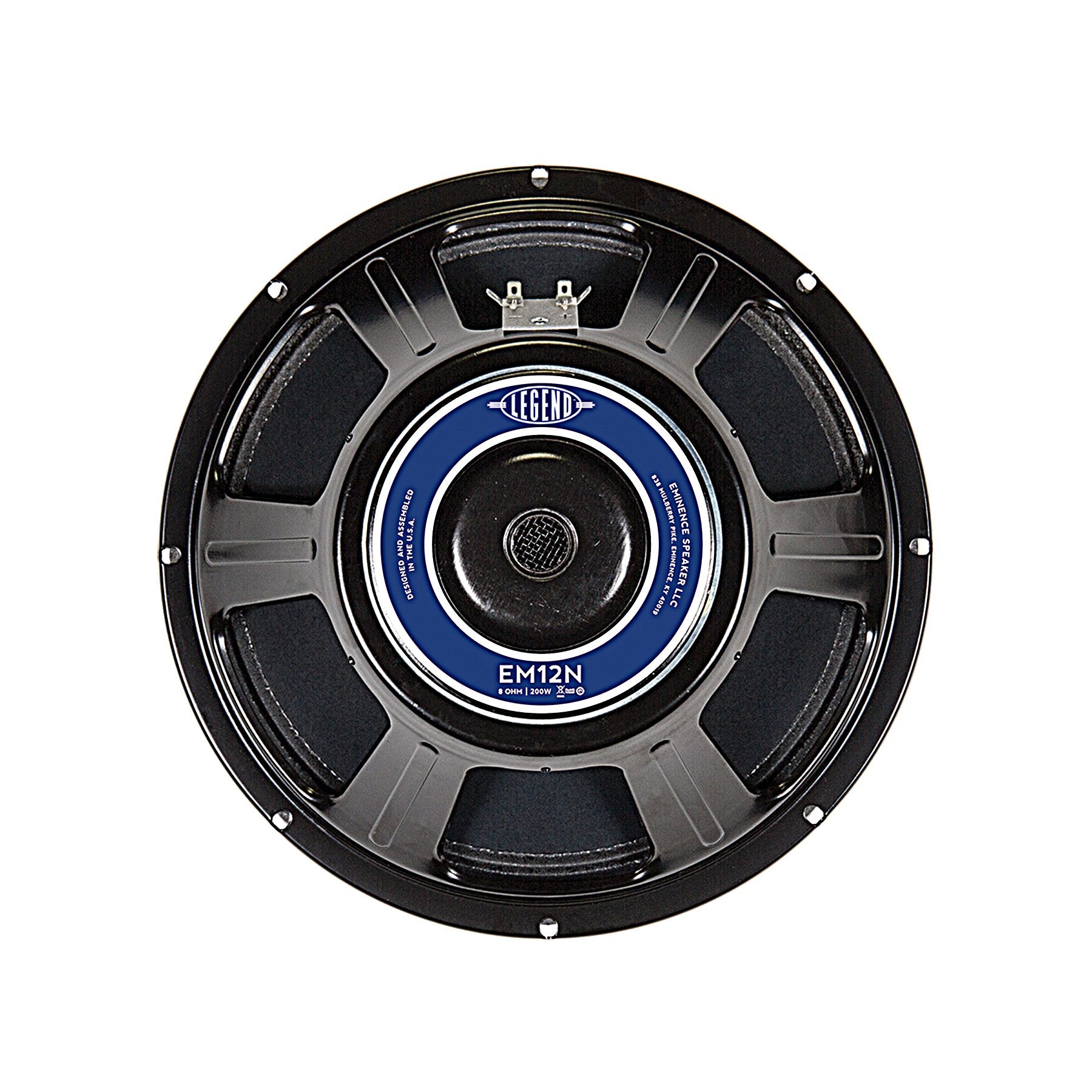

12 inch Eminence Lead / Rhythm Guitar Replacement Speaker Neodymium Eminence Speaker Basket

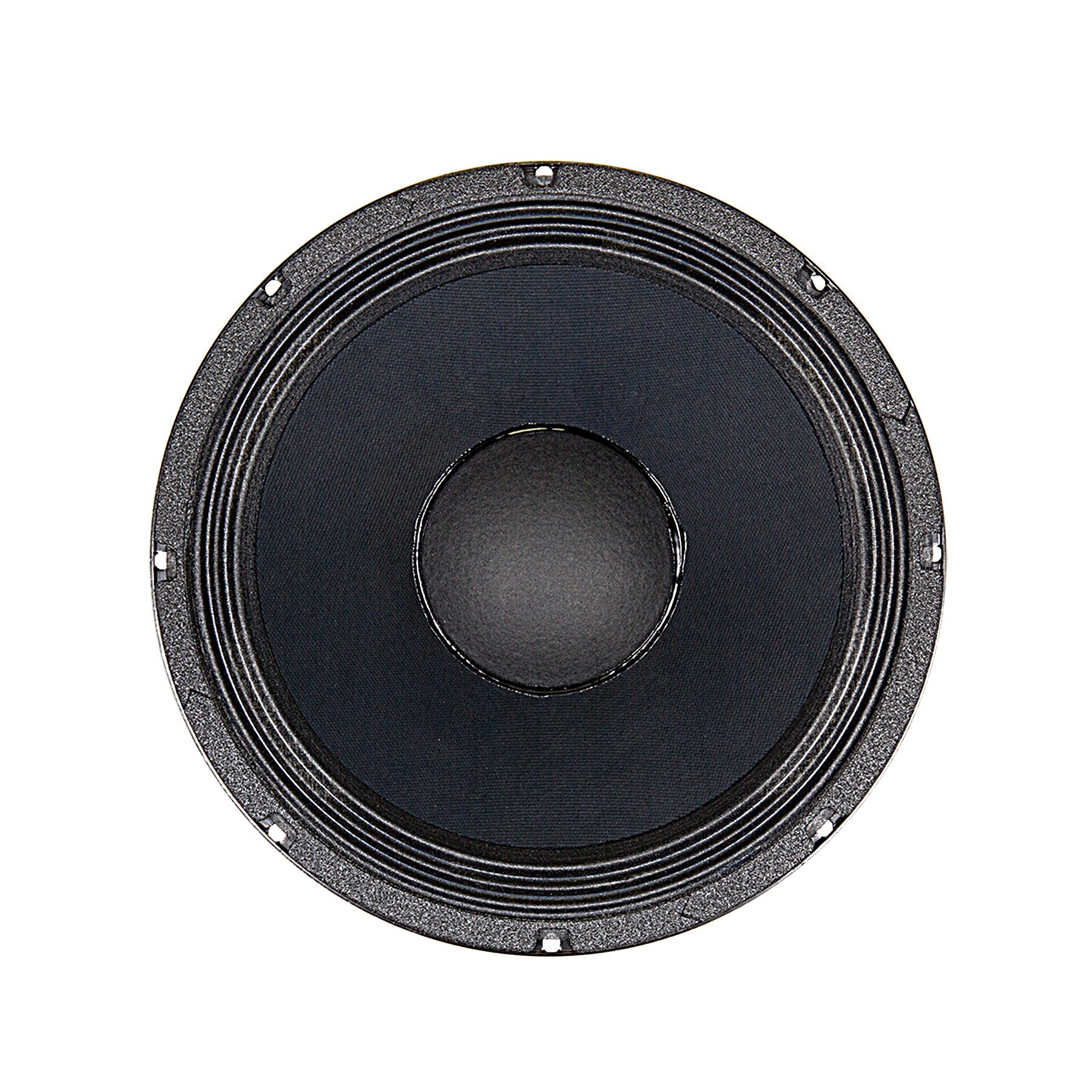

12 inch Eminence Lead / Rhythm Guitar Replacement Speaker Neodymium Eminence Speaker Cone

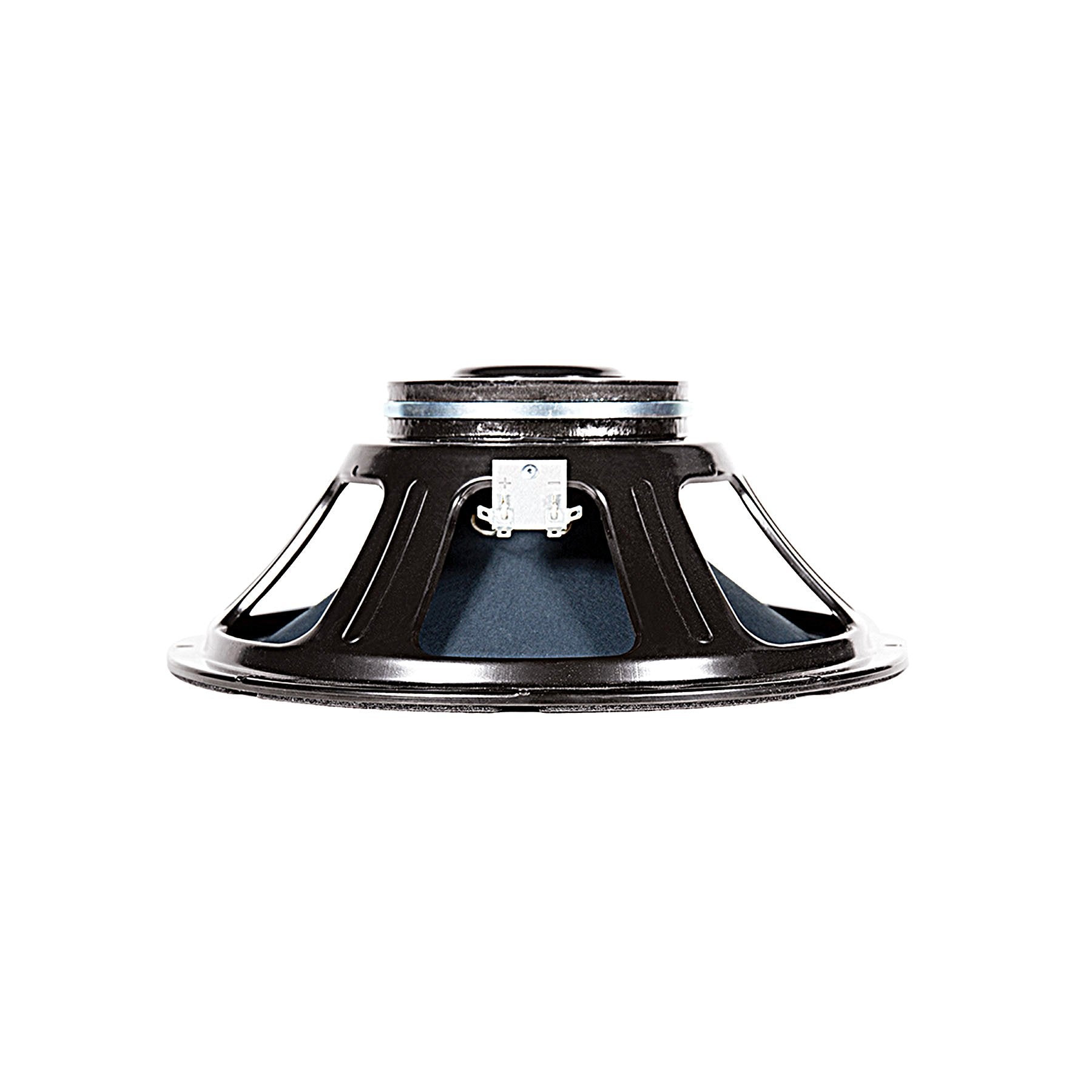

12 inch Eminence Lead / Rhythm Guitar Replacement Speaker Neodymium Eminence Speaker Side
12 inch Eminence Lead / Rhythm Guitar Replacement Speaker Neodymium Eminence Speaker Frequency Response

LEGEND EM12N 12" Lead / Rhythm Guitar Speaker Neodymium

Wholesale customers, please SIGN IN to see pricing and place orders.

New light weight version of our high power 12 inch guitar speaker featuring ultra-clean tone with big, round, punchy lows and warm, smooth mids and highs. A more neutral tone so you can hear more of your amp and guitar.

Characteristics

Series Legends
Model Legend EM12N
Application 12" Open or Closed Back
Configuration 1, 2, or 4 X 12"
Low End Response Aggressive
Low End Shape Tight
Mid-Range Response Moderate
Mid-Range Shape Warm
High-End Response Moderate
Volume/Power Louder
Overall Coloration* Lightweight, neo version of the Legend EM12.  Same neutral tone, but even tighter, more responsive, and dynamic.
Break-up Modes 0
Power Range Up to 200 watts
Instrument* Lead/Rhythm Guitar
Genre of Music* Blues, Rock, Country, Jazz, Metal

Specifications

Download Spec Sheet
SPECIFICATION
Nominal Basket Diameter 12", 305 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power N/A
Watts 200 W
Resonance 51 Hz
Usable Frequency Range 60 Hz - 4.2 kHz
Sensitivity* 99.9 dB
Magnet Weight 11 oz.
Gap Height 0.375", 9.5 mm
Voice Coil Diameter 2.5", 64 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 51 Hz
DC Resistance (Re) 7.38 Ω
Coil Inductance (Le) 0.49m H
Mechanical Q (Qms) 7.74
Electromagnetic Q (Qes) 0.35
Total Q (Qts) 0.34
Compliance Equivalent Volume (Vas) 102.31 liters / 3.61 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 118.2 cc
Mechanical Compliance of Suspension (Cms) 0.26 mm/N
BL Product (BL) 16 T-M
Diaphragm Mass Inc. Airload (MMs) 38 grams
Efficiency Bandwidth Product (EBP) 145
Maximum Linear Excursion (Xmax) 2.22 mm
Surface Area of Cone (Sd) 532.4 cm2
Maximum Mechanical Limit (Xlim) 0 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed Acceptable
Vented Acceptable
Driver Volume Displaced 0.064 cu.ft. / 1.81 liters
Overall Diameter 12.17", 309.1 mm
Baffle Hole Diameter 11.13", 282.7 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.24", 6.1mm
Mounting Holes B.C.D. 11.75", 298.5mm
Depth 5", 127 mm
Net Weight 6.6 lbs, 2.99 kg
Shipping Weight 8.7 lbs, 3.95 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Edge wound aluminum voice coil
Coil Former Polyimide former
Magnet Composition
Core Details Vented core

Basket Materials Pressed Steel
Cone Composition
Cone Edge Composition Cloth edge
Dust Cap Composition Paper dust cap


Frequency Response

response graph
