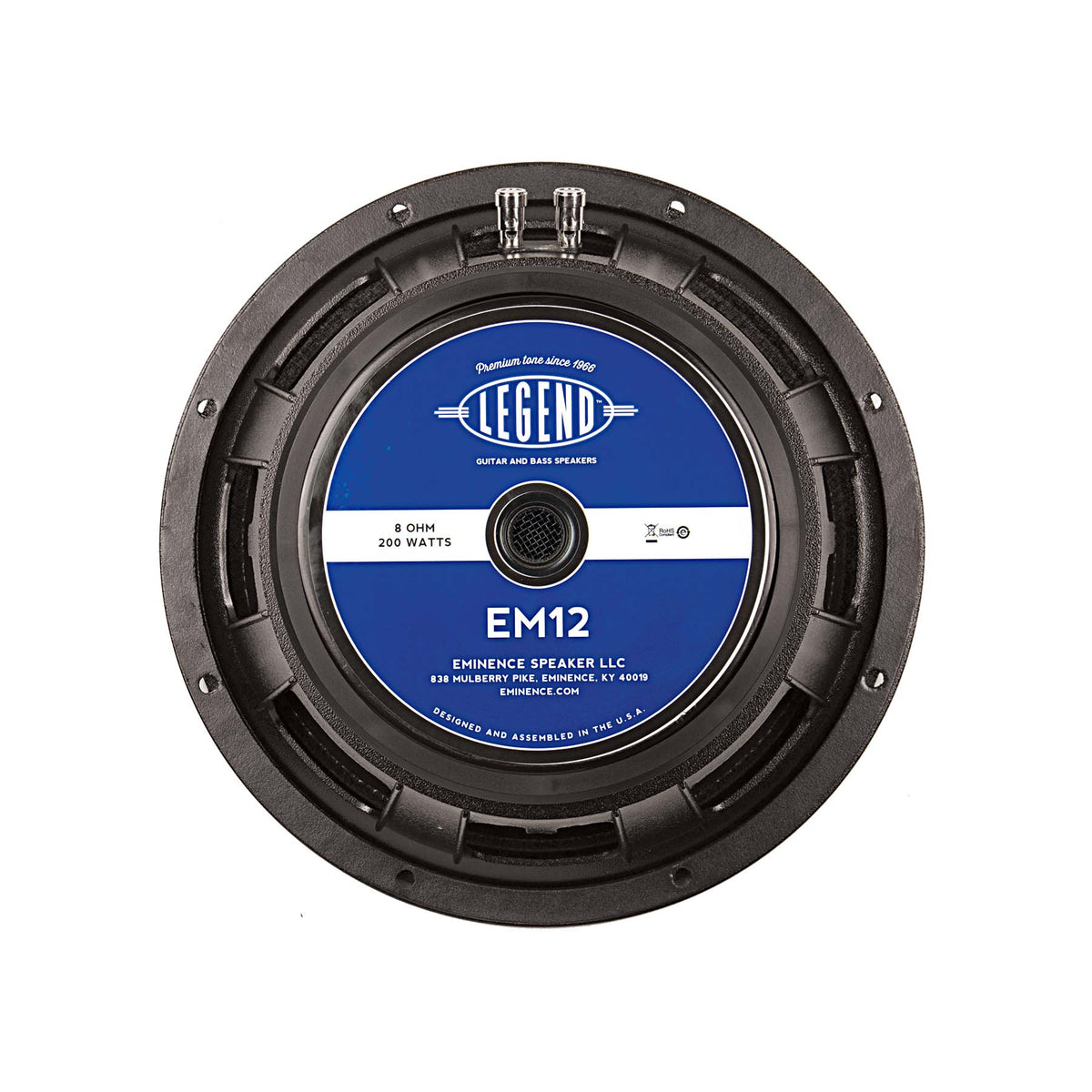

12 inch Eminence Lead / Rhythm Guitar Replacement Speaker Eminence Speaker Basket

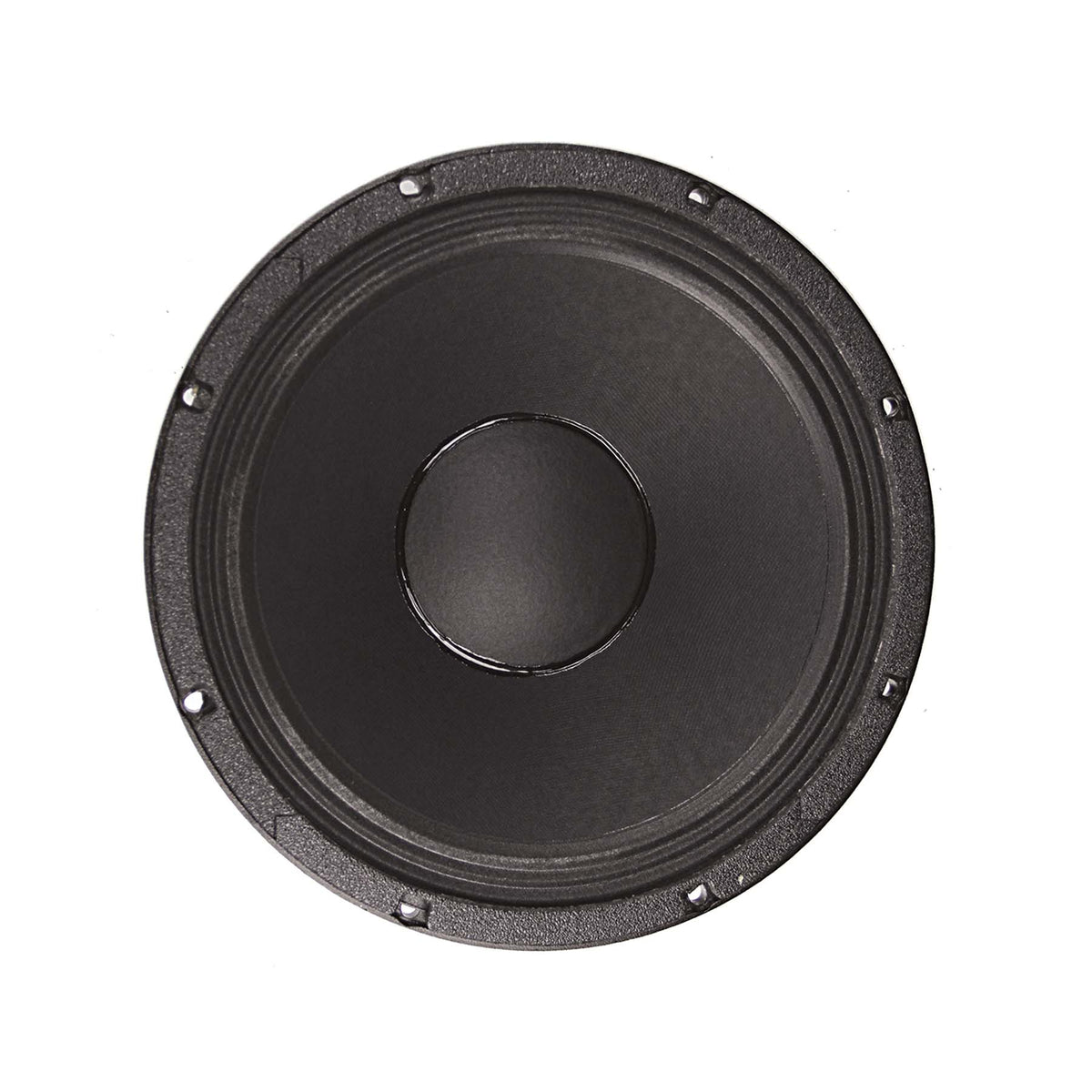

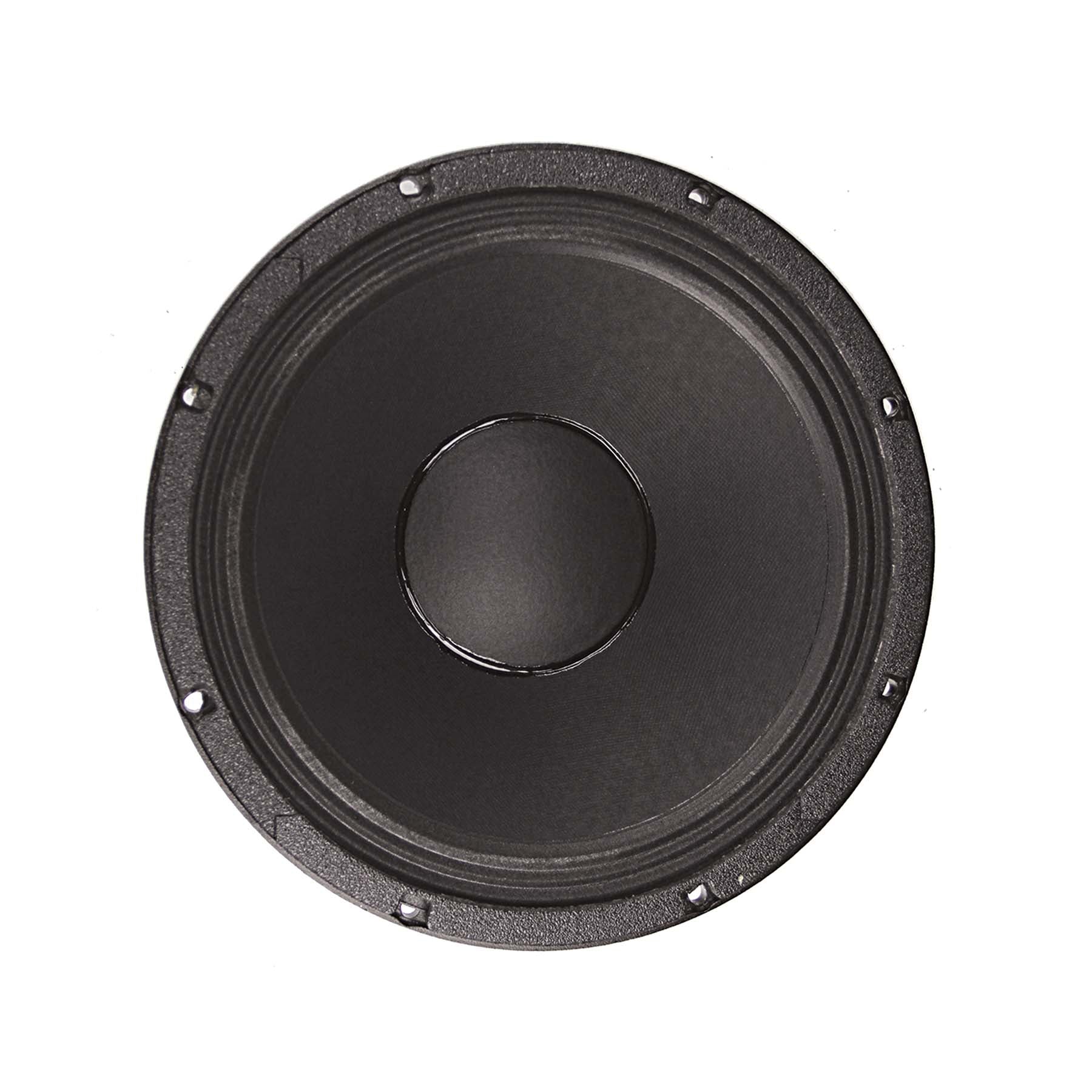

12 inch Eminence Lead / Rhythm Guitar Replacement Speaker Eminence Speaker Cone

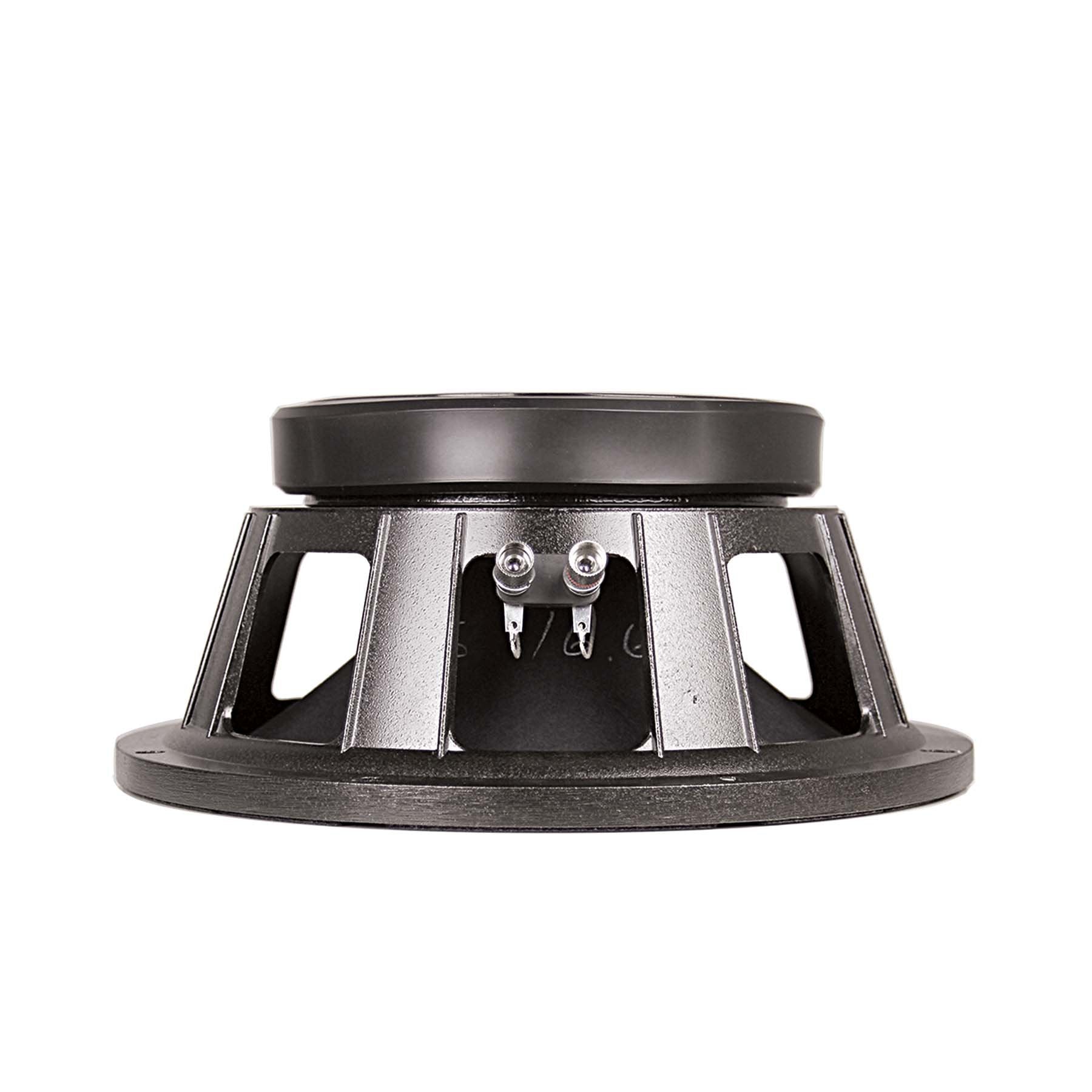

12 inch Eminence Lead / Rhythm Guitar Replacement Speaker Eminence Speaker Side
12 inch Eminence Lead / Rhythm Guitar Replacement Speaker Eminence Speaker Frequency Response

LEGEND EM12 | 12" Lead / Rhythm Guitar Speaker

Wholesale customers, please SIGN IN to see pricing and place orders.

A high power 12 inch guitar speaker featuring ultra-clean tone with big, round, punchy lows and warm, smooth mids and highs. A more neutral tone so you can hear more of your amp and guitar.

Characteristics

Series Legends
Model Legend EM12
Application 12" Open or Closed Back
Configuration 1, 2, or 4 X 12"
Low End Response Aggressive
Low End Shape Fat/Round
Mid-Range Response Moderate
Mid-Range Shape Warm
High-End Response Moderate
Volume/Power Louder
Overall Coloration* Ultra clean with big, round, punchy lows and warm, smooth mids and highs.  A more neutral tone so you can hear more of the amp and guitar.
Break-up Modes Slow
Power Range Up to 200 watts
Instrument* Lead/Rhythm Guitar
Genre of Music* Blues, Rock, Country, Jazz, Metal

Specifications

Spec Sheet
SPECIFICATION
Nominal Basket Diameter 12", 305 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power N/A
Watts 200 W
Resonance 49 Hz
Usable Frequency Range 60 Hz - 4.9 kHz
Sensitivity* 101.1 dB
Magnet Weight 80 oz.
Gap Height 0.375", 9.5 mm
Voice Coil Diameter 2.5", 64 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 49 Hz
DC Resistance (Re) 6.6 Ω
Coil Inductance (Le) 0.49m H
Mechanical Q (Qms) 7.39
Electromagnetic Q (Qes) 0.29
Total Q (Qts) 0.28
Compliance Equivalent Volume (Vas) 102.31 liters / 3.61 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 68 cc
Mechanical Compliance of Suspension (Cms) 0.26 mm/N
BL Product (BL) 16.9 T-M
Diaphragm Mass Inc. Airload (MMs) 40 grams
Efficiency Bandwidth Product (EBP) 170
Maximum Linear Excursion (Xmax) 1.27 mm
Surface Area of Cone (Sd) 532.4 cm2
Maximum Mechanical Limit (Xlim) N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed Acceptable
Vented Acceptable
Driver Volume Displaced 0.09 cu.ft. / 2.55 liters
Overall Diameter 12.38", 314.5 mm
Baffle Hole Diameter 11.07", 281.2 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.26", 6.6mm
Mounting Holes B.C.D. 11.57", 293.9mm
Depth 5.38", 136.5 mm
Net Weight 16.3 lbs, 7.39 kg
Shipping Weight 18 lbs, 8.16 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Edge wound aluminum voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented core

Basket Materials Die cast aluminum basket
Cone Composition Paper cone
Cone Edge Composition Cloth edge
Dust Cap Composition Paper dust cap

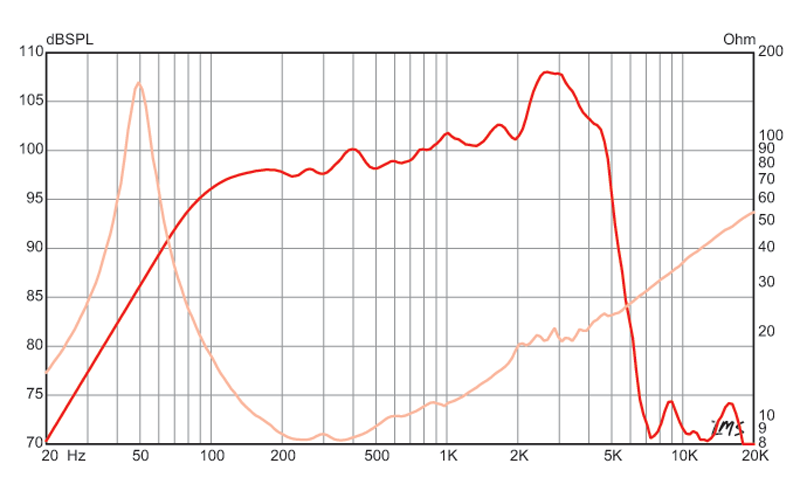

Frequency Response

response graph
